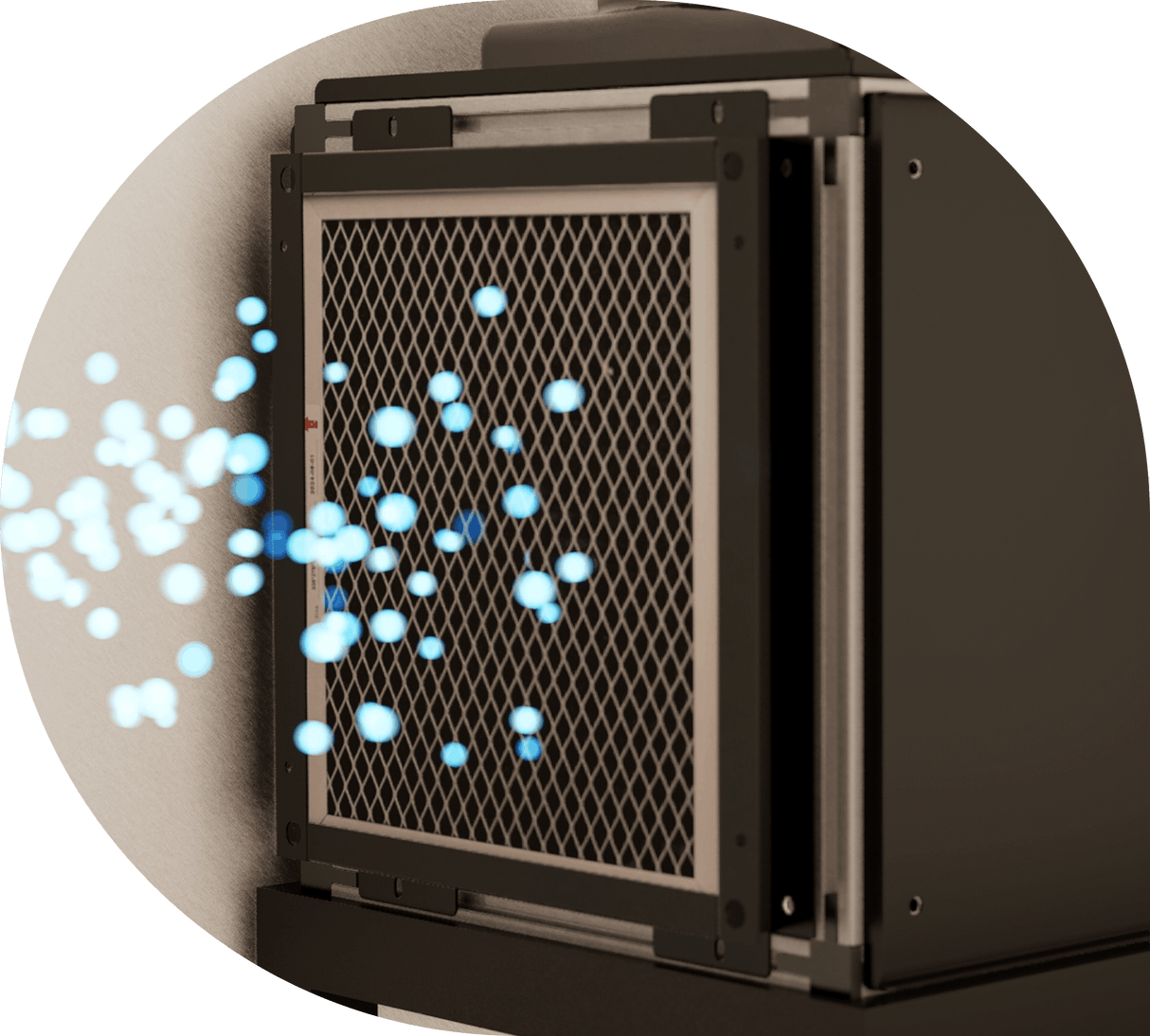

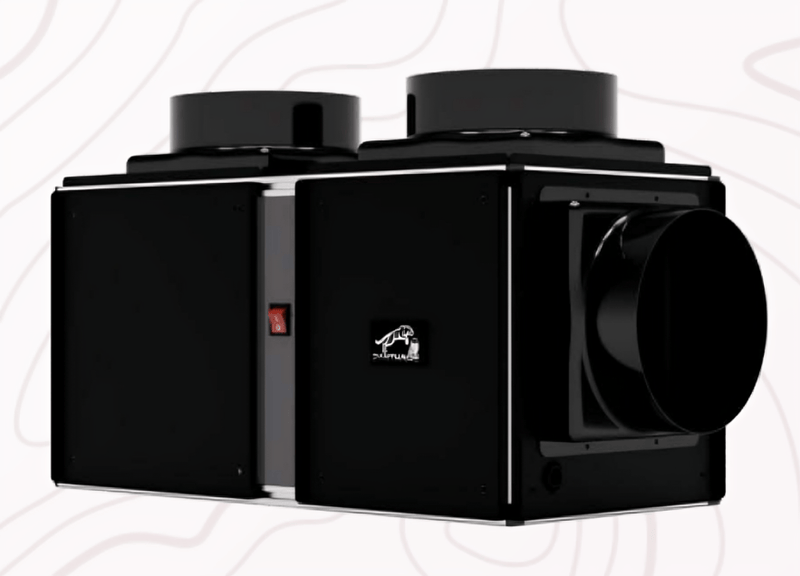

Panthaire Wine Cellar Cooling Systems APEX 5000

Professional-Grade Cooling for Mid-Size Wine Cellars

The Panthaire APEX 5000 Wine Cellar Cooling System is a high-performance, fully ducted solution engineered for properly insulated, sealed wine cellars where temperature stability, quiet operation, and long-term reliability are critical.

At Wine Cellar Authority, we recommend the APEX 5000 for collectors and designers who want dependable, professional-grade climate control without compromising the aesthetics or tranquility of the wine room. By locating the equipment outside the cellar and using ducted airflow, this system delivers consistent cooling while keeping heat, vibration, and noise away from your wine collection.

Is the Panthaire APEX 5000 Right for Your Cellar?

The APEX 5000 is designed for purpose-built wine cellars, not casual storage spaces.

Recommended for:

• Wine cellars up to 1,200 cubic feet with R20 insulation
• Fully sealed rooms with a continuous vapor barrier
• Long-term wine storage and aging
• Installations where noise must remain outside the wine room
• Custom residential cellars and boutique commercial wine rooms

Not recommended for:

• Poorly insulated or non-sealed spaces
• Passive wine storage areas
• Temporary or unconditioned rooms
• Cellars without proper ducting or installation planning

If your cellar includes glass walls, exterior-facing surfaces, or elevated ambient temperatures, our specialists can help confirm whether the APEX 5000 is properly sized for your application.

Why Choose a Fully Ducted Wine Cellar Cooling System?

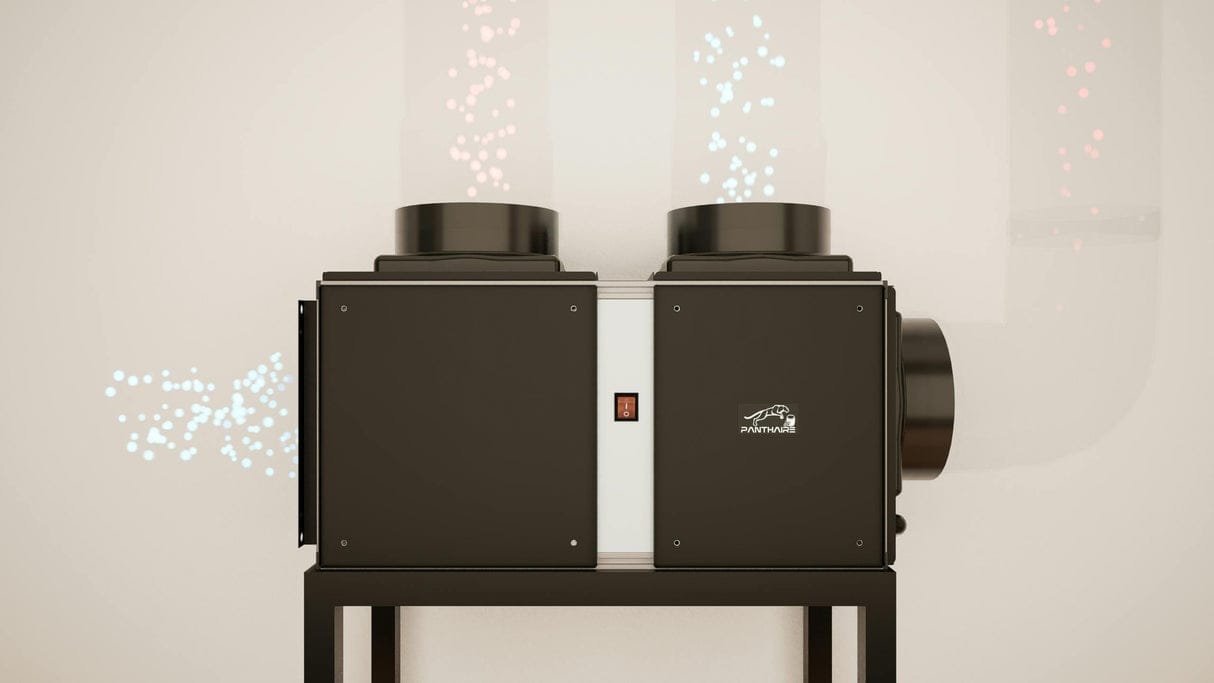

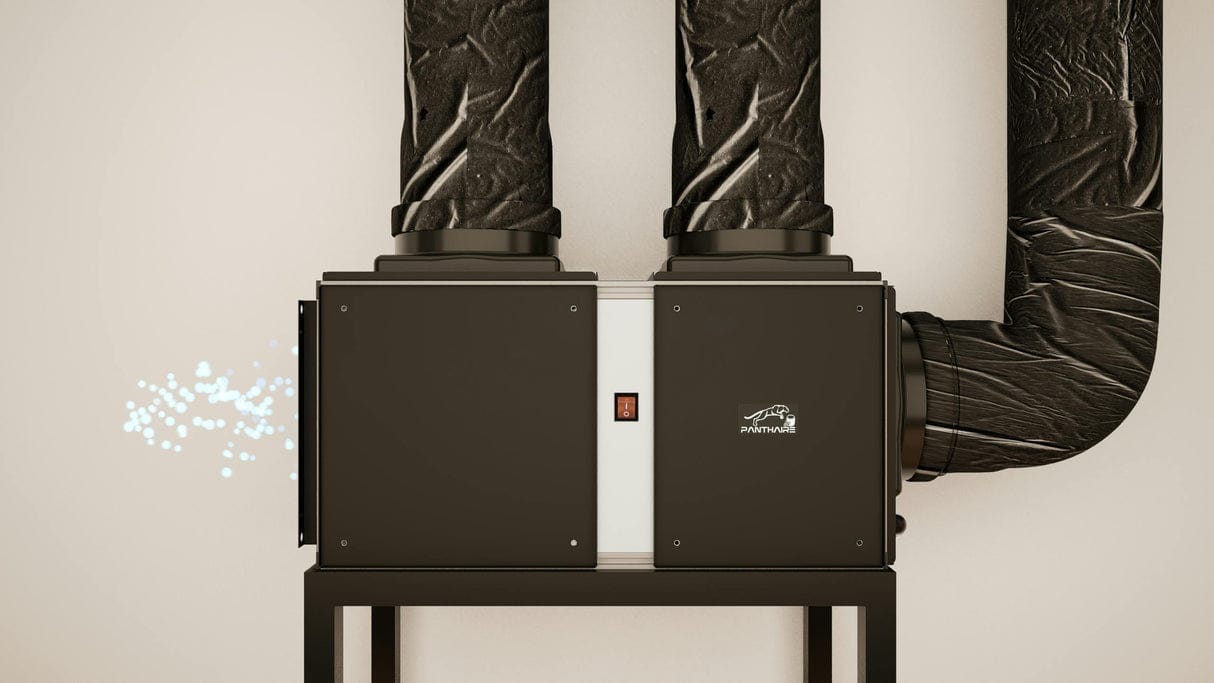

Unlike through-the-wall units, the Panthaire APEX 5000 uses a fully ducted design, allowing both warm exhaust air and operational noise to be routed away from the wine room.

Key advantages of ducted cooling include:

• A quieter, more stable cellar environment
• No visible mechanical equipment inside the wine room
• Greater design flexibility for custom cellars
• More even temperature distribution throughout the space

For collectors investing in a properly constructed wine cellar, ducted systems provide a cleaner, more refined solution that supports long-term wine preservation.

Key Features & Performance Benefits

• 4,462 BTU/h Cooling Capacity – Engineered for mid-size wine cellars built to proper insulation standards
• Optimized for R20 Insulation – Designed to perform efficiently in sealed environments
• Low-Vibration Operation – Helps protect wine sediment and supports proper aging
• Fully Ducted Configuration – Keeps heat and noise outside the wine cellar

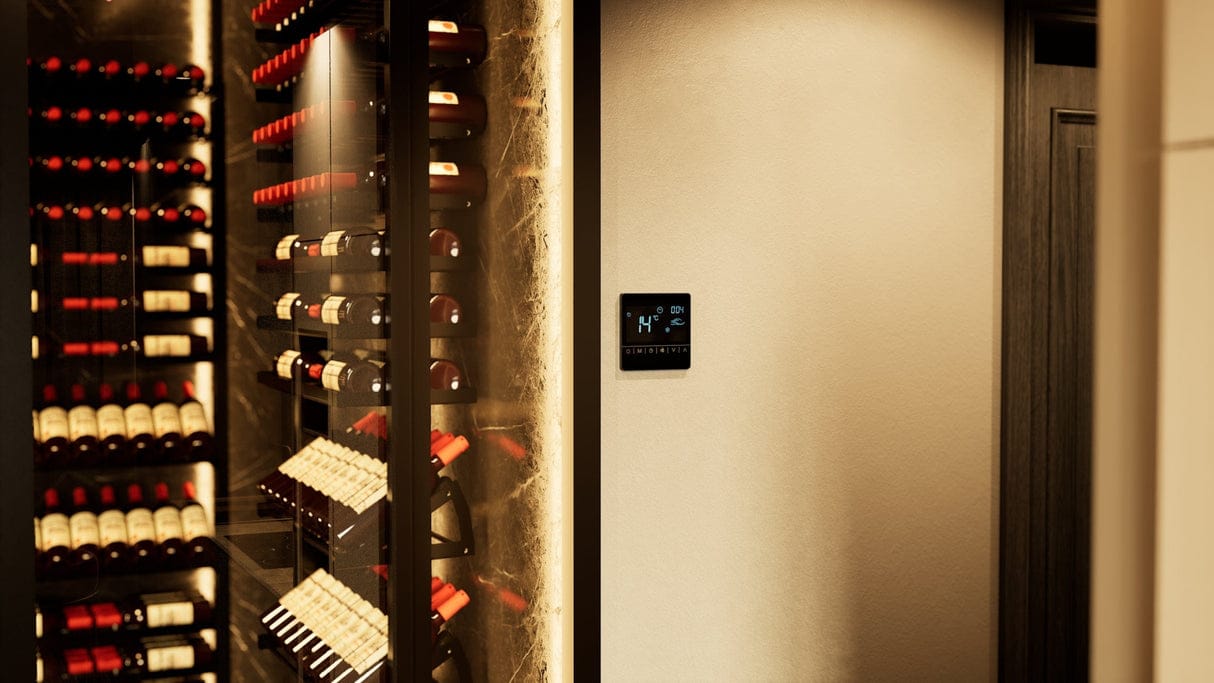

• Digital Temperature Control – Allows precise and reliable climate management
• Two-Speed Fan Operation – Balances airflow, efficiency, and cooling demand
• Environmentally Friendly R290 Refrigerant – Efficient performance with reduced environmental impact
• Designed for Professional Installation – Ideal for custom cellar projects

Installation & Sizing Considerations

Although the Panthaire APEX 5000 is rated for wine cellars up to 1,200 cubic feet with R20 insulation, actual performance depends on several important factors, including:

• Insulation quality and continuity
• Vapor barrier integrity
• Door type and sealing
• Ambient temperature outside the cellar
• Glass walls or windows

Cellars with higher heat loads may require upsizing or alternative system configurations. Wine Cellar Authority offers expert sizing and layout guidance to help ensure optimal performance before installation.

What’s Included

• Panthaire APEX 5000 cooling unit
• Digital control system
• Power connection
• User documentation
• Installation summary sheet

Specifications – Panthaire APEX 5000

• Cooling Capacity: 4,462 BTU/h
• Cellar Size (with R20 Insulation): Up to 1,200 cu. ft.
• Refrigerant: R290
• Power Supply: 115V / 60Hz, 15A
• Current Draw: 9.2 A
• Weight: 40 kg (88.2 lbs)
• Unit Dimensions (L × W × D): 33.9" × 13.8" × 13.8"
• Duct Size (Supply): 8"
• Duct Size (Return): 8"
• Maximum Duct Length: 25 ft per duct
• Airflow – Speed 1: 360 CFM
• Airflow – Speed 2: 420 CFM
• Operating Temperature Range: 50–70°F (10–25°C)
• Drain Connection: 5/8" ID
• Warranty: 2-year warranty covering parts and labor

Manuals for APEX 5000 Wine Cellar Cooling Systems of Panthaire

• Product Manual
• Technical Sheet
• User Guide
• Product Sheet
