["Can the CX3300 cool a 700 cu. ft. cellar?

No. It is rated for up to 650 cubic feet under proper construction conditions. Exceeding this size will reduce cooling performance and may lead to short cycling.

What happens if condenser intake air exceeds 85°F?

Cooling capacity decreases, compressor stress increases, and temperature stability may be affected. Intake air should remain at or below 85°F for rated performance.

Does this unit require a dedicated electrical circuit?

Yes. A 115V 20 amp dedicated circuit is required. Shared circuits may cause operational issues or warranty concerns.

It operates at approximately 63–64 dBA, similar to normal conversation. It is audible and not considered silent.

Can I vent the condenser into a small closet?

No. The condenser requires proper ventilation. Trapped exhaust air will reduce performance and may cause overheating.

Does this unit control humidity?

It supports humidity stability in a properly sealed cellar but does not actively humidify. Structural sealing is required.

What voids the warranty?

Improper installation, operation outside ambient limits, lack of ventilation, or failure to use a dedicated circuit may affect warranty coverage."]

1 2

Bestseller

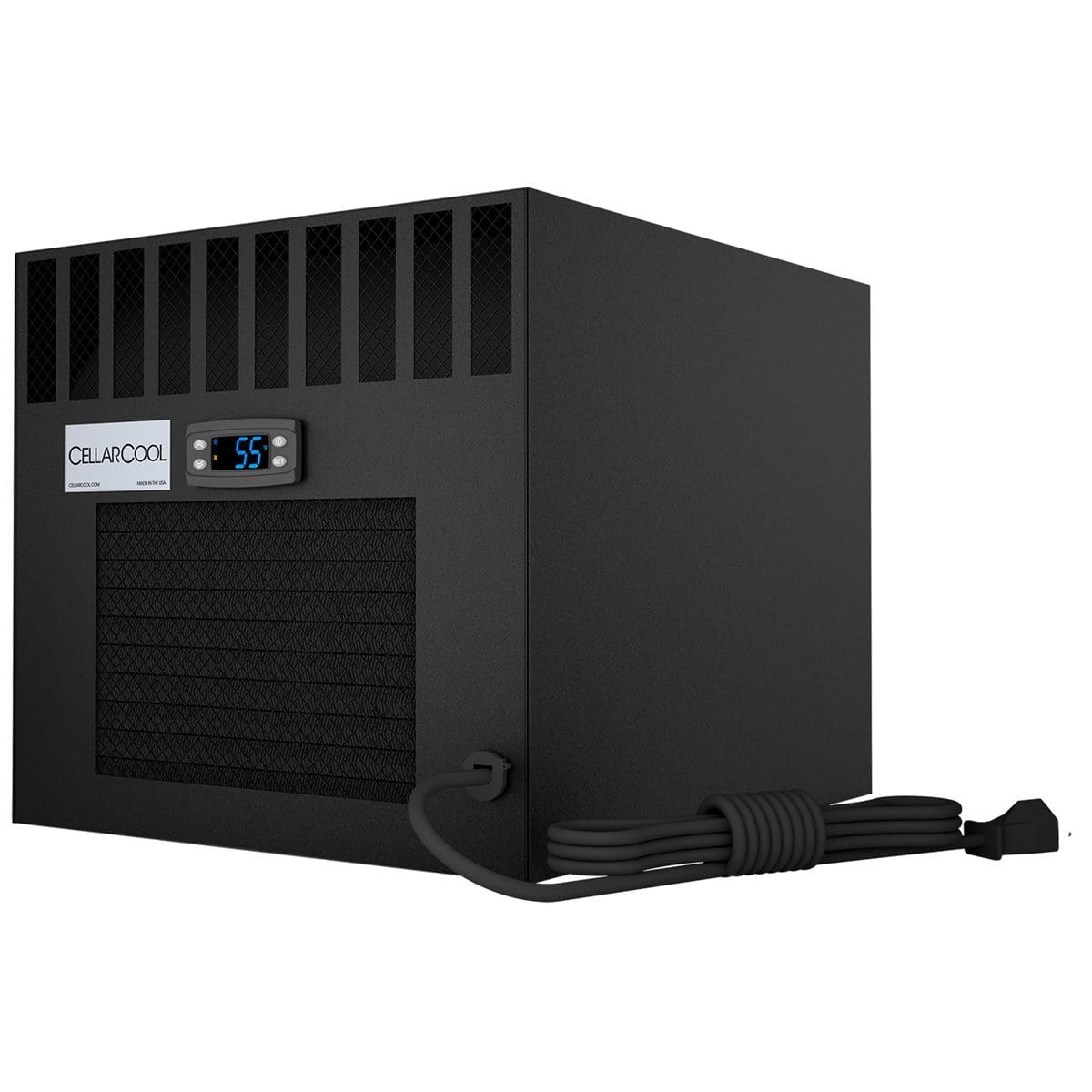

CellarCool CX3300 Wine Cellar Cooling Unit

CellarCool | SKU: U-WKCX3300-115-FC-2

CellarCool Authorized Dealer | Wine Cellar Authority

FREE SHIPPING in the Continental US on most orders

$2,389.00 USD

Shipping calculated at checkout.

Please Choose Power Cord

FRONT POWER CORD REAR POWER CORD

In Stock & Ready to Ship

Estimated Delivery in 3-7 business days

Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Through-the-Wall Cooling for Properly Constructed Wine Cellars Up to 650 Cu. Ft.

The CellarCool CX3300 is a self-contained, through-the-wall wine cellar cooling system designed for fully insulated, vapor-barrier-sealed wine cellars up to 650 cubic feet.

It delivers 2049 BTUh of cooling capacity (rated with 85°F condenser intake air) and is engineered to maintain stable 55°F storage conditions when installed correctly.

This unit will not compensate for structural deficiencies, insulation gaps, or excessive ambient heat.

Reminder: The CellarCool CX Series Wine Cooling Unit CX3300 requires the area it is releasing or exhausting its hot air doesn't exceed 85°F for your wine cellar to be at 55°F.

Available in CX2200 for 265 cu.ft wine cellar, CX3300 for 650 cu.ft wine cellar, CX4400 for 1000 cu.ft wine cellar, CX8800 for 2000 cu.ft wine cellar

Quick Suitability Check

This unit is appropriate if:

Your cellar is 650 cu. ft. or smaller
Walls and ceiling are fully insulated
A continuous vapor barrier is installed
Condenser intake air does not exceed 85°F
You have a 115V dedicated 20 amp circuit
Rear exhaust air can be properly ventilated

If any of the above are not true, performance may be reduced.

Who This Unit Is Designed For

The CX3300 is best suited for:

Medium-sized residential wine rooms
Retrofits where through-the-wall installation is preferred
Installations with accessible rear exhaust ventilation
Environments with stable ambient conditions

Who Should Not Use This Unit

This model is not appropriate when:

The cellar exceeds 650 cu. ft.
The room has extensive glass exposure
Ceiling height significantly increases cubic volume
Insulation is incomplete or below recommended R-values
The condenser exhaust area traps heat
Ultra-quiet operation is required in living spaces

In these cases, a larger unit or split system may be more appropriate.

Technical Specifications

Specification	Value	Practical Meaning
Maximum Cellar Size	Up to 650 cu. ft.	Assumes proper insulation & vapor barrier
Cooling Capacity	2049 BTUh @ 85°F intake	Maintains 55°F under rated conditions
Airflow	126 CFM	Balanced air circulation for medium cellars
Horsepower	0.8 HP	Residential-grade performance
Voltage	115V (20A dedicated circuit required)	Must be pre-wired
Running Amps	4.9A	Efficient steady operation
Noise Level	63 dBA (evap) / 64 dBA (cond)	Audible; similar to conversation level
Dimensions (W × H × D)	14.25” × 19.75” × 21.63”	Framed wall cut-out required
Weight	66 lbs	Two-person installation recommended
Refrigerant	R-134a	Industry standard refrigerant
Drain Line	3/8” rear condensate	Must be routed properly
Installation Type	Through-the-wall, partially ducted	Rear exhaust required
Thermostat	Advanced digital display	Precision temperature control
Temperature Delta	Maintains 55°F with up to 85°F condenser intake	Performance depends on ambient limits
Warranty	2-Year Parts & Labor / 5-Year Compressor	Manufacturer-backed coverage

Manuals for CellarCool CX3300

What “Up to 650 Cu. Ft.” Actually Assumes

The rated capacity assumes:

Minimum R-13 wall insulation
Minimum R-19 ceiling insulation
Continuous vapor barrier
Sealed door with weather stripping
Limited glass exposure
Ambient condenser intake ≤ 85°F

If your cellar includes:

Floor-to-ceiling glass
High ceilings
Excessive lighting heat load
Frequent door opening
Poor ventilation

Effective cooling capacity will decrease.

Temperature Performance

The CX3300 can maintain a 55°F cellar temperature when condenser intake air is 85°F or below.

If condenser intake air exceeds 85°F:

Cooling efficiency decreases
Compressor strain increases
Temperature stability may decline

Adequate rear ventilation is critical.

Installation Requirements

The CX3300 is designed for through-the-wall installation with rear exhaust.

Required:

Framed wall opening
Proper rear exhaust ventilation
Dedicated 115V 20A circuit
3/8” condensate drainage
Mechanical space that does not recirculate hot air

Improper installation commonly causes:

Short cycling
Excess noise
Overheating
Premature compressor failure

Professional installation is strongly recommended.

Noise Expectations

Rated at:

63 dBA (evaporator side)
64 dBA (condenser side)

This is similar to normal conversation. It is audible and not silent.

For wine rooms adjacent to living spaces, acoustic planning should be considered.

Humidity Support

The CX3300 helps maintain stable humidity only when the cellar is properly sealed.

It does not actively humidify and will not correct:

Air leakage
Missing vapor barriers
Structural humidity loss

What Reduces Performance

The unit will struggle if:

Insulation is below recommended R-values
Vapor barrier is incomplete
Condenser intake exceeds 85°F
Exhaust air is trapped in enclosed space
Cellar size exceeds rating

Wine cooling systems preserve controlled environments — they do not fix construction defects.

Maintenance Requirements

To maintain performance:

Clean intake filters regularly
Inspect rear ventilation area
Ensure condensate drain remains clear
Schedule annual inspection

Neglected maintenance increases compressor wear and reduces lifespan.

Warranty Coverage

2 Years Parts & Labor
5 Years Compressor Coverage

Warranty requires:

Proper installation
Operation within ambient limits
Dedicated circuit compliance

Final Recommendation

The CellarCool CX3300 is a reliable through-the-wall cooling solution for properly constructed wine cellars up to 650 cubic feet.

Its performance depends on:

Correct sizing
Adequate insulation
Vapor barrier integrity
Proper ventilation
Electrical compliance

If you are uncertain whether your cellar meets these conditions, a load calculation should be completed before purchase.
