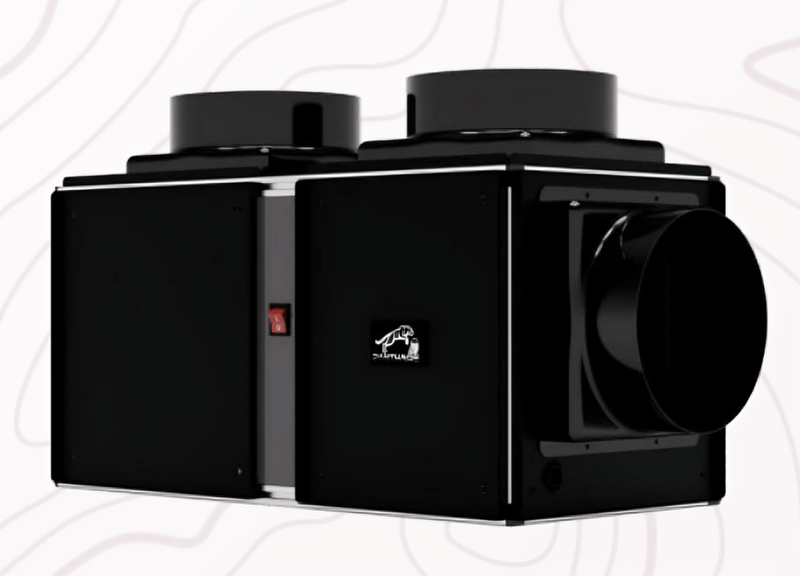

Panthaire Wine Cellar Cooling Systems APEX 7000

High-Capacity, Fully Ducted Cooling for Large Wine Cellars

The Pantheaire APEX 7000 is a professional-grade, fully ducted wine cellar cooling system engineered for large residential and commercial wine cellars where quiet operation, temperature stability, and long-term reliability are essential.

With a cooling capacity of 6,346 BTU/h, the APEX 7000 is designed to support wine cellars up to 2,000 cubic feet when paired with R20 insulation and a properly installed vapor barrier. Its fully ducted configuration allows the system to operate outside the cellar, delivering conditioned air discreetly and efficiently without visible equipment inside the wine room.

This makes the APEX 7000 an excellent choice for high-end custom cellars, hospitality projects, and serious private collectors who demand performance without compromising design.

Is the APEX 7000 Right for Your Wine Cellar?

The Pantheaire APEX 7000 is best suited for:

• Large residential wine cellars
• Commercial or hospitality wine storage spaces
• Wine rooms adjacent to living areas where noise and vibration must be minimized
• Projects with adequate space for ducting and professional installation

This system may not be ideal for:

• Small or moderately sized cellars
• Retrofit projects without ducting access
• Cellars lacking proper insulation or vapor barrier protection

If your cellar construction or sizing is uncertain, professional review is strongly recommended before purchase.

Why Choose a Fully Ducted Wine Cellar Cooling System?

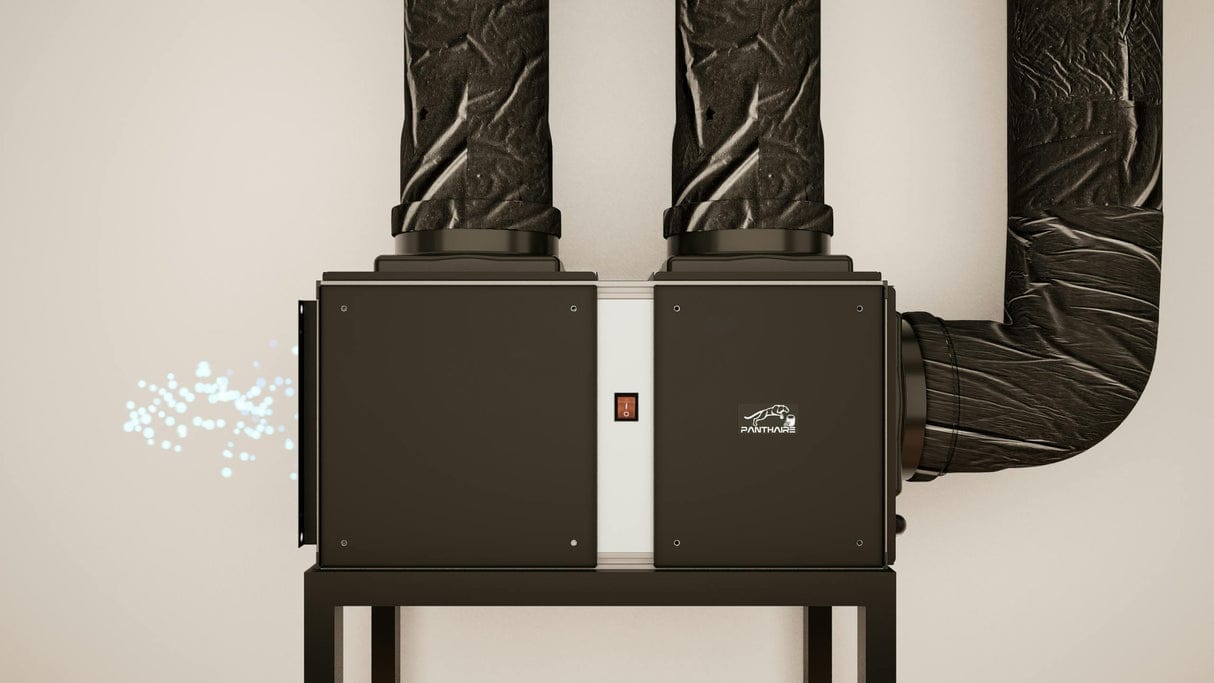

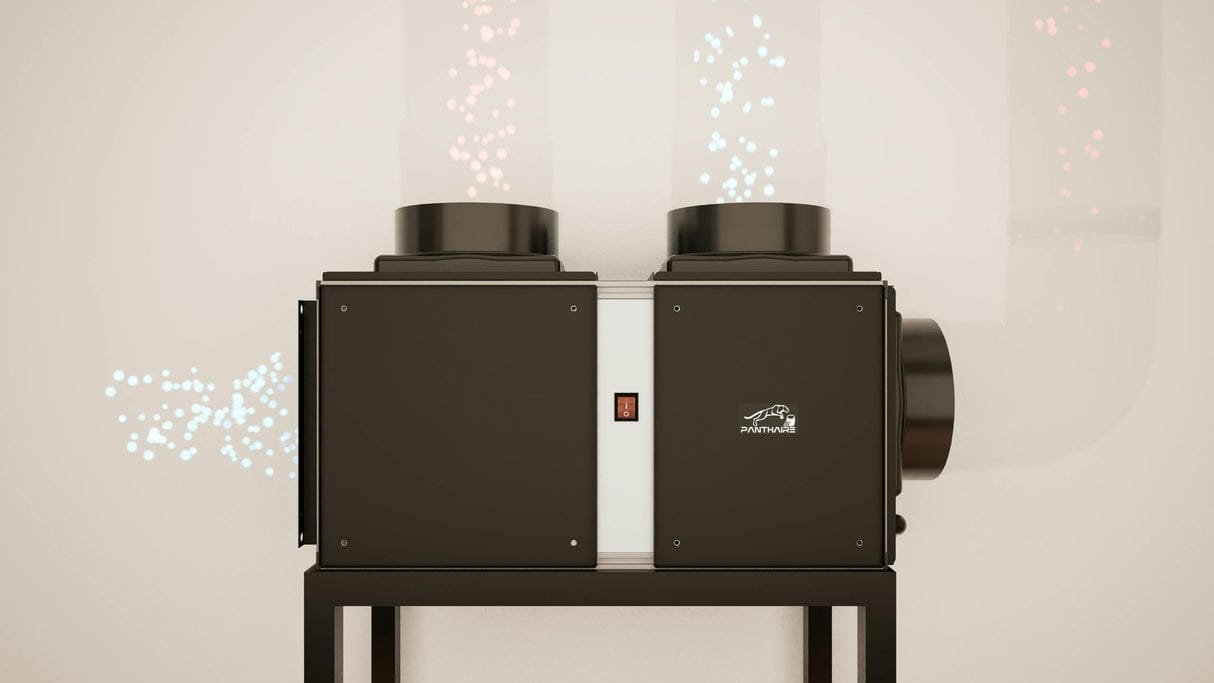

Unlike through-the-wall or visible self-contained units, the APEX 7000 uses a fully ducted design, allowing the cooling unit to be installed in a mechanical space while supply and return air are routed through insulated ducting.

Key advantages include:

• Extremely quiet cellar operation
• No visible cooling equipment inside the wine room
• Reduced vibration, supporting proper long-term wine aging

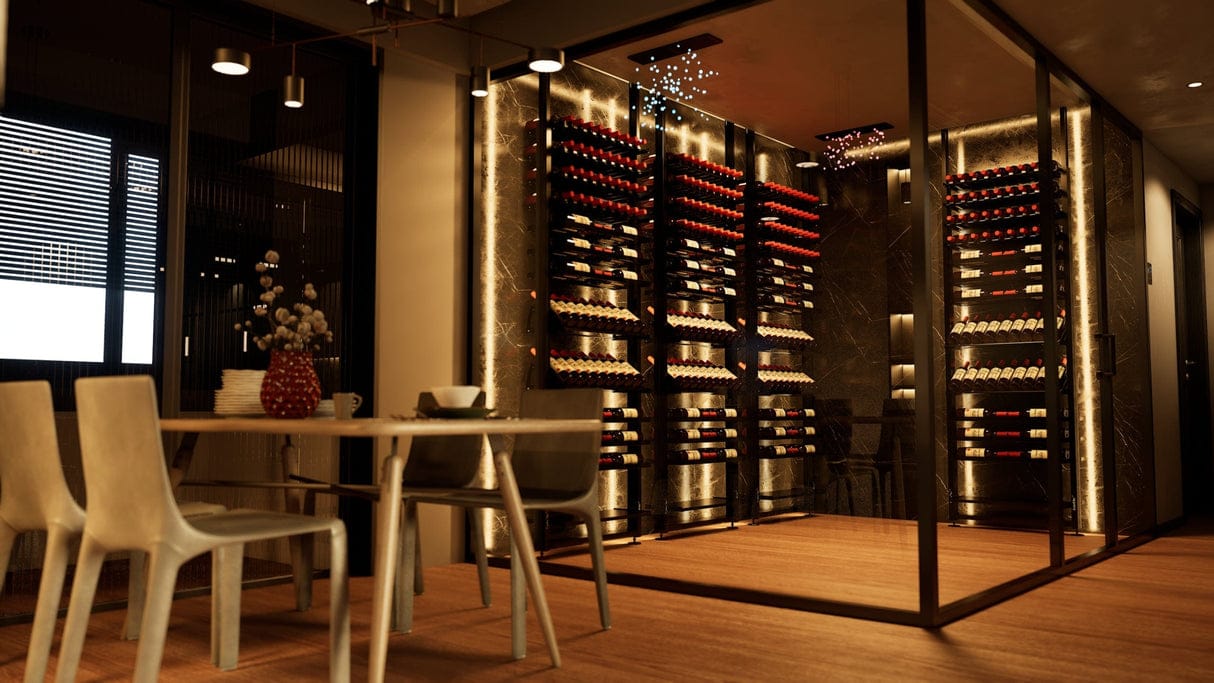

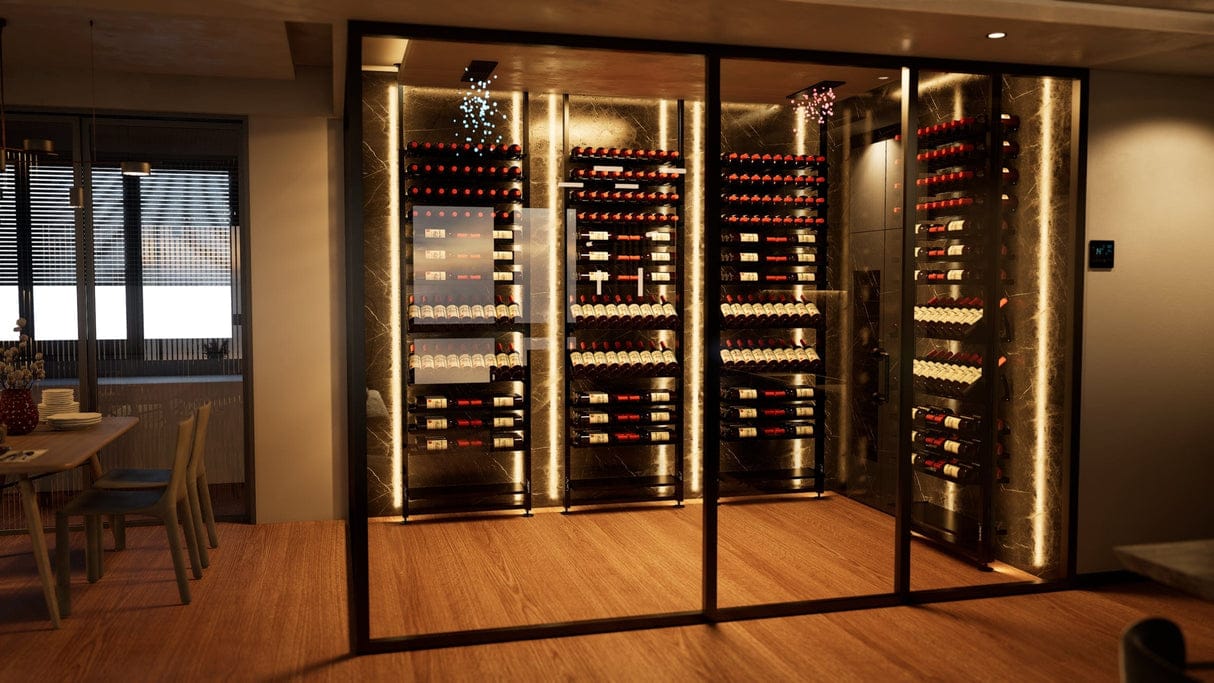

• Greater flexibility for architectural, glass, or custom cellar designs

For premium wine cellars, fully ducted systems are often the preferred solution.

Key Features & Performance Benefits

• 6,346 BTU/h cooling capacity designed for large wine cellars
• Fully ducted configuration for concealed, low-noise operation
• Dual-speed airflow for adaptable cooling performance

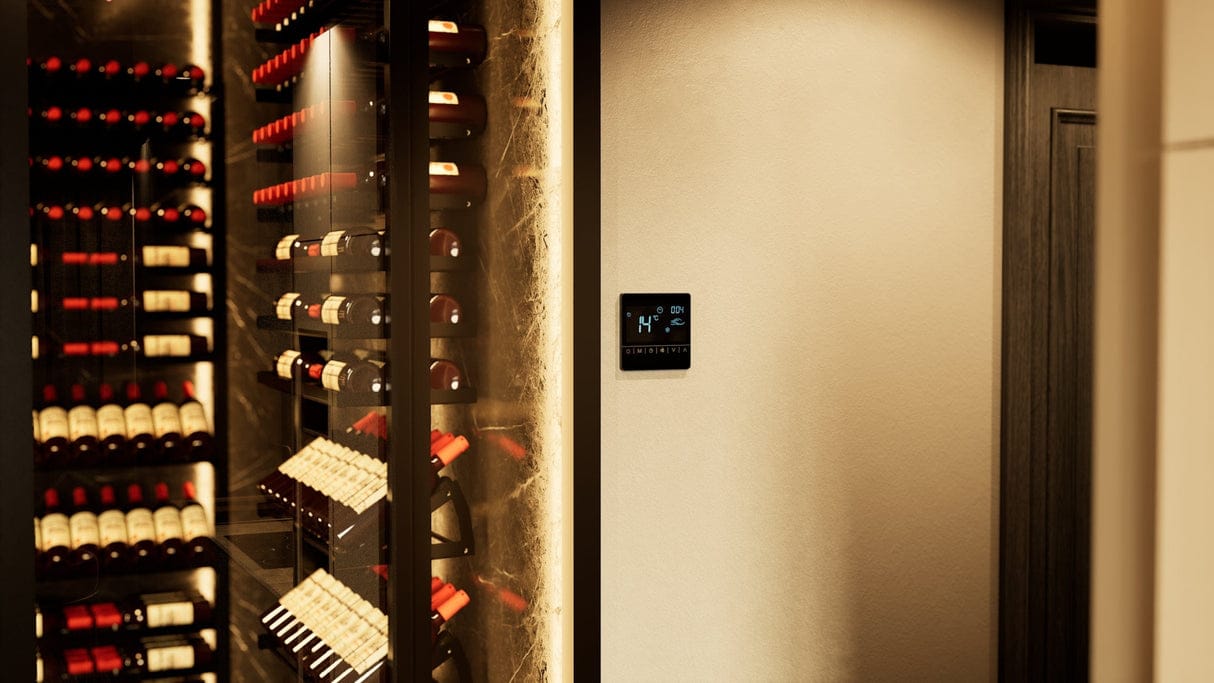

• Digital temperature control for precise cellar management
• Low-vibration operation to protect aging wine collections
• Eco-friendly R290 refrigerant with high efficiency
• Commercial-grade construction designed for continuous-duty use

Rather than short, aggressive cooling cycles, the APEX 7000 is engineered to maintain stable, consistent cellar temperatures, reducing stress on both the system and the wine.

Built for Stability, Not Just Power

While BTU rating is important, proper wine storage depends on temperature consistency, not raw output alone. The APEX 7000 is designed to deliver sustained cooling performance when installed in a properly constructed cellar.

Performance is directly influenced by:

• Insulation quality
• Vapor barrier installation
• Duct design and airflow balancing
• Ambient temperature conditions

Correct planning and installation are essential to achieving the system’s full potential.

Technical Specifications – Pantheaire APEX 7000

Cooling Capacity: 6,346 BTU/h

• Recommended Cellar Size:
  • Up to 2,000 cubic feet
  • Based on R20 insulation and proper vapor barrier
• System Type: Fully ducted, self-contained wine cellar cooling system
• Refrigerant: R290 (eco-friendly refrigerant)
• Power Supply: 115V / 60Hz, 20A
• Current Draw: 12.8 amps
• Dimensions (L × W × D): 40.2" × 15.8" × 15.8"
• Weight: 43.5 kg (95.9 lbs)
• Duct Size – Supply: 8" diameter
• Duct Size – Return: 10" diameter
• Maximum Duct Length: 25 feet per duct
• Airflow:
  • 470 CFM (Speed 1)
  • 530 CFM (Speed 2)
• Temperature Range*: 50°F – 70°F (10°C – 25°C)
• Drain Connection: 5/8" ID
• Warranty: 2-year warranty covering parts and labor

*Temperature performance depends on proper cellar construction, insulation, vapor barrier, and professional installation.

Manuals for APEX 7000 Wine Cellar Cooling Systems of Panthaire

• Product Manual
• Technical Sheet
• User Guide
• Product Sheet

Pros & Considerations

Pros

• Powerful cooling capacity for large cellars
• Fully ducted design keeps noise and heat out of the wine room
• Suitable for luxury residential and commercial installations
• Eco-friendly refrigerant
• Stable temperature control for long-term wine aging

Considerations

• Requires ducting access and proper airflow planning
• Professional installation strongly recommended
• Cellar must be properly insulated and sealed for full performance

What’s Included

• Pantheaire APEX 7000 cooling unit
• Digital temperature controller
• Installation and technical documentation

Ducting materials, electrical work, and installation labor are typically supplied by the installer to meet local codes.

Installation & Support

The APEX 7000 is a professional-grade cooling system. Correct installation is critical to performance, efficiency, and longevity.

Wine Cellar Authority can assist with:

• Cooling system sizing verification
• Installation planning and coordination
• Integration with custom cellar designs

A Trusted Solution for Serious Wine Storage

As an authorized Pantheaire dealer, Wine Cellar Authority provides expert guidance before and after purchase. If you are planning a large or high-end wine cellar, the APEX 7000 offers the performance, discretion, and reliability required for proper wine preservation.
