Wine Guardian Sentinel Through-The-Wall Wine Cooling Unit TTW02B

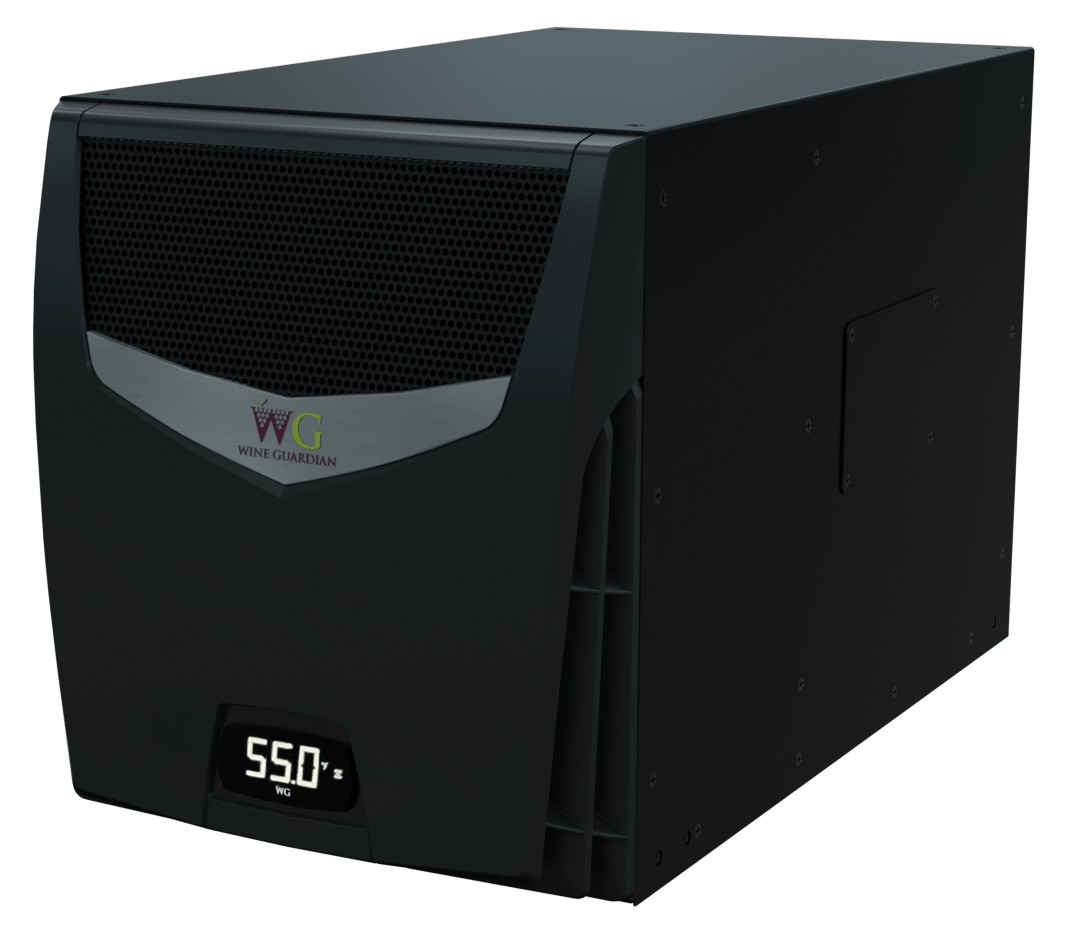

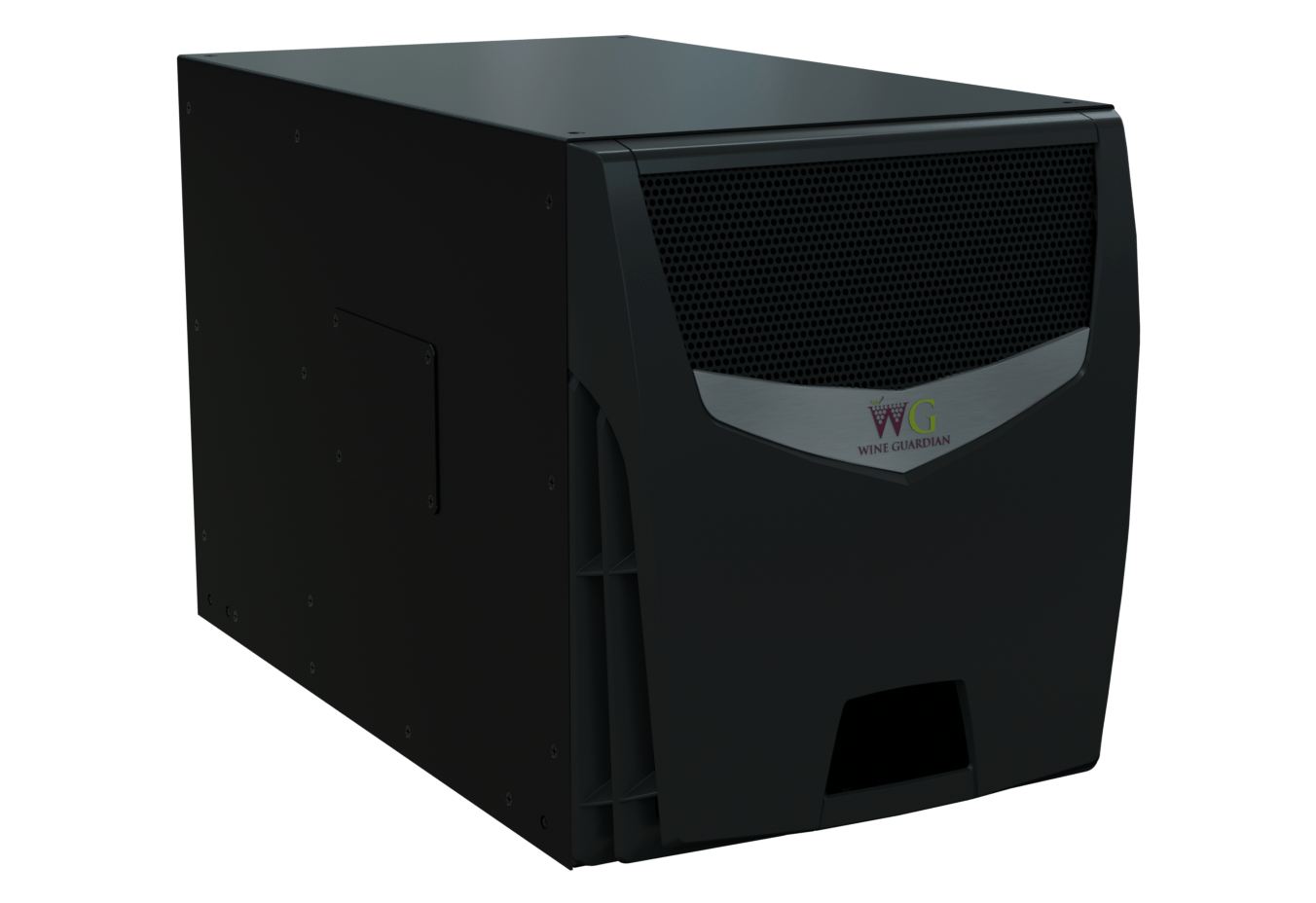

Wine Guardian Sentinel TTW02B Through-the-Wall Wine Cellar Cooling System

The Wine Guardian Sentinel TTW02B is a compact through-the-wall wine cellar cooling unit designed for small wine cellars, wine cabinets, and wine display walls that require stable temperature and humidity control.

This self-contained cooling system installs directly through the wall and runs on standard 120V power, making it one of the simplest professional-grade wine cooling solutions to install. With cooling capacity ranging from approximately 1,370 to 2,650 BTU/hr depending on operating conditions, the TTW02B is designed to maintain optimal wine storage temperatures around 55°F while helping preserve humidity levels that protect cork integrity.

Because the evaporator and condenser are integrated into a single chassis, the TTW02B eliminates the need for ducting or remote condensers. This makes it a practical solution for residential wine rooms, glass wine walls, and compact commercial wine storage spaces.

Note: Not rated for exterior use.

Quick Specifications

Who This Cooling System Is Best For

Best Applications

The Sentinel TTW02B works well for:

• Small residential wine cellars
• Wine display cabinets
• Glass wine walls
• Restaurant wine storage rooms
• Retail wine display installations

Its compact design and standard electrical requirements make it particularly useful for projects where installing ductwork or remote condensers is not practical.

Situations Where Another System May Be Better

The TTW02B may not be the best choice if:

• The wine cellar is large or has significant heat load
• The cooling system must be completely hidden
• The unit must be installed on an exterior wall exposed to outdoor conditions
• The room lacks proper insulation or a vapor barrier

Key Features of the Wine Guardian Sentinel TTW02B

Simple Through-the-Wall Installation

Unlike split or ducted wine cooling systems, the TTW02B installs directly through the wall. The evaporator and condenser are integrated into a single chassis, eliminating the need for refrigerant lines or remote condensers.

This design simplifies installation and often allows the system to be installed without complex HVAC work.

Quiet Operation for Wine Display Spaces

Wine display rooms often require quiet cooling equipment. The TTW series is engineered to reduce vibration and operational noise, producing sound levels around 49 dB measured at six feet.

This makes the TTW02B suitable for installations near living areas, dining spaces, or tasting rooms.

Energy-Efficient Cooling Performance

The Sentinel TTW02B uses an optimized refrigeration system that meets U.S. Department of Energy efficiency standards. Typical power consumption is approximately 424 watts, allowing the system to maintain cellar conditions without excessive energy use.

Smart Monitoring and Wi-Fi Connectivity

The TTW series supports Wi-Fi connectivity, allowing remote monitoring and control of cellar conditions from compatible smart devices. This helps wine collectors maintain consistent storage temperatures and quickly identify potential issues.

Stable Temperature and Humidity Control

Wine is best stored at consistent temperatures near 55°F with controlled humidity levels. The TTW02B is designed to maintain stable cellar temperatures while supporting humidity levels between 55% and 65% when paired with a compatible humidifier.

These conditions help prevent cork shrinkage and protect wine from premature oxidation.

Built-In Condensate Re-Evaporation

The system features an integrated condensate re-evaporation system, which often eliminates the need for a drain line. This simplifies installation and makes the unit suitable for locations where drainage may be difficult.

Environmentally Responsible Refrigerant

Wine Guardian TTW systems use modern refrigerants designed to comply with current environmental and energy regulations, helping reduce environmental impact while maintaining high cooling performance.

TTW01 vs TTW02 vs TTW04

Wine Guardian’s through-the-wall cooling series includes three models designed for different cellar sizes.

The TTW02B sits in the middle of the lineup, offering more cooling power than the TTW01 while remaining compact and efficient compared with the TTW04.

What These Specifications Mean

Cooling capacity varies based on operating conditions such as evaporator air temperature, condenser air temperature, insulation quality, and overall heat load in the cellar.

The TTW02B’s maximum capacity of approximately 2,650 BTU/hr makes it suitable for many small wine rooms when the cellar is properly insulated and sealed with a vapor barrier.

Because the system runs on standard 120-volt electrical service, it can be installed in many residential applications without special electrical upgrades.

Full Technical Specifications

Cooling Performance

Cooling capacity varies depending on evaporator inlet temperature and condenser air temperature.

Electrical Requirements

Evaporator Air Flow Performance

Airflow varies depending on operating configuration and fan speed.

Condenser Air Flow Performance

Dimensions and Weight

Manuals for Wine Guardian Sentinel Through-The-Wall

• Product Brochure
• Specifications Sheet for TTW Series
• Quick Start Installation Guide

Installation Requirements

For optimal performance, the wine cellar should be:

• Fully insulated
• Sealed with a proper vapor barrier
• Protected from external heat sources

Each wine cellar has unique cooling requirements. Performing a heat load calculation before selecting a cooling system is strongly recommended.

Note: Wine Guardian TTW systems are designed for interior through-the-wall installations and are not rated for exterior use.

Product Videos

Installation Guide

Step-by-step demonstration of how to install a Wine Guardian through-the-wall cooling system.

System Overview

Explanation of how Wine Guardian TTW systems operate and the advantages of through-the-wall cooling.

System in Operation

Real-world examples of TTW cooling systems installed in wine cellars.
