WhisperKOOL 4000/8000 Ducted Airflow Kit – 2 Duct Plenums
Important Note: This Add-on Accessory cannot be purchase without the Main Unit.
The WhisperKOOL 4000/8000 Ducted Airflow Kit, model 03-DUCTED-KIT-LRG, is an airflow configuration accessory designed for compatible WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators.

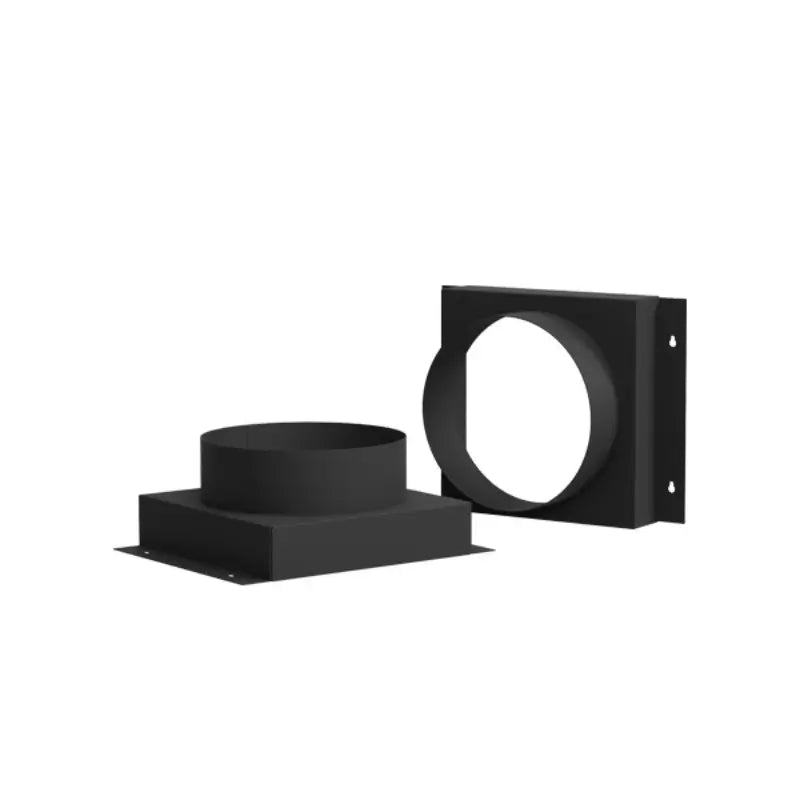

This kit includes two duct plenums: one for the conditioned-air supply side and one for the cellar-air return side. The plenums allow both airflow paths to connect to properly designed ductwork, supporting concealed or remote evaporator placement while delivering conditioned air to the wine cellar through supply and return registers.
Choose this kit when both the supply and return sides of the compatible Blow-Through evaporator will be ducted. It is suitable for installations where the evaporator is positioned in an adjacent mechanical room, ceiling cavity, soffit, attic, cabinetry enclosure, or another concealed space.
Quick Answer
The 03-DUCTED-KIT-LRG configures a compatible WhisperKOOL Blow-Through 4000 or 8000 evaporator for fully ducted cellar-side airflow. It includes two duct plenums for connecting the evaporator’s supply and return sides to separate duct runs.
Product at a Glance
| Product type | Ducted airflow configuration kit |
|---|---|
| Model number | 03-DUCTED-KIT-LRG |
| Included components | 2 duct plenums |
| Airflow configuration | Fully ducted supply and return airflow |
| Primary compatibility | WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators |
| Ductwork required | Yes, for both supply and return airflow paths |
| Cooling system included | No |
| Electrical connection required | No |
Key Features
Two-Plenum Airflow Configuration
The kit includes one duct plenum for conditioned-air supply and one duct plenum for cellar-air return, creating a complete ducted airflow path between the evaporator and wine cellar.
Supports Concealed Evaporator Placement
Fully ducted airflow allows the evaporator to be positioned away from the visible cellar, subject to approved installation, airflow, ducting, ambient-condition, drainage, and service-access requirements.
Compatible with Larger Blow-Through Evaporators
Model 03-DUCTED-KIT-LRG is intended for compatible Blow-Through 4000 and Blow-Through 8000 evaporators. It is not the smaller ducted kit used with the Blow-Through Mini.
Supports Remote Supply and Return Registers
The plenums allow supply and return ductwork to terminate at separate cellar registers, supporting more discreet airflow distribution and reducing the visual presence of the cooling equipment.
Passive Airflow Accessory
The plenums do not require electrical wiring or refrigerant connections. They function as airflow connection components within the complete cooling-system installation.
Best Applications
- Mechanical-room evaporator installations
- Adjacent-room equipment placement
- Ceiling-mounted or attic installations
- Soffit installations with remote registers
- Custom wine rooms requiring concealed cooling equipment
- Glass-enclosed wine displays
- Built-in wine walls
- Projects where direct evaporator airflow is not practical
- Installations requiring separate supply and return register locations
The complete installation must provide properly designed supply and return ductwork, adequate airflow, suitable insulation, condensate management, structural support, and service access.
How the Ducted Configuration Works
A fully ducted Blow-Through installation uses one plenum on each side of the evaporator:
- Return-air plenum: Connects the cellar return-air duct to the evaporator so warmer cellar air can be drawn into the cooling unit.
- Supply-air plenum: Connects the evaporator discharge to the supply duct so conditioned air can be delivered back into the wine cellar.
Supply and return registers should be positioned to promote circulation throughout the cellar. The layout should help prevent conditioned air from immediately returning to the evaporator before it circulates through the conditioned space.
Ducted vs. Ductless vs. Hybrid Airflow Kits
| Configuration | Included Components | Best Use |
|---|---|---|
| Ducted | 2 duct plenums | Both supply and return air are routed through ductwork |
| Ductless | 2 airflow deflectors | Both supply and return air move directly between the evaporator and cellar |
| Hybrid | 1 duct plenum and 1 airflow deflector | One airflow path is ducted while the other uses direct airflow |
Select the airflow kit that matches the planned evaporator location and cellar airflow design. Components should not be mixed unless the resulting arrangement is an approved WhisperKOOL configuration.
Compatibility
The 03-DUCTED-KIT-LRG is intended for compatible larger-format WhisperKOOL Blow-Through evaporators, including:
- WhisperKOOL Blow-Through 4000 evaporator configurations
- WhisperKOOL Blow-Through 8000 evaporator configurations
Confirm compatibility using the cooling-system model number and current WhisperKOOL configuration documentation before ordering. This airflow kit does not determine condenser voltage, thermostat type, refrigerant controls, communication-cable configuration, or pump-down operation.
What Is Included
- 2 large duct plenums
The two plenums provide the supply-side and return-side connection points needed for a fully ducted installation of a compatible Blow-Through 4000 or Blow-Through 8000 evaporator.
Not Included
- Blow-Through evaporator
- Condensing unit
- Supply or return ductwork
- Duct insulation
- Duct collars, transitions, elbows, dampers, or fasteners
- Registers, grilles, or louvers
- Refrigerant line set
- Thermostat or controller
- Condensate drain materials
- Electrical components or field wiring
- Installation labor
Installation Considerations
The ducted airflow kit should be planned as part of the complete Blow-Through cooling-system installation. The evaporator, plenums, duct runs, registers, insulation, drainage, refrigerant piping, wiring, mounting structure, and service access should be coordinated before construction is completed.
Confirm Supply and Return Orientation
Determine the required supply and return orientation before mounting the evaporator or fabricating the duct system. The final arrangement should follow an approved Blow-Through configuration.
Use Properly Sized Ductwork
Undersized, overly long, sharply restricted, or poorly routed ductwork can increase static pressure and reduce airflow through the evaporator.
Insulate and Seal Cellar-Side Ducts
Supply and return ducts carrying cellar air should be properly insulated and sealed to reduce heat gain, limit air leakage, and help prevent condensation on exterior duct surfaces.
Limit Restrictive Fittings
Keep duct runs as short and direct as practical. Excessive elbows, abrupt transitions, compressed flexible duct, restrictive registers, and unnecessary length can reduce cooling performance.
Preserve Service Access
Do not permanently enclose the evaporator or plenums. The installation must preserve access to service panels, refrigerant connections, condensate components, wiring, controls, and removable equipment sections.
Use a Qualified HVAC-R Technician
A WhisperKOOL split cooling system must be installed and commissioned by a qualified HVAC-R technician. The airflow and duct design should be reviewed as part of the complete system installation.
Ducting Best Practices
- Use appropriately sized ductwork for the required system airflow.
- Keep supply and return duct runs as short and direct as practical.
- Use smooth transitions rather than abrupt reductions.
- Limit unnecessary elbows and tight bends.
- Support flexible ductwork to prevent sagging or compression.
- Seal duct joints to reduce air leakage.
- Insulate ductwork exposed to warmer surrounding air.
- Protect insulation from moisture and physical damage.
- Keep registers clear of racks, bottles, cases, furniture, and decorative obstructions.
- Position supply and return registers to encourage circulation through the cellar.
Register and Louver Requirements
Decorative registers, grilles, and louvers must provide sufficient open free area for the cooling system. WhisperKOOL airflow guidance calls for approximately 50% to 65% open free area across the total register face.
Register face dimensions alone do not determine usable airflow. Slat angle, blade spacing, decorative mesh, screens, backing material, finish coatings, and interior framing can significantly reduce actual free area.
Restrictive ductwork or registers may contribute to:
- Reduced cooling output
- Higher operating noise
- Increased static pressure
- Reduced airflow
- Evaporator coil freezing
- Condensate-management problems
- Uneven cellar temperatures
- Reduced equipment life
Technical Specifications
| Manufacturer | WhisperKOOL |
|---|---|
| Product name | 4000/8000 Ducted Airflow Kit |
| Model | 03-DUCTED-KIT-LRG |
| Accessory type | Blow-Through evaporator airflow configuration kit |
| Configuration | Fully ducted |
| Quantity included | 2 duct plenums |
| Intended airflow paths | 1 supply-air path and 1 return-air path |
| Compatible series | WhisperKOOL Blow-Through Series |
| Compatible evaporator sizes | Blow-Through 4000 and Blow-Through 8000 |
| Cellar-side ductwork required | Yes |
| Cooling equipment included | No |
| Electrical connection | None; passive airflow accessory |
| Refrigerant connection | None |
The supplied source materials do not provide separate published dimensions, weight, material, duct-connection diameter, or finish specifications for model 03-DUCTED-KIT-LRG. These values should not be assumed from the evaporator dimensions or from other airflow kits.
Is This the Correct Airflow Kit?
Choose the 03-DUCTED-KIT-LRG Ducted Airflow Kit when all of the following apply:
- You are using a compatible Blow-Through 4000 or Blow-Through 8000 evaporator.
- Both the conditioned-air supply path and return-air path will use ductwork.
- The evaporator will be installed away from the direct cellar airflow openings.
- The project includes properly designed supply and return registers.
- The duct system can be insulated, sealed, and supported correctly.
- The installation preserves service access to the evaporator and plenums.
Choose the ductless airflow kit when neither side requires ductwork. Choose the hybrid airflow kit when only one side of the evaporator needs to be ducted.
Product Documents
Frequently Asked Questions
What is the WhisperKOOL 03-DUCTED-KIT-LRG?
It is a fully ducted airflow configuration kit for compatible WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators. It includes two duct plenums for the supply and return sides.
What is included with the kit?
The kit includes two large duct plenums. Ductwork, insulation, registers, cooling equipment, refrigerant piping, controls, drainage materials, and installation labor are not included.
Which Blow-Through models are compatible?
The kit is intended for compatible WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporator configurations.
Is this kit compatible with the Blow-Through Mini?
No. The Blow-Through Mini uses a smaller ducted airflow kit. Model 03-DUCTED-KIT-LRG is intended for the larger 4000 and 8000 evaporators.
Is this airflow kit required?
It is required when a compatible Blow-Through 4000 or Blow-Through 8000 evaporator will use a fully ducted supply and return airflow configuration.
Does this kit include ductwork?
No. It includes the two evaporator duct plenums only. The supply and return duct runs, fittings, insulation, supports, registers, and installation materials must be supplied separately.
Does the kit include a cooling system?
No. It is an airflow accessory only. A compatible Blow-Through evaporator and the appropriate condensing unit are required separately or as part of a complete system.
What is the difference between the ducted and ductless kits?
The ducted kit includes two plenums for connecting both airflow paths to ductwork. The ductless kit includes two airflow deflectors for direct airflow between the evaporator and cellar.
What is the difference between the ducted and hybrid kits?
The ducted kit uses two duct plenums. The hybrid kit uses one plenum and one airflow deflector, allowing one airflow path to be ducted while the other uses direct airflow.
Can the evaporator be installed outside the wine cellar?
A fully ducted configuration can allow the evaporator to be positioned in an adjacent or concealed space, provided the installation follows WhisperKOOL requirements for airflow, ducting, ambient conditions, drainage, mounting, and service access.
Should the ductwork be insulated?
Yes. Cellar-side supply and return ducts should be properly insulated and sealed when they pass through warmer spaces to reduce heat gain and help prevent exterior condensation.
Can flexible ductwork be used?
The duct design should follow WhisperKOOL guidance and be reviewed by the installing HVAC-R professional. Flexible duct must not be crushed, sharply bent, unsupported, or installed in a manner that restricts airflow.
Why should duct runs be kept short?
Longer duct runs and additional fittings increase airflow resistance. Excessive static pressure may reduce airflow, cooling performance, and temperature consistency.
Can decorative registers be used?
Yes, provided they offer sufficient open free area. WhisperKOOL guidance calls for approximately 50% to 65% open free area across the register face.
Where should the supply and return registers be positioned?
They should be positioned to encourage circulation through the wine cellar and prevent conditioned air from immediately returning to the return register. Final placement should be coordinated with the cellar layout and HVAC-R installer.
Does ducting affect cooling performance?
Yes. Duct length, diameter, insulation, fittings, register free area, air leakage, and static pressure can affect airflow and the performance of the complete cooling system.
Does this accessory require electricity?
No. The plenums are passive airflow components and do not require a separate electrical or refrigerant connection.
Can I install the kit myself?
The plenums are part of a split wine cellar cooling-system installation. Their orientation, duct connections, airflow, and surrounding construction should be coordinated with the qualified HVAC-R technician installing the complete system.
Are the plenum dimensions published?
The supplied product resources do not provide separate dimensions, weight, duct-connection size, material, or finish specifications for model 03-DUCTED-KIT-LRG. Compatibility should be confirmed by the accessory model and evaporator size.
Confirm the Correct Blow-Through Airflow Kit
Wine Cellar Authority offers free professional wine cellar design planning to help confirm airflow configuration, evaporator placement, duct routing, register locations, equipment compatibility, and product selection before purchase.
