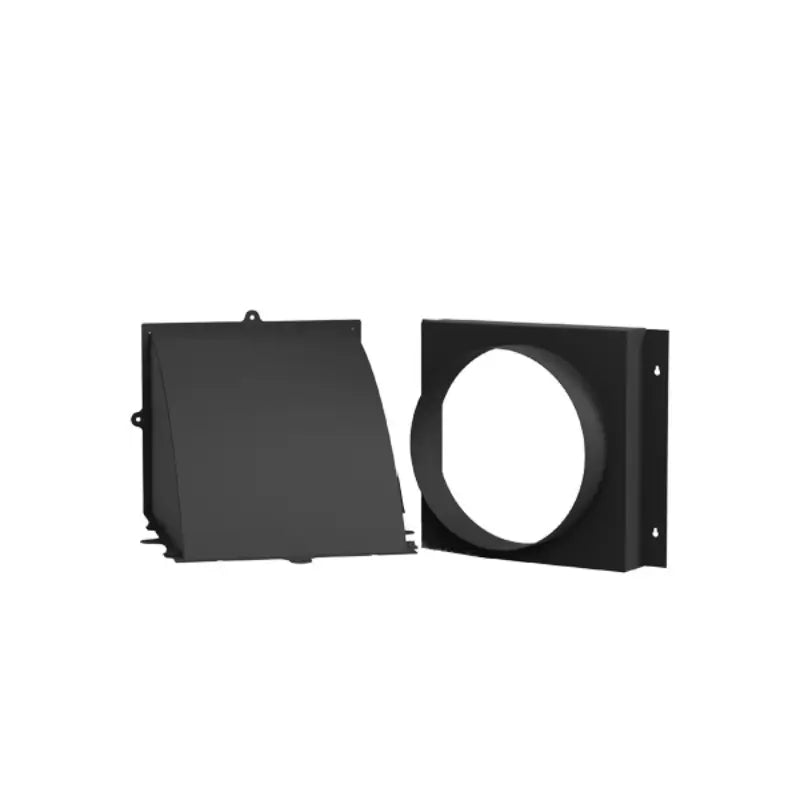

WhisperKOOL 4000/8000 Hybrid Airflow Kit – 1 Duct Plenum & 1 Airflow Deflector
Important Note: This Add-on Accessory cannot be purchase without the Main Unit.
The WhisperKOOL 4000/8000 Hybrid Airflow Kit, model 03-HYBRID-KIT-LRG, is an airflow configuration accessory designed for compatible WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators.
The kit includes one duct plenum and one airflow deflector, allowing one side of the evaporator to connect to ductwork while the opposite side exchanges air directly with the wine cellar. This hybrid configuration provides additional installation flexibility when a fully ducted or fully ductless arrangement is not practical.
Choose this kit when only one airflow path—either the conditioned-air supply or cellar-air return—requires ductwork, while the opposite side can communicate directly with the wine cellar through an approved opening.
Quick Answer
The 03-HYBRID-KIT-LRG converts a compatible WhisperKOOL Blow-Through 4000 or 8000 evaporator into a hybrid airflow configuration by combining one duct plenum with one airflow deflector.
Product at a Glance
| Product type | Hybrid airflow configuration kit |
|---|---|
| Model number | 03-HYBRID-KIT-LRG |
| Included components | 1 duct plenum and 1 airflow deflector |
| Airflow configuration | Hybrid (one ducted path and one direct airflow path) |
| Primary compatibility | WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators |
| Ductwork required | Required on one airflow path only |
| Cooling system included | No |
| Electrical connection required | No |
Key Features
Hybrid Airflow Configuration
Combines one duct plenum and one airflow deflector, allowing a compatible Blow-Through evaporator to operate with one ducted airflow path and one direct airflow path.
Flexible Installation Options
Ideal for projects where only the supply or return side must be ducted due to architectural, structural, or mechanical constraints.
Designed for Larger Blow-Through Models
Model 03-HYBRID-KIT-LRG is intended for compatible Blow-Through 4000 and Blow-Through 8000 evaporators and should not be substituted for the smaller Hybrid Kit used with the Blow-Through Mini.
Supports Concealed Installations
The hybrid configuration allows the evaporator to remain hidden while simplifying ductwork requirements by ducting only one airflow path.
Passive Airflow Accessory
The plenum and deflector are passive airflow components that require no electrical wiring, refrigerant connections, or programming.
Best Applications
- Wine walls with limited duct routing options
- Custom cabinetry installations
- Soffit-mounted evaporators
- Mechanical rooms adjacent to the cellar
- Glass wine displays
- Architectural layouts with one restricted airflow path
- Projects requiring partial ductwork
- Custom residential and commercial wine cellar installations
How the Hybrid Configuration Works
The Hybrid Airflow Kit combines two airflow methods:
- Duct Plenum: Connects one side of the evaporator to insulated ductwork.
- Airflow Deflector: Directs airflow on the opposite side directly between the evaporator and wine cellar.
Depending on the approved Blow-Through configuration, either the supply or return side may use the duct plenum while the opposite side uses the airflow deflector. The configuration should be selected before the evaporator is installed.
Compare the Available Airflow Kits
| Configuration | Included Components | Typical Application |
|---|---|---|
| Ducted | 2 Duct Plenums | Both supply and return airflow use ductwork. |
| Ductless | 2 Airflow Deflectors | Both airflow paths communicate directly with the cellar. |
| Hybrid | 1 Duct Plenum + 1 Airflow Deflector | One airflow path is ducted while the other is direct. |
Compatibility
The 03-HYBRID-KIT-LRG is designed for compatible:
- WhisperKOOL Blow-Through 4000 evaporators
- WhisperKOOL Blow-Through 8000 evaporators
Compatibility should always be confirmed using the current WhisperKOOL configuration documentation before ordering.
What's Included
- 1 Large Duct Plenum
- 1 Large Airflow Deflector
Not Included
- Blow-Through evaporator
- Condensing unit
- Ductwork
- Duct insulation
- Registers or louvers
- Refrigerant line set
- Thermostat
- Electrical wiring
- Installation materials
- Professional installation
Installation Considerations
- Select the desired airflow orientation before mounting the evaporator.
- Use properly insulated ductwork on the ducted airflow path.
- Keep duct runs as short and direct as practical.
- Do not restrict the direct airflow opening used with the deflector.
- Maintain adequate service access around the evaporator.
- Coordinate airflow design with the installing HVAC-R professional.
Register and Airflow Guidelines
Decorative registers, grilles, and louvers should provide approximately 50%–65% open free area to maintain proper airflow.
Restrictive airflow components can reduce cooling performance, increase operating noise, contribute to evaporator icing, and reduce overall system efficiency.
Technical Specifications
| Manufacturer | WhisperKOOL |
|---|---|
| Product | 4000/8000 Hybrid Airflow Kit |
| Model | 03-HYBRID-KIT-LRG |
| Configuration | Hybrid |
| Included Components | 1 Duct Plenum & 1 Airflow Deflector |
| Compatible Series | WhisperKOOL Blow-Through Series |
| Compatible Models | Blow-Through 4000 and Blow-Through 8000 |
| Electrical Connection | None |
| Refrigerant Connection | None |
Separate dimensions, weight, finish, and material specifications for model 03-HYBRID-KIT-LRG are not published in the supplied manufacturer resources.
Is This the Correct Airflow Kit?
Choose the Hybrid Airflow Kit if:
- Your installation uses a compatible Blow-Through 4000 or 8000 evaporator.
- Only one airflow path requires ductwork.
- The opposite airflow path can communicate directly with the wine cellar.
- You need greater installation flexibility than a fully ducted or ductless configuration provides.
Product Documents
Frequently Asked Questions
What is the Hybrid Airflow Kit?
It is an airflow accessory that combines one duct plenum and one airflow deflector for compatible Blow-Through 4000 and 8000 evaporators.
What is included?
One duct plenum and one airflow deflector.
Which systems is it compatible with?
Compatible WhisperKOOL Blow-Through 4000 and Blow-Through 8000 evaporators.
Does this kit include the cooling system?
No. This accessory is sold separately from the evaporator, condenser, and other cooling system components.
When should I choose the Hybrid Kit?
Choose it when only one airflow path requires ductwork while the opposite side exchanges air directly with the wine cellar.
Can I use this with the Blow-Through Mini?
No. The Blow-Through Mini requires its own dedicated Hybrid Airflow Kit.
Does the kit require electrical power?
No. The airflow components are passive accessories and do not require electricity.
Can decorative registers be installed?
Yes, provided they maintain adequate free airflow in accordance with WhisperKOOL guidance.
Should installation be completed by an HVAC-R professional?
Yes. The airflow configuration should be coordinated with the qualified technician installing the complete WhisperKOOL split cooling system.
Confirm the Correct Blow-Through Airflow Configuration
Wine Cellar Authority offers free professional wine cellar design planning to help confirm evaporator placement, airflow orientation, ducting needs, opening locations, and equipment compatibility before purchase.
