Product Overview
WhisperKOOL Exterior Insulation Kit: Quick Decision Summary
Choose the appropriate WhisperKOOL Exterior Insulation Kit when compatible cooling equipment is installed in an attic,
garage, mechanical room, or another applicable unconditioned environment where surrounding heat and humidity can affect exposed equipment surfaces.
| Best For |
Compatible WhisperKOOL equipment installed in attics, garages, mechanical rooms, and other hot or humid unconditioned spaces.
|
| Primary Purpose |
Adds model-specific exterior insulation around compatible cooling equipment to help reduce heat exposure and condensation on cold surfaces.
|
| Kit Type |
Adhesive-backed insulation panels designed for specific WhisperKOOL equipment families.
|
| Universal Fit |
No. Panel configuration varies by WhisperKOOL system.
|
| Wine Cellar Insulation Replacement |
No. The kit insulates the cooling equipment and does not replace cellar insulation or the vapor barrier.
|
Things to Know Before Ordering
- Choose the insulation kit that matches the exact WhisperKOOL equipment family.
- Attic installations require particular attention to exterior insulation.
- Panel layouts differ between Phantom, Quantum, Ceiling Mount, Extreme, and Platinum Split equipment.
- Some installations require cutting panels around framing, vents, drains, or UV-light components.
- The insulation kit does not replace wine-cellar insulation or vapor-barrier construction.
- Always follow the manufacturer installation instructions for the selected kit.
Key Benefits
WhisperKOOL Exterior Insulation Kit Key Benefits
Helps Protect Equipment From Surrounding Heat and Humidity
The insulation creates an additional thermal barrier around compatible WhisperKOOL equipment installed in demanding,
unconditioned environments.
Helps Reduce Condensation on Cold Surfaces
Adding insulation around designated cold exterior surfaces helps reduce direct exposure to warm, humid surrounding air.
Helps Dampen Operating Noise
The additional insulating material around the equipment housing can also help dampen mechanical sound.
Supports Stable System Operation
Exterior insulation helps reduce environmental stress on compatible cooling equipment when it is installed in hot or humid spaces.
Uses Model-Specific Panels
WhisperKOOL kits use adhesive-backed insulation panels shaped and arranged for the applicable equipment family rather than relying on generic insulation material.
Compatible With Multiple WhisperKOOL Families
Exterior insulation kits are designed for Phantom, Quantum, Ceiling Mount, Fully Ducted Extreme, and Fully Ducted Platinum Split systems.
Installation Environment
Why Exterior Insulation Matters
Wine cellar cooling equipment installed in a conditioned indoor space operates in a very different environment from equipment located in an attic,
garage, mechanical room, or another unconditioned area. High ambient temperature and humidity can place additional environmental load on exposed equipment surfaces.
Exterior insulation helps create a barrier between the WhisperKOOL equipment housing and the surrounding environment.
This can help limit heat exposure, reduce condensation on cold surfaces, and support the operating conditions intended for the system.
Without Required Exterior Insulation, Unconditioned Spaces Can Contribute To:
- Longer system runtime
- Reduced cooling efficiency
- Condensation buildup on cold equipment surfaces
- Additional environmental stress on system components
- Less stable cooling performance in high-temperature or high-humidity environments
Application Requirements
When Is the WhisperKOOL Exterior Insulation Kit Required?
The Exterior Insulation Kit is intended for applicable WhisperKOOL systems installed in
unconditioned environments, including attics, garages, mechanical rooms, and other hot or humid spaces.
Attic installations:
Attic installations require particular attention to exterior insulation. Use the insulation kit designed for the specific WhisperKOOL system
and follow the corresponding manufacturer installation instructions.
Compatibility
WhisperKOOL Exterior Insulation Kit Compatibility
This is not a universal one-size-fits-all insulation blanket. WhisperKOOL uses different insulation panel configurations
for different cooling-system families.
| WhisperKOOL System |
Compatible Insulation Kit |
Important Installation Consideration |
| Phantom Series |
Phantom Insulation Kit |
Uses multiple housing, blower, access, vent, and plenum insulation panels.
Installation is more involved than simply applying exterior sheets.
|
| Quantum Series |
Quantum Insulation Kit |
Panel installation accounts for the fan vent, UV-light configuration, front, back, top, and bottom surfaces.
|
| Ceiling Mount Series |
Ceiling Mount Insulation Kit |
The unit must be installed before insulation is applied. Some panels must be measured and cut around wood framing.
|
| Fully Ducted Extreme Series |
Extreme Insulation Kit |
Uses model-specific top, bottom, side, and UV-light-related panels.
|
| Fully Ducted Platinum Split Series |
Platinum Split Insulation Kit |
Panel configuration must account for condensate routing and whether a UV light is installed.
|
How It Works
How the Exterior Insulation Kit Works
Each compatible WhisperKOOL insulation kit uses model-specific adhesive-backed insulation panels
positioned around designated exterior surfaces of the cooling equipment.
The panels help separate the equipment housing from surrounding heat and humidity while insulating cold surfaces where condensation can occur.
Once the required panels are installed, applicable gaps are sealed according to the WhisperKOOL installation instructions.
Why Correct Panel Placement Matters
Vents, access panels, condensate routing, framing, UV-light components, blower openings, and other system features affect how the insulation must be installed.
Correct placement is therefore specific to the WhisperKOOL equipment family.
Installation
Installation Requirements Vary by WhisperKOOL Series
Do not assume that every WhisperKOOL Exterior Insulation Kit installs the same way.
Although the kits use adhesive-backed insulation panels, each compatible equipment family has its own installation procedure.

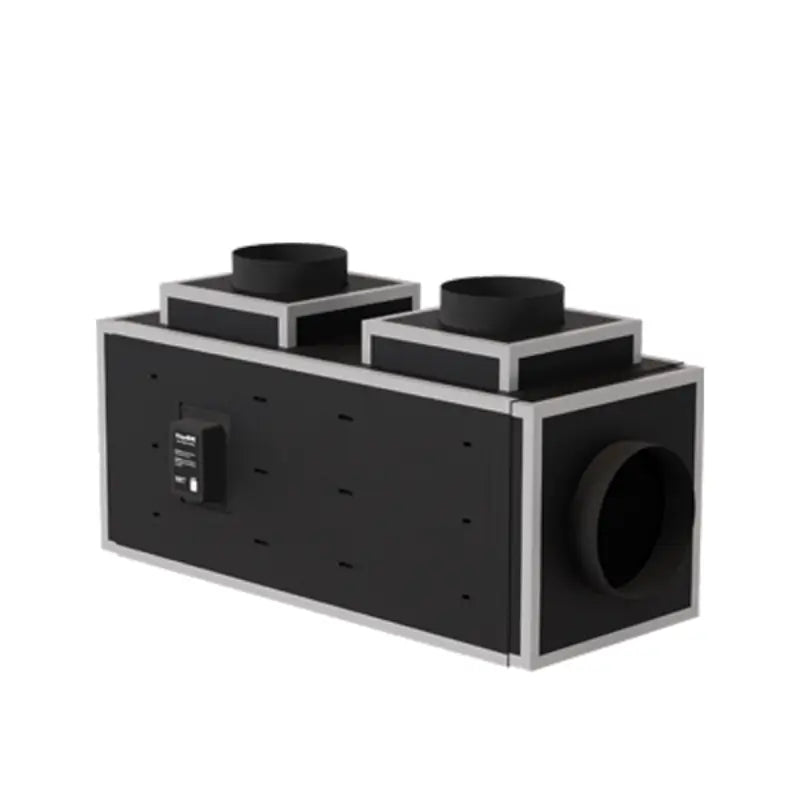

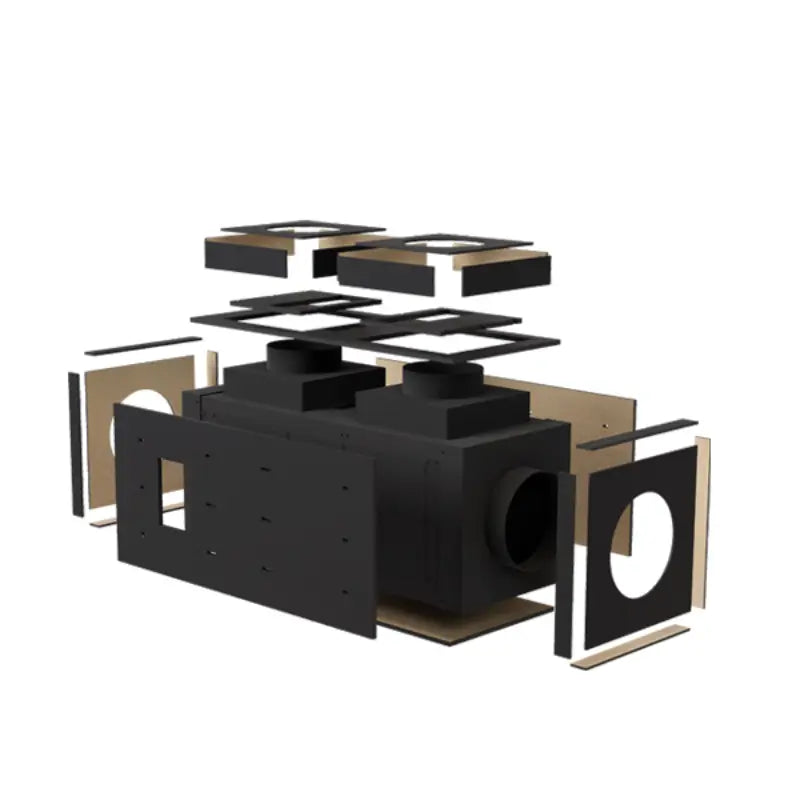

Ceiling Mount Insulation Kit
The Ceiling Mount system must be installed before the insulation is applied. The top panel is aligned to the unit,
while the front, back, and side panels may require measuring and cutting to accommodate wood framing.
After installation, gaps are sealed as directed in the manufacturer instructions.
Phantom Insulation Kit
Phantom installation includes insulation around blower outlets, blower plenums, the evaporator vent, condenser vent,
top and bottom surfaces, access panels, UV-light components, and the evaporator blower.
The procedure includes dry fitting and system-specific vent and plenum preparation.

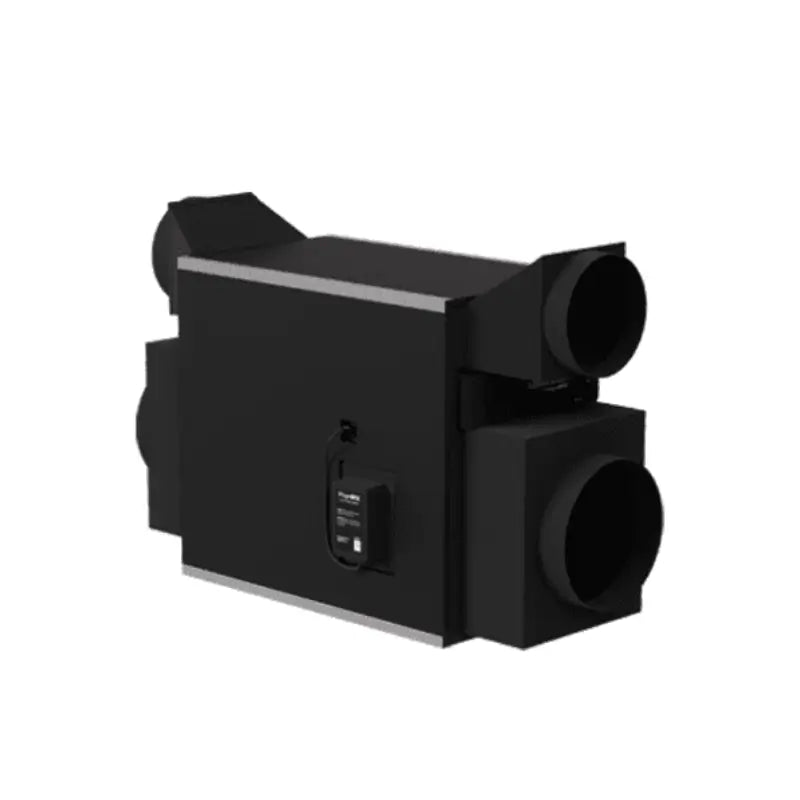

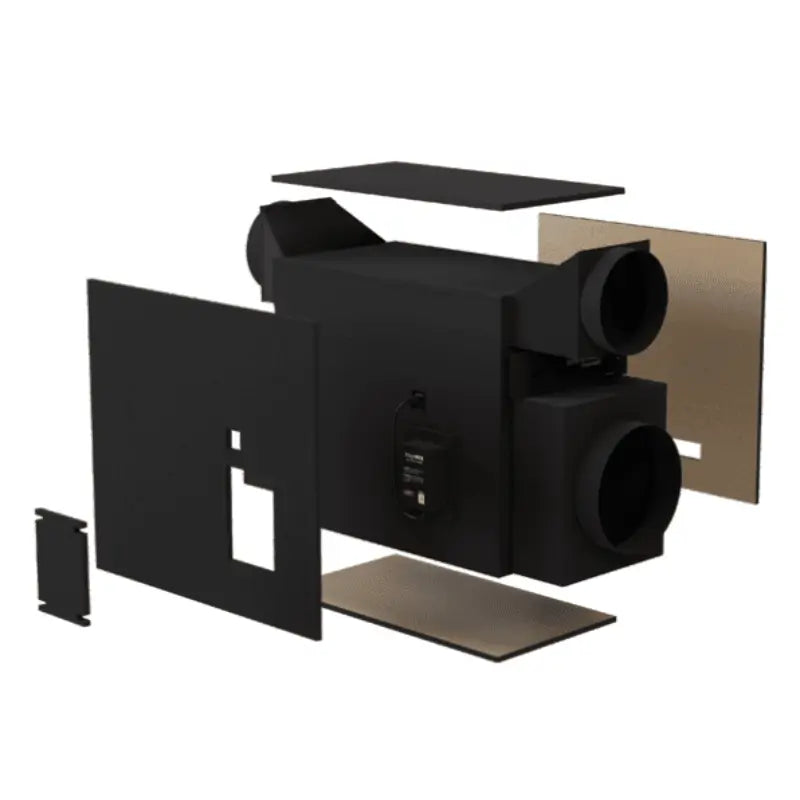

Large Extreme Insulation Kit
The Large Extreme kit includes model-specific top, bottom, UV-light-side, outlet-side, and light-cover panels.
Installation must account for whether the cooling unit is equipped with a UV light.

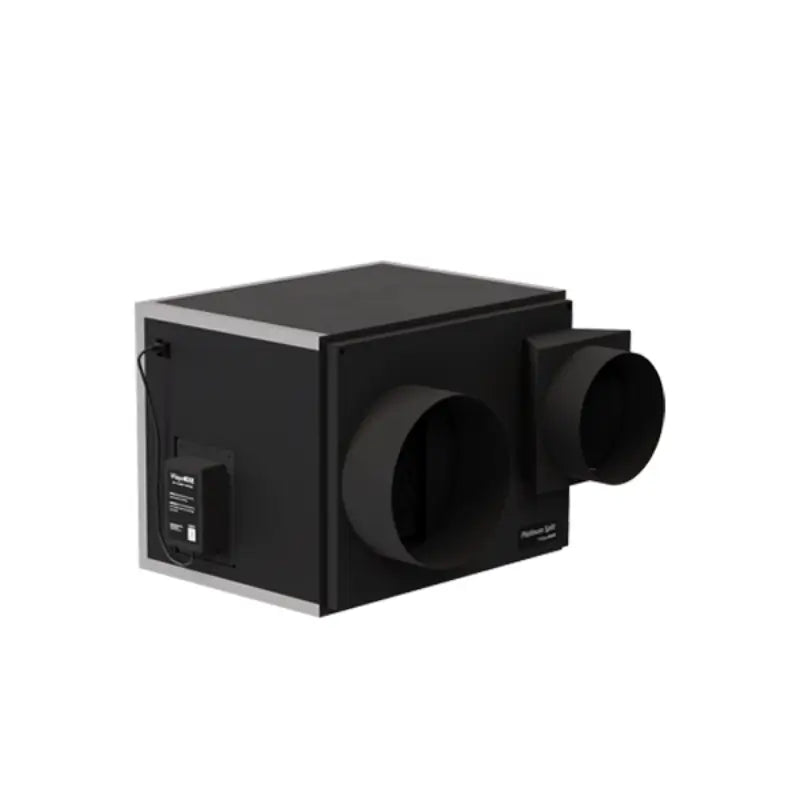

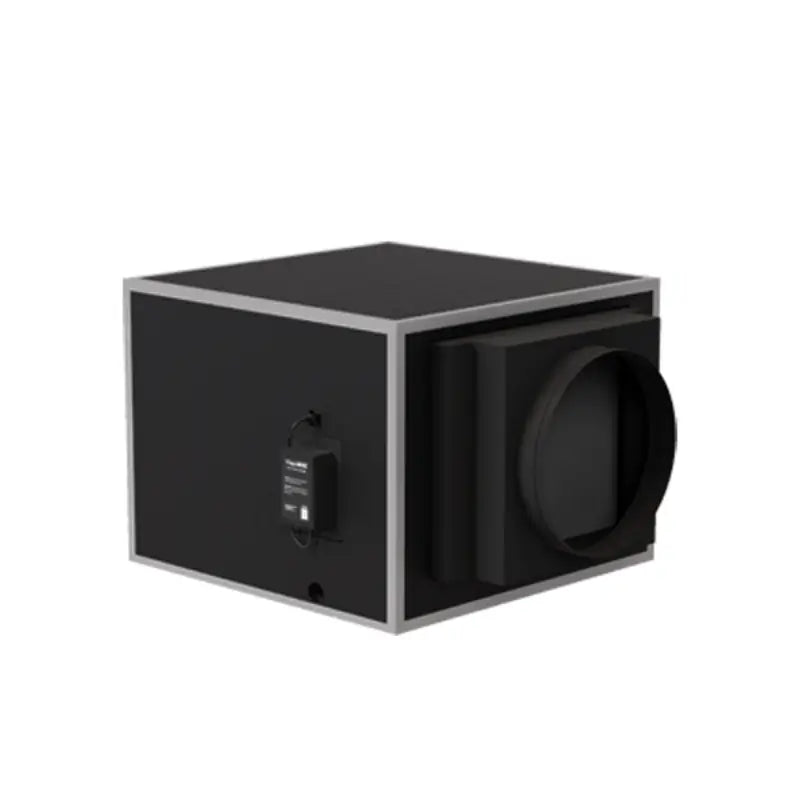

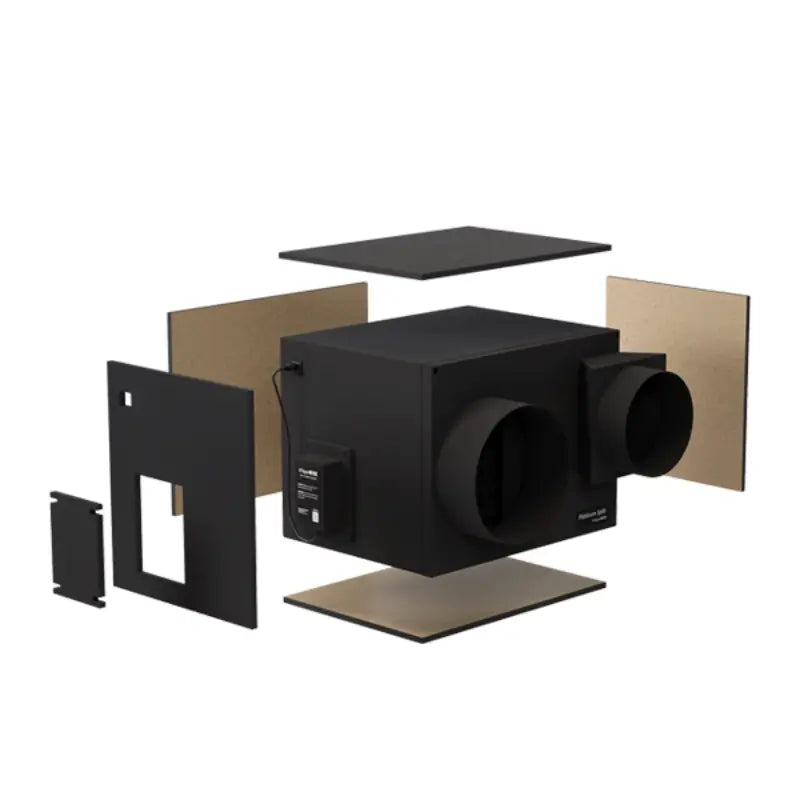

Platinum Split Insulation Kit
Platinum Split insulation installation varies according to condensate routing and UV-light configuration.
The bottom panel contains a removable section when condensate is routed from the bottom, while installations using rear condensate routing retain the panel as supplied.
Quantum Insulation Kit
The Quantum kit includes insulation for the top, bottom, fan side, UV side, front, and back of the equipment,
together with UV/light-cover components. The fan-side panel must be positioned in relation to the fan vent before final application.
Important Distinction
This Kit Does Not Replace Wine Cellar Insulation
The WhisperKOOL Exterior Insulation Kit insulates compatible cooling equipment; it does not insulate the wine cellar itself.
The kit does not replace the insulation, vapor barrier, air sealing, or other construction requirements required for a properly prepared wine cellar.
The cooling equipment and the cellar envelope serve different purposes and must each be addressed according to the applicable installation requirements.
Kit Contents
What's Included?
The exact components depend on the WhisperKOOL system selected. There is no single universal panel set for every compatible system.
Depending on the kit, components can include:
- Top insulation panels
- Bottom insulation panels
- Front and rear panels
- Side insulation panels
- Blower insulation pieces
- Vent insulation pieces
- Plenum insulation panels
- Access-panel insulation
- UV-light-related panels
- Light-cover insulation pieces
Refer to the installation instructions for the selected WhisperKOOL system to confirm the exact panel configuration.
Downloads
WhisperKOOL Exterior Insulation Installation Resources
Review the installation instructions for the specific WhisperKOOL system before installing the exterior insulation kit.
Questions & Answers
Frequently Asked Questions
Is the WhisperKOOL Exterior Insulation Kit required for attic installations?
Yes. The supplied product information identifies exterior insulation as required for attic installations.
Use the model-specific kit designed for the WhisperKOOL system being installed.
Does one WhisperKOOL Exterior Insulation Kit fit every cooling system?
No. Phantom, Quantum, Ceiling Mount, Fully Ducted Extreme, and Fully Ducted Platinum Split systems use different insulation panel configurations.
Select the kit that matches the applicable WhisperKOOL system.
Which WhisperKOOL systems are compatible with exterior insulation kits?
The supplied product information identifies compatibility with Phantom Series, Quantum Series, Ceiling Mount Series,
Fully Ducted Extreme Series, and Fully Ducted Platinum Split Series systems. Confirm the specific kit before installation.
Does the Exterior Insulation Kit replace the wine cellar vapor barrier or insulation?
No. The kit is designed to insulate compatible WhisperKOOL cooling equipment.
It does not replace the insulation, vapor barrier, sealing, or other construction requirements of the wine cellar itself.
Can every WhisperKOOL insulation kit be installed the same way?
No. Installation varies by equipment family and can involve model-specific cutting, panel placement,
vent or plenum preparation, condensate routing, or UV-light considerations.
Follow the installation instructions for the selected kit.
What can happen if equipment in an unconditioned space does not have required exterior insulation?
Unconditioned heat and humidity can contribute to longer system runtime, reduced efficiency, and condensation on cold surfaces.
Use the required model-specific insulation when the installation conditions call for it.
Installation Guidance
Protect Compatible WhisperKOOL Equipment in Challenging Installations
When compatible WhisperKOOL equipment is installed in an attic, garage, mechanical room, or another applicable unconditioned environment,
use the exterior insulation kit designed for that system.
Correct kit selection and model-specific installation help provide the intended thermal barrier around the equipment
and address heat exposure and condensation concerns associated with demanding installation conditions.
Always match the insulation kit to the WhisperKOOL system being installed and follow the applicable manufacturer installation instructions.
