Quick Answer
Is the Exterior Insulation Kit Right for Your WhisperKOOL EXTREME 8000?
Choose the appropriate EXTREME 8000 exterior insulation kit when the cooling equipment
is installed in an applicable attic, garage, mechanical room, or another unconditioned
environment where surrounding heat and humidity can affect exposed equipment surfaces.
| Designed For |
WhisperKOOL EXTREME 8000 applications requiring exterior equipment insulation. |
| Best Application |
Applicable installations in attics, garages, mechanical rooms, and other hot or
humid unconditioned spaces.
|
| Primary Purpose |
Adds exterior insulation around designated cooling-unit surfaces to help reduce
surrounding heat exposure and condensation.
|
| Installation Type |
Model-specific adhesive-backed insulation panels. |
| UV-Light Consideration |
Yes. Panel installation must account for whether the EXTREME cooling unit is
equipped with a UV light.
|
| Replaces Cellar Insulation? |
No. This kit insulates the cooling equipment and does not replace the wine
cellar's insulation, vapor barrier, or air sealing.
|
Before Ordering
- Confirm that the insulation kit corresponds to your WhisperKOOL EXTREME 8000 configuration.
- Determine whether the cooling unit is equipped with a UV light before installation.
- Follow the EXTREME-specific insulation installation instructions.
- Do not block vents, openings, access points, or other functional components.
- The kit does not replace proper wine cellar insulation or vapor-barrier construction.
Key Benefits
Why Use Exterior Insulation on a WhisperKOOL EXTREME 8000?
Helps Isolate the Unit From Surrounding Heat
Exterior insulation creates an additional thermal barrier between designated surfaces
of the EXTREME 8000 and the surrounding environment. This is particularly relevant when
the equipment is located outside a conditioned indoor space.
Helps Reduce Condensation on Cold Surfaces
Insulating designated cold exterior surfaces helps reduce their direct exposure to warm,
humid surrounding air where condensation may otherwise develop.
Supports Demanding Installation Environments
Attics, garages, mechanical rooms, and similar locations can expose cooling equipment
to substantially different environmental conditions than a conditioned interior room.
Exterior insulation helps provide an additional barrier between the equipment and those
surrounding conditions.
Uses an EXTREME-Specific Panel Layout
The Large EXTREME insulation configuration uses dedicated panels for specific areas of
the cooling equipment instead of relying on a generic insulation blanket.
Accounts for UV-Light Configuration
The installation procedure must account for whether the EXTREME unit includes a UV light,
making correct panel identification and placement important before the adhesive backing is applied.
Installation Environment
When Does an EXTREME 8000 Need Exterior Insulation?
Exterior equipment insulation is intended for applicable WhisperKOOL installations where
the cooling unit is exposed to an unconditioned, hot, or humid surrounding environment.
Common examples can include:
- Attics
- Garages
- Mechanical rooms
- Other applicable unconditioned spaces
- Locations where warm, humid air can contact cold equipment surfaces
Attic installation:
Exterior insulation deserves particular attention when the EXTREME 8000 is installed in
an attic. Follow the applicable WhisperKOOL EXTREME insulation instructions for the unit.
Compatibility
WhisperKOOL EXTREME 8000 Insulation Kit Compatibility
This page is intended specifically for the
WhisperKOOL EXTREME 8000 Exterior Insulation Kit.
WhisperKOOL uses different insulation configurations for different cooling-system families,
so kits intended for Phantom, Quantum, Ceiling Mount, or Platinum Split equipment should
not be treated as interchangeable with the EXTREME kit.
| Application |
Use This Page? |
Guidance |
| WhisperKOOL EXTREME 8000 |
Yes |
Use the EXTREME-specific kit and follow the applicable EXTREME installation instructions.
|
| Other EXTREME Models |
Verify First |
Confirm the exact kit/model application before ordering.
|
| Phantom Series |
No |
Use the Phantom-specific insulation configuration. |
| Quantum Series |
No |
Use the Quantum-specific insulation configuration. |
| Ceiling Mount Series |
No |
Use the Ceiling Mount-specific insulation configuration. |
| Platinum Split Series |
No |
Use the Platinum Split-specific insulation configuration. |
How It Works
How the EXTREME 8000 Exterior Insulation Kit Works
The kit uses adhesive-backed insulation panels positioned on designated exterior surfaces
of the EXTREME cooling equipment.
These panels help separate the equipment housing from surrounding heat and humidity while
insulating cold exterior surfaces where condensation may occur.
Why Panel Placement Matters
Exterior insulation must be installed without interfering with the functional components
of the cooling system. The EXTREME configuration therefore uses model-specific panel
locations rather than a universal wrap.
UV-light configuration is particularly important because the appropriate side and cover
insulation must correspond to the equipment configuration.
Installation
EXTREME 8000 Exterior Insulation Installation Considerations
The Large EXTREME insulation configuration includes model-specific panels intended for
designated surfaces of the cooling equipment.
Top Panel
Insulates the designated top exterior surface of the EXTREME equipment.
Bottom Panel
Covers the designated bottom exterior surface according to the installation instructions.
UV-Light-Side Panel
Panel positioning must account for whether the cooling system includes a UV light.
Outlet-Side Panel
Designed for the applicable outlet side of the EXTREME equipment housing.
Light-Cover Panel
Used as required by the applicable EXTREME configuration and UV-light arrangement.
Installation warning:
Do not assume the panels are interchangeable or install them solely according to exterior
dimensions. Identify each panel and follow the manufacturer installation sequence before
permanently applying the adhesive-backed insulation.
Important Distinction
The EXTREME 8000 Insulation Kit Does Not Insulate the Wine Cellar
This accessory is designed to insulate designated exterior surfaces of the cooling
equipment. It is not a substitute for proper wine-cellar construction.
The wine cellar itself still requires the appropriate insulation, vapor barrier,
air sealing, and other construction measures required for the cooling system application.
Equipment insulation and cellar-envelope insulation perform different functions.

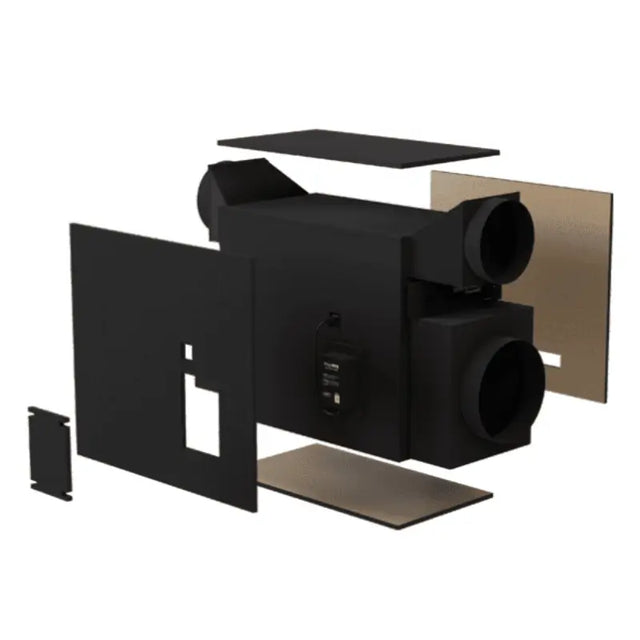

Kit Configuration
What Is Included With the EXTREME Exterior Insulation Kit?
The supplied Large EXTREME installation information identifies model-specific insulation
pieces for designated areas of the equipment.
- Top insulation panel
- Bottom insulation panel
- UV-light-side insulation panel
- Outlet-side insulation panel
- Light-cover insulation panel
The required installation configuration depends on the applicable EXTREME setup,
including whether the cooling equipment is equipped with a UV light.
Review the applicable EXTREME installation instructions before applying any
adhesive-backed insulation panel.
Installation Resources
WhisperKOOL EXTREME Exterior Insulation Instructions
Review the manufacturer instructions before installing the exterior insulation kit on
the EXTREME 8000.
Large EXTREME Insulation Kit Installation Instructions
Use this guide for the EXTREME-specific panel identification and installation procedure.
View Installation Instructions
WhisperKOOL Exterior Insulation Blanket Product Sheet
Review the supporting WhisperKOOL exterior insulation product information.
View Product Sheet
Questions & Answers
WhisperKOOL EXTREME 8000 Exterior Insulation Kit FAQs
What is the WhisperKOOL EXTREME 8000 Exterior Insulation Kit used for?
It adds model-specific insulation around designated exterior surfaces of the EXTREME
cooling equipment to help reduce exposure to surrounding heat and limit condensation
on cold surfaces in applicable unconditioned installations.
Should I use exterior insulation if my EXTREME 8000 is installed in an attic?
Attic installations require particular attention to exterior insulation. Use the
appropriate model-specific EXTREME kit and follow the corresponding WhisperKOOL
installation instructions.
Does the EXTREME insulation kit fit other WhisperKOOL cooling systems?
Do not assume it does. WhisperKOOL uses different insulation configurations for
different equipment families. Select the kit specified for the cooling system being installed.
Does UV-light configuration affect installation?
Yes. The Large EXTREME insulation configuration includes UV-light-related panel
considerations, so installation must account for whether the cooling unit is equipped
with a UV light.
Does this kit replace the insulation and vapor barrier in my wine cellar?
No. The EXTREME exterior insulation kit is used on the cooling equipment. It does
not replace the insulation, vapor barrier, air sealing, or other construction
requirements of the wine cellar itself.
Can I install the insulation panels in any position that fits?
No. The panels are model-specific and must be placed according to the applicable
EXTREME installation instructions, including the configuration of UV-light-related
components.
Before You Order
Match the Exterior Insulation Kit to Your EXTREME 8000
If your WhisperKOOL EXTREME 8000 is being installed in an applicable attic, garage,
mechanical room, or another unconditioned environment, use the exterior insulation
configuration specified for the unit.
Correct model selection and panel placement help provide the intended thermal barrier
around the cooling equipment while addressing surrounding heat and condensation concerns.
Confirm compatibility with your EXTREME 8000 installation and review the manufacturer
instructions before applying the insulation panels.
