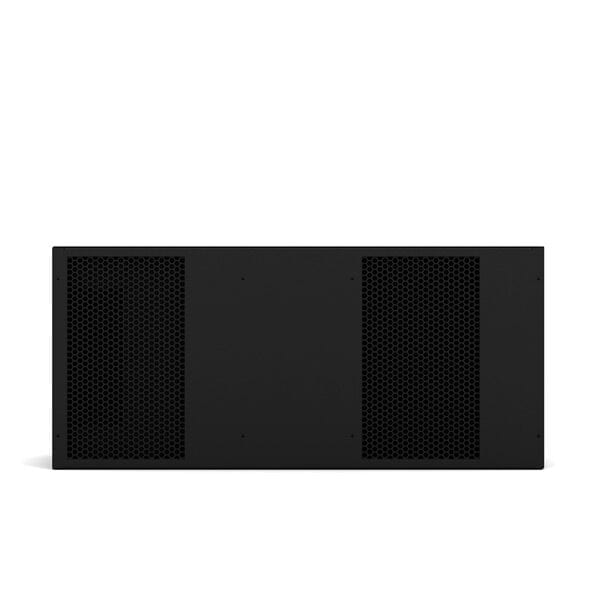

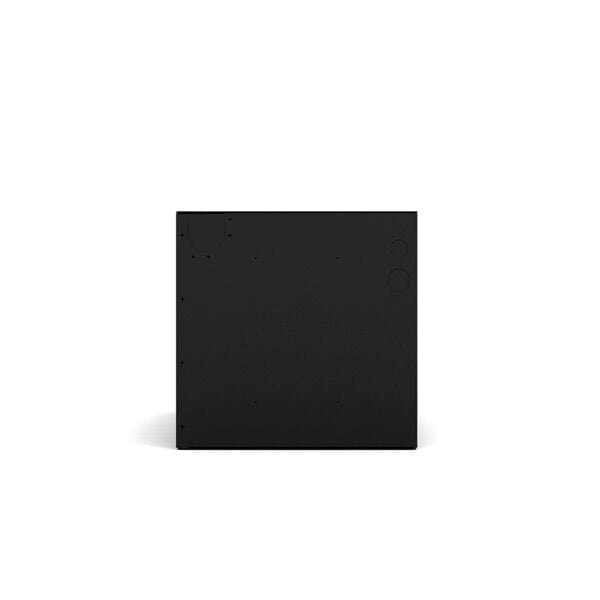

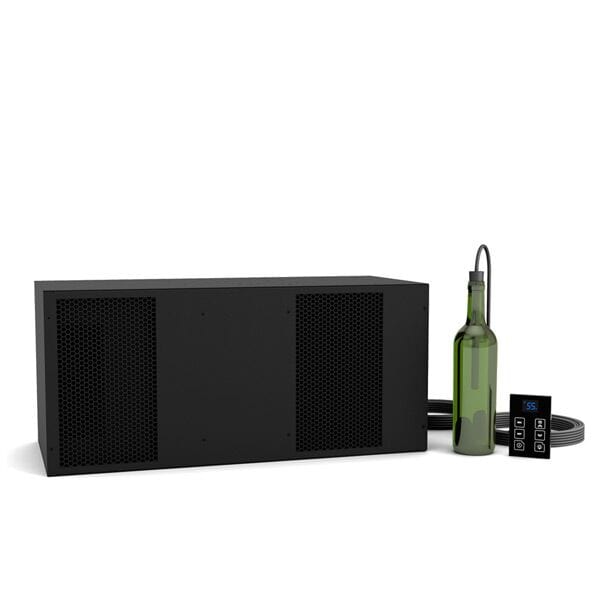

WhisperKool Mini Ceiling Mount OMEGA 110V Wine Cooling System

Ceiling-Mounted Split Wine Cellar Cooling System (Up to 500 Cu. Ft.)

The WhisperKool Mini Ceiling Mount OMEGA 110V is a split-system wine cellar cooling unit designed for fully insulated, vapor-sealed wine cellars up to 500 cubic feet.

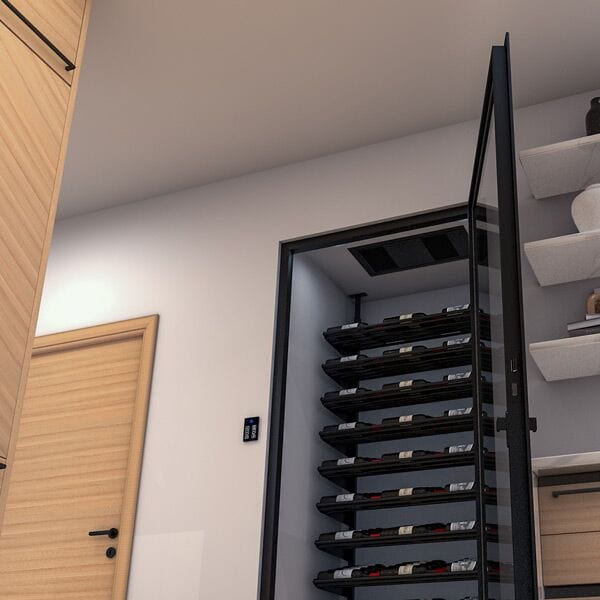

It installs inside the cellar ceiling, preserving wall space for racking while relocating the condenser up to 100 feet away.

This is a professional HVAC-installed system — not a plug-and-play appliance.

Is This the Right Cooling Unit for Your Cellar?

✔ Best For:

• Fully insulated cellars up to 500 cu. ft.
• R-19+ wall insulation and R-30+ ceiling insulation
• Continuous vapor barrier construction
• Modern wine walls where wall space must remain open
• Remote condenser placement (mechanical room, attic, exterior housing)

✘ Not Recommended For:

• Open-concept wine displays
• Unsealed basements or garages
• Rooms without a vapor barrier
• Large glass enclosures without load calculation
• DIY installation without licensed HVAC technician

Cooling capacity assumes proper cellar construction. Heat load calculations are strongly recommended before purchase.

How This System Works

This is a split-system configuration:

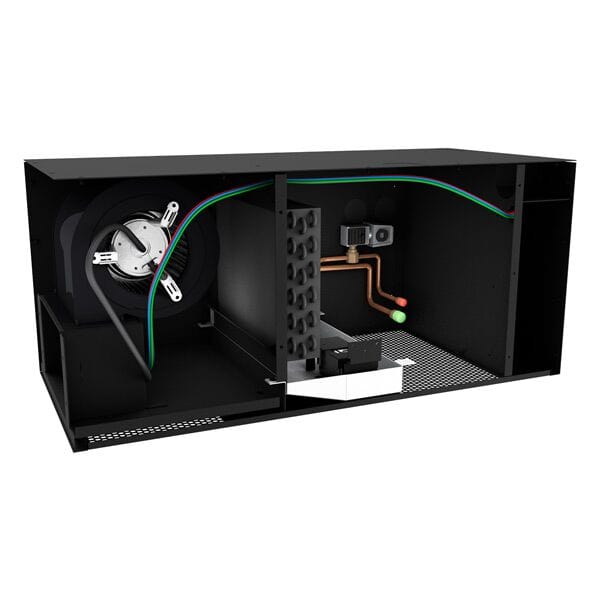

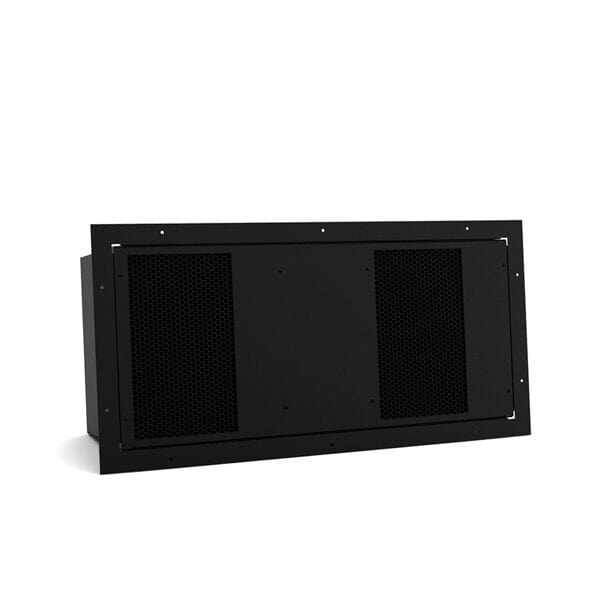

• Evaporator installs inside the cellar ceiling
• Condenser installs remotely (up to 100 ft away)

Warm air naturally rises toward the ceiling. The evaporator draws in warm air, cools it, and redistributes conditioned air evenly throughout the cellar.

Benefits of ceiling-mounted configuration:

• Maximizes racking space
• Clean, discreet appearance
• Even temperature distribution
• Reduced vibration transfer to wine

Cooling Capacity & Performance

Cooling output varies based on ambient condenser air temperature.

BTU Performance (Sensible / Total)

At 60°F Condenser Intake

• Low Fan: 2442 / 3131 BTU
• Medium Fan: 2564 / 3288 BTU

At 75°F Condenser Intake

• Low Fan: 2132 / 2592 BTU
• Medium Fan: 2239 / 2722 BTU

At 85°F Condenser Intake

• Low Fan: 2084 / 2640 BTU
• Medium Fan: 2188 / 2640 BTU

Performance decreases as condenser intake temperature increases. Proper condenser placement is critical.

The system can maintain a 55°F cellar temperature with condenser intake temperatures up to 120°F — when installed in a properly insulated and sealed cellar.

What These Numbers Mean

• Higher ambient condenser temperatures reduce effective cooling capacity.
• Garages, attics, and exterior placements must be evaluated carefully.
• Glass walls increase heat load significantly.
• Undersized systems may short-cycle and fail prematurely.

If your cellar has extensive glass, high ceilings, or marginal insulation, a professional load calculation is required before selecting this unit.

Technical Specifications

*Capacity based on fully insulated cellar with vapor barrier.

Manuals for WhisperKool Mini Ceiling Mount OMEGA:

• Mini Ceiling Mount Owner's Manual
• OMEGA Ceiling Mount Product Sheet
• OMEGA Condenser Owner's Manual
• OMEGA Condenser Product Sheet

Installation Requirements (Important)

This system MUST be installed by a licensed HVAC/R technician.
Failure to do so voids the manufacturer warranty.

Electrical

• 120V
• Dedicated 15-amp circuit required

Line Set

• Maximum 100 ft length
• Suction line must increase to 3/4" beyond 50 ft
• Improper sizing can cause compressor damage

Drainage

• 1/4" drain line required
• Proper slope required for condensate removal

Cellar Construction Requirements

• Continuous vapor barrier
• Proper insulation (minimum R-19 walls recommended)
• Sealed doors and glass assemblies
• Heat load calculation recommended

Improper installation or construction can result in insufficient cooling and warranty denial.

Noise Profile

• 51 dBA evaporator ≈ quiet office environment
• 46 dBA condenser ≈ soft conversation

Suitable for residential environments where low vibration and minimal acoustic disruption are important.

Optional Accessories

• Exterior condenser housing
• 24V thermostat conversion kit

Warranty

• 2-Year Limited Parts & Labor Warranty
• Additional 1-Year Installation Grace Period
• Professional installation required

Final Summary

The WhisperKool Mini Ceiling Mount OMEGA 110V is a professional-grade cooling solution for small, properly constructed wine cellars up to 500 cubic feet.

It is ideal when ceiling installation and remote condenser placement are required, but it must be paired with correct insulation, vapor sealing, and professional installation to perform as designed.

If you are unsure about your cellar’s heat load, insulation, or vapor barrier construction, consult a wine cellar professional before selecting this unit.
