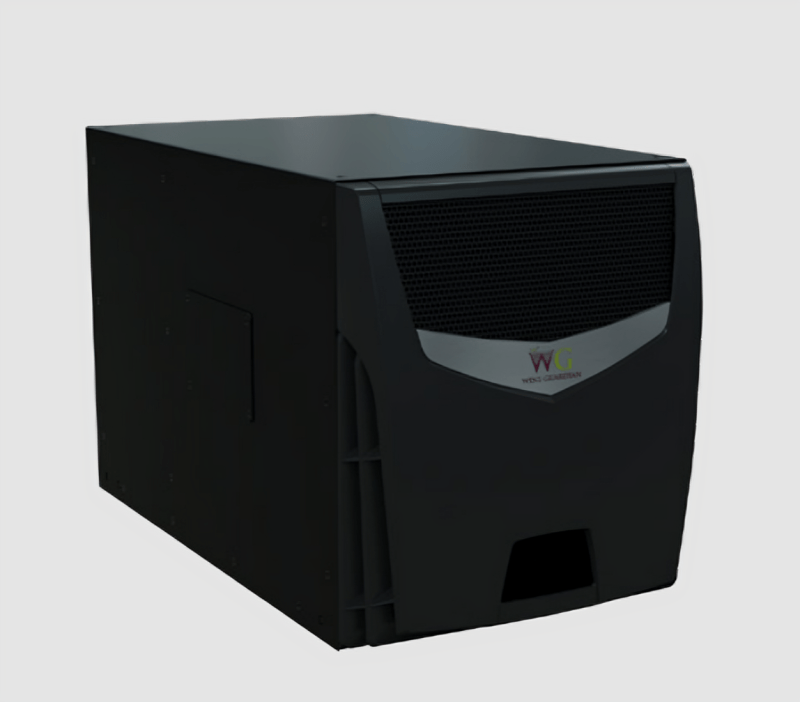

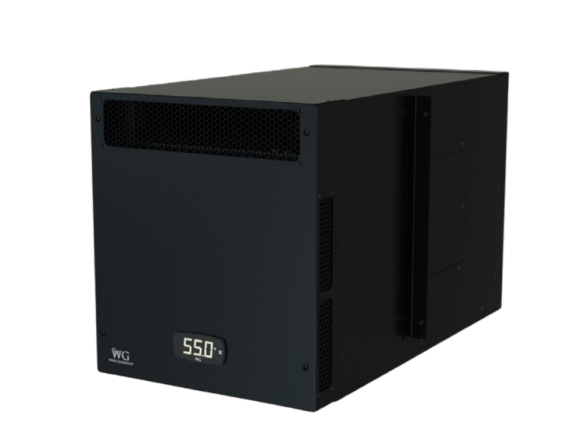

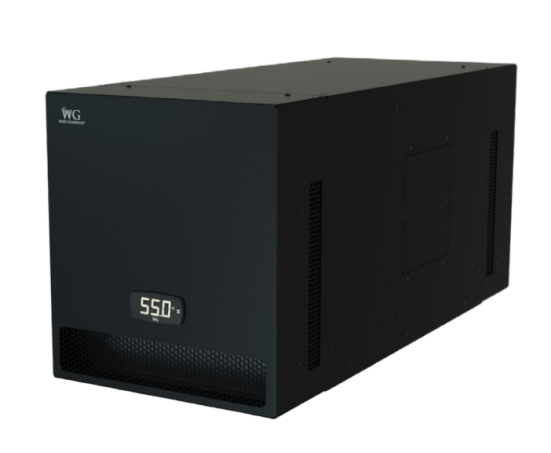

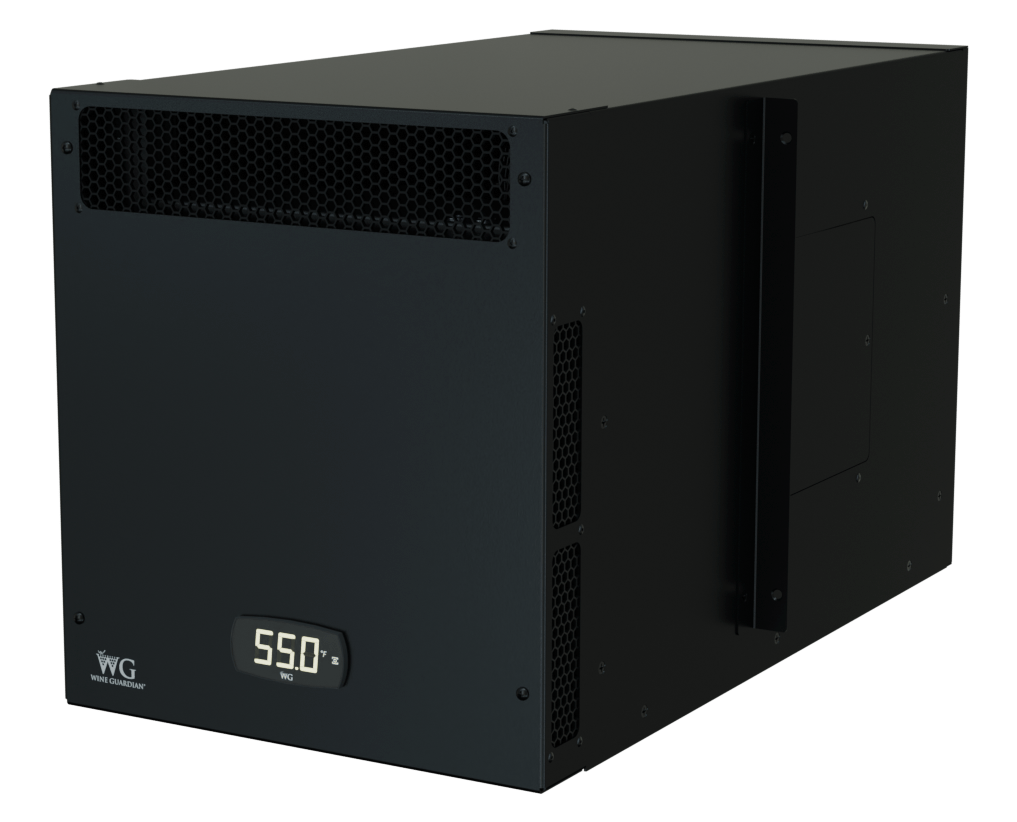

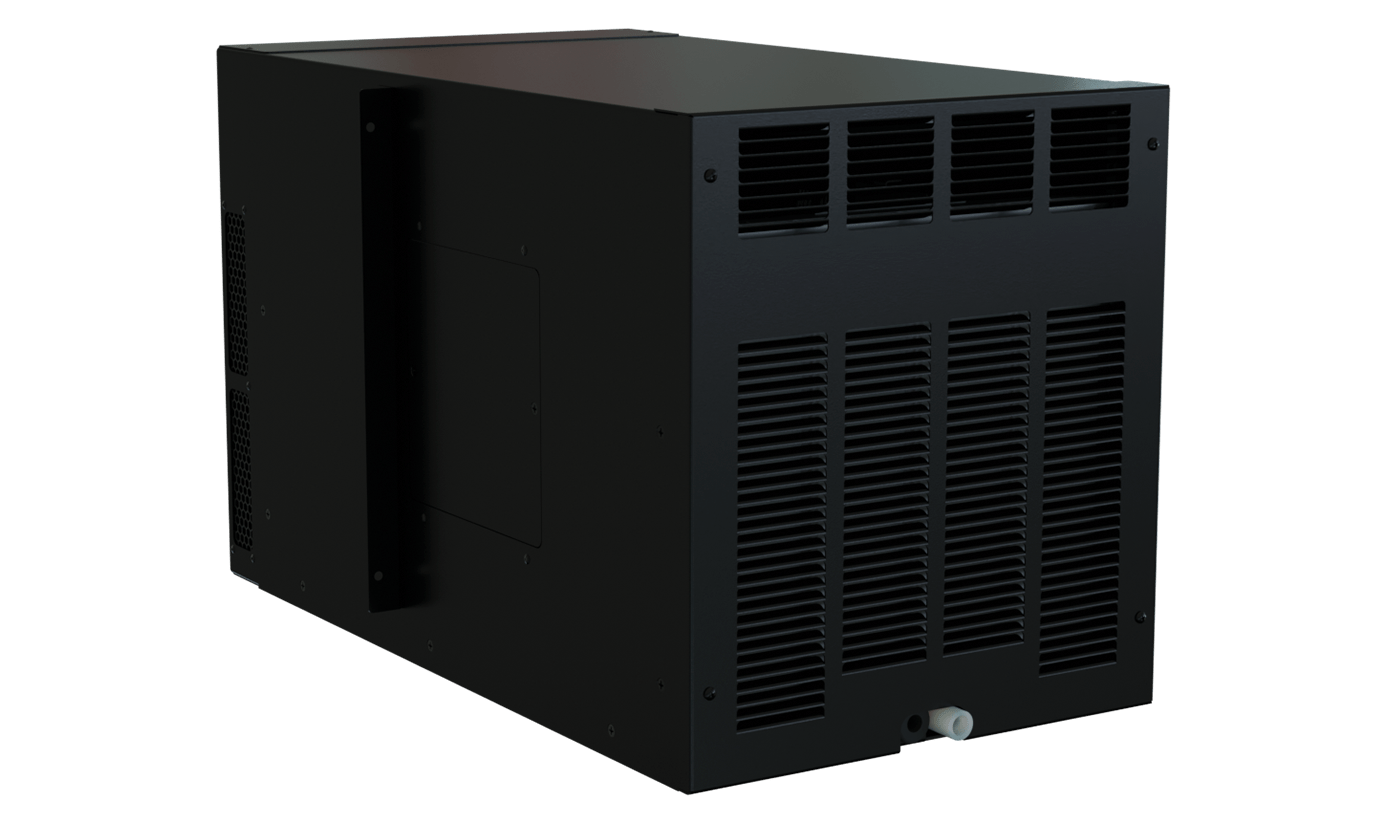

Wine Guardian Classic TTW01B Through-the-Wall Wine Cellar Cooling Unit
The Wine Guardian Classic TTW01B is a compact through-the-wall wine cellar cooling unit designed to maintain stable temperature and humidity conditions in small wine cellars, wine cabinets, and wine display installations.
This self-contained system installs directly through the cellar wall and exhausts warm air into an adjacent interior space. With 830–1485 BTU of cooling capacity, the TTW01B provides reliable climate control for smaller wine storage environments while maintaining ideal cellar conditions between 55°F and 58°F.
Engineered for quiet operation, energy efficiency, and straightforward installation, the Wine Guardian TTW01B is a practical solution for residential collectors and small commercial wine displays.
Important: The TTW01B is designed for indoor installation only and is not rated for exterior wall installation.
Why Choose Wine Guardian?
Wine Guardian offers precise, energy-efficient, and quiet wine cellar cooling systems with smart controls, keeping your collection perfectly preserved.
Key Features
Precise Temperature Control for Wine Storage
Wine Guardian cooling systems are engineered specifically for wine storage environments rather than general room cooling.
The TTW01B maintains stable cellar temperatures between 55°F and 58°F, the range widely recognized as ideal for long-term wine storage and aging.
Maintaining consistent temperature conditions helps protect wine from premature aging, oxidation, and spoilage.
Stable Humidity Conditions
Proper wine storage requires both temperature and humidity control.
When used in a properly constructed cellar with appropriate insulation and vapor barrier, the TTW01B can maintain cellar humidity levels around 55%–65% relative humidity when paired with a separate humidification solution.
This helps prevent corks from drying out and protects labels and packaging.
Compact Through-the-Wall Installation
The TTW01B installs directly through a wall separating the wine cellar from an adjacent interior space.
This design allows the system to:
- draw warm air away from the cellar
- exhaust heat into a nearby room
- circulate cooled air inside the cellar
Through-the-wall systems are often selected because they:
- require minimal mechanical space
- are easier to install than split systems
- provide reliable cooling for smaller wine rooms
Quiet Operation for Residential Wine Cellars
The Wine Guardian TTW01B operates at approximately 49 decibels at a distance of 6 feet, which is comparable to the sound level of a quiet conversation.
This makes the system well suited for wine cellars located near living areas, tasting rooms, or wine display walls.
Low vibration and quiet operation help maintain a comfortable wine storage environment without disturbing nearby spaces.
Energy-Efficient Performance
The Classic TTW series is engineered to meet U.S. Department of Energy efficiency standards.
Optimized airflow design and efficient refrigeration components help reduce power consumption while maintaining stable cellar conditions.
Lower energy consumption helps reduce operating costs over the lifetime of the cooling system.
Built-In System Protection
Wine Guardian cooling units include internal protection features designed to safeguard both the cooling system and the wine cellar environment.
These protections help monitor system operation and reduce the risk of performance issues caused by improper operating conditions.
Eco-Friendly Refrigerant
The TTW series uses low global warming potential (GWP) refrigerant, helping reduce environmental impact while complying with current environmental regulations.
Best Applications
The Wine Guardian TTW01B is best suited for:
- Small residential wine cellars
- Wine cabinets and wine closets
- Glass wine display walls
- Restaurant wine displays
- Small commercial wine storage spaces
When This Cooling Unit May Not Be Ideal
The TTW01B may not be appropriate for:
- Large wine cellars
- Cellars with high heat loads
- Poorly insulated wine rooms
- Exterior wall installations
Larger wine cellars typically require higher-capacity cooling units or split wine cellar cooling systems.
How Through-the-Wall Wine Cooling Systems Work
Through-the-wall wine cooling systems contain both the evaporator and condenser components within a single unit.
The evaporator cools and circulates air inside the wine cellar, while the condenser removes heat and exhausts it into an adjacent room.
The system continuously cycles air through the cooling system to maintain stable temperature conditions throughout the cellar.
Because the system is self-contained, installation is typically simpler than split wine cellar cooling systems.
What’s Included
The Wine Guardian Classic TTW01B package includes:
- Through-the-wall cooling unit
- Mounting bracket
- Pre-charged refrigeration system
- Installation documentation
Specifications
General Specifications
| Specification | Details |
|---|---|
| Model | Wine Guardian TTW01B |
| Cooling System Type | Through-the-Wall |
| Cooling Capacity | 830 – 1485 BTU |
| Power Supply | 120V / 1 Phase / 60 Hz |
| Power Consumption | 260 Watts |
| Full Load Amps | 5.1 A |
| Minimum Circuit Ampacity | 6.2 A |
| Noise Level | Approx. 49 dB |
| Refrigerant | Low GWP refrigerant |
| Condensate Management | Re-evaporation |
Cooling Performance
Cooling performance varies depending on cellar temperature and humidity conditions.
| Cellar Condition | Total Cooling Capacity |
|---|---|
| 125°F condenser air / 93°F wet bulb | 830 BTU |
| 110°F condenser air / 82°F wet bulb | 880 BTU |
| 75°F condenser air / 62°F wet bulb | 1440 BTU |
| 50°F condenser air / 44°F wet bulb | 1650 BTU |
Airflow Performance
| Component | Airflow | Fan Speed |
|---|---|---|
| Evaporator | 110 CFM | 1400 RPM |
| Condenser | 100 CFM | 1800 RPM |
Dimensions and Weight
| Dimension | Measurement |
|---|---|
| Length | 25.8 inches |
| Width | 14.1 inches |
| Height | 15.8 inches |
| Weight | 58 lbs |
Manuals for Wine Guardian Classic Through-The-Wall
Installation Requirements
The TTW01B installs through a wall separating the wine cellar from an adjacent interior room.
Proper installation requires:
- adequate wall opening for the cooling unit
- a fully insulated wine cellar
- a proper vapor barrier
- sufficient airflow in the exhaust room
For best performance, professional installation is recommended.
Product Videos
Wine Guardian Through-the-Wall Installation Guide
Step-by-step instructions showing how to install a through-the-wall wine cellar cooling system.
Wine Guardian Cooling Technology Overview
A demonstration of how Wine Guardian cooling systems maintain ideal wine cellar conditions.
TTW Cooling System in Action
See the Wine Guardian TTW cooling system operating in a real wine cellar environment.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
The Wine Guardian TTW01B is designed for small wine storage spaces, such as wine cabinets, wine closets, and compact residential wine cellars. The exact cellar size the unit can support depends on insulation quality, vapor barrier construction, and heat load within the room.
The TTW01B is a self-contained through-the-wall cooling system, which simplifies installation compared to split cooling units. While many installations can be completed by experienced homeowners or contractors, professional installation is recommended to ensure proper airflow, insulation, and system performance.
The TTW01B primarily controls temperature. When installed in a properly constructed wine cellar, the unit can support relative humidity levels between 55% and 65%. If precise humidity control is required, a dedicated cellar humidification system may be added.
No. The TTW01B operates at approximately 49 decibels, which is similar to the sound level of a quiet conversation. This makes it suitable for wine cellars located near living areas or tasting rooms.
No. The TTW01B is designed to exhaust warm air into an adjacent interior room and is not rated for exterior wall installations.
Yes. Proper wine cellar construction requires insulation and a vapor barrier to prevent moisture intrusion and temperature instability. Without these elements, the cooling system may struggle to maintain proper cellar conditions."]
