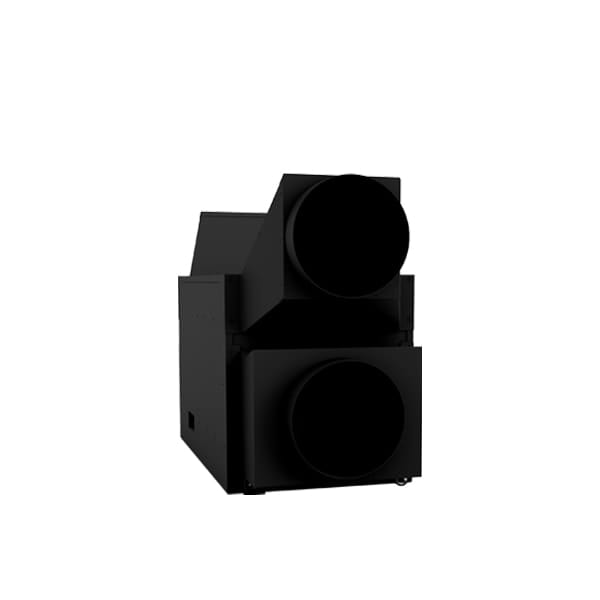

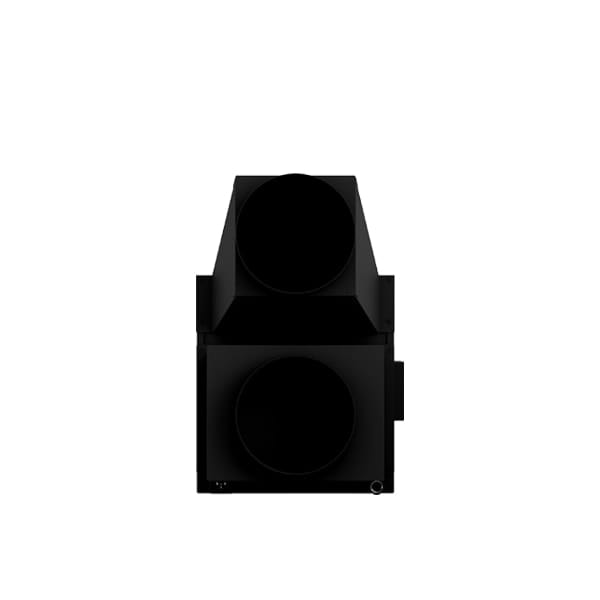

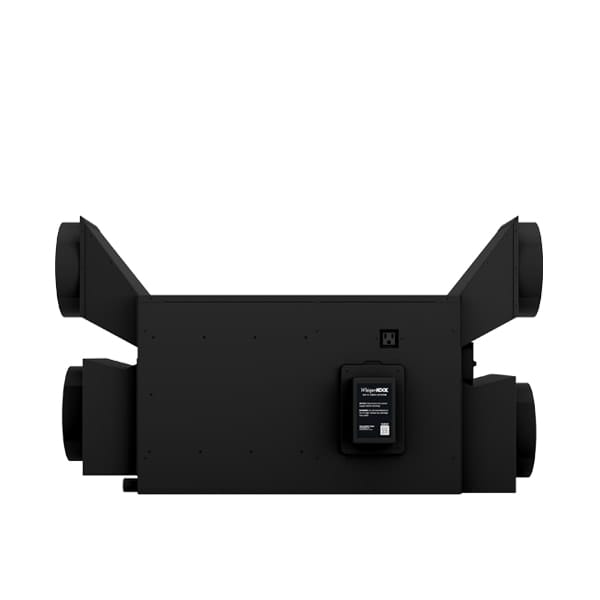

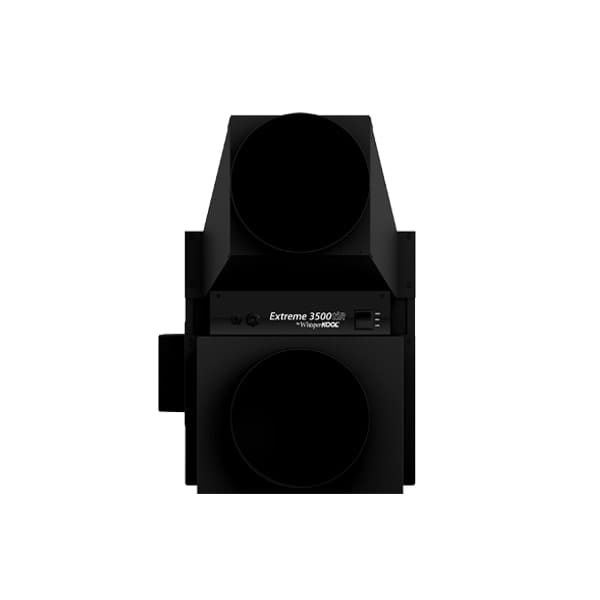

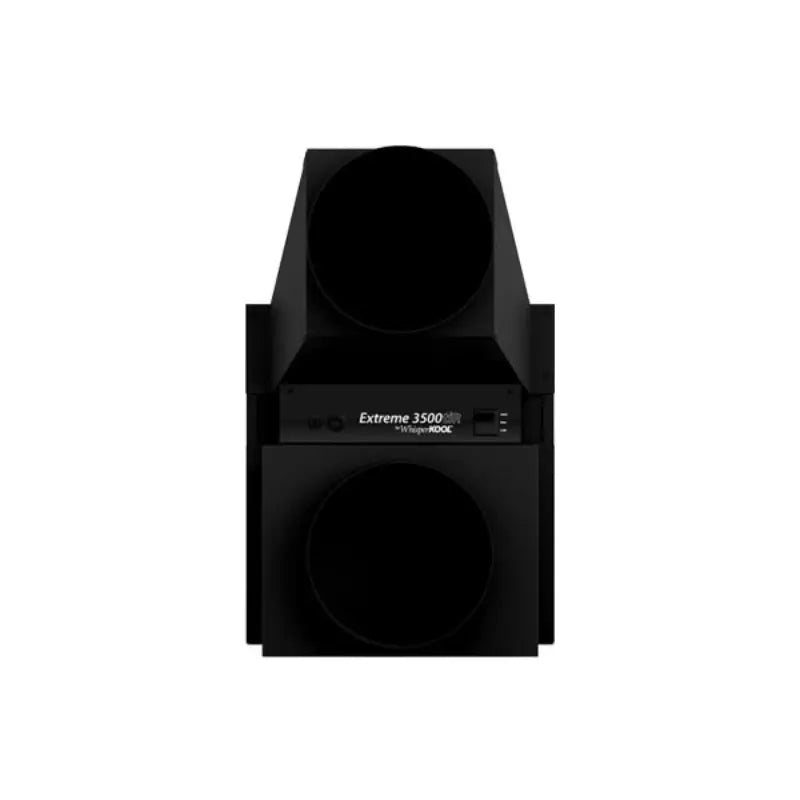

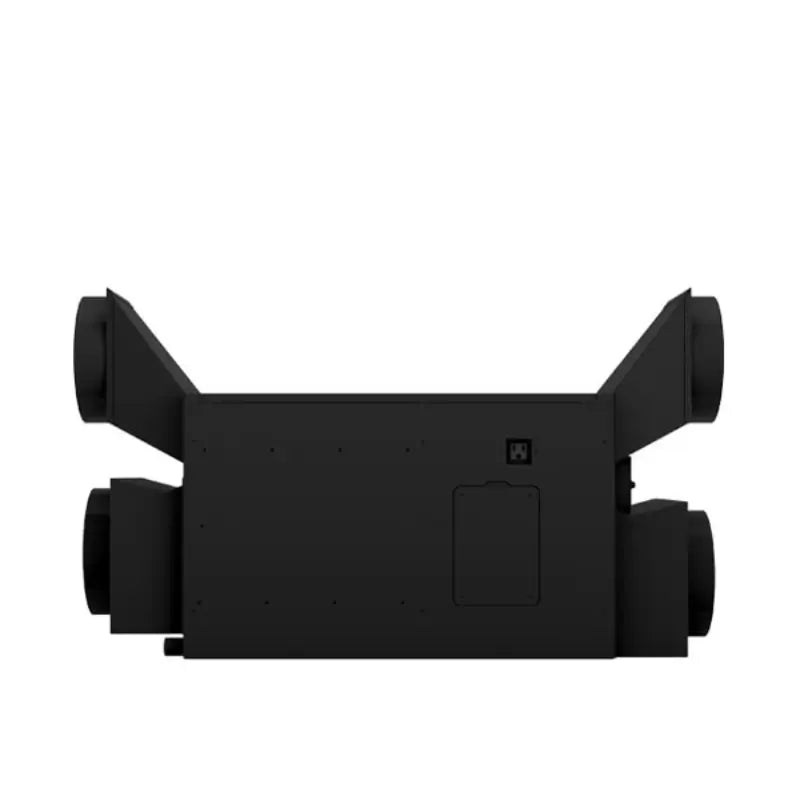

WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System
What It Is (Quick Overview)
The WhisperKOOL Extreme 3500tiR is a fully ducted, self-contained wine cellar cooling system designed for cellars up to 800 cubic feet. It allows installation up to 25 ducted feet away from the wine room and maintains a 55°F cellar temperature with condenser intake air up to 110°F when properly installed.
Unit plenums ship unpainted.
Other sizes: WhisperKOOL Extreme 3500tiR for 800 cu.ft, WhisperKOOL Extreme 5000 tiR Ducted for 1250 cu.ft. wine cellar & WhisperKOOL Extreme 8000 tiR Ducted for 2000 cu.ft wine cellar.
Who This System Is Designed For
The 3500tiR is appropriate for:
✔ Properly insulated wine cellars up to 800 cu. ft.
✔ Projects requiring quiet cellar operation
✔ Installations where the unit must be hidden

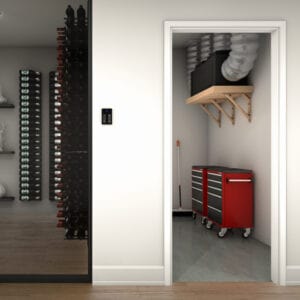

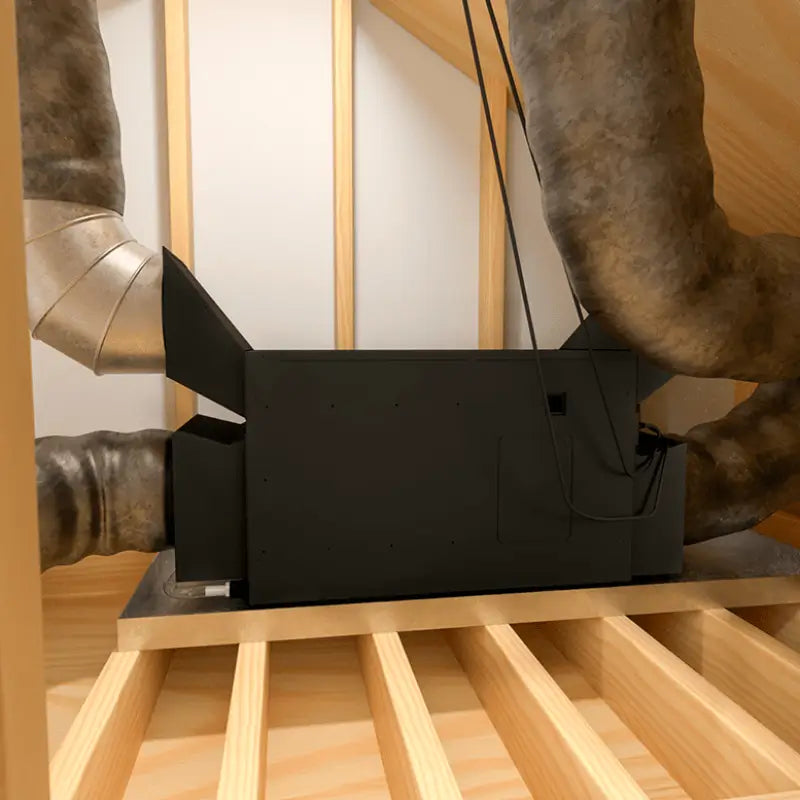

✔ Mechanical room, garage, or attic placement (within temperature limits)
✔ Warm-climate installations where intake air may approach 110°F
Capacity assumes correct insulation, vapor barrier installation, and completed heat load calculation.
When This System Is Not Recommended
This unit may not be appropriate if:
✘ The cellar exceeds 800 cubic feet
✘ The space contains significant glass or high heat-load materials without engineering review
✘ No vapor barrier is installed
✘ Duct runs exceed 25 equivalent feet
✘ Condenser intake air regularly exceeds 110°F
✘ A dedicated 115V, 20-amp circuit cannot be provided
Improper sizing or installation may result in short cycling, inability to maintain temperature, or premature compressor failure.
Why Choose a Fully Ducted System?

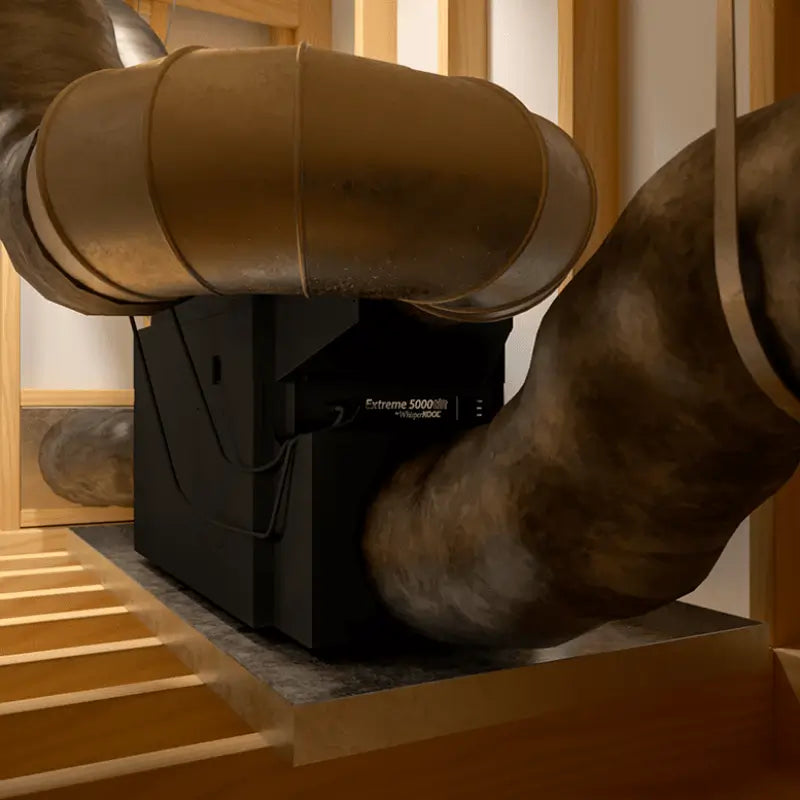

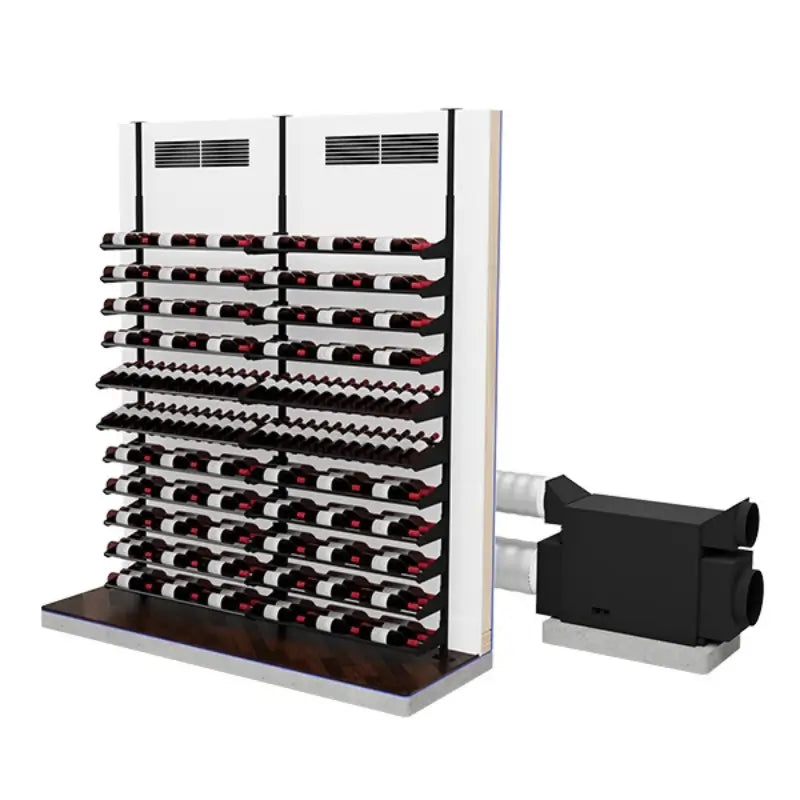

Fully ducted systems allow both the evaporator and condenser to be remotely located. This provides:
- Reduced noise inside the wine cellar
- Greater installation flexibility
- Improved aesthetic control within the cellar
- Controlled exhaust air routing
The 3500tiR can be installed up to 25 equivalent ducted feet away from the cellar when properly engineered.
Key Performance Features

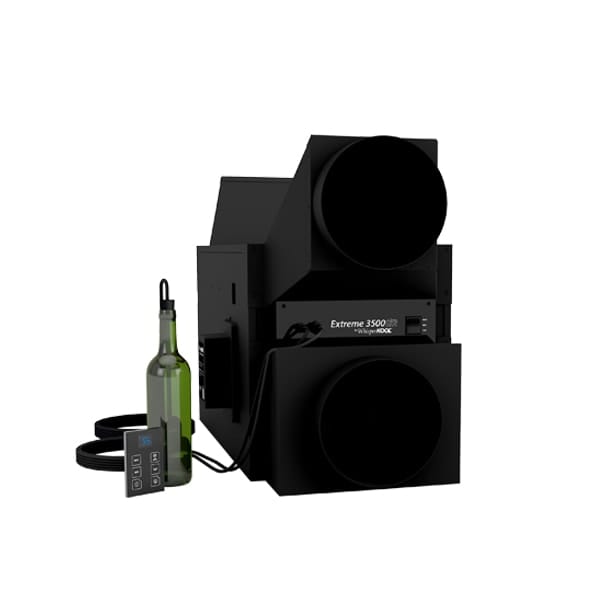

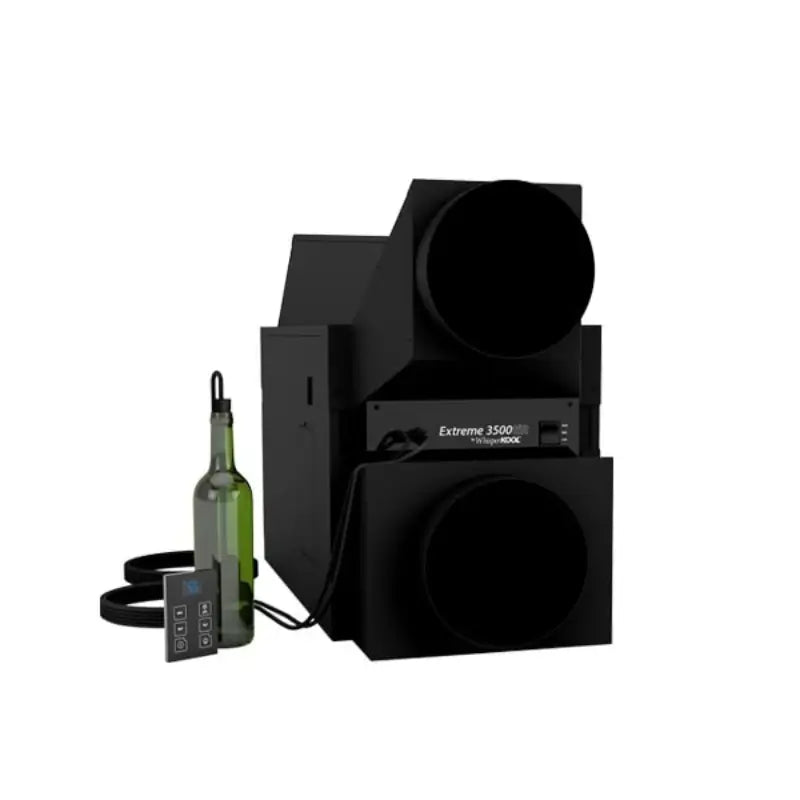

Remote Platinum Series Controller
Includes:
- Advanced digital display (50-ft. cable)
- Liquid-temperature bottle probe (50-ft. cable)
- Quick-chill mode
- Anti-frost protection
- Advanced System Protection Technology with monitoring probes
The bottle probe measures actual liquid temperature rather than ambient air, improving stability and reducing compressor cycling.
Designed for High Ambient Conditions
The system can maintain 55°F cellar temperature with condenser intake air up to 110°F.
Exceeding this limit may reduce performance and shorten compressor lifespan.
Thermostat Options
Available with:
- Standard WhisperKOOL controller
- Optional 24V thermostat configuration
Note: If selecting 24V configuration, a compatible third-party thermostat must be supplied and configured by the installer.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Extreme 3500tiR Fully Ducted |
| Recommended Cellar Size* | Up to 800 cu. ft. |
| BTU/h @ 85°F Intake | 2688 |
| Refrigerant | R-134a |
| Horsepower | 1.05 HP |
| Voltage | 115V (20 amp dedicated circuit required) |
| Running Amps | 9 amps |
| Dimensions (with plenums) | 39.5" L x 22.5" H x 14.25" W |
| Weight | 115 lbs |
| Duct Size | 10" Return – 8" Supply (Evaporator & Condenser) |
| Maximum Duct Run | 25 equivalent feet |
| Drain Line | 1/2" ID clear plastic tubing (not included) |
| Temperature Differential | Maintains 55°F cellar temp with up to 110°F intake |
| Outside Venting | Permitted if ambient does not exceed 110°F; exterior grille recommended |
| Warranty | 2-Year Limited (Parts & Labor) / 5-Year Limited (Compressor) |
*Capacity assumes fully insulated, vapor-sealed enclosure.
Manuals for WhisperKOOL Extreme 3500tiR Ducted:
- Owner's Manual for WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
- Features & Specification Sheet for WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
- Warranty Information for WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
- 24V Thermostat Conversion Kit for WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
Installation Requirements
Proper installation is critical to performance and warranty protection.
Before selecting this model, confirm:
- A heat load calculation has been performed.
- The cellar has continuous insulation and vapor barrier.
- Duct runs do not exceed 25 equivalent feet.
- Condenser intake air remains within specified limits.
- A dedicated 115V, 20-amp circuit is available.
- Drain routing is properly planned.
Failure to meet these conditions may prevent the system from maintaining temperature.
Capacity & Sizing Guidance
The 800 cu. ft. rating is based on:
- Fully insulated enclosure
- Proper vapor barrier
- Minimal glass exposure
- Controlled surrounding environment
Cellars with:
- Glass walls or doors
- Stone or concrete construction
- High ceilings
- Warm mechanical rooms
may require a larger capacity model such as the 5000tiR.
Undersizing is the most common cause of cooling system failure.
WhisperKOOL Extreme tiR Series Review
WhisperKOOL Advanced Digital Controller Features
How Quiet Is the WhisperKOOL Extreme Series?
WhisperKOOL Extreme Series Power Options
Why WhisperKOOL Cooling Units Last Longer
Quieter, Smarter Cooling with WhisperKOOL Variable Speed Fan
WhisperKOOL Single Piece Mounting Bracket Installation Guide
WhisperKOOL 24V Thermostat Conversion Kit Features & Benefits
Warranty
The WhisperKOOL Extreme 3500tiR includes:
- Two-Year Limited Warranty (Parts and Labor)
- Five-Year Limited Warranty (Compressor)
Warranty coverage assumes proper installation and operating conditions.
Summary
The WhisperKOOL Extreme 3500tiR is a fully ducted cooling system designed for properly insulated wine cellars up to 800 cubic feet requiring quiet operation and remote installation flexibility.
Correct sizing, duct design, and vapor sealing are essential for long-term performance.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
Yes, provided attic temperatures do not exceed 110°F and ducting is properly designed. In high-heat regions, additional ventilation or mechanical room placement may be required.
If intake air regularly exceeds 110°F, the unit may struggle to maintain 55°F cellar temperature and compressor lifespan may be reduced. Persistent overheating can lead to system failure.
Yes. A continuous vapor barrier is required to prevent humidity infiltration. Without proper vapor sealing, cooling systems may become overwhelmed and unable to stabilize cellar conditions.
The bottle probe measures the temperature of a liquid-filled sample bottle rather than ambient air. This reduces short cycling and provides more accurate representation of actual wine storage conditions.
If the 24V thermostat configuration is selected, a compatible third-party thermostat may be used. WhisperKOOL does not provide smart thermostats, and configuration is the responsibility of the installer.
Cellar volume alone does not determine cooling needs. A heat load calculation should be performed, especially if the cellar includes glass, stone, or non-standard construction materials."]
