WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency

Is the WhisperKOOL Platinum Split 4000 (220V) the right cooling system for my 1,000 cubic foot wine cellar?

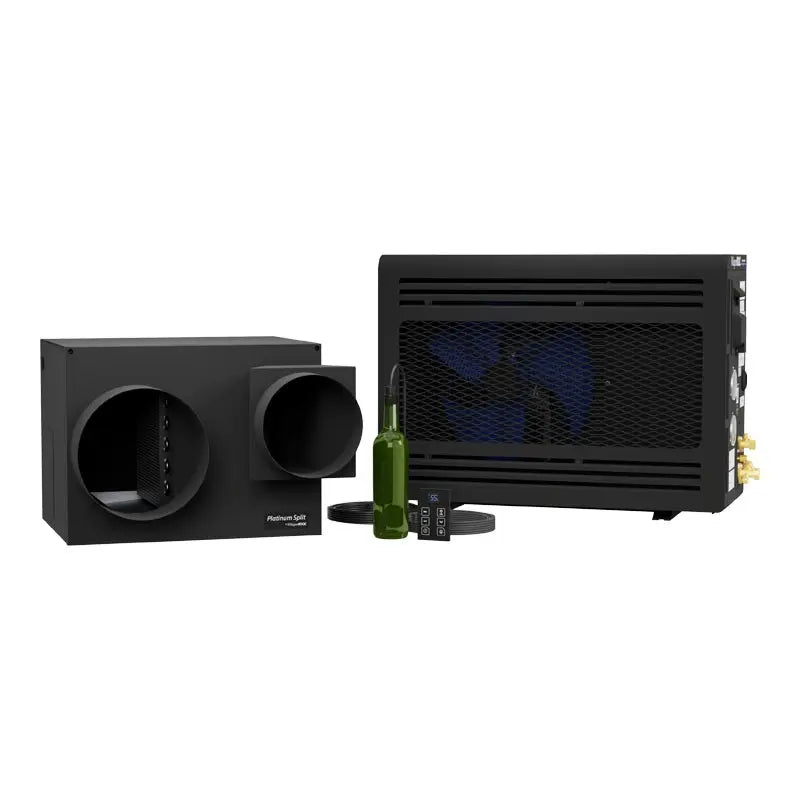

The WhisperKOOL Platinum Split 4000 (220V High Efficiency) is a ducted split-system wine cellar cooling unit designed for properly insulated cellars up to 1,000 cubic feet.

It separates the evaporator (inside or ducted to the cellar) from the condenser (installed remotely), significantly reducing noise inside the wine space while preserving design flexibility.

Professional HVAC-R installation is required.

Available in WhisperKOOL Platinum Split 4000 110V Condenser & Platinum Split 4000 220V Condenser for 1000 cu.ft.

Other Sizes: WhisperKOOL Platinum Split 8000 220V H.E. for 1750 cu.ft wine cellar and WhisperKOOL Platinum Split Twin 220V H.E. for 3000 cu.ft. wine cellar.

Best For

This system is appropriate if:

• Your cellar measures 800–1,000 cu. ft.
• Walls and ceiling meet recommended insulation values (R-19 walls minimum)
• A continuous vapor barrier is installed
• You want equipment hidden from view
• The condenser can be installed up to 100 line feet away
• You have access to a licensed HVAC technician
• Ambient condenser temperatures may reach up to 120°F

Common use cases:

• Glass wine walls
• Modern residential cellars
• Luxury dining room displays
• Small commercial wine rooms

Not Ideal For

This system may underperform or be inappropriate if:

• The cellar exceeds 1,000 cu. ft.
• The space lacks a vapor barrier
• Insulation is insufficient
• The room is open to other living areas
• There is no ability to run a dedicated 220V circuit
• Excessive glass exposure exists without heat load review

A professional heat load calculation is strongly recommended before purchase.

How the System Works

The Platinum Split 4000 is a ducted split system:

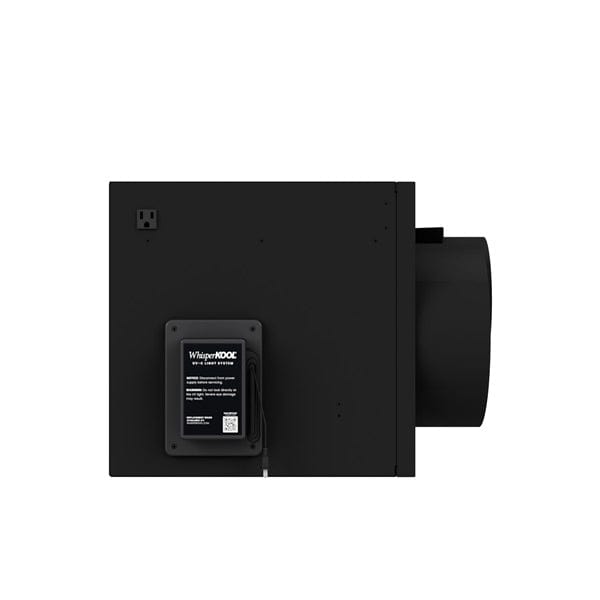

• The evaporator installs inside or ducted to the wine cellar.

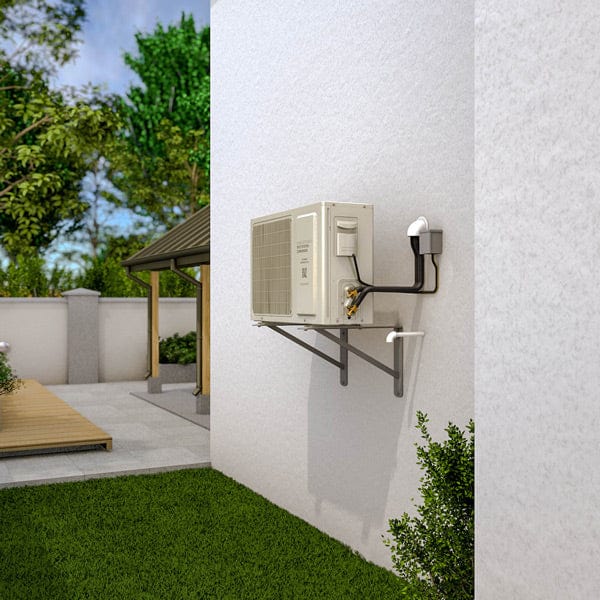

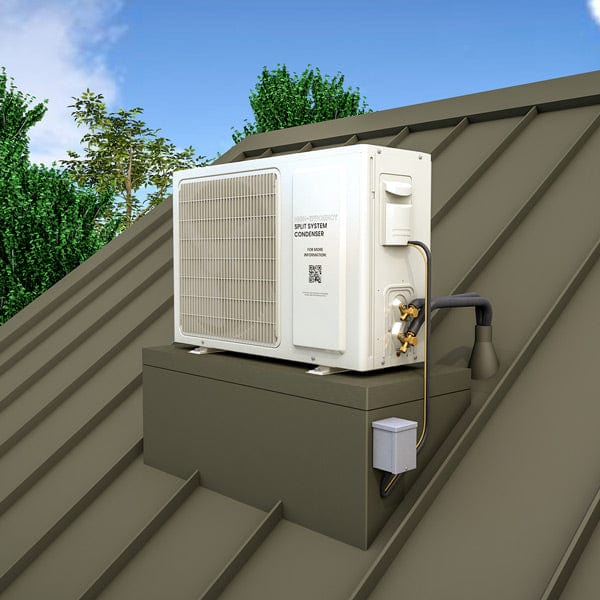

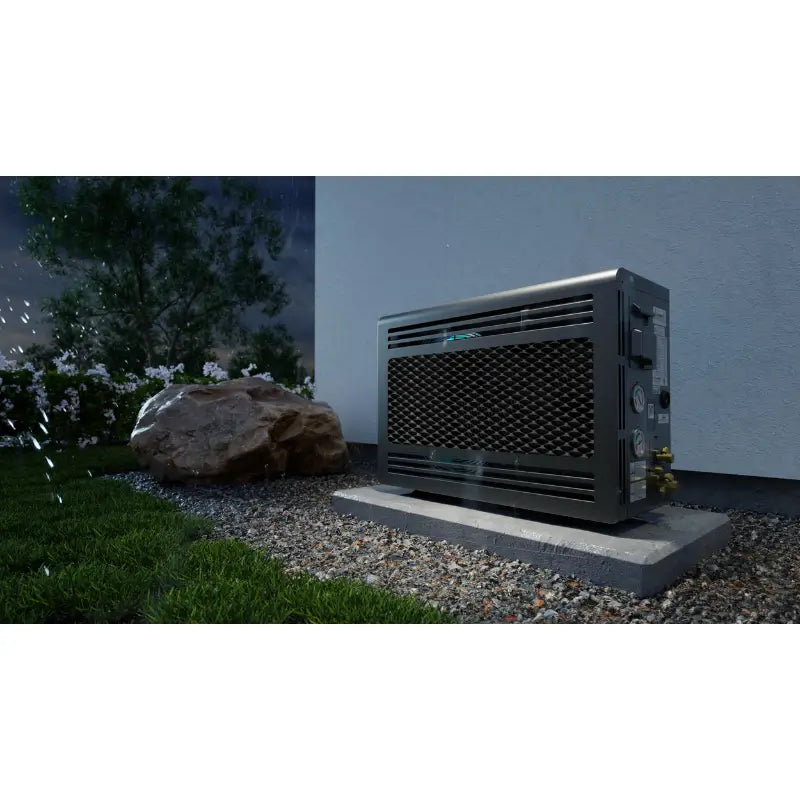

• The condensing unit installs remotely (garage, mechanical room, exterior, etc.).

Because the compressor is located outside the cellar, internal noise and vibration are minimized.

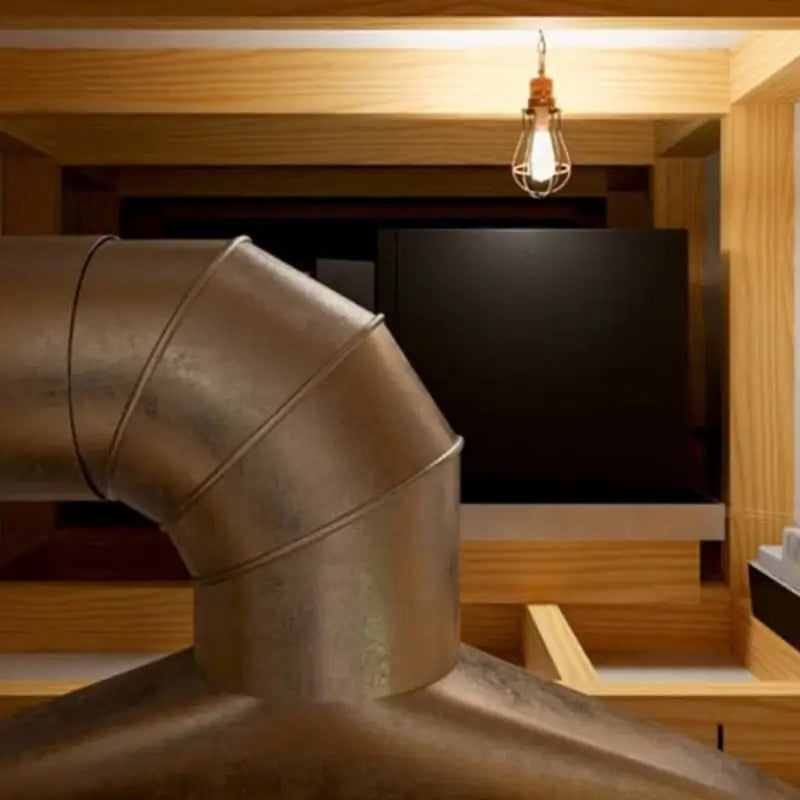

The ducted design allows the evaporator to remain concealed for architectural wine displays.

Performance Summary

• Recommended Capacity: Up to 1,000 cu. ft.*
• Fan Speeds: Medium / High
• BTU Output @ 60°F Condenser Intake:
  • 4,565 – 5,488 BTU/h (Sensible/Total)
• Maximum Condenser Intake Temperature: 120°F
• Maintains 55°F cellar temperature under proper conditions
• Maximum Line Set Distance: 100 ft

*Based on fully insulated cellar with proper vapor barrier.

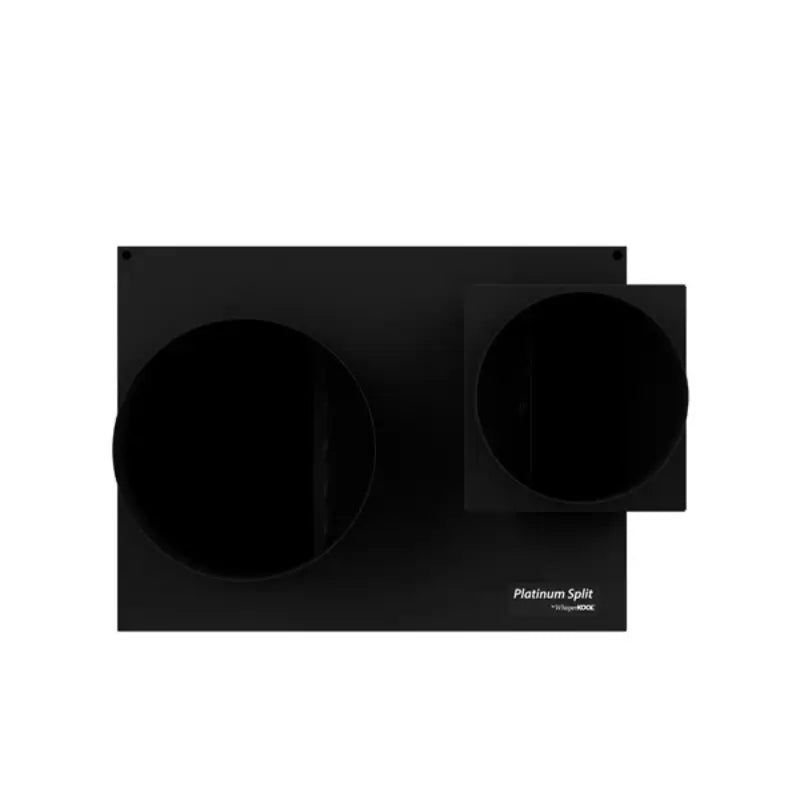

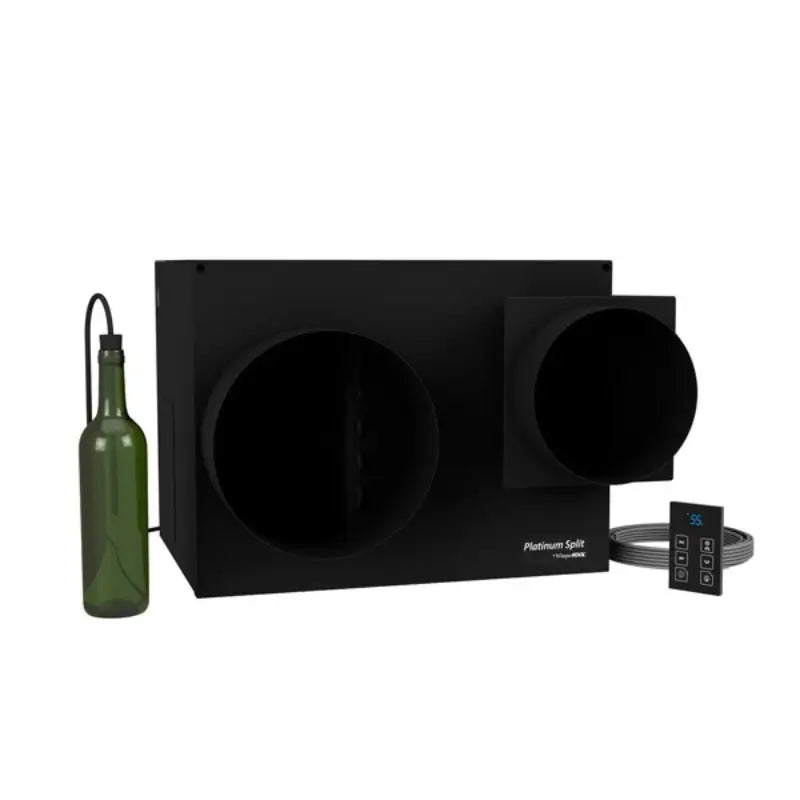

Evaporator Specifications

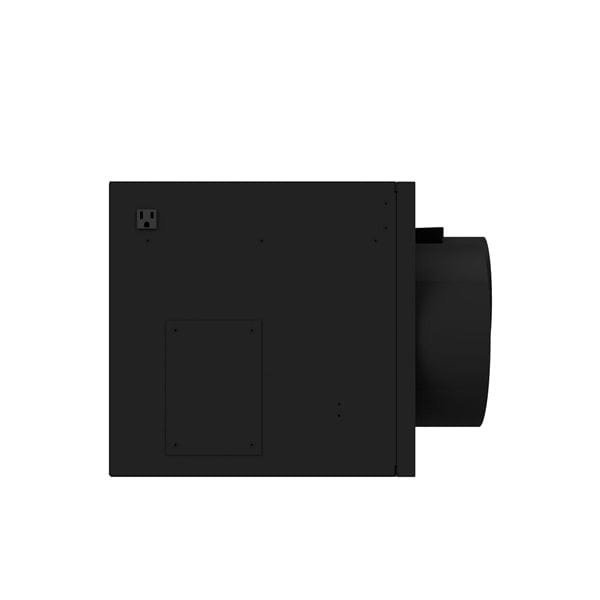

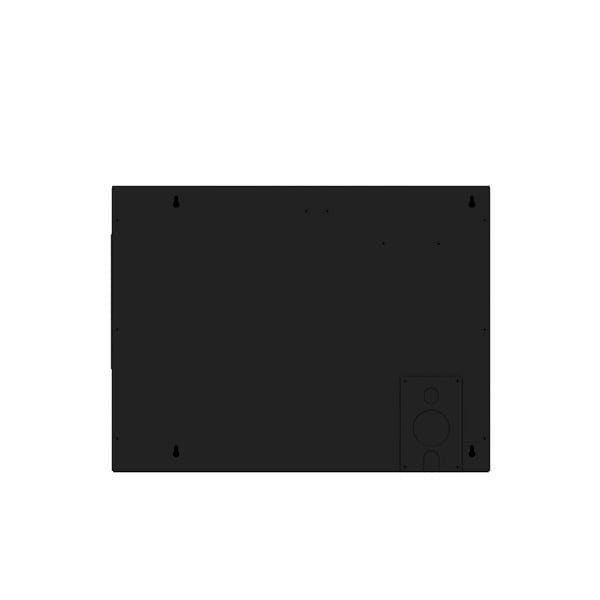

• Dimensions: 13” D x 20” W x 10.5” H
• Voltage: 120V (15-amp dedicated circuit required)
• Running Amps: 2.2
• Refrigerant: R-134a
• Weight: 54 lbs
• Drain Line: 1/2” ID tubing (not included)
• Thermostat: Advanced digital display with 50 ft cable
• Bottle Probe: Liquid-temperature measuring probe included
• Optional: 24V thermostat conversion kit (customer-supplied thermostat required)

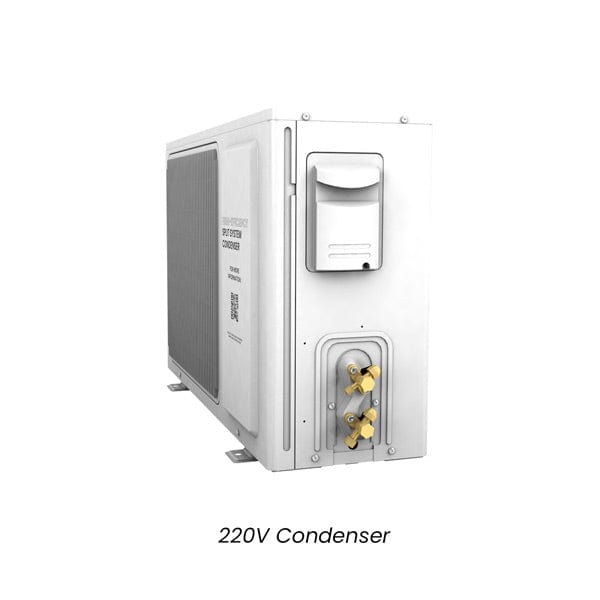

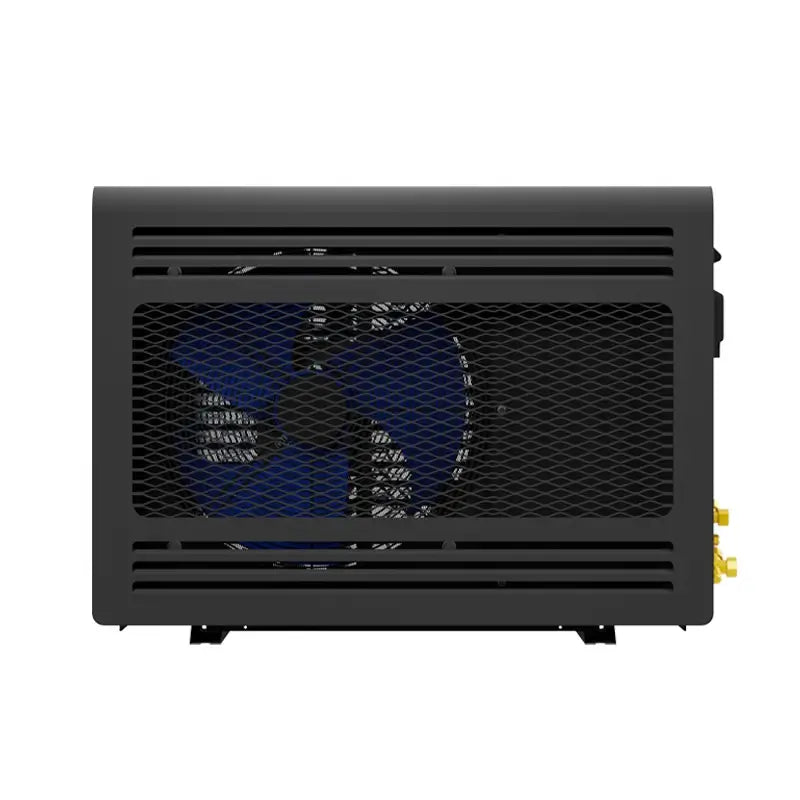

Condenser Specifications (220V High Efficiency)

• Horsepower: 0.6 HP
• Voltage: 220V (15-amp dedicated circuit required)
• Weight: 55 lbs
• LRA: 13.2
• RLA: 3.19
• FLA: 3.66

Line Set Requirements:

• Liquid Line: 1/4” OD
• Suction Line:
  • 1/2” OD (less than 50 ft.)
  • 5/8” OD (greater than 50 ft.)

Maximum separation between condenser and evaporator: 100 line feet

Installation Requirements

• Professional HVAC-R installation required
• Dedicated 120V circuit (evaporator)
• Dedicated 220V circuit (condenser)
• Proper line set sizing
• Fully sealed vapor barrier
• Insulated walls and ceiling
• Adequate condenser ventilation

Improper insulation or lack of vapor barrier may result in temperature instability and shortened equipment life.

Manuals for WhisperKOOL Platinum Split 4000 Ducted:

• Owner Manual for WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency
• H.E. Owner Manual for WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency
• 220V High Efficiency product Sheets for WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency
• 24V Thermostat Conversion Kit for WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency
• High Efficiency 220 Warranty Registration for WhisperKOOL Platinum Split 4000 Ducted Cooling System 220V High Efficiency

Energy Efficiency & Operating Conditions

The 220V High Efficiency condenser offers improved electrical efficiency compared to 110V models.

Operating range:

• Condenser air intake up to 120°F

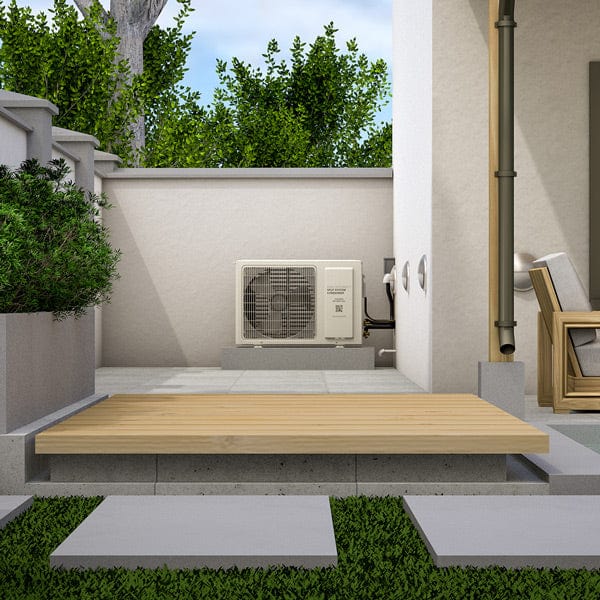

• Suitable for controlled indoor mechanical spaces or protected outdoor installations

Outdoor installations require proper weather protection.

Optional Accessories

24V Thermostat Conversion Kit

Allows integration with compatible 24V thermostats. Smart thermostat not included.

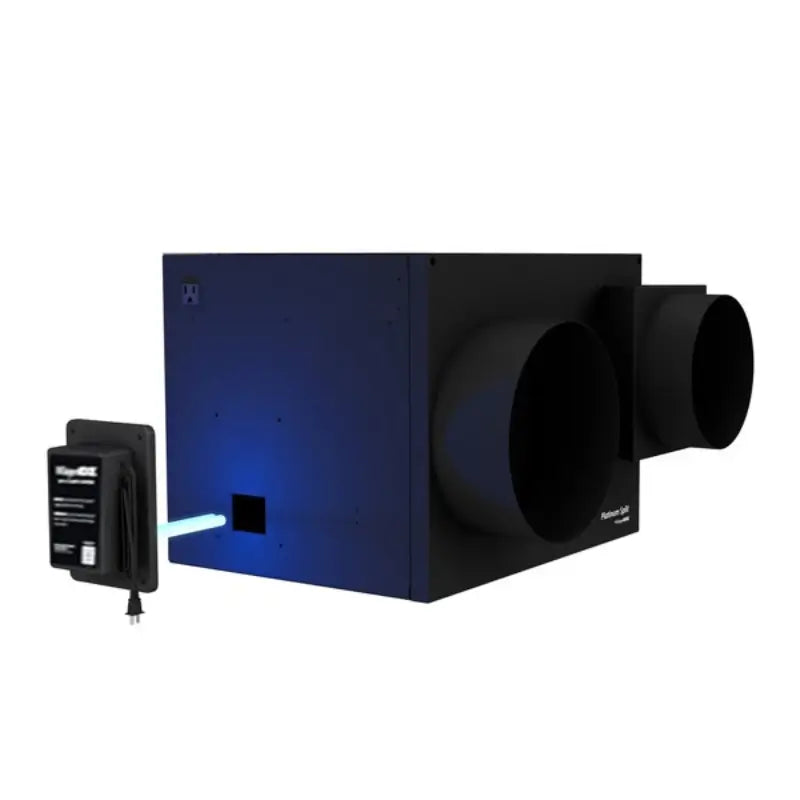

UV-C Light Technology

Helps reduce microbial buildup within the evaporator coil.

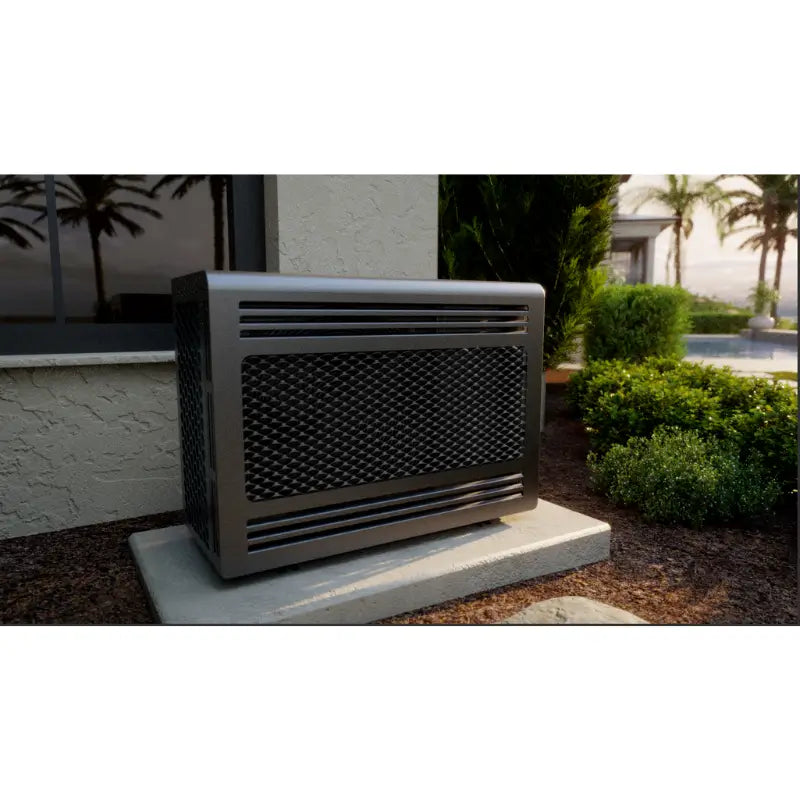

Exterior Condenser Housing

Recommended when installing condenser outdoors.

Warranty

Two-Year Limited Warranty (Parts and Labor)
Valid only when installed by a qualified HVAC-R technician.

Critical Performance Assumptions

Rated capacity assumes:

• R-19 wall insulation minimum
• R-30 ceiling insulation
• Continuous vapor barrier
• Sealed door and penetrations
• No excessive uninsulated glass

Failure to meet these conditions may require a higher-capacity unit.

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

UV-C Light Technology

Summary

The WhisperKOOL Platinum Split 4000 (220V High Efficiency) is a ducted split-system cooling solution for properly insulated wine cellars up to 1,000 cubic feet where quiet operation, concealed equipment, and remote condenser placement are required.

Proper insulation, vapor barrier installation, and professional heat load review are critical for optimal performance.
