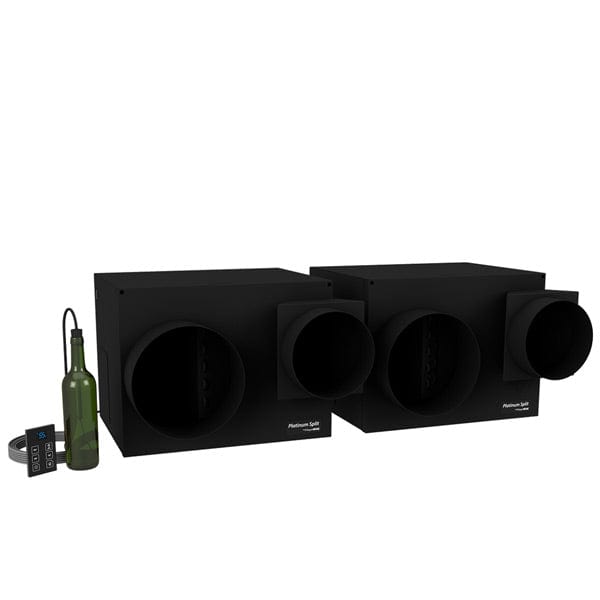

WhisperKOOL Platinum Split Twin Ducted Wine Cellar Cooling System
The WhisperKOOL Platinum Split Twin Ducted Cooling System is a high-capacity wine cellar cooling solution designed for large residential and commercial wine cellars up to approximately 3,000 cubic feet. This split ducted system separates the evaporator and condenser components, allowing the equipment to be installed remotely to create a quiet wine cellar environment while maintaining stable storage temperatures around 55°F.

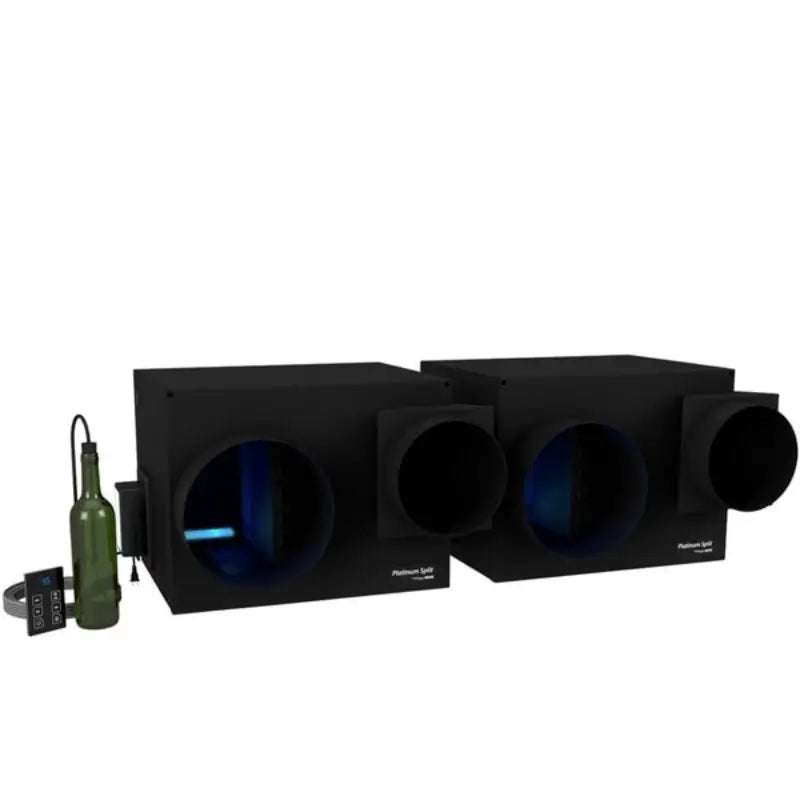

The system uses dual evaporators, adjustable fan speeds, and advanced monitoring controls to deliver consistent cooling performance. Because the evaporators can be ducted and concealed, the Platinum Split Twin system is commonly used in luxury wine cellars, glass wine walls, and modern wine room designs where equipment visibility and noise reduction are important.

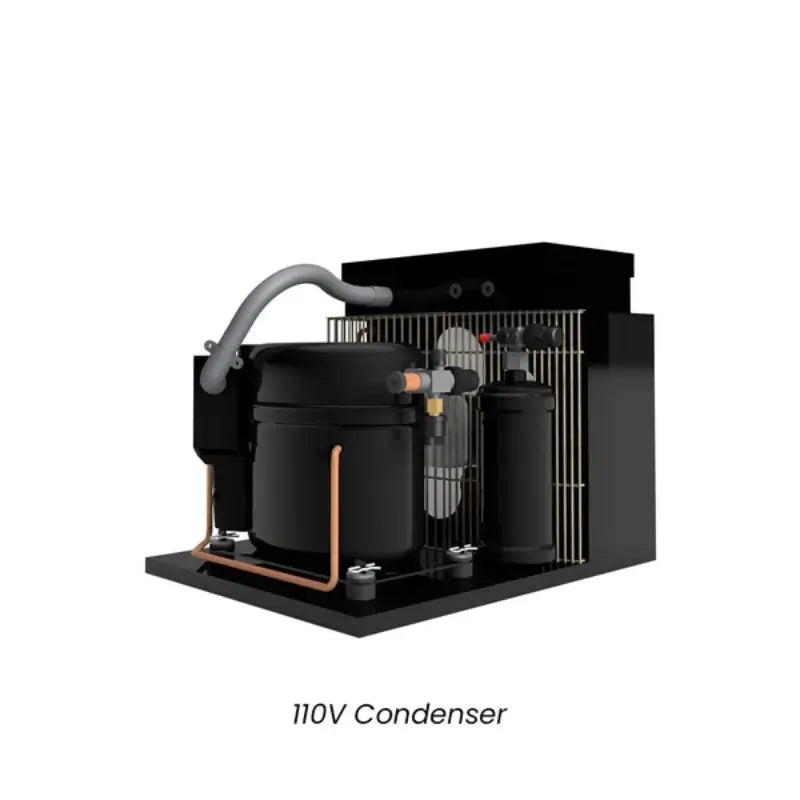

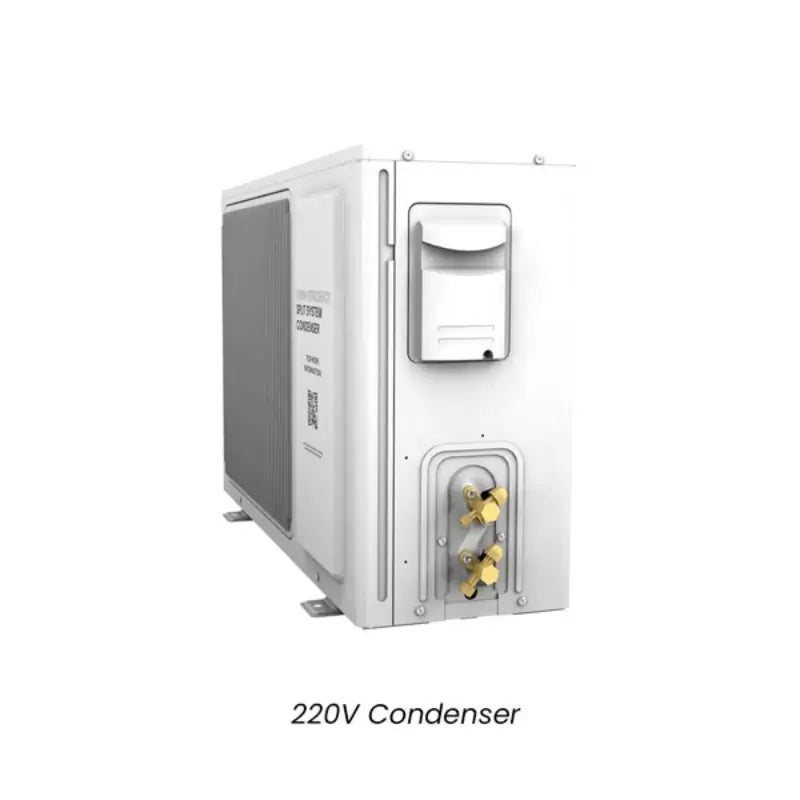

Available in WhisperKOOL Platinum Split Twin 220V Condenser & Platinum Split Twin 110V Condenser for 1750 cu.ft.
Other Sizes: WhisperKOOL Platinum Split 4000 for 1000 cu.ft. wine cellar and WhisperKOOL Platinum Split 8000 for 1750 cu.ft wine cellar.
Quick Product Overview
| Feature | Details |
|---|---|
| Cooling Capacity | Up to 3,000 cu. ft. |
| System Type | Split ducted wine cellar cooling system |
| Refrigerant | R-134a |
| Voltage | 120V |
| Noise Level | 40–46 dBA |
| Installation | Professional HVAC-R installation required |
| Temperature Control | Digital controller with bottle probe |
| Warranty | 2-Year limited warranty + 1-year installation grace period |
Why Choose the Platinum Split Twin Cooling System
The Platinum Split Twin system is designed for wine collectors who need powerful cooling performance while keeping equipment hidden and noise levels low.
Key benefits include:

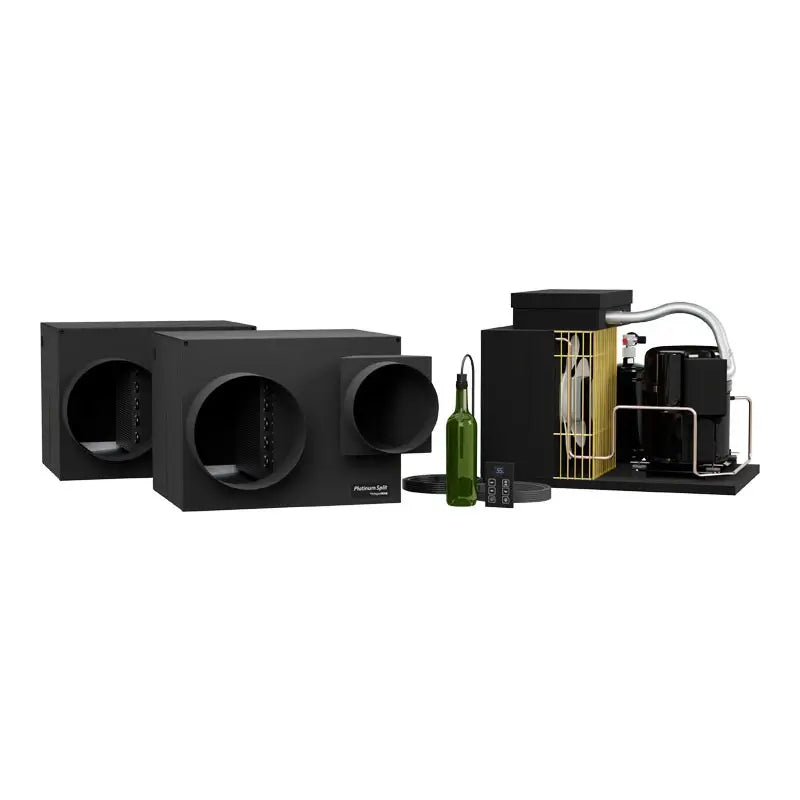

- Split system design separates the condenser and evaporator components
- Dual evaporators provide balanced cooling performance
- Fully ducted installation options allow the system to remain out of sight
- Quiet operation ideal for residential wine rooms
- Flexible installation with condenser placement up to 100 feet away
- Advanced digital monitoring system with safety alerts
These features make the system well suited for custom wine cellar installations where both performance and aesthetics matter.
Ideal Applications
The WhisperKOOL Platinum Split Twin system is commonly used in:
- Large residential wine cellars
- Custom luxury wine cellar builds
- Glass wine wall installations
- Restaurants and hospitality wine storage rooms
- Wine collectors requiring quiet cooling systems
- Modern wine rooms with concealed equipment
Key Features
Digital Touch Display Controller
The system includes the KDT Digital Touch Display, which can be installed up to 50 feet away from the unit. This controller allows users to monitor cellar temperature and system performance while providing alerts if operating conditions fall outside recommended ranges.
The controller includes Advanced System Protection Technology, helping protect the cooling system from damage caused by improper conditions.

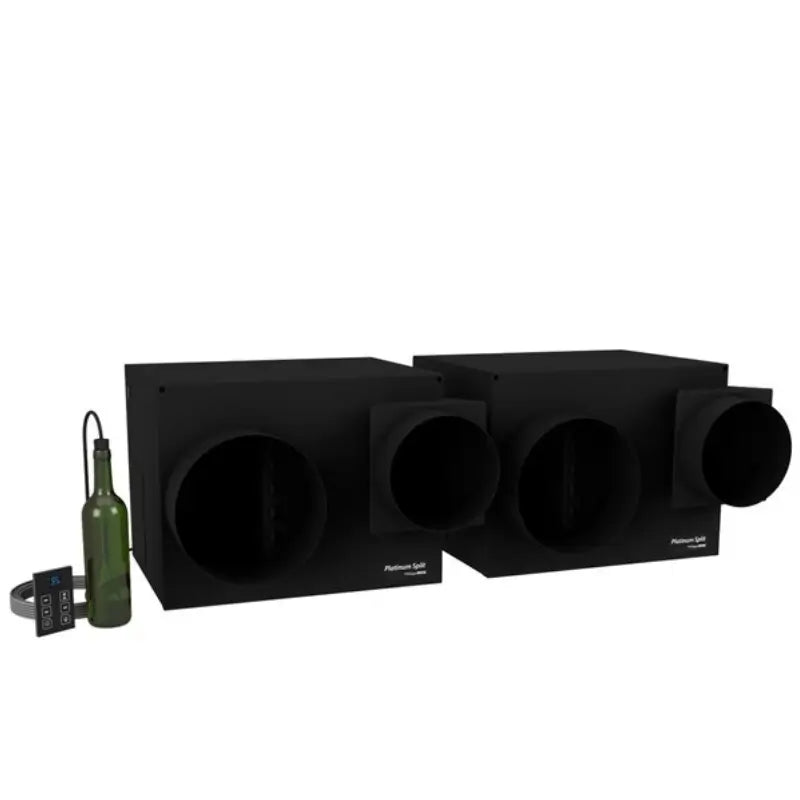

Liquid Temperature Bottle Probe
The Platinum Split Twin system uses a liquid-temperature measuring bottle probe to monitor the temperature of the wine rather than just the air inside the cellar.
Because liquid temperature changes more slowly than ambient air temperature, this approach provides more accurate control and improved protection for long-term wine storage.

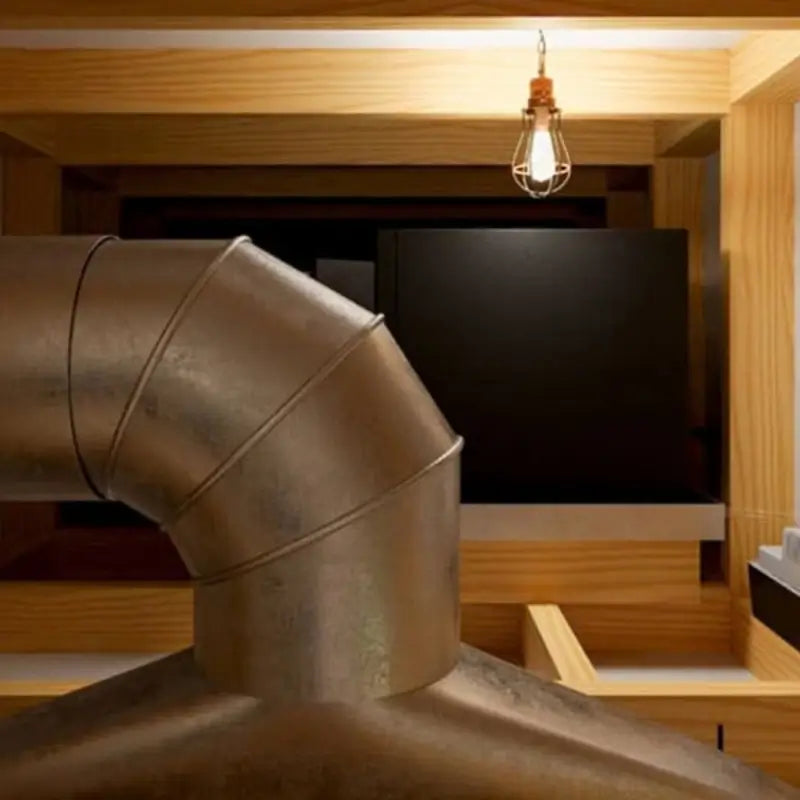

Fully Ducted Installation Options

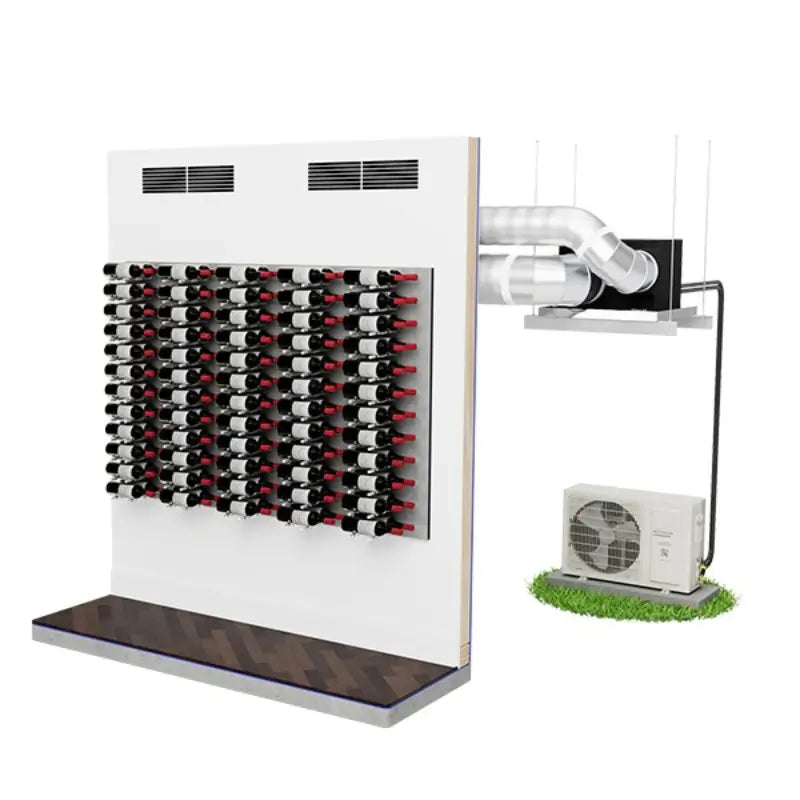

This cooling system supports fully ducted installation, allowing the evaporator units to be installed outside the wine cellar while directing cooled air into the room.
Benefits of ducted installation include:
• Reduced equipment visibility inside the cellar
• Lower operational noise in the wine room
• Flexible installation layouts
The evaporators can be installed up to 25 duct feet from the cellar, depending on the installation design.
Cooling Capacity and Performance
The Platinum Split Twin system is designed for wine cellars up to approximately 3,000 cubic feet when the cellar is properly insulated and sealed.
Cooling performance varies depending on the condenser air intake temperature and fan speed settings.
Cooling Capacity by Fan Speed
| Fan Speed | 60°F Condenser Intake | 75°F Condenser Intake | 85°F Condenser Intake |
|---|---|---|---|
| Low | 7095 / 7838 BTU | 6820 / 7677 BTU | 6450 / 7366 BTU |
| Medium | 7817 / 8015 BTU | 7420 / 7868 BTU | 7083 / 7657 BTU |
| High | 8017 / 8152 BTU | 7637 / 8061 BTU | 7281 / 7879 BTU |
Noise Levels
Because the condenser can be installed remotely and the evaporators can be ducted, the system operates quietly inside the wine cellar.
| Fan Speed | Sound Level |
|---|---|
| Low | 40 dBA |
| Medium | 42 dBA |
| High | 46 dBA |
These noise levels are comparable to a quiet residential appliance, making the system suitable for luxury wine rooms.
Technical Specifications
| Specification | Details |
|---|---|
| Model | WhisperKOOL Platinum Split Twin 9000 |
| Recommended Cellar Size | Up to 3,000 cu. ft. |
| System Type | Split ducted wine cellar cooling system |
| Refrigerant | R-134a |
| Voltage | 120V |

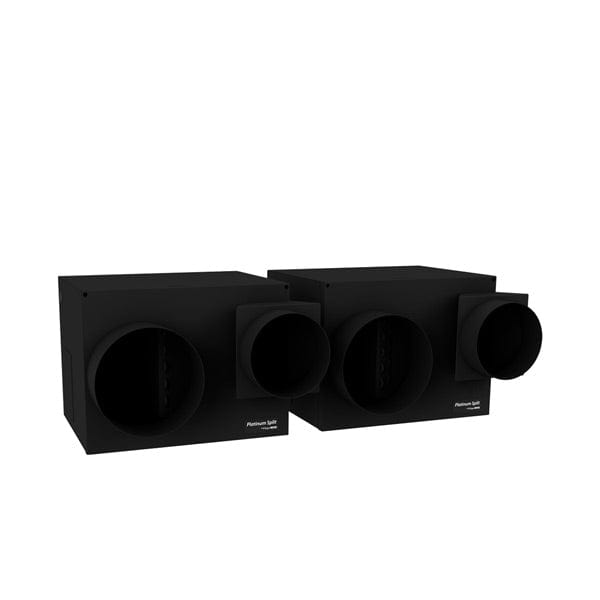

| Evaporator Quantity | 2 |

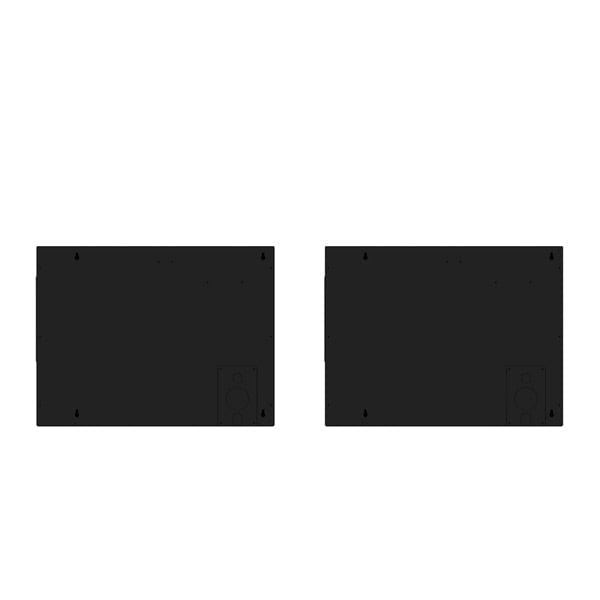

| Dimensions (Evaporator) | 22"L × 22.5"W × 15.5"H (each) |
| Weight | 54 lbs per evaporator |

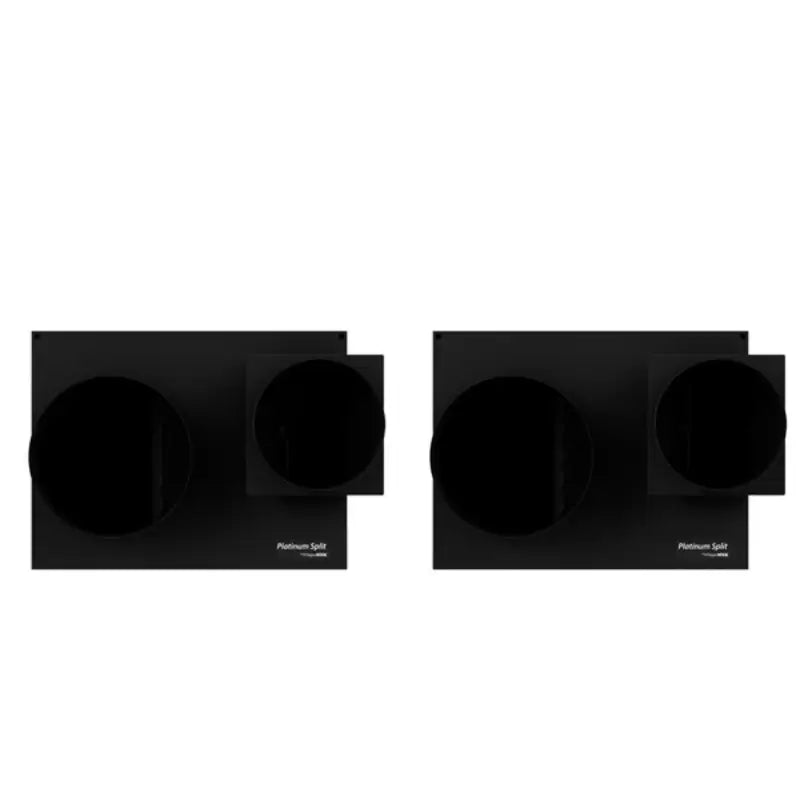

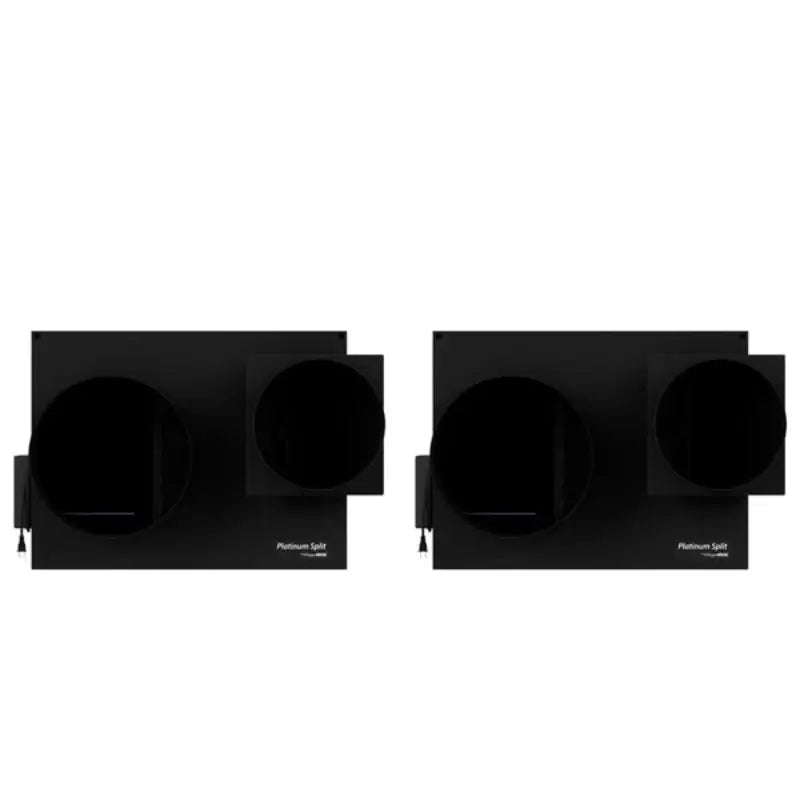

| Duct Size | 8" supply (x2) / 10" return (x2) |
| Drain Line | 1/2" ID clear tubing (not included) |
| Controller | Digital touch display with 50 ft cable |
| Temperature Probe | Liquid bottle probe with 50 ft cable |
| Max Ambient Temperature | Up to 120°F condenser intake |
| Warranty | 2-Year limited warranty |
Manuals for WhisperKOOL Platinum Split Twin Ducted:
Installation Requirements
⚠ Installation by a qualified HVAC-R technician is required.
Improper installation may void the manufacturer warranty.
Key installation considerations:
• Condenser can typically be installed up to 100 feet from the evaporator
• Evaporators can be ducted up to 25 feet from the cellar
• Proper duct sizing must be maintained
• The wine cellar must be sealed and insulated before installation
A professional heat load calculation is recommended to confirm system sizing.
Insulation and Vapor Barrier Requirements
The recommended cellar size rating assumes the wine cellar is properly constructed with:
- Minimum R-19 insulation
- Proper vapor barrier installation
- Airtight door seals
Materials such as glass, stone, and concrete may increase heat load and can reduce the effective cooling capacity of the system.
Optional Upgrades
24V Thermostat Conversion Kit
This optional kit allows the system to connect with third-party smart thermostats.
Benefits may include:
• Remote temperature monitoring
• Mobile device control
• System alerts and notifications
• Energy usage tracking
Note: WhisperKOOL does not provide the smart thermostat itself.
UV-C Light Technology
UV-C technology helps reduce mold and bacterial growth inside the cooling unit, improving system cleanliness and longevity.
Benefits include:
- Improved indoor air quality inside the cellar
- Reduced microbial buildup
- Extended cooling unit lifespan
Optional Accessories
Additional WhisperKOOL accessories can enhance durability and performance.

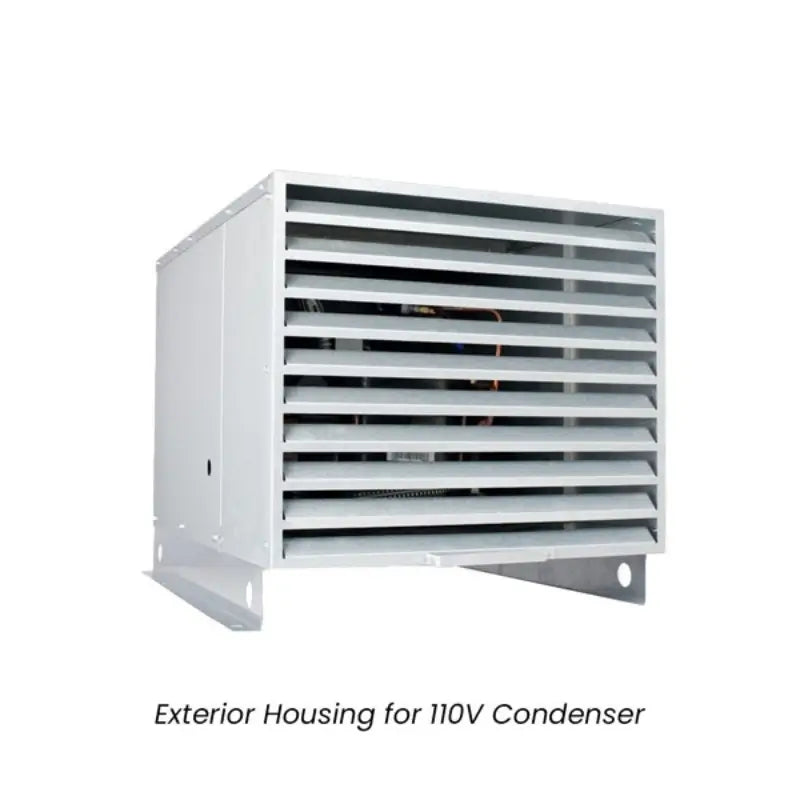

Exterior Condenser Protective Housing
Designed to protect outdoor condenser units from weather exposure.
Features include:
- Galvanized steel construction
- Hinged access for servicing
- Rain trough moisture protection
- Protective condenser screen coating
Warranty
All WhisperKOOL Platinum Split systems include:
- 2-Year limited warranty (parts and labor)
- Additional 1-year installation grace period
This grace period allows installation to occur within one year of purchase without affecting warranty coverage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
The WhisperKOOL Platinum Split Twin system is designed for wine cellars up to approximately 3,000 cubic feet when the cellar is properly insulated and sealed with a vapor barrier. Cellars with large glass walls or poor insulation may require a larger cooling system.
Because the condenser is installed remotely and the evaporators can be ducted, the system operates at approximately 40–46 dBA, which is considered very quiet for wine cellar cooling equipment.
Yes. A wine cellar must include a proper vapor barrier and insulation to prevent moisture infiltration and maintain stable cooling performance. Without proper construction, the cooling system may struggle to maintain the desired temperature.

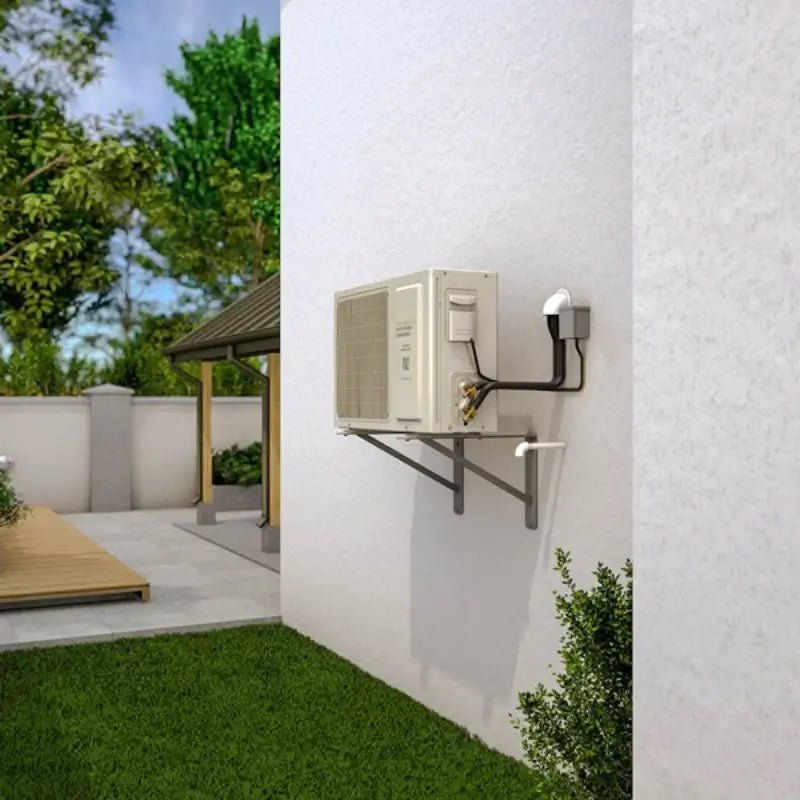

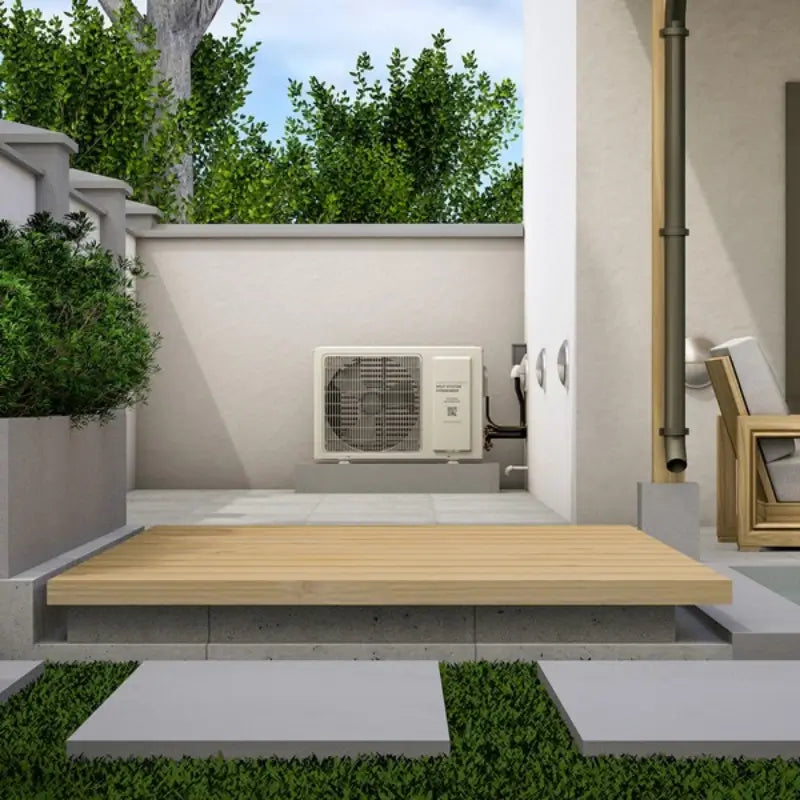

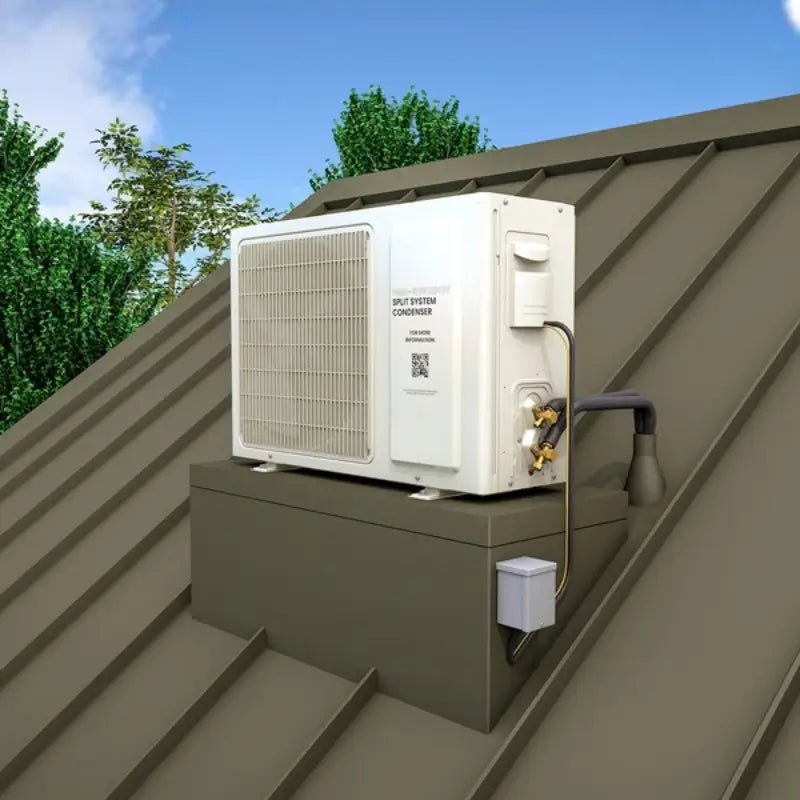

Yes. The condenser in a split cooling system can be installed in a remote mechanical room or outdoors, typically up to 100 feet away depending on the installation design.
No. WhisperKOOL requires installation by a qualified HVAC-R technician. Professional installation ensures the refrigeration lines, ducting, and electrical connections are installed correctly and helps maintain warranty coverage.
Most wine cellars are maintained at approximately 55°F with 50–70% relative humidity, which helps preserve wine quality and support proper aging conditions."]
