Product Overview
Wine Guardian CAB018: Quick Decision Summary
Choose the CAB018 when a wine cabinet or furniture-style wine display needs a compact, self-contained cooling system without conventional cellar ductwork.
| Best For |
Custom wine cabinets, built-in kitchen wine storage, restaurant wine displays, hospitality wine cabinets, and luxury residential wine furniture.
|
| System Type |
Self-contained wine cabinet cooling system.
|
| Recommended Cabinet Volume |
Approximately 100–1,200 cubic feet according to the supplied product information.
|
| Ductwork |
Not required for the standard cabinet-style installation described in the supplied content.
|
| External Drain |
The supplied page identifies no external condensate drain requirement.
|
Things to Know Before Ordering
- The CAB018 is designed specifically for wine cabinets and furniture-style wine storage.
- The supplied cabinet-size range is approximately 100–1,200 cubic feet.
- Published cooling capacity is 2,100 BTU/h at 70°F ambient.
- Published airflow is 150 CFM.
- The unit operates on 115V / 1 Phase / 60 Hz power.
- Published current draw is 4.15 amps.
- Minimum circuit size is 5 amps.
- The unit is self-contained and does not require conventional cellar ductwork.
- The supplied page identifies flexible top or bottom cabinet installation.
- Cabinet insulation and ventilation are critical to performance.
- Humidity control is not listed as a standard CAB018 function.
Key Features
Key Features of the Wine Guardian CAB018
Designed Specifically for Wine Cabinets
The CAB018 is engineered for cabinet-based wine storage rather than full-room wine cellars.
Typical applications identified in the supplied content include:
- Custom wine cabinets
- Built-in kitchen wine storage
- Restaurant wine displays
- Hospitality wine cabinets
- Luxury residential wine furniture
Self-Contained Refrigeration System
All major refrigeration components are housed inside the cabinet cooling unit, eliminating the need for a remote condensing unit or traditional cellar ductwork.
Compact Built-In Installation
The supplied content identifies flexible top or bottom cabinet placement, allowing designers to integrate the cooling equipment into furniture-grade cabinetry.
No External Condensate Drain
The source page identifies the CAB018 as not requiring an external condensate drain, simplifying cabinet installation compared with many larger cellar cooling systems.
Quiet Operation
The CAB018 is positioned for living spaces, kitchens, dining rooms, restaurants, wine bars, and entertainment environments where operating noise should be minimized.
Digital Temperature Control
The supplied content identifies a digital electronic temperature-control system with a remote interface and published temperature accuracy of ±1°F.
Wireless2Baseâ„¢ Compatibility
The system supports Wine Guardian Wireless2Baseâ„¢ control technology and optional remote monitoring components.
Fully Field-Serviceable Design
The supplied content identifies the CAB018 as field serviceable, allowing qualified HVAC technicians to perform many repairs on site rather than returning the unit to the manufacturer.

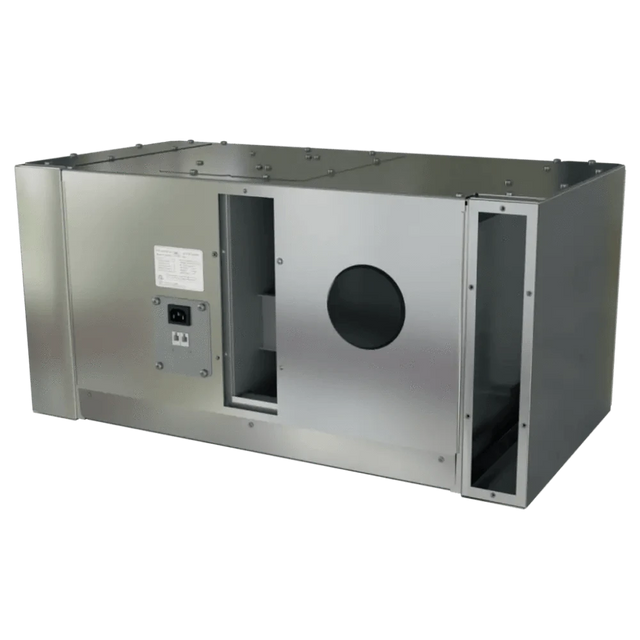

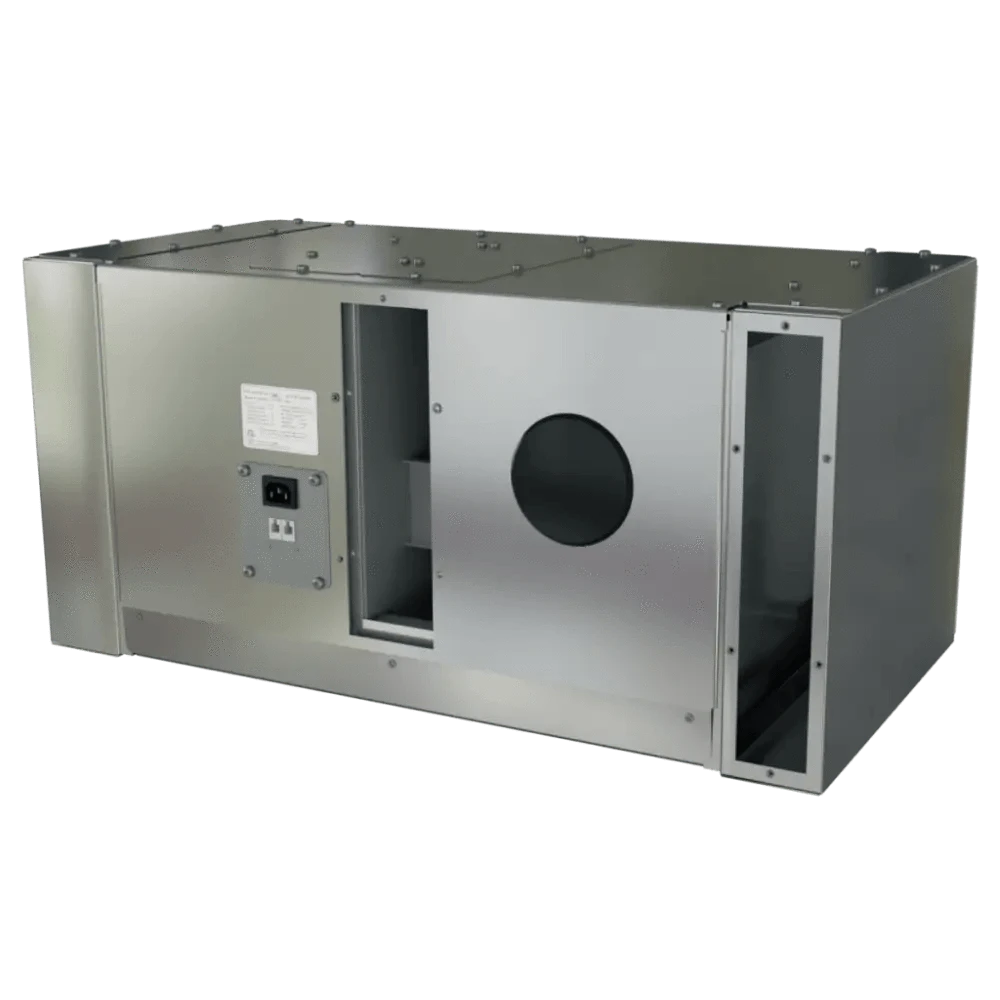

Durable Aluminum Construction
The supplied technical specifications identify a 0.060-inch aluminum cabinet with a natural aluminum finish.
Buyer Fit
Who Is the Wine Guardian CAB018 Best For?
Custom Wine Cabinets
The CAB018 is designed specifically for built-in wine cabinet installations where conventional wine-cellar cooling equipment would be too large or impractical.
Built-In Kitchen Wine Storage
Custom kitchen cabinetry can incorporate the CAB018 when the cabinet is designed with appropriate insulation and ventilation.
Restaurant and Hospitality Displays
The compact cabinet format is suitable for customer-facing wine displays where appearance, accessibility, and space efficiency are important.
Furniture-Grade Wine Storage
Luxury custom furniture installations can use the CAB018 where the cooling system must integrate directly into the cabinet structure.
Projects Where Ducting Is Not Practical
Because the unit is self-contained, it can be a better fit than a fully ducted wine-cellar cooling system for cabinet-scale installations.
When the CAB018 Is Not the Right Choice
- Do not select it for storage spaces larger than approximately 1,200 cubic feet without confirming the actual cooling load.
- Do not use it where active humidity control is required unless a separate compatible solution is provided.
- Do not use it when the project specifically requires concealed remote ducted cooling.
- Do not install it in poorly insulated cabinetry.
- Do not use it where the surrounding ambient temperature or cabinet heat load exceeds its available capacity.
- Choose a full wine-cellar cooling system for room-scale installations.
Temperature Control
CAB018 Temperature Capabilities
| Source Reference |
Temperature Range |
| General CAB018 Range |
45°F–65°F |
| Wine Storage Range |
45°F–58°F (7°C–14°C) |
| Serving Temperature Range |
41°F–64°F (5°C–18°C) |
| Temperature Accuracy |
±1°F |
Why Multiple Temperature Ranges Appear
The supplied source uses separate temperature references for general operation, wine storage, and serving applications. Those values are preserved as provided rather than silently merged into one range.
System Operation
How the CAB018 Wine Cabinet Cooling System Works
1. Cabinet Air Enters the Cooling Unit
Warm air from the wine cabinet is drawn through the CAB018 at the published airflow rate of approximately 150 CFM.
2. The Refrigeration System Removes Heat
The self-contained refrigeration circuit cools the incoming cabinet air.
3. Conditioned Air Returns to the Wine Cabinet
The cooled air is returned directly to the cabinet without requiring a full supply-and-return duct system.
4. The Cabinet Structure Helps Maintain Conditions
Insulation quality, air sealing, ventilation around the cooling unit, and ambient room temperature all influence how effectively the cabinet maintains the desired temperature.
Cabinet Construction Is Part of the Cooling System
A poorly insulated or poorly ventilated cabinet can impose more heat load than the CAB018 can remove, even when the cabinet volume appears to fall within the published range.
Installation
Installation Requirements and Planning Considerations
Design the Cabinet Around the Cooling Unit
The CAB018 should be incorporated into the cabinet design rather than treated as an afterthought.
Provide Adequate Ventilation
The cabinet and surrounding installation must provide the airflow needed for the self-contained cooling unit to operate correctly.
Provide Proper Insulation
The wine-storage cabinet should be insulated sufficiently to reduce unwanted heat gain.
Allow Service Access
The supplied content identifies the CAB018 as fully field serviceable, so the installation should provide access for qualified technicians.
Provide Correct Electrical Service
The unit requires 115V / 1 Phase / 60 Hz power with a supplied minimum circuit size of 5 amps.

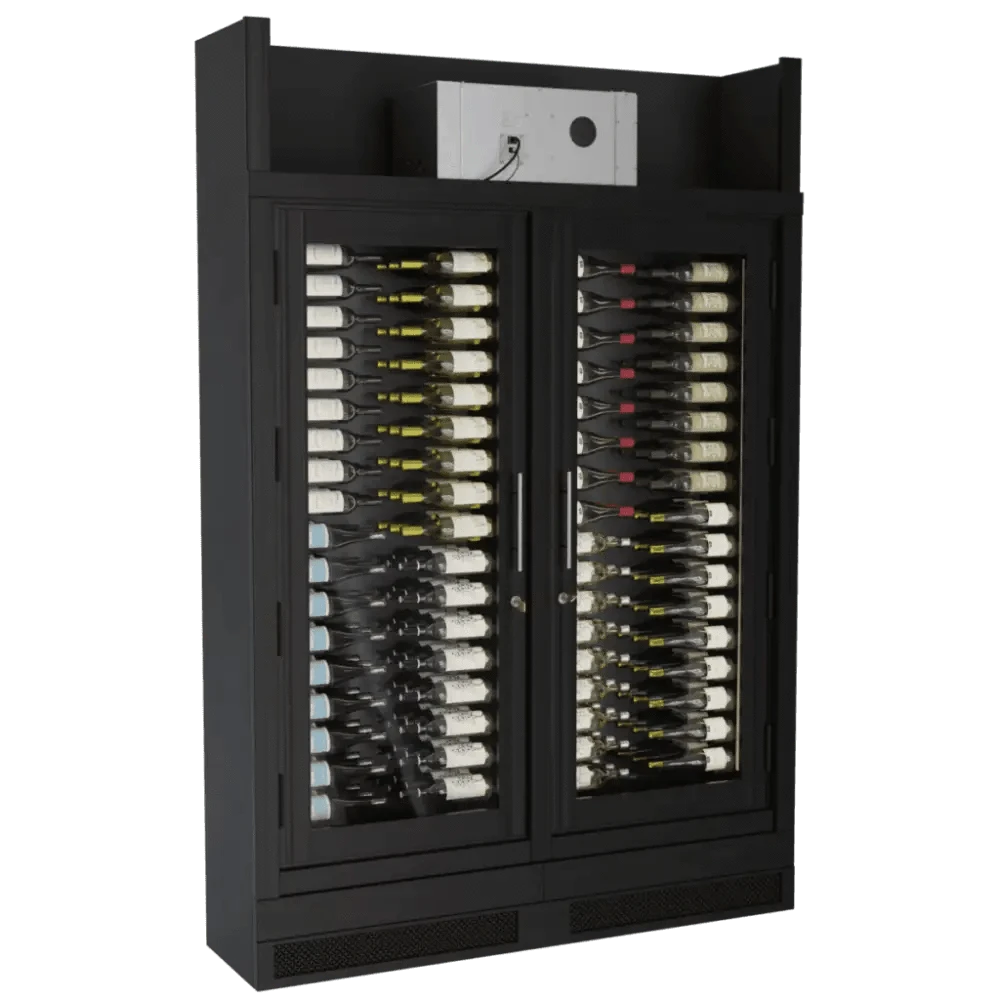

Top or Bottom Installation
The supplied page identifies flexible top or bottom cabinet installation.
Installation Warning
Do not install the CAB018 in a sealed furniture enclosure without adequate ventilation around the cooling unit. Poor airflow or excessive ambient heat can reduce cooling capacity.
Specifications
Wine Guardian CAB018 Technical Specifications
System Overview
| Brand |
Wine Guardian |
| Model |
CAB018 |
| System Type |
Self-Contained Wine Cabinet Cooling System |
| Cooling Capacity |
2,100 BTU/h @ 70°F ambient |
| Cabinet Size |
Approximately 100–1,200 cubic feet |
| General Temperature Range |
45°F–65°F |
| Temperature Accuracy |
±1°F |
| Refrigerant |
R134A |
| Compressor |
0.16 HP |
| Airflow |
150 CFM |
Electrical Requirements
| Power Supply |
115V / 1 Phase / 60 Hz |
| Current Draw |
4.15 Amps |
| Minimum Circuit Size |
5 Amps |
Dimensions
| Length |
27.25 in. |
| Width |
14.25 in. |
| Height |
13 in. |
| Weight |
75 lb |
Construction
| Cabinet Material |
0.060 in. aluminum |
| Finish |
Natural aluminum |
Optional Add-Ons
Optional Accessories
Wireless Remote Temperature Sensors
Optional wireless sensors can support expanded temperature monitoring.
Secondary Controller
A secondary controller is listed for installations requiring additional control access.
Duct Collars
Duct collars are listed as optional accessories for specialized cabinet configurations.
Cabinet Heater Option
A cabinet heater option is available for installations requiring supplemental heating.
Extended Factory Warranty
Extended warranty coverage is listed as an available accessory option. Confirm current eligibility and terms before purchase.
Accessory Selection
Choose optional sensors, controls, duct components, heating, and warranty coverage according to the actual cabinet design and operating environment.
System Components
What's Included
- Wine Guardian CAB018 cabinet cooling unit
- Wireless2Baseâ„¢ primary controller
- Installation manual and documentation
Safety
Certifications
The supplied product content identifies the following certifications and compliance references:
- ETL Listed
- UL Standard 484 compliant
- CSA C22.2 #117 compliant
- CE Low Voltage Directive 2006/95/E
Downloads
Brochure, Manual, Specifications, and CAD Drawing
Questions & Answers
Frequently Asked Questions
What size wine cabinet is the Wine Guardian CAB018 designed for?
The supplied product information identifies approximately 100–1,200 cubic feet. Actual suitability depends on cabinet insulation, ventilation, ambient temperature, and total heat load.
What is the cooling capacity of the CAB018?
The supplied specifications list 2,100 BTU/h total cooling capacity at 70°F ambient. Capacity decreases to 1,950 BTU/h at 80°F and 1,540 BTU/h at 90°F.
Does the CAB018 require ductwork?
The supplied page describes the CAB018 as a self-contained cabinet cooling system that does not require conventional wine-cellar ductwork.
Does the CAB018 require an external condensate drain?
The supplied installation advantages identify no external condensate drain requirement.
What temperature range does the CAB018 support?
The supplied source contains several references: a general 45°F–65°F range, a 45°F–58°F wine-storage range, and a 41°F–64°F serving range.
How accurate is the CAB018 temperature control?
The supplied specifications identify temperature accuracy of ±1°F.
What electrical service does the CAB018 require?
The supplied specifications identify 115V / 1 Phase / 60 Hz power, 4.15 amps current draw, and a 5-amp minimum circuit size.
Can the CAB018 be installed at the top or bottom of a cabinet?
Yes. The supplied content identifies flexible top or bottom cabinet installation.
Can the CAB018 provide humidity control?
The supplied page does not identify active humidity control as a standard CAB018 feature. A different cooling solution may be required when active humidity management is essential.
Is the CAB018 field serviceable?
Yes. The supplied product content identifies the CAB018 as fully field serviceable by qualified HVAC technicians.
Important Product Guidance
Use the CAB018 for Cabinet-Scale Wine Storage, Not Full Wine Rooms
The CAB018 is best suited to custom cabinets and furniture-style wine displays where a compact, self-contained cooling system can be integrated directly into the cabinetry without conventional cellar ductwork.
Verify cabinet insulation, ventilation, available electrical service, ambient temperature, cooling load, unit clearances, installation details, and current manufacturer documentation before ordering.
