Wine Guardian Sentinel Series

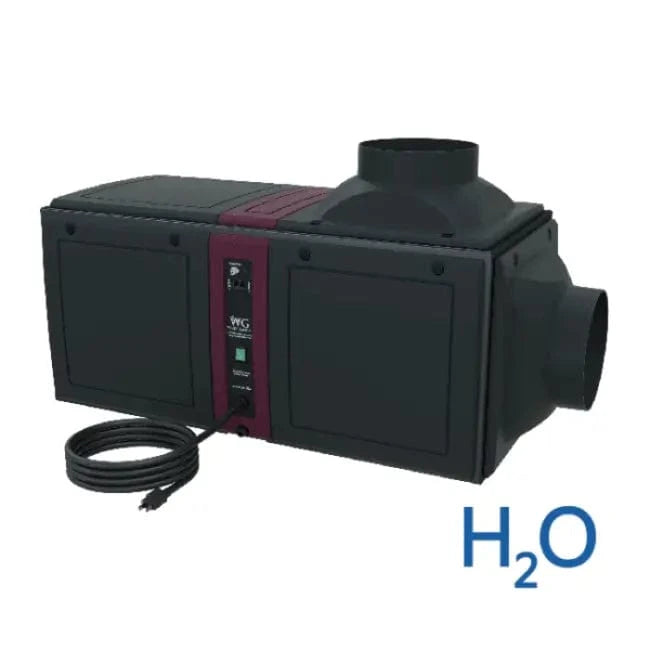

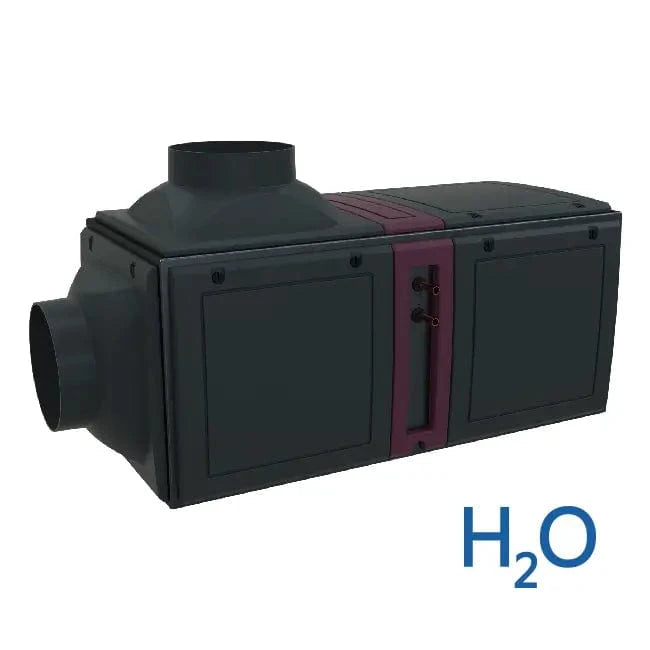

Wine Guardian D088WC Water-Cooled Ducted Wine Cellar Cooling System
The Wine Guardian D088WC is a water-cooled ducted wine cellar cooling system designed for large residential and commercial wine cellars between approximately 2,000 and 4,000 cubic feet. With supplied cooling capacity up to 10,700 BTU/h, the D088WC is engineered to maintain stable temperature and humidity conditions while keeping the major cooling equipment outside the finished wine room.
Unlike conventional air-cooled systems, the D088WC uses a water-cooled condenser to remove heat from the refrigeration system. This makes it especially useful for interior wine cellars, high-rise buildings, restaurants, underground wine rooms, and commercial spaces where hot condenser air cannot conveniently be vented outdoors.
Because the system uses ducted air distribution, conditioned air is delivered through insulated supply and return ductwork while the cooling equipment remains remotely installed. This helps create a quieter, visually cleaner wine-cellar environment without large mechanical equipment inside the finished space.
Wine Guardian D088WC: Quick Decision Summary
Choose the D088WC when a large wine cellar needs powerful, concealed ducted cooling and the project cannot conveniently reject condenser heat through traditional outdoor-air ventilation.
| Best For |
Luxury residential wine cellars, restaurant wine rooms, commercial wine storage, high-rise condominium cellars, and interior or underground wine rooms. |
|---|---|
| System Type |
Water-cooled ducted wine cellar cooling system. |
| Recommended Cellar Size |
Approximately 2,000–4,000 cubic feet. |
| Maximum Cooling Capacity |
Up to approximately 10,700 BTU/h in the supplied content. |
| Airflow |
435 CFM free blow. |
| Primary Advantage |
Provides high-capacity ducted wine-cellar cooling without requiring conventional hot-air condenser exhaust. |
Things to Know Before Ordering
- The D088WC is a water-cooled ducted cooling system.
- The supplied cellar-size range is approximately 2,000–4,000 cubic feet.
- The supplied maximum cooling capacity is 10,700 BTU/h.
- Published free-blow airflow is 435 CFM.
- Published airflow at 0.20-inch static pressure is 370 CFM.
- The supplied water usage is 1.20 GPM at a 20°F temperature rise.
- The supplied pressure drop is 0.08 PSI.
- The supplied pipe connection is 0.5-inch O.D.
- The supplied electrical requirement is 208–230V / single phase / 60 Hz.
- Cooling-mode current is listed at 9.8 amps.
- Minimum circuit ampacity is listed at 10.7 amps.
- The supplied system weight is 125 lb.
- The Wireless2Base™ digital controller is included according to the supplied content.
- Optional humidification, electric heat, remote sensors, duct kits, and grilles are available.
- A professional heat-load calculation should be completed before purchase.
For smaller installations, compare the D025WC Water-Cooled System or D050WC. For larger high-demand applications, review the D200WC Water-Cooled Ducted System.
Who Should Choose the Wine Guardian D088WC?
Wine Cellars Around 2,000 to 4,000 Cubic Feet
The supplied content positions the D088WC for large residential and commercial wine-storage environments within this general size range.
Luxury Residential Wine Cellars
The ducted design allows major equipment to remain outside the finished wine room, supporting quiet operation and a clean architectural appearance.
Restaurant Wine Rooms
Restaurants can use the D088WC where concealed cooling and remote mechanical placement are important near guest-facing spaces.
Commercial Wine Storage
The D088WC is suitable for larger commercial wine-storage applications when the calculated heat load falls within its practical capacity.
High-Rise Condominium Cellars
The water-cooled condenser makes the system useful where exterior condenser-air venting is limited or unavailable.
Interior or Underground Wine Rooms
Interior installations can use a building water supply or compatible cooling loop for condenser heat rejection instead of routing hot air outdoors.
When to Consider a Different Wine Guardian System
- Do not select the D088WC if a suitable water supply or cooling loop is unavailable.
- Do not use it where properly sized supply and return ductwork cannot be installed.
- Do not size the system by cubic footage alone.
- Consider the D025WC or D050WC when the calculated heat load is lower.
- Consider the D200WC when the project requires substantially greater cooling capacity.
- Consider an air-cooled system when conventional condenser ventilation is easy and appropriate.
D088WC Compared With Other Water-Cooled Sentinel Models
| Model | General Position | When to Consider It |
|---|---|---|
| D025WC | Smaller water-cooled model | Consider for compact wine-room cooling loads |
| D050WC | Mid-size water-cooled model | Consider when D088WC capacity is unnecessary |
| D088WC | Large water-cooled model | Consider for approximately 2,000–4,000 ft³ when the calculated load fits |
| D200WC | Highest-capacity water-cooled model referenced | Consider for larger residential or commercial wine-storage projects |
Choose the Model From the Calculated Heat Load
Cellar volume should be treated only as preliminary guidance. Insulation, vapor-barrier construction, glass area, ambient temperature, door openings, lighting, duct design, and water-loop conditions can all affect required capacity.
Why Choose a Water-Cooled Wine Cellar Cooling System?
The D088WC uses a water-cooled condenser to remove heat from the refrigeration cycle instead of exhausting hot air outside the building.
Useful When Exterior Ventilation Is Unavailable
The D088WC is particularly suited to projects where an air-cooled condenser cannot be practically vented outdoors.
Useful for High-Rise and Interior Installations
High-rise buildings and interior wine rooms often have limited options for exterior heat rejection.
Supports Remote Equipment Placement
The fully ducted configuration allows the cooling unit to remain outside the finished wine cellar.
Compatible With Available Building Water Infrastructure
The supplied content identifies operation using a building water supply or cooling loop.
Confirm Water Infrastructure Before Ordering
Verify water availability, flow rate, pressure drop, connection size, plumbing requirements, drainage, and cooling-loop compatibility before final equipment selection.
Key Features and Benefits of the Wine Guardian D088WC
Water-Cooled Condenser Design
The D088WC removes condenser heat through water, eliminating the need for traditional hot-air exhaust.
Ducted Air Distribution
Conditioned air is delivered through insulated ductwork, allowing the cooling equipment to remain hidden outside the wine cellar.
Quiet Operation
Remote equipment placement helps reduce mechanical noise inside the wine-storage environment.
Precise Temperature Control
The supplied content identifies stable digital temperature control and approximately ±1°F temperature accuracy.
Wireless2Base™ Digital Controller
The supplied system package includes a Wireless2Base™ digital controller for convenient temperature monitoring and adjustment.
Durable Cabinet Construction
The supplied construction details identify:
- Aluminum chassis
- UL-rated composite panels
- Gray epoxy powder-coated finish

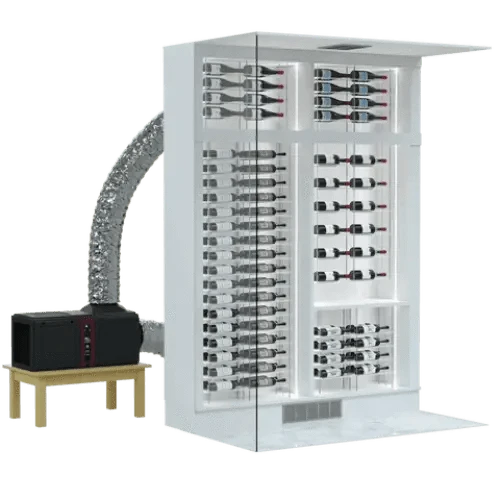

How the Wine Guardian D088WC Water-Cooled System Works
1. Warm Cellar Air Returns Through Ductwork
Warm air from the wine cellar travels through insulated return ductwork to the remotely installed D088WC.
2. The Refrigeration System Removes Heat
The refrigeration system absorbs heat from the returning wine-cellar air.
3. Conditioned Air Returns Through Supply Ductwork
The system distributes cooled air back into the cellar through the supply duct system.
4. Condenser Heat Transfers Into the Water Supply
Instead of exhausting hot condenser air, the D088WC transfers heat into the connected building water supply or cooling loop.
5. The Finished Cellar Remains Equipment-Free
The major cooling equipment can remain outside the cellar while the finished room uses discreet supply and return grilles.
D088WC Cooling Performance
The supplied cooling-performance table shows that available cooling capacity changes with condenser inlet temperature.
| Condenser Inlet Temperature | Total Cooling Capacity | Sensible Cooling |
|---|---|---|
| 60°F | 10,700 BTU/h | 7,120 BTU/h |
| 70°F | 9,900 BTU/h | 6,800 BTU/h |
| 80°F | 9,420 BTU/h | 6,610 BTU/h |
| 90°F | 8,600 BTU/h | 6,120 BTU/h |
Performance Depends on Operating Conditions
The supplied table shows that available capacity declines as condenser inlet temperature increases. Final equipment selection should use the applicable performance data and a project-specific heat-load calculation.
D088WC Airflow Specifications
| Fan Motor | 175 Watts |
|---|---|
| Free-Blow Airflow | 435 CFM |
| Airflow at 0.20 in. Static Pressure | 370 CFM |
Airflow Planning
Supply and return ductwork should be designed to maintain required airflow. Restrictive grilles, undersized ducts, excessive bends, or unnecessary static pressure can reduce system performance.
Water-Cooled Condenser Requirements
| Water Usage | 1.20 GPM at 20°F temperature rise |
|---|---|
| Pressure Drop | 0.08 PSI |
| Pipe Connection Size | 0.5 in. O.D. |
Water Supply Is a Core Installation Requirement
The D088WC should not be selected until the available water supply or cooling loop, required flow, connection requirements, plumbing design, and drainage have been confirmed.
Wine Guardian D088WC Technical Specifications
General Specifications
| Brand | Wine Guardian |
|---|---|
| Model | D088WC |
| Series | Sentinel Series |
| System Type | Water-Cooled Ducted Wine Cellar Cooling System |
| Cooling Capacity | Up to 10,700 BTU/h |
| Recommended Cellar Size | 2,000–4,000 cubic feet |
| Electrical Requirements | 208–230V / 1 Phase / 60 Hz |
| Airflow | 435 CFM free blow |
| Water Usage | 1.20 GPM |
| Weight | 125 lb |
Electrical Requirements
| Voltage | 208–230V |
|---|---|
| Phase | Single Phase |
| Frequency | 60 Hz |
| Cooling Mode Current | 9.8 Amps |
| Minimum Circuit Ampacity | 10.7 Amps |
Cabinet and Dimensions
| Width | 41.5 in. |
|---|---|
| Depth | 22.4 in. |
| Height | 18.85 in. |
| Weight | 125 lb |
| Construction | Aluminum chassis with UL-rated composite panels |
| Finish | Gray epoxy powder-coated finish |
Water-Cooled Condenser
| Water Usage | 1.20 GPM at 20°F temperature rise |
|---|---|
| Pressure Drop | 0.08 PSI |
| Pipe Connection | 0.5 in. O.D. |
Optional Accessories
Integrated Humidifier
Optional integrated humidification can help maintain approximately 55%–65% relative humidity where active moisture control is required.
Electric Heater Option
Optional electric heat can provide supplemental heating when cellar temperature falls below the desired storage range.
Remote Temperature Sensors
Additional sensors can be installed throughout the cellar for more detailed climate monitoring.
Duct Kits and Grilles
Optional duct kits and grilles can support professional installation and proper airflow distribution.
Accessory Selection
Choose accessories according to actual project requirements. Do not assume humidification, electric heat, remote sensors, duct kits, or grilles are included with the standard D088WC unless specifically stated in the selected configuration.
Installation Requirements and Planning Considerations
Water Supply or Cooling Loop
The system requires access to a compatible water supply or cooling loop for condenser heat rejection.
Supply and Return Ductwork
Conditioned cellar air is delivered through properly designed supply and return ductwork.
Proper Cellar Insulation and Vapor Barrier
The cellar should be constructed to limit unwanted heat and moisture migration into the conditioned space.
Adequate Mechanical Equipment Space
The cooling unit must have sufficient installation and service access outside the finished wine cellar.
Professional Heat-Load Evaluation
A professional wine-cellar designer or HVAC installer should evaluate the project before final equipment selection.
Professional Installation Required
Do not finalize equipment selection until the heat load, water supply, duct design, electrical service, drainage, cellar insulation, vapor-barrier construction, mechanical space, and service access have been confirmed.
What's Included
- Wine Guardian D088WC water-cooled cooling unit
- Wireless2Base™ digital controller
- Water inlet and outlet connections
- Duct collars for supply and return air
- Installation and operating manuals
Wine Guardian D088WC Videos
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Why Choose Wine Guardian Cooling Systems?
The supplied content positions Wine Guardian as a recognized manufacturer of professional wine-cellar cooling systems used in residential and commercial wine-storage environments.
- Made in the USA
- Designed specifically for wine storage
- Trusted by cellar builders and designers
- Long-term performance positioning
- Wide range of upgrade accessories
Frequently Asked Questions
What size wine cellar is the Wine Guardian D088WC designed for?
The supplied product content positions the D088WC for approximately 2,000–4,000 cubic feet. Final system selection should be based on a professional heat-load calculation.
What is the cooling capacity of the D088WC?
The supplied cooling-performance table lists up to 10,700 BTU/h at a 60°F condenser inlet temperature.
What makes the D088WC different from an air-cooled system?
The D088WC uses a water-cooled condenser to transfer heat into a building water supply or cooling loop instead of exhausting hot condenser air outdoors.
How much water does the D088WC use?
The supplied water-cooled condenser requirements list 1.20 GPM at a 20°F temperature rise.
How much airflow does the D088WC provide?
The supplied airflow specifications list 435 CFM free blow and 370 CFM at 0.20-inch static pressure.
What electrical service does the D088WC require?
The supplied specifications identify 208–230V / single phase / 60 Hz electrical service, with 9.8 amps cooling current and 10.7 amps minimum circuit ampacity.
Can the D088WC provide humidity control?
Yes. An integrated humidifier is listed as an optional accessory, with approximately 55%–65% relative humidity identified in the supplied content.
Does the D088WC include a digital controller?
Yes. The supplied content lists the Wireless2Base™ digital controller as part of the system package.
Can the cooling unit be installed outside the wine cellar?
Yes. The D088WC uses ducted air distribution so the major cooling equipment can remain outside the finished cellar while conditioned air is delivered through supply and return ducts.
When should I choose the D200WC instead?
Choose the D200WC when a professional heat-load calculation shows that the project requires more cooling capacity than the D088WC can provide.
Use the D088WC for Large Wine Cellars That Need Water-Cooled Ducted Cooling
The D088WC is best suited to large residential and commercial wine-storage projects where quiet, concealed ducted cooling is required but conventional condenser-air exhaust is unavailable, restricted, or impractical.
Verify current manufacturer specifications, water-loop requirements, duct design, airflow, electrical service, plumbing, drainage, accessory compatibility, cellar construction, installation instructions, and warranty documentation before ordering. Final system sizing should be based on a project-specific heat-load calculation.
