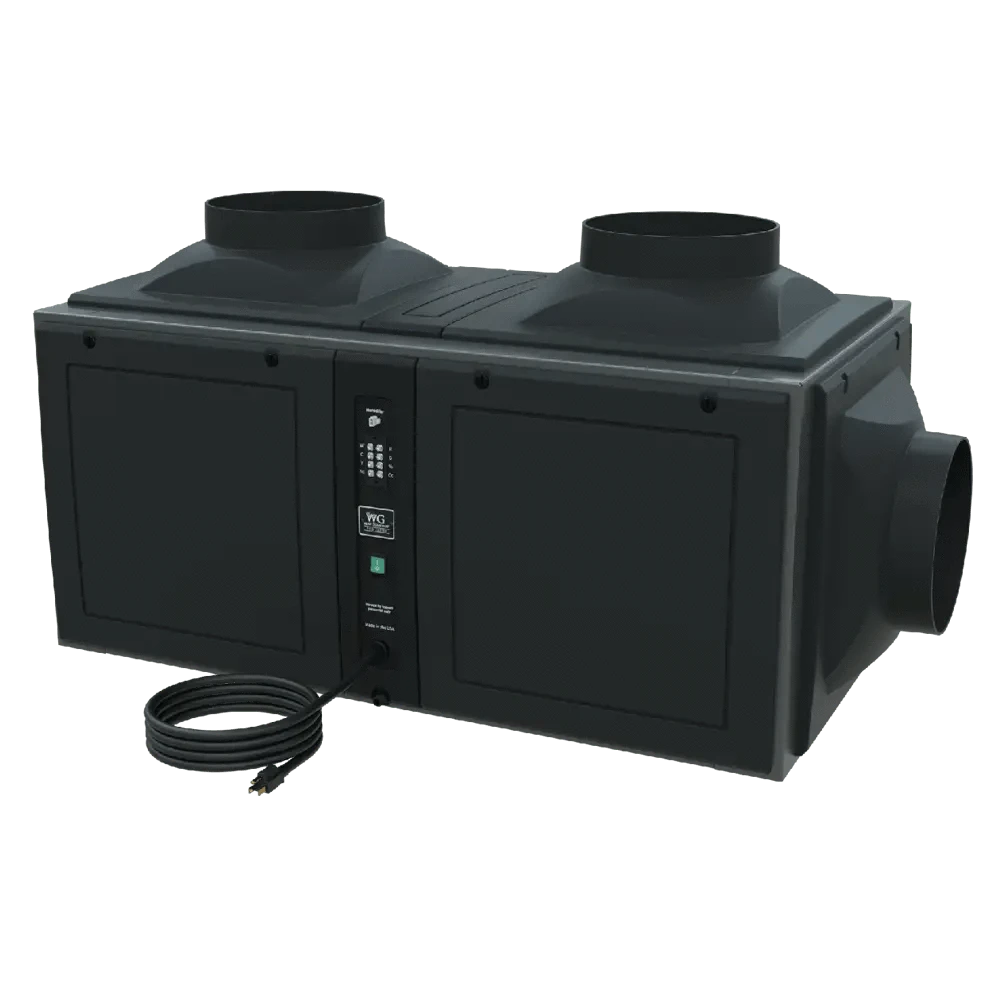

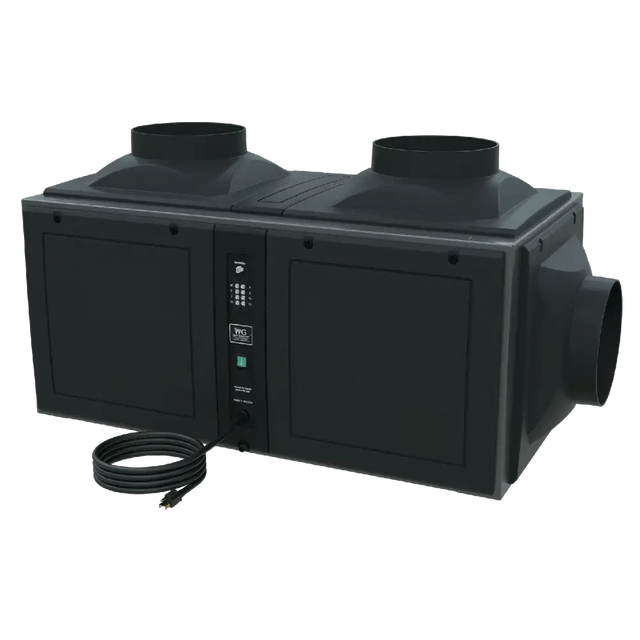

Wine Guardian DP200 Pro Ducted Wine Cellar Cooling System
The Wine Guardian DP200 Pro is a high-capacity, fully ducted wine cellar cooling system designed for large residential wine cellars, commercial wine rooms, restaurants, hospitality installations, and luxury estate cellars. The supplied product content positions the DP200 Pro for approximately 1,500 to 7,000 cubic feet, depending on insulation, vapor-barrier construction, glass exposure, ambient conditions, and total heat load.
Because the DP200 Pro is a self-contained ducted system, the complete cooling cabinet can be installed outside the wine cellar in a mechanical room, attic, utility space, basement, or adjacent equipment area. Conditioned air is delivered through supply ducts while return air circulates back to the unit.
This arrangement keeps major mechanical equipment hidden from the finished cellar while helping reduce noise and vibration inside the wine-storage environment.
Wine Guardian DP200 Pro: Quick Decision Summary
Choose the DP200 Pro when a large residential or commercial wine cellar needs high-capacity self-contained ducted cooling with the entire mechanical cabinet located outside the finished wine room.
| Best For |
Large residential wine cellars, commercial wine storage rooms, restaurant wine cellars, hotel and hospitality wine vaults, luxury estate wine collections, and multi-room wine cellar designs. |
|---|---|
| System Type |
Fully ducted self-contained wine cellar cooling system. |
| Recommended Cellar Size |
Approximately 1,500–7,000 cubic feet according to the supplied content. |
| Primary Advantage |
High-capacity hidden cooling for large wine rooms using supply and return ductwork. |
Things to Know Before Ordering
- The DP200 Pro is a self-contained ducted system.
- The complete cooling cabinet installs outside the wine cellar.
- Supply and return ductwork are required.
- The supplied minimum duct size is 12 inches.
- Published free-blow airflow is 485 CFM.
- Published airflow at pressure loss is 440 CFM at 0.20 in. WC.
- The supplied electrical requirement is 208–230V / 1 Phase / 60 Hz.
- Minimum circuit requirement is listed at 19.1 amps.
- The system uses 24-volt control electronics.
- Optional electric heat, humidification, water-cooled conversion, remote monitoring sensors, duct kits, and extended warranty coverage are available.
- A professional heat-load calculation should be completed before purchase.
For smaller applications, compare the DP88 Pro, DP50 Pro, or the DP25 Pro.
Who Is the Wine Guardian DP200 Pro Best For?
Large Residential Wine Cellars
The DP200 Pro is positioned for substantial private wine collections where smaller ducted systems cannot meet the calculated cooling load.
Commercial Wine Storage Rooms
Commercial wine-storage environments can use the DP200 Pro when the building can accommodate the required airflow, electrical service, and equipment-room ventilation.
Restaurant Wine Cellars
Restaurants can use the DP200 Pro where large bottle inventory, frequent access, lighting, and surrounding ambient conditions create higher cooling demand.
Hotel and Hospitality Wine Vaults
Hospitality installations can benefit from concealed mechanical equipment and high-capacity conditioned-air delivery.
Luxury Estate Wine Collections
Large custom cellars can use the DP200 Pro when aesthetics and quiet interior operation are important.
Multi-Room Wine Cellar Designs
Large ducted layouts may use the DP200 Pro where the airflow design and calculated load support the application.
When the DP200 Pro May Not Be the Right Choice
- Do not select the DP200 Pro for a small wine room simply because it offers more capacity.
- Do not size it from cubic footage alone.
- Do not install it where 12-inch ductwork cannot be accommodated.
- Do not install it in a mechanical area that cannot manage condenser heat.
- Do not ignore static-pressure losses in restrictive duct systems.
- Consider the DP25 Pro, DP50 Pro, or DP88 Pro when the calculated load is lower.
DP200 Pro Compared With Smaller Sentinel Pro Models
| Model | General Position | When to Consider It |
|---|---|---|
| DP25 Pro | Compact Pro ducted model | Consider for smaller wine-cellar loads |
| DP50 Pro | Mid-size Pro ducted model | Consider where DP25 Pro is too small but DP200 Pro is unnecessary |
| DP88 Pro | Larger mid-capacity model | Consider for substantial cellars below DP200 Pro demand |
| DP200 Pro | Largest-capacity Sentinel Pro model in supplied content | Consider for large residential and commercial wine-cellar applications |
Use the Comparison as General Guidance
The correct model depends on the actual project heat load. Glass area, insulation, vapor-barrier quality, lighting, ambient temperatures, duct resistance, and equipment-room conditions can materially affect the required capacity.
Key Features of the Wine Guardian DP200 Pro
Fully Ducted Cooling System
The DP200 Pro is a self-contained ducted cooling unit that can be installed outside the wine cellar while conditioned air is delivered through supply and return ducts.
This helps create:
- Quieter cellar operation
- Reduced vibration around wine racks
- Clean cellar aesthetics with no large visible cooling cabinet
High-Capacity Cooling Performance
The supplied introductory product content identifies cooling capacity up to 15,680 BTU, while the detailed performance table lists higher capacity under specific test conditions.
Optional Humidity Control
An optional humidifier can support cellar humidity around:
55%–65% relative humidity
Smart 24-Volt Control Platform
The system uses 24-volt control electronics for compatibility with:
- Remote thermostats
- Remote temperature sensors
- Building-management systems
- Remote monitoring systems
Modular Multi-Panel Cabinet Construction
The composite multi-panel cabinet design provides:
- High structural strength
- Easy service access
- Lightweight but durable construction
Service-Friendly Engineering
The supplied content identifies:
- Sight glass refrigerant indicator
- Pressure switches
- Service access ports
These features are intended to simplify maintenance and diagnostics.
How the Wine Guardian DP200 Pro Ducted System Works
1. Warm Cellar Air Returns Through Ductwork
Warm air from the wine cellar travels through the return-air duct to the remotely installed DP200 Pro.
2. The Self-Contained System Removes Heat
The refrigeration circuit removes heat from the returning air inside the DP200 Pro cabinet.
3. Conditioned Air Returns Through the Supply Duct
The evaporator fan sends cooled air back to the wine cellar through insulated supply ductwork.
4. Condenser Heat Is Rejected at the Equipment Location
Because the DP200 Pro is self-contained, the mechanical room or equipment area must be able to handle the condenser heat produced during operation.
5. The Wine Cellar Remains Free of Large Mechanical Equipment
Only the final air-distribution grilles need to be visible within the finished cellar.
Why Mechanical-Room Conditions Matter
Available cooling performance changes with condenser inlet temperature, so adequate ventilation around the self-contained unit is an important part of installation planning.
Cooling Performance and Cellar Sizing
The supplied content includes multiple performance references for the DP200 Pro. These figures correspond to different source sections and test conditions and are preserved separately below rather than silently merged.
Published Performance at 57°F Cellar Temperature / 55% Relative Humidity
| Condenser Inlet Temperature | Total Capacity | Sensible Capacity |
|---|---|---|
| 60°F | 17,570 BTU | 12,430 BTU |
| 70°F | 16,580 BTU | 11,650 BTU |
| 80°F | 15,350 BTU | 11,100 BTU |
| 90°F | 14,000 BTU | 10,580 BTU |
Published Performance at 80°F Cellar Temperature / 50% Relative Humidity
| Condenser Inlet Temperature | Total Capacity | Sensible Capacity |
|---|---|---|
| 60°F | 25,450 BTU | 18,000 BTU |
| 70°F | 24,250 BTU | 17,000 BTU |
| 80°F | 22,440 BTU | 16,230 BTU |
| 90°F | 19,500 BTU | 15,800 BTU |
Why the Source Shows 15,680, 17,570, and Higher BTU Values
The supplied introductory copy lists the DP200 Pro at up to 15,680 BTU. The detailed performance section lists up to 17,570 BTU at 57°F cellar temperature / 55% RH, and a separate high-temperature test table shows higher total capacity at 80°F cellar conditions.
These values are retained as separate source references because they are tied to different stated operating conditions.
Cellar Size Guidance
| Cellar Volume | Suitability in Supplied Content |
|---|---|
| Under 1,200 cu. ft. | Oversized |
| 1,200–3,000 cu. ft. | Ideal |
| 3,000–7,000 cu. ft. | Ideal |
| Over 7,000 cu. ft. | Multiple units may be required |
Sizing Recommendation
Use a professional heat-load calculation before selecting the DP200 Pro. The supplied cellar-volume chart is general guidance and should not replace project-specific engineering.
Airflow and Duct Requirements
| Evaporator Fan Motor | 195 Watts |
|---|---|
| Airflow — Free Blow | 485 CFM |
| Airflow at Pressure Loss | 440 CFM @ 0.20 in. WC |
| Minimum Duct Size | 12 inches |
| Condensate Drain | 0.5 inches |
Use Properly Sized Supply and Return Ductwork
The DP200 Pro requires substantial airflow and should be installed with ductwork capable of maintaining the published performance range.
Minimize Unnecessary Static Pressure
Undersized ducts, restrictive grilles, excessive bends, and long runs can reduce airflow and cooling performance.
Large-System Airflow Warning
The supplied specifications identify 485 CFM free-blow airflow and 440 CFM at 0.20 in. WC. Duct design should be treated as a core part of system selection and installation.
Installation Requirements and Planning Considerations
Indoor Ducted Installation
The supplied content identifies the DP200 Pro as designed for indoor ducted installation.
Typical Equipment Locations
- Mechanical rooms
- Basements
- Attics
- Utility closets
- Adjacent equipment rooms
Dedicated Electrical Circuit
The supplied electrical requirement is 208–230V / 1 Phase / 60 Hz, with a minimum circuit requirement of 19.1 amps.
Supply and Return Ductwork
Properly sized supply and return ductwork is required to deliver conditioned air to the cellar and return air to the cooling unit.
Condensate Drain Connection
The DP200 Pro includes a 0.5-inch condensate drain connection that must be routed correctly.
Adequate Condenser Ventilation
Because the unit is self-contained, the equipment location must be able to manage condenser heat.
Service Clearance
The installation should provide adequate space for future maintenance and service access.
Proper Cellar Construction
Insulation and vapor-barrier quality directly affect the cooling load and system performance.
Installation Recommendation
Professional installation is recommended to ensure correct airflow design, equipment-room ventilation, drainage, electrical service, and cooling performance.
Wine Guardian DP200 Pro Technical Specifications
System Overview
| Brand | Wine Guardian |
|---|---|
| Model | DP200 Pro |
| Series | Sentinel Series Pro |
| System Type | Fully Ducted Self-Contained Wine Cellar Cooling System |
| Recommended Cellar Size | Approximately 1,500–7,000 cubic feet |
| Introductory Cooling Capacity | Up to 15,680 BTU in supplied summary copy |
| Maximum Capacity at 57°F Cellar Conditions | 17,570 BTU |
| Refrigerant | R134A |
| Control System | 24-Volt Thermostat Compatible |
| Weight | 206 lb |
| Manufacturer | Wine Guardian (USA) |
Dimensions
| Width | 41.5 in. |
|---|---|
| Depth | 22.4 in. |
| Height | 18.85 in. |
| Weight | 206 lb |
Technical Performance
| Nominal Compressor | 2.5 HP |
|---|---|
| Evaporator Fan Motor | 195 Watts |
| Airflow — Free Blow | 485 CFM |
| Airflow at Pressure Loss | 440 CFM @ 0.20 in. WC |
| Condensate Drain | 0.5 in. |
| Minimum Duct Size | 12 in. |
Electrical Requirements
| Electrical Supply | 208–230V / 1 Phase / 60 Hz |
|---|---|
| Cooling Current | 15.6 Amps |
| Minimum Circuit Requirement | 19.1 Amps |
| Control Voltage | 24V |
Optional Accessories
Electric Heat Option
Optional electric heat can provide supplemental heating when cellar temperatures may otherwise fall below the desired operating range.
Water-Cooled Condenser Conversion Kit
The supplied content lists a water-cooled condenser conversion kit for installations where water-based heat rejection better suits the project.
Integrated or Freestanding Humidifier
Optional humidification can support approximately 55%–65% relative humidity where active humidity control is required.
Wireless2Base™ Remote Monitoring Sensors
Optional sensors can expand environmental monitoring throughout the cellar.
Extended Manufacturer Warranty
Extended warranty coverage is listed as an available option. Confirm current terms and eligibility before purchase.
Duct Kits and Airflow Grilles
Optional air-distribution components can support the final duct-system layout.
Accessory Selection
Choose accessories based on the actual project requirements. Do not assume heating, humidification, water-cooled conversion, remote monitoring, or accessory duct components are included with the standard DP200 Pro.
What's Included
- Wine Guardian DP200 Pro cooling system
- Interchangeable duct collars and panels
- 24-volt control electronics
- Installation and operation manuals
Wine Guardian DP200 Pro Videos
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Frequently Asked Questions
What size wine cellar is the Wine Guardian DP200 Pro designed for?
The supplied content positions the DP200 Pro for approximately 1,500–7,000 cubic feet. Final selection should be based on a professional heat-load calculation.
What is the cooling capacity of the DP200 Pro?
The supplied introductory content states up to 15,680 BTU. A detailed performance table lists up to 17,570 BTU at 57°F cellar temperature / 55% RH, with separate higher figures under an 80°F cellar test condition.
Is the DP200 Pro self-contained?
Yes. The supplied content identifies it as a self-contained fully ducted system with the refrigeration components housed in one cabinet.
Does the DP200 Pro require ductwork?
Yes. Supply and return ductwork are required, and the supplied minimum duct size is 12 inches.
Where can the DP200 Pro be installed?
The supplied content identifies mechanical rooms, basements, attics, utility closets, and adjacent equipment rooms as typical locations.
How much airflow does the DP200 Pro provide?
The supplied specifications list 485 CFM free-blow airflow and 440 CFM at 0.20 in. WC pressure loss.
What electrical service does the DP200 Pro require?
The supplied specifications identify 208–230V / 1 Phase / 60 Hz power, 15.6 amps cooling current, and a 19.1-amp minimum circuit requirement.
Can the DP200 Pro provide humidity control?
Yes. Integrated or freestanding humidifiers are listed as optional accessories for projects requiring active humidity control.
Can the DP200 Pro be converted to water-cooled operation?
The supplied content lists a water-cooled condenser conversion kit as an optional accessory.
When should I choose the DP88 Pro instead?
Choose the DP88 Pro when the calculated cooling load does not require DP200 Pro capacity. Avoid oversizing solely because the DP200 Pro is the largest model in the supplied Pro lineup.
Use the DP200 Pro for Large Wine Cellars That Need High-Capacity Hidden Ducted Cooling
The DP200 Pro is best suited to large residential and commercial wine-storage environments where high cooling capacity, concealed mechanical equipment, and substantial supply-and-return airflow are required.
Verify current manufacturer specifications, performance conditions, duct requirements, equipment-room ventilation, electrical service, accessory compatibility, installation instructions, and warranty documentation before ordering. Final equipment sizing should be based on a project-specific heat-load calculation.
