Product Overview

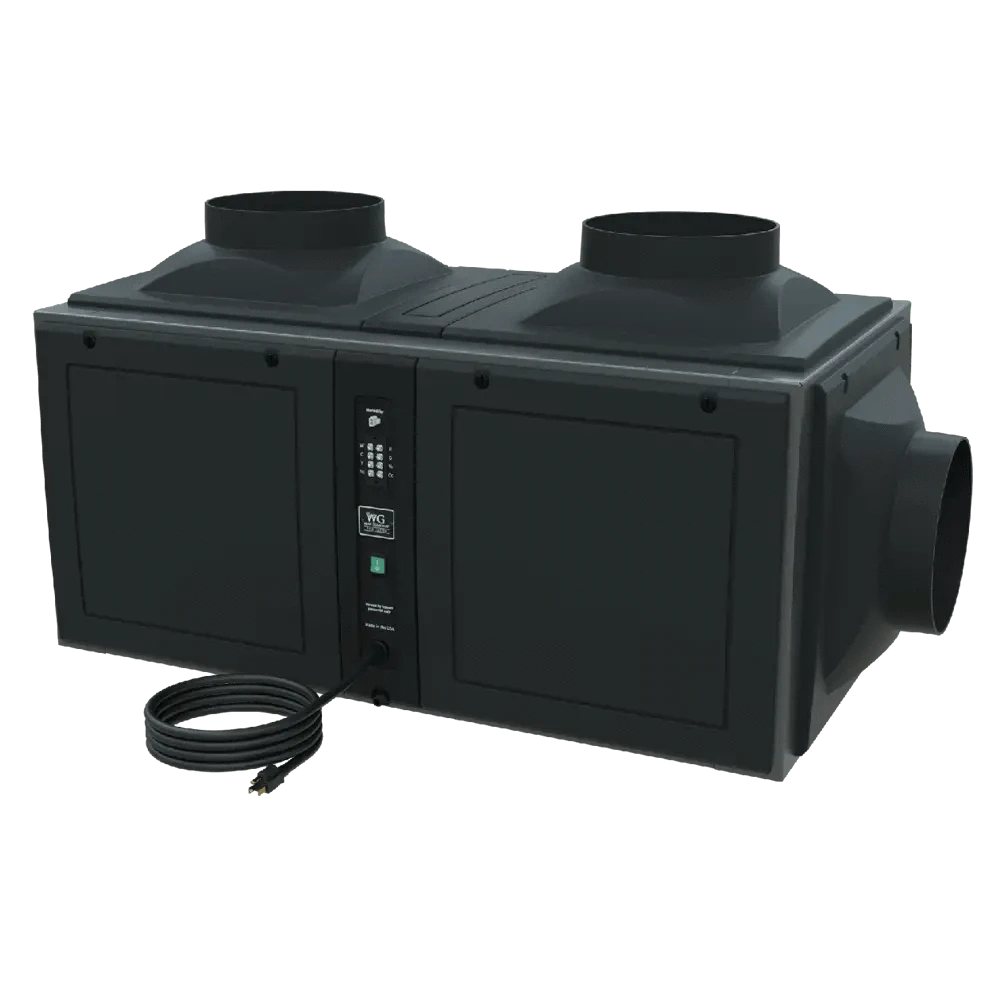

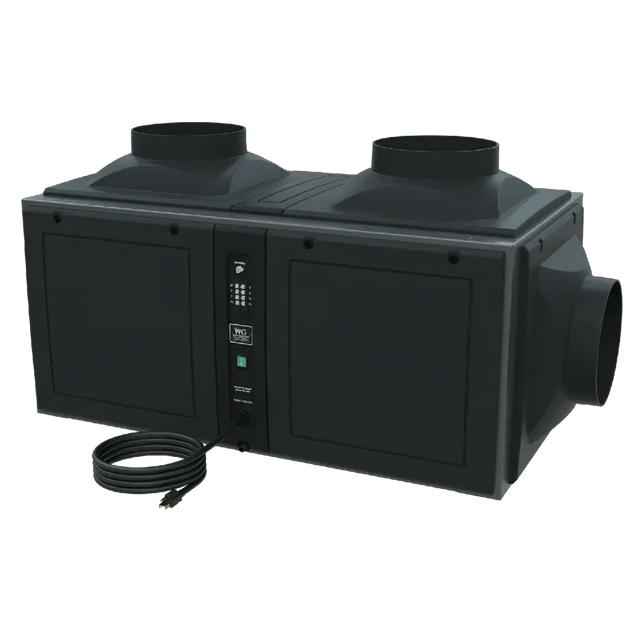

Wine Guardian DP88 Pro: Quick Decision Summary
Choose the DP88 Pro when a medium-to-large wine cellar needs powerful, hidden, fully ducted cooling with the complete mechanical cabinet installed outside the wine room.
| Best For |
Large residential wine cellars, commercial wine-storage rooms, hospitality wine programs, luxury wine rooms, and professional wine-storage facilities.
|
| System Type |
Fully ducted self-contained wine cellar cooling system.
|
| Cooling Capacity |
Up to 10,700 BTU in the supplied content.
|
| Recommended Cellar Size |
Approximately 850–4,500 cubic feet.
|
| Installation Location |
Mechanical room, attic, or equipment space outside the finished wine cellar.
|
| Primary Advantage |
High-capacity concealed ducted cooling with quieter cellar operation.
|
Things to Know Before Ordering
- The DP88 Pro is a fully ducted self-contained system.
- The complete cooling unit installs outside the wine cellar.
- Supply and return ductwork are required.
- The supplied minimum duct size is 10 inches.
- Published cooling capacity is up to 10,700 BTU.
- The supplied electrical requirement is 208–230V / 1 Phase / 60 Hz.
- The system uses 24-volt thermostat-compatible controls.
- The supplied condensate drain connection is 0.50 inch.
- Optional electric heat, humidification, water-cooled condenser, monitoring sensors, duct accessories, and extended warranty packages are available.
- A professional heat-load calculation should be completed before purchase.
For smaller spaces, compare the DP25 Pro or DP50 Pro. For larger or more demanding environments, compare the DP200 Pro.
Buyer Fit
Who Is the Wine Guardian DP88 Pro Best For?
Large Residential Wine Cellars
The DP88 Pro is positioned for substantial private wine collections where smaller ducted systems do not provide enough cooling capacity.
Commercial Wine Storage Rooms
Commercial installations can use the DP88 Pro when the building can support the required electrical service, airflow, drainage, and remote equipment location.
Luxury Wine Rooms
Because the equipment is installed outside the cellar, the finished space can remain visually clean and free from a large visible cooling cabinet.
Hospitality Environments
Hotels, restaurants, tasting rooms, clubs, and other hospitality projects can benefit from remote equipment placement and reduced mechanical noise inside the wine room.
Professional Wine Storage Facilities
The DP88 Pro is suited to professional storage environments where stable climate control and serviceable ducted equipment are important.
When to Consider a Different Wine Guardian System
- Do not select the DP88 Pro solely from cellar volume.
- Do not use it where suitable ductwork cannot be installed.
- Do not use it where a smaller DP25 Pro or DP50 Pro would adequately satisfy the calculated load.
- Do not install it in a mechanical space that cannot manage condenser heat.
- Do not ignore the impact of large glass areas or poor insulation.
- Consider the DP200 Pro when the calculated cooling load exceeds DP88 Pro capacity.
Model Comparison
DP88 Pro Compared With Other Sentinel Pro Models
| Model |
General Position |
When to Consider It |
| DP25 Pro |
Small-capacity Pro model |
Consider for smaller cellar loads |
| DP50 Pro |
Mid-size Pro model |
Consider when DP25 Pro is too small but DP88 Pro is unnecessary |
| DP88 Pro |
Medium-large Pro model |
Consider for supplied cellar guidance up to approximately 4,500 ft³ |
| DP200 Pro |
Highest-capacity Pro model referenced |
Consider when DP88 Pro capacity is insufficient |
Choose the Model From the Actual Heat Load
Cellar volume is only preliminary guidance. Insulation, glass surfaces, ambient conditions, lighting, vapor control, door usage, and duct losses can all materially change the required cooling capacity.
Key Features
Key Features and Benefits of the Wine Guardian DP88 Pro
Powerful Cooling for Large Wine Cellars
The supplied product content identifies cooling capacity up to 10,700 BTU, supporting large residential wine collections and commercial wine-storage applications.
Fully Ducted Installation
The complete cooling unit installs outside the wine cellar and connects to the room through supply and return ductwork.
This keeps major mechanical equipment hidden from view.
Quiet Operation
Remote installation helps reduce mechanical noise inside the wine cellar, making the system appropriate for luxury wine rooms located near living or entertainment areas.
Smart-Ready 24-Volt Controls
The DP88 Pro uses 24-volt control architecture for compatibility with:
- Thermostats
- Automation systems
- Building-management systems
- Remote monitoring controls
Modular Service Panels
Removable service panels and interchangeable duct collars are intended to simplify installation and maintenance for HVAC professionals.
Durable Composite Cabinet
The cabinet uses UL-rated composite materials designed to resist corrosion, dents, and condensation-related damage.
Optional Humidity and Heat Integration
The system can be configured with optional humidification systems and electric heat modules to help maintain stable cellar conditions year-round.
System Operation
How the Wine Guardian DP88 Pro Ducted System Works
1. Warm Cellar Air Returns Through Ductwork
Warm air from the wine cellar travels through insulated return ductwork to the remotely installed DP88 Pro.
2. The Self-Contained Refrigeration System Removes Heat
The cooling system removes heat from the returning air inside the remote cabinet.
3. Conditioned Air Returns Through the Supply Duct
Cooled air is delivered back into the wine cellar through insulated supply ductwork.
4. Condenser Heat Is Rejected at the Equipment Location
Because the DP88 Pro is self-contained, the mechanical room or equipment space must be able to manage the condenser heat generated during operation.
5. The Finished Cellar Remains Equipment-Free
Only the final supply and return grilles need to be visible in the wine cellar.
Why Remote Installation Matters
Moving the cooling cabinet outside the wine cellar helps reduce equipment noise, vibration, and visual impact inside the finished space.
Sizing
What Size Wine Cellar Can the DP88 Pro Cool?
The supplied page provides different practical cellar-volume estimates depending on construction quality.
| Cellar Condition |
Recommended Cellar Volume |
| Excellent Insulation |
Up to approximately 4,500 ft³ |
| Average Insulation |
Approximately 3,000–4,000 ft³ |
| Glass-Heavy Cellar |
Approximately 2,000–3,000 ft³ |
Why Cellar Construction Changes Capacity
The supplied content identifies cellar insulation, glass surfaces, and ambient temperature as factors that can change actual cooling performance.
Heat-Load Calculation Recommended
A professional heat-load calculation should be used to determine the correct cooling system size for the specific wine cellar.
Installation
Installation Requirements and Planning Considerations
Proper installation is essential for maintaining stable wine-storage conditions.
Dedicated Electrical Circuit
The supplied specifications identify a dedicated 208–230V electrical circuit.
Insulated Ductwork
Supply and return ductwork must connect the remote cooling unit to the wine cellar.
Minimum Duct Size
The supplied minimum duct size is 10 inches.
Condensate Drain Line
The supplied condensate drain connection is 0.50 inch.
Cellar Insulation and Vapor Barrier
Proper cellar insulation and vapor-barrier construction are important for controlling heat and moisture infiltration.
Remote Installation Location
The supplied content identifies:
- Mechanical rooms
- Attics
- Equipment spaces
Professional HVAC Installation
Most installations require a qualified HVAC or wine-cellar professional.
Installation Warning
Do not finalize equipment selection until the cooling load, duct system, electrical service, drainage, equipment-space ventilation, insulation, vapor barrier, and service clearances have been confirmed.
Specifications
Wine Guardian DP88 Pro Technical Specifications
System Specifications
| Brand |
Wine Guardian |
| Model |
DP88 |
| Series |
Sentinel Pro |
| System Type |
Fully Ducted Self-Contained Wine Cellar Cooling System |
| Recommended Cellar Volume |
850–4,500 ft³ |
| Cooling Capacity at 60°F |
10,700 / 7,120 BTUH total / sensible |
| Nominal Compressor |
1 HP |
| Electrical Requirements |
208–230V / 1 Phase / 60 Hz |
| Minimum Duct Size |
10 in. |
| Condensate Drain Connection |
0.50 in. |
| Agency Approvals |
ETL, UL 1995, CSA C22.2 |
Dimensions
| Length |
41.5 in. |
| Width |
22.4 in. |
| Height |
18.85 in. |
| Weight |
125 lb |
Cooling Performance by Condenser Temperature
| Condenser Temperature |
Total Capacity |
Sensible Capacity |
| 60°F |
10,700 BTUH |
7,120 BTUH |
| 70°F |
9,900 BTUH |
6,800 BTUH |
| 80°F |
9,420 BTUH |
6,610 BTUH |
| 90°F |
8,600 BTUH |
6,120 BTUH |
Optional Add-Ons
Optional Accessories
Electric Heating Module
An optional electric heating module can provide supplemental heat in colder cellar environments.
Water-Cooled Condenser Option
A water-cooled condenser option is listed for projects where water-based heat rejection better suits the mechanical design.
Integrated or Freestanding Humidifiers
Optional humidification can support projects requiring active humidity management.
Wireless2Base™ Monitoring Sensors
Optional sensors can provide expanded temperature and humidity monitoring.
Duct Kits and Airflow Accessories
Optional duct kits, grilles, and airflow accessories can support the final distribution-system design.
Extended Warranty Packages
Extended warranty coverage is listed as an available option. Confirm current eligibility, exclusions, and terms before purchase.
Accessory Selection
Choose accessories according to the actual project requirements. Do not assume heat, humidification, water-cooled condenser components, sensors, duct accessories, or extended warranty coverage are included with the standard DP88 Pro.
System Components
What's Included
- Wine Guardian DP88 Pro ducted cooling unit
- Interchangeable duct collars
- 24-volt control interface
- Installation and operation manual
Optional accessories are available separately.
Downloads
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Questions & Answers
Frequently Asked Questions
What size wine cellar is the Wine Guardian DP88 Pro designed for?
The supplied product information positions the DP88 Pro for approximately 850–4,500 cubic feet. Final system sizing should be based on a professional heat-load calculation.
What is the maximum cooling capacity of the DP88 Pro?
The supplied performance table lists up to 10,700 BTUH total cooling capacity at a 60°F condenser-air temperature.
Is the DP88 Pro a self-contained system?
Yes. The supplied product content identifies the DP88 Pro as a fully ducted self-contained wine cellar cooling system.
Does the DP88 Pro require ductwork?
Yes. The system requires supply and return ductwork, and the supplied minimum duct size is 10 inches.
Where should the DP88 Pro be installed?
The supplied content identifies mechanical rooms, attics, and equipment spaces as typical remote installation locations.
What electrical service does the DP88 Pro require?
The supplied technical specifications identify 208–230V / 1 Phase / 60 Hz electrical service.
Can the DP88 Pro provide humidity control?
Optional integrated or freestanding humidifiers are available for projects requiring active humidity management.
Can the DP88 Pro use a water-cooled condenser?
The supplied page lists a water-cooled condenser option as an available accessory configuration.
When should I choose the DP50 Pro instead?
Choose the DP50 Pro when the project-specific calculated load does not require DP88 Pro capacity.
When should I choose the DP200 Pro?
Choose the DP200 Pro when the project heat load exceeds the practical capacity of the DP88 Pro.
Important Product Guidance
Use the DP88 Pro for Medium-to-Large Cellars That Need Powerful Hidden Ducted Cooling
The DP88 Pro is best suited to residential and commercial wine-storage projects that need more capacity than smaller Sentinel Pro systems while maintaining a clean cellar appearance through remote mechanical installation.
Verify current manufacturer specifications, duct requirements, equipment-room ventilation, electrical service, drainage, accessory compatibility, installation instructions, and warranty documentation before ordering. Final system sizing should be based on a project-specific heat-load calculation.
