Product Overview
Wine Guardian SP88 Pro: Quick Decision Summary
Choose the SP88 Pro when a medium-to-large wine cellar needs ducted airflow plus the flexibility of a remotely located condenser. It is especially useful where reducing mechanical noise near the cellar and separating the heat-rejection equipment from the conditioned space are important.
| Best For |
Large residential wine cellars, restaurants, wine bars, luxury display rooms, glass wine walls, hospitality projects, and professional wine-storage facilities.
|
| System Type |
Ducted split wine cellar cooling system.
|
| Recommended Cellar Size |
Approximately 850–4,500 cubic feet according to the supplied product content.
|
| Temperature Range |
52°F–70°F.
|
| Humidity Compatibility |
Approximately 55%–65% RH when paired with an optional humidifier.
|
| Professional Installation |
Required.
|
Things to Know Before Ordering
- The SP88 Pro is a ducted split system.
- The evaporator and condenser are installed separately.
- The supplied cellar-size range is approximately 850–4,500 cubic feet.
- Published maximum total capacity is 10,700 BTU/h.
- Published evaporator airflow is 482 CFM.
- Published condenser airflow is 420 CFM.
- The supplied electrical requirement is 208–230V / single phase / 60 Hz.
- The system uses 24-volt controls for compatible smart thermostats, BMS, and home automation systems.
- Optional humidification, electric heat, remote sensors, duct accessories, and extended warranty packages are available.
- A heat-load calculation should be completed before purchase.
For smaller applications, compare the SP25 Pro or SP50 Pro. For the highest-capacity applications in the supplied Split Pro lineup, review the SP200 Pro.
Key Features
Key Features of the Wine Guardian SP88 Pro
Ducted Split-System Design
The SP88 Pro separates the evaporator and condenser so the condensing unit can be installed remotely from the wine cellar.
This provides greater installation flexibility than a self-contained ducted system and helps move compressor heat and noise farther away from the conditioned wine room.
High-Capacity Cooling
The supplied performance table lists total cooling capacity up to 10,700 BTU/h at a 60°F condenser inlet temperature.
Precise Wine Storage Temperature Control
The supplied content identifies a temperature operating range of 52°F–70°F.
Humidity Management Compatibility
Optional integrated or freestanding humidification can support relative humidity around 55%–65%.
24-Volt Smart Control Integration
The SP88 Pro includes 24-volt control electronics that support integration with:
- Smart thermostats
- Building management systems
- Home automation systems
Modular Composite Cabinet Construction
The evaporator cabinet uses an aluminum chassis with UL-rated plastic panels.
Triple-Insulated Cabinet Design
The supplied content identifies multi-layer cabinet insulation intended to reduce heat transfer and help limit condensation within the equipment cabinet.
Service-Friendly Access
Removable access panels are designed to help qualified technicians inspect and service internal components.
Quiet Cellar Operation
Because the condenser is installed remotely and conditioned air is distributed through ductwork, the SP88 Pro is designed to reduce mechanical noise inside the wine cellar.
Buyer Fit
Who Is the Wine Guardian SP88 Pro Best For?
Large Residential Wine Cellars
The supplied product content positions the SP88 Pro for residential wine cellars within approximately 850–4,500 cubic feet when the calculated load fits its capacity.
Restaurants and Wine Bars
Commercial hospitality applications can benefit from remote condenser placement and ducted conditioned-air delivery.
Luxury Wine Display Rooms
Custom display spaces can use the SP88 Pro where the cooling equipment should remain discreet and the main condenser needs to be located away from the wine room.
Glass Wine Walls
Larger glass-heavy installations can use the SP88 Pro where the calculated cooling demand remains within the system's available capacity.
Projects Requiring Quiet Equipment Installation
The split configuration helps reduce compressor noise near the wine cellar.
Custom Ducted Cellar Designs
The SP88 Pro is well suited to projects where supply and return ductwork can be incorporated into the cellar design.
When the SP88 Pro Is Not the Right Choice
- Do not select the SP88 Pro for small wine cabinets or very small closets where a simpler system is more appropriate.
- Do not use it where suitable duct routing cannot be provided.
- Do not proceed without professional HVAC support.
- Do not use it for temporary wine-storage installations.
- Do not select it solely from cubic footage without calculating the heat load.
- Consider the SP25 Pro or SP50 Pro for smaller applications.
- Consider the SP200 Pro for more demanding high-capacity applications.
Model Comparison
SP88 Pro Compared With Other Split Pro Models
| Model |
General Position |
When to Consider It |
| SP25 Pro |
Smaller-capacity split model |
Consider when the project requires less cooling capacity than SP88 Pro |
| SP50 Pro |
Mid-size split model |
Consider for smaller medium-size wine-cellar loads |
| SP88 Pro |
Mid- to large-size split model |
Consider when the calculated load fits the supplied 10,700 BTU/h maximum performance |
| SP200 Pro |
Highest-capacity Split Pro model referenced in the supplied content |
Consider when SP88 Pro capacity is insufficient |
Choose From the Calculated Cooling Load
Cellar volume is only a starting point. Glass area, insulation, vapor-barrier quality, lighting, ambient conditions, duct losses, and condenser conditions can materially affect the required model.
System Operation
How the SP88 Pro Ducted Split System Works
1. Warm Cellar Air Returns Through Ductwork
Warm air from the wine cellar is routed through the return-air duct to the evaporator.
2. The Evaporator Removes Heat
The evaporator coil absorbs heat from the cellar air.
3. Conditioned Air Returns to the Wine Cellar
The evaporator fan circulates cooled air back through the supply-air duct system.
4. Refrigerant Transfers Heat to the Remote Condenser
The split refrigeration circuit carries the absorbed heat away from the evaporator.
5. The Remote Condensing Unit Rejects Heat
The condenser releases heat at its remote installation location, helping keep compressor heat and mechanical noise away from the wine room.
Why Split Configuration Matters
Separating the evaporator and condensing unit allows the heat-rejection equipment to be placed farther away from the cellar than with a self-contained system.
Airflow
Evaporator and Condenser Airflow
Evaporator Section
| Rated Airflow |
482 CFM |
| Fan Motor Size |
220 W |
Condensing Unit
Maintain Adequate Duct Airflow
The supplied content identifies reduced airflow as one factor that can lower cooling capacity.
Airflow Performance Warning
Avoid restrictive duct layouts, poorly sized ductwork, excessive bends, and blocked grilles that could reduce airflow through the evaporator.
Installation
Installation Requirements and Planning Considerations
Professional HVAC Installation Is Required
The supplied product content specifically states that wine-cellar cooling systems require professional HVAC installation.
Provide Proper Insulation
The wine cellar should be properly insulated before the cooling system is commissioned.
Install a Sealed Vapor Barrier
A sealed vapor barrier is identified as an important requirement for controlling moisture and heat infiltration.
Complete a Heat-Load Calculation
A project-specific heat-load calculation should be completed before final system selection.
Provide Adequate Duct Routing
The cellar design must provide sufficient space for supply and return ductwork.
Plan the Remote Condenser Location
The supplied content identifies mechanical rooms, attic spaces, and exterior locations as possible condenser-placement options.
Provide Condensate Drainage
The evaporator includes a 0.5-inch condensate drain connection.
Installation Warning
Improper insulation, vapor-barrier construction, airflow, condenser placement, or system installation can significantly reduce cooling performance.
Specifications
Wine Guardian SP88 Pro Technical Specifications
System Overview
| Brand |
Wine Guardian |
| Model |
SP88 Pro |
| Series |
Sentinel Series Pro |
| System Type |
Ducted Split Wine Cellar Cooling System |
| Recommended Cellar Size |
Approximately 850–4,500 cubic feet |
| Maximum Published Cooling Capacity |
10,700 BTU/h |
| Temperature Range |
52°F–70°F |
| Humidity Compatibility |
55%–65% RH with optional humidifier |
| Professional Installation |
Required |
Evaporator Section Specifications
| Rated Airflow |
482 CFM |
| Fan Motor Size |
220 W |
| Cabinet Construction |
Aluminum chassis with UL-rated plastic panels |
| Finish |
Powder-coated PVC acrylic blend |
| Length |
23.8 in. |
| Width |
25 in. |
| Height |
19.7 in. |
| Weight |
58 lb |
| Condensate Drain |
0.5 in. |
Condensing Unit Specifications
| Compressor Amps |
Approximately 11.3 |
| Rated Airflow |
420 CFM |
| Construction |
Aluminum cabinet |
| Finish |
Anodized |
| Length |
34 in. |
| Width |
12.3 in. |
| Height |
26.1 in. |
| Weight |
96 lb |
Electrical Requirements
| Voltage |
208–230V |
| Phase |
Single Phase |
| Frequency |
60 Hz |
| Minimum Circuit Ampacity |
Approximately 7 amps |
The supplied content notes that electrical requirements may vary depending on configuration and optional accessories.
Optional Add-Ons
Optional Accessories
Electric Heat Kit
An electric heat option is available for projects where cellar temperatures may fall below the desired setpoint.
Wireless2Base™ Remote Sensors and Monitoring
Optional Wireless2Base™ accessories can expand monitoring and control capabilities.
Integrated Humidification
Integrated humidification can support humidity levels around 55%–65% RH where active humidity management is required.
Freestanding Humidifier
A freestanding humidifier is also listed as an available option.
Duct Kits and Air Distribution Grilles
Optional ducting components and grilles can support the final air-distribution design.
Extended Warranty Packages
Extended warranty options are listed in the supplied content. Confirm current coverage and eligibility before purchase.
Accessory Selection
Select accessories according to the actual cellar conditions and installation design. Do not assume every SP88 Pro project requires heating, humidification, additional sensors, or accessory duct components.

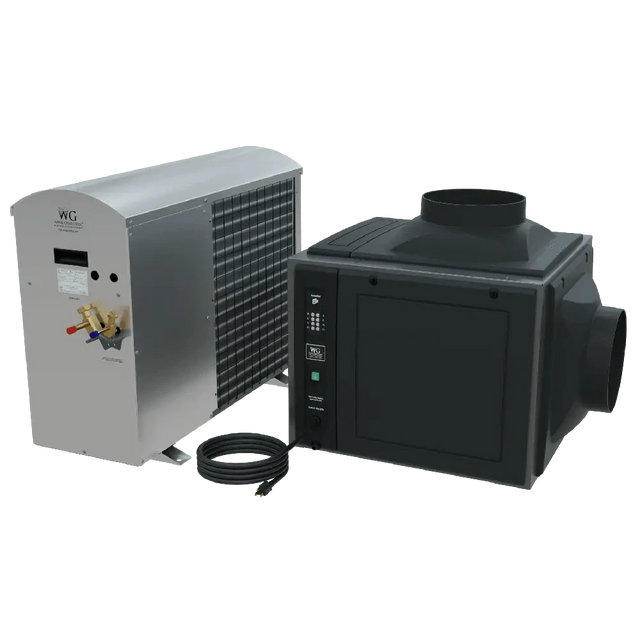

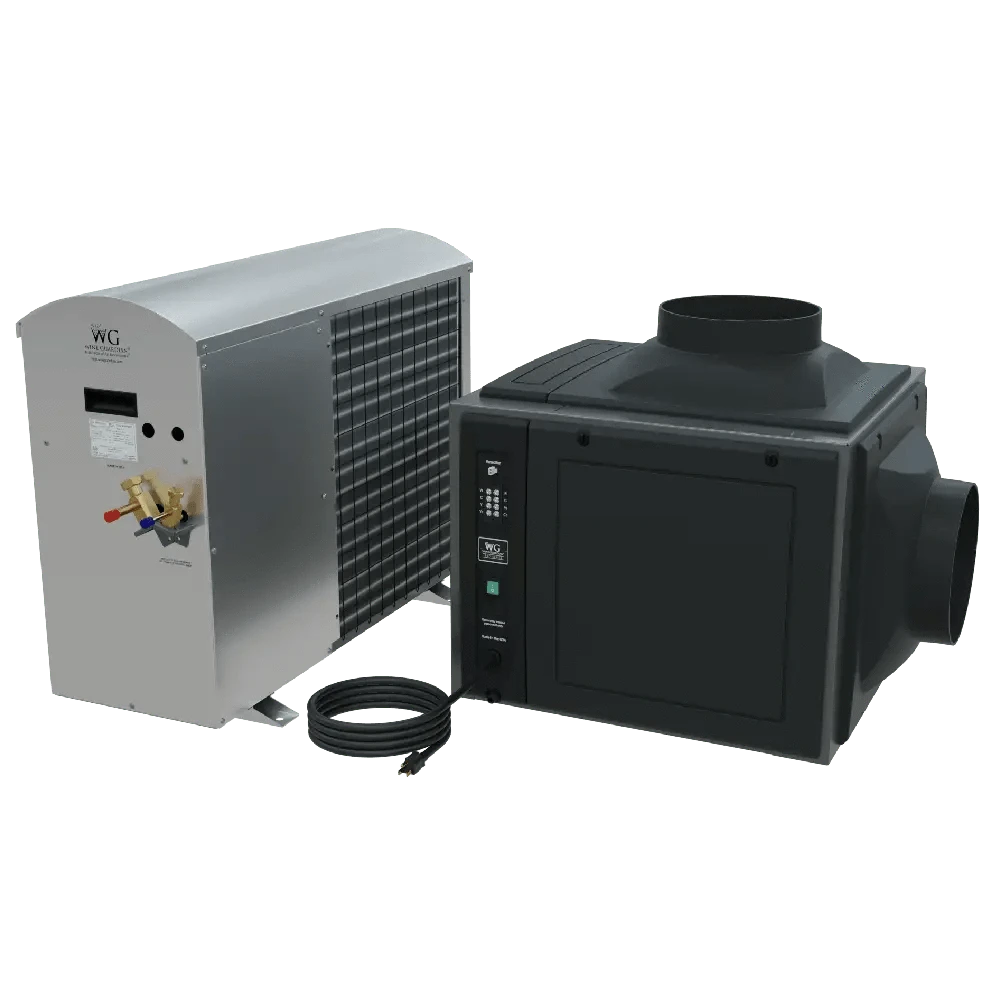

System Components
What's Included
- SP88 Pro evaporator / fan coil unit
- Matching condensing unit
- Interchangeable duct collars and panels
- Built-in 24-volt smart controller
- Installation and quick-start documentation
Downloads
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Questions & Answers
Frequently Asked Questions
What size wine cellar is the Wine Guardian SP88 Pro designed for?
The supplied product information positions the SP88 Pro for approximately 850–4,500 cubic feet. Final model selection should be based on a professional heat-load calculation.
What is the maximum cooling capacity of the SP88 Pro?
The supplied performance table lists up to 10,700 BTU/h total cooling capacity at a 60°F condenser inlet temperature.
Is the SP88 Pro a split system?
Yes. The evaporator and condensing unit are separate components connected as a split refrigeration system.
Does the SP88 Pro require ductwork?
Yes. The system uses ducted supply and return airflow from the evaporator to the wine cellar.
What temperature range does the SP88 Pro support?
The supplied product content lists a temperature range of 52°F–70°F.
Can the SP88 Pro provide humidity control?
Optional integrated or freestanding humidifiers can support approximately 55%–65% relative humidity.
Can the SP88 Pro integrate with smart controls?
Yes. The supplied content identifies 24-volt control electronics for compatible smart thermostats, building-management systems, and home-automation systems.
What electrical service does the SP88 Pro require?
The supplied specifications list 208–230V, single-phase, 60 Hz power with approximately 7 amps minimum circuit ampacity.
When should I choose the SP200 Pro instead?
Choose the SP200 Pro when the project-specific calculated cooling load exceeds SP88 Pro capacity.
Why does condenser location matter?
The remote condenser allows compressor heat and much of the mechanical noise to remain farther from the wine cellar, while also providing greater installation flexibility.
Important Product Guidance
Use the SP88 Pro for Medium-to-Large Cellars That Need Remote Heat Rejection
The SP88 Pro is best suited to projects that require ducted conditioned air but also benefit from separating the condenser from the evaporator for quieter operation and flexible mechanical placement.
Verify current manufacturer specifications, duct design, refrigerant requirements, condenser placement, electrical service, accessory compatibility, installation instructions, and warranty documentation before ordering. Final system sizing should be based on a project-specific heat-load calculation.
