Product Overview
Wine Guardian SP200 Pro: Quick Decision Summary
Choose the SP200 Pro when a large residential or commercial wine cellar requires a high-capacity ducted split cooling system and the project has suitable space for ductwork, a remotely located condenser, professional refrigeration piping, electrical service, and condensate drainage.
| Best For |
Large residential wine cellars, estate wine vaults, restaurants, hotels, hospitality wine programs, and commercial wine-storage environments.
|
| System Type |
Ducted split wine cellar cooling system with separate evaporator and remote condensing unit.
|
| Recommended Cellar Volume |
Approximately 1,500–7,000 cubic feet according to the supplied product information. Final selection requires a heat-load calculation.
|
| Professional Installation |
Required. Refrigerant piping, ductwork, condensate drainage, electrical connections, controls, and commissioning must be completed correctly.
|
Things to Know Before Ordering
- The SP200 Pro is intended for large wine-cellar applications.
- It is not recommended for small wine cabinets or rooms under approximately 1,000 cubic feet.
- A remote location is required for the condensing unit.
- Suitable supply and return ductwork must be incorporated into the project.
- The published temperature-control range is 52°F–70°F.
- The supplied product information identifies 208–230V, single-phase, 60 Hz electrical requirements.
- Smart thermostat integration is supported through the system's 24-volt control electronics.
- Humidification is available as an option.
- A professional heat-load calculation should be performed before purchase.
- Improper installation may affect manufacturer warranty coverage.
For smaller or mid-size applications, compare the SP88 Pro, SP50 Pro, or SP25 Pro.
Key Features
Key Features of the Wine Guardian SP200 Pro
High-Capacity Cooling for Large Wine Cellars
The SP200 Pro is the highest-capacity model identified in the supplied Sentinel Series Pro Ducted Split lineup. The product information describes it as suitable for large residential and commercial wine-cellar environments where smaller cooling systems do not provide sufficient capacity.
The supplied performance table lists total cooling capacities ranging from 12,205 BTU to 17,425 BTU across the stated condenser-inlet conditions. At a 60°F condenser inlet, published total capacity is 15,785 BTU.

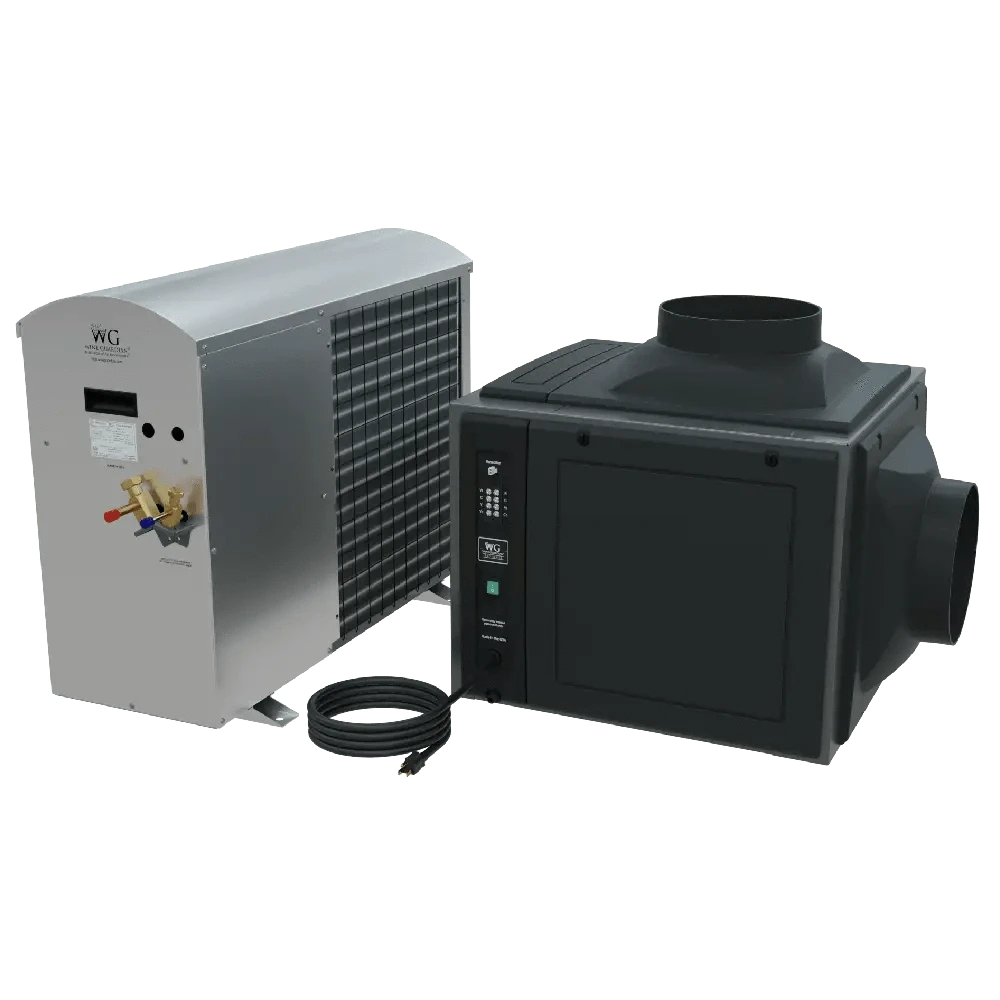

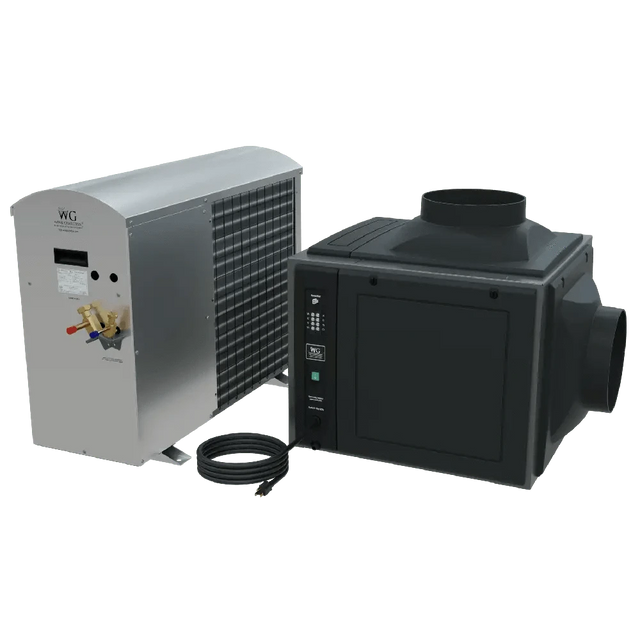

Ducted Split-System Configuration
The SP200 separates the cooling system into an evaporator, or fan-coil unit, and a remotely installed condensing unit. The fan coil serves the wine cellar through ductwork while the condenser rejects heat away from the conditioned space.
Separating the two components helps keep major mechanical equipment away from the wine-storage environment and provides greater flexibility when planning equipment placement.
Remote Condenser Placement
The condensing unit can be located remotely in an appropriate mechanical area, attic, or outdoor installation as permitted by the final project design and manufacturer requirements.
This arrangement is useful where designers want the visible wine cellar to remain focused on racking, bottles, millwork, glass, lighting, and architectural finishes rather than cooling equipment.
799 CFM Rated Airflow
The supplied specifications identify a rated airflow of 799 CFM with an external static pressure value of 0.35 in. w.c.. Proper duct sizing, register selection, balancing, and airflow commissioning are therefore important parts of the installation.
Temperature Control From 52°F to 70°F
The supplied product information identifies a temperature-control range of 52°F–70°F (11°C–21°C).
The final operating setpoint should be selected according to the requirements of the cellar, wine collection, and installation environment.
Optional Humidity Control
Humidification is available as an option for projects requiring active humidity management. The supplied content identifies a target humidity range of approximately 55%–65% relative humidity when humidification is incorporated.
24-Volt Control Electronics
The SP200 Pro includes 24-volt control electronics designed to support integration with compatible smart thermostats, home-automation systems, and building-management systems.
Compatibility, control configuration, and commissioning requirements should be confirmed for the exact thermostat or automation platform used on the project.
Durable Cabinet Construction
The supplied product specifications identify an aluminum chassis, UL-rated composite panels, corrosion-resistant construction materials, and a gray powder-coated PVC acrylic-blend finish.
These materials are intended to support long-term operation in demanding residential and commercial installations.
Buyer Fit
Who Is the Wine Guardian SP200 Pro Best For?
Large Residential Wine Cellars
The SP200 Pro is suitable for large custom residential wine rooms where substantial cooling capacity and remote equipment placement are required.
Estate Wine Vaults
Private collections occupying larger dedicated storage rooms can use the SP200 Pro where the project requires ducted air distribution and mechanical equipment located away from the cellar.
Restaurants
Restaurant wine-storage rooms can benefit from the system's high-capacity split configuration where reliable climate control must be coordinated with commercial service requirements.
Hotels and Hospitality Wine Programs
Hotels, clubs, tasting facilities, and hospitality venues can use the SP200 Pro for larger wine-storage and display environments where cooling capacity, equipment placement, and aesthetics must be planned together.
Commercial Wine Preservation
The system is also intended for commercial wine-storage applications requiring higher cooling output than smaller residential-scale systems.
When the SP200 Pro Is Not the Right Choice
- Do not select the SP200 Pro for a small wine cabinet.
- Do not select it solely from cubic footage without completing a heat-load calculation.
- Do not use it where the project cannot accommodate suitable ductwork.
- Do not use it where a remote condenser location cannot be provided.
- Do not plan installation without a qualified HVAC-R professional.
System Comparison
SP200 Pro Compared With Smaller Wine Guardian Split Pro Models
The SP200 Pro is positioned as the largest model in the supplied Split Pro lineup. Smaller projects should be evaluated against lower-capacity models before selecting the SP200.
| Model |
General Position in Lineup |
Consider When |
| SP200 Pro |
Highest-capacity model referenced in the supplied content |
Large residential or commercial cellar requires substantial cooling capacity |
| SP88 Pro |
Smaller than SP200 Pro |
The calculated load does not require SP200-level capacity |
| SP50 Pro |
Mid-size alternative |
A reduced-capacity Split Pro system is more appropriate for the project |
| SP25 Pro |
Smaller Split Pro option |
The project has a substantially lower cooling requirement |
Do Not Choose by Model Number Alone
Model selection should be based on a professional heat-load calculation rather than choosing the largest available unit. Oversizing or undersizing can result in poor performance and an installation that does not match the actual cellar requirements.
System Operation
How the SP200 Pro Ducted Split Cooling System Works
1. Warm Cellar Air Returns to the Fan Coil
The evaporator, or fan-coil unit, receives air from the wine-cellar space through the planned return-air duct system.
2. Heat Is Removed
The refrigeration system removes heat from the returning cellar air through the evaporator coil.
3. Conditioned Air Returns Through Ductwork
The cooled air is distributed back into the wine cellar through the supply-air duct system.
4. The Remote Condenser Rejects Heat
The condensing unit is installed away from the wine cellar and releases the extracted heat at its designated location.
Why the Split Configuration Matters
Separating the condenser from the conditioned wine cellar keeps major heat-rejection equipment away from the storage environment and allows the system to be integrated into projects where visible mechanical equipment would be undesirable.
Optional Add-Ons
Optional Accessories and System Enhancements
Electric Heat Option
An electric heat option is listed among the available accessories for projects requiring additional temperature-management capability.
Integrated Humidifier
An integrated humidifier can be incorporated where active humidity management is required.
Freestanding Humidifier
A freestanding humidifier is also identified as an available option when humidity control is required separately from the main cooling equipment.
Wireless2Base™ Sensors and Controls
Wireless2Base™ sensors and control components are listed among the available accessories for system monitoring and control applications.
Duct Kits and Adapters
Duct kits and adapters are available to support the final air-distribution layout. Selection must match the project requirements and equipment configuration.
Decorative Grilles
Decorative grilles can help integrate supply and return openings into the finished wine-cellar design while maintaining the airflow required by the system.
Extended Warranty Options
Extended warranty options are identified in the supplied product content. Confirm current eligibility, coverage, exclusions, and terms before purchase.
Installation
Installation Requirements and Planning Considerations
Qualified HVAC-R Installation Is Required
The SP200 Pro must be installed by a qualified HVAC-R technician. This is a split refrigeration system requiring professional installation and commissioning rather than a plug-and-play wine-cellar cooling appliance.
Refrigerant System Installation
The evaporator and remote condenser must be connected as required by the manufacturer's installation documentation. Refrigerant piping must be installed, tested, evacuated, charged, and commissioned by the HVAC-R professional.
Ductwork
The fan-coil unit relies on ductwork to move return air from the wine cellar and distribute cooled supply air back into the space.
Duct sizing, routing, insulation, registers, grilles, and static pressure must be considered as part of the complete system design.
Condensate Drainage
Condensate generated during cooling must be routed correctly to an approved drainage location. Drainage provisions should be tested during installation and commissioning.
Electrical Requirements
The supplied specifications identify the following electrical requirements:
-
Voltage: 208–230V
-
Phase: Single phase
-
Frequency: 60 Hz
The actual electrical supply must match the equipment nameplate and applicable installation instructions and codes.
Control Configuration
The supplied content identifies 24-volt control electronics and compatibility with supported smart thermostats, building-management systems, and home-automation systems.
Remote Condenser Location
A suitable location must be available for the condensing unit. The project must provide the airflow, service access, electrical provisions, refrigerant routing, and installation conditions required by the manufacturer.
Heat-Load Calculation
A heat-load calculation should be performed before equipment is selected. This helps determine whether the SP200 Pro is correctly sized for the cellar rather than relying on nominal room volume alone.
Installation Warning
Improper refrigeration, electrical, drainage, ductwork, or control installation can prevent the system from operating correctly and may affect manufacturer warranty coverage.
Specifications
Technical Specifications
System Overview
| Brand |
Wine Guardian |
| Model |
SP200 Pro |
| System Type |
Ducted Split Wine Cellar Cooling System |
| Recommended Cellar Volume |
Approximately 1,500–7,000 cubic feet |
| Refrigerant |
R134A |
| Temperature Range |
52°F–70°F |
| Smart Thermostat Compatible |
Yes |
| Humidifier Option |
Available |
| Professional Installation |
Required |
Published Cooling Performance
| Condenser Inlet Temperature |
Total Capacity |
Sensible Capacity |
| 40°F |
17,425 BTU |
11,173 BTU |
| 60°F |
15,785 BTU |
10,455 BTU |
| 100°F |
14,149 BTU |
9,038 BTU |
| 115°F |
12,205 BTU |
8,815 BTU |
Cooling-capacity ratings are based on the entering-air conditions stated in the supplied product content: 57°F and 55% relative humidity.
Airflow Specifications
| Rated Airflow |
799 CFM |
| External Static Pressure |
0.35 in. w.c. |
Electrical Requirements
| Voltage |
208–230V |
| Phase |
Single Phase |
| Frequency |
60 Hz |
Evaporator / Fan-Coil Unit
| Length |
23.8 in. |
| Width |
25.0 in. |
| Height |
19.7 in. |
| Weight |
60 lb |
Condensing Unit
| Length |
34.0 in. |
| Width |
12.3 in. |
| Height |
26.1 in. |
| Weight |
120 lb |
Cabinet Construction
| Chassis |
Aluminum |
| Panels |
UL-rated composite plastic |
| Finish |
Gray powder-coated PVC acrylic blend |
Warranty
Wine Guardian Manufacturer Warranty
The supplied product content states that Wine Guardian systems include manufacturer warranty coverage for key system components and compressor protection.
Warranty eligibility and coverage remain subject to the manufacturer's complete written terms, installation requirements, exclusions, and applicable conditions.
Protect Warranty Eligibility
- Use a qualified HVAC-R professional for installation.
- Follow the manufacturer installation documentation.
- Complete refrigerant, electrical, ductwork, drainage, and control installation correctly.
- Keep installation and service records.
- Review the current written warranty before installation.
Warranty documentation controls: Do not rely on a product-page summary as the complete warranty. Review the official Wine Guardian warranty document supplied below for current coverage and exclusions.
Downloads
Official Product Resources and Downloads
The following are the exact brochure, specification, installation, warranty, and CAD links supplied with the original SP200 Pro product content.
Questions & Answers
Frequently Asked Questions
What size wine cellar is the Wine Guardian SP200 Pro designed for?
The supplied product information recommends the SP200 Pro for approximately 1,500–7,000 cubic feet. Do not select it by cubic footage alone; complete a heat-load calculation before ordering.
Is the Wine Guardian SP200 Pro suitable for a small wine cellar?
No. The supplied content specifically positions the SP200 Pro for large wine cellars and does not recommend it for small cabinets or rooms under approximately 1,000 cubic feet.
What is the cooling capacity of the SP200 Pro?
The supplied performance table lists total capacity from 12,205 to 17,425 BTU depending on condenser-inlet temperature. At a 60°F condenser inlet, published total capacity is 15,785 BTU.
Does the SP200 Pro require professional installation?
Yes. A qualified HVAC-R technician must install the refrigeration system, ductwork, drainage, electrical connections, and controls; improper installation may affect warranty coverage.
Why does the SP200 Pro use a remote condenser?
The split configuration places the condensing unit away from the wine cellar while the fan coil serves the cellar through ductwork. Choose this design when remote equipment placement and reduced visible mechanical equipment are project priorities.
What temperature range does the SP200 Pro support?
The supplied product information identifies a 52°F–70°F temperature-control range. Final operating conditions must remain within the manufacturer's system requirements.
Can the SP200 Pro control wine-cellar humidity?
Humidity control is available through optional humidification equipment. Do not assume a humidifier is standard equipment unless the selected system configuration includes it.
Can the SP200 Pro work with a smart thermostat?
The supplied product information identifies 24-volt controls compatible with supported smart thermostats and automation systems. Confirm compatibility with the exact thermostat or control platform before installation.
What electrical service does the SP200 Pro require?
The supplied specifications identify 208–230V, single-phase, 60 Hz power. The final electrical installation must match the equipment nameplate and manufacturer instructions.
What airflow does the SP200 Pro provide?
The supplied specifications list 799 CFM rated airflow at 0.35 in. w.c. external static pressure. Duct and register design must support the required airflow.
Should I choose the SP200 Pro instead of the SP88 Pro?
Choose the SP200 Pro only when the calculated cooling load requires its higher capacity. Use a smaller Split Pro model when the load does not justify the SP200.
Does cubic footage alone determine whether I need an SP200 Pro?
No. Glass, insulation, ambient conditions, construction materials, lighting, air leakage, humidity, and duct design can substantially change the cooling load.
Important Product Guidance
Product Information Notice
Specifications, cooling capacities, dimensions, accessories, installation requirements, and warranty information on this page are based on the supplied Wine Guardian SP200 Pro product content and associated resources. Manufacturer specifications and requirements can change.
Verify the current equipment nameplate, specification sheet, installation manual, approved project requirements, and manufacturer warranty documentation before ordering or installing the system. A project-specific heat-load calculation should determine final equipment sizing.
