Fully Ducted Split Wine Cellar Cooling System (Up to 1,000 cu. ft.)
The WhisperKool Ducted Platinum Split 4000 OMEGA 110V is a fully ducted split wine cellar cooling system designed for properly constructed wine cellars up to 1,000 cubic feet. It separates the evaporator and condenser into two remote components, allowing for silent operation inside the cellar and discreet mechanical placement.
This system is engineered for residential wine cellars that are fully insulated, vapor sealed, and require professional HVAC installation.
Other Omega Sizes: WhisperKool Ductless Platinum Split 8000 OMEGA 110V Wine Cellar Cooling System, WhisperKool Ducted Platinum Split 8000 OMEGA 110V Wine Cooling Unit
Who This System Is For
This cooling unit is appropriate if:
- Your cellar does not exceed 1,000 cubic feet
- Walls are insulated to R-19 minimum
- Ceiling is insulated to R-30 recommended
- A 6-mil vapor barrier is installed on the warm side of insulation
- The room is sealed airtight
- You can run insulated ductwork
- A licensed HVAC-R technician will perform installation
When This System Is NOT Appropriate
Do NOT select this unit if:
- The cellar exceeds 1,000 cu. ft.
- The space lacks insulation or vapor barrier
- The condenser intake air may exceed 120°F
- You cannot run ductwork
- You want a DIY self-contained cooling unit
- The cellar shares walls with an unconditioned garage without proper insulation
Improper installation or poor construction conditions will reduce cooling performance and may void warranty.

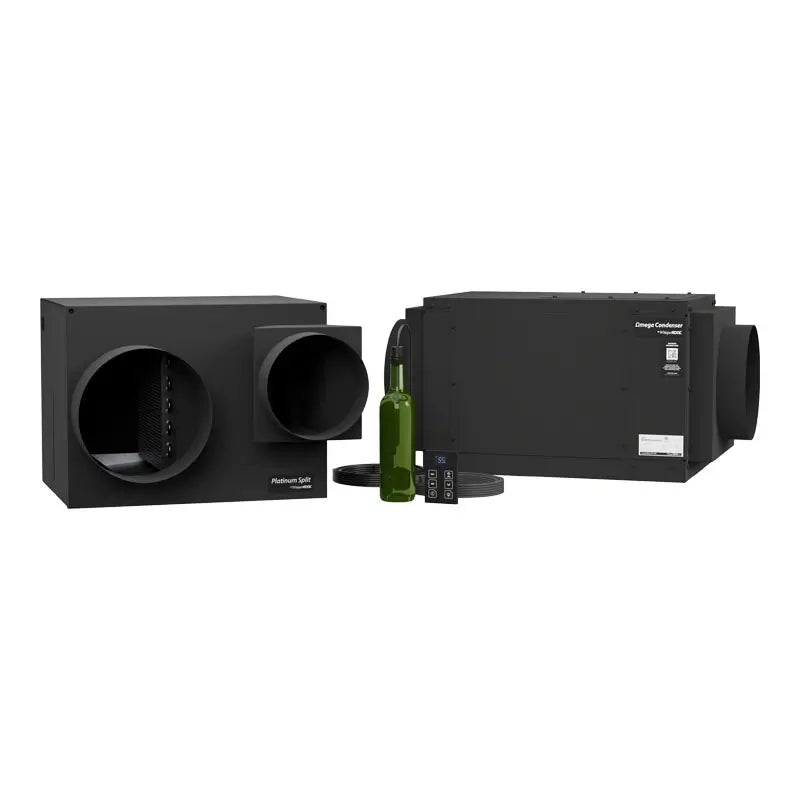

How the Ducted Split System Works

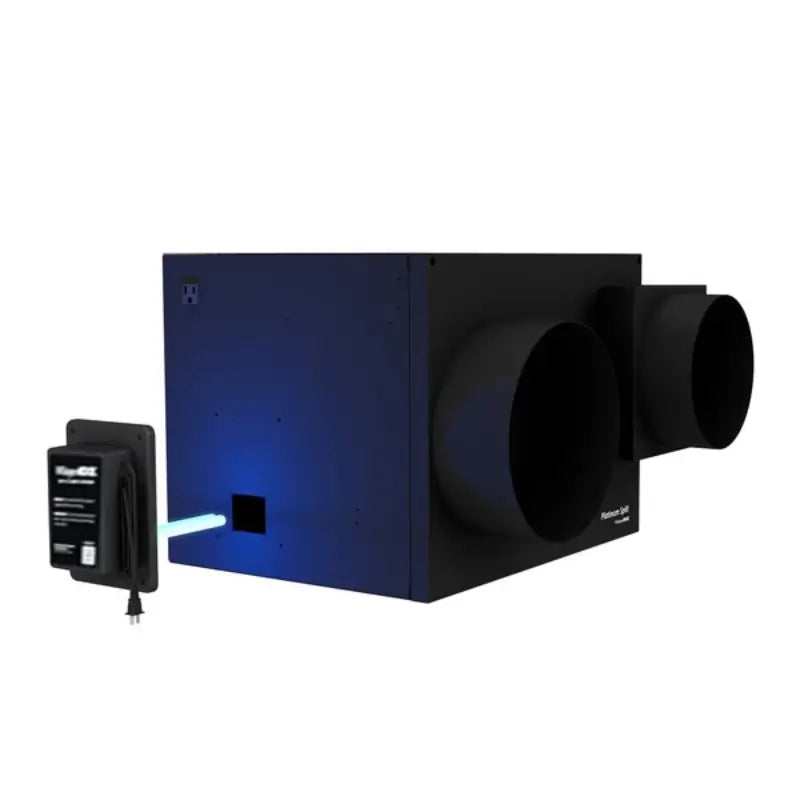

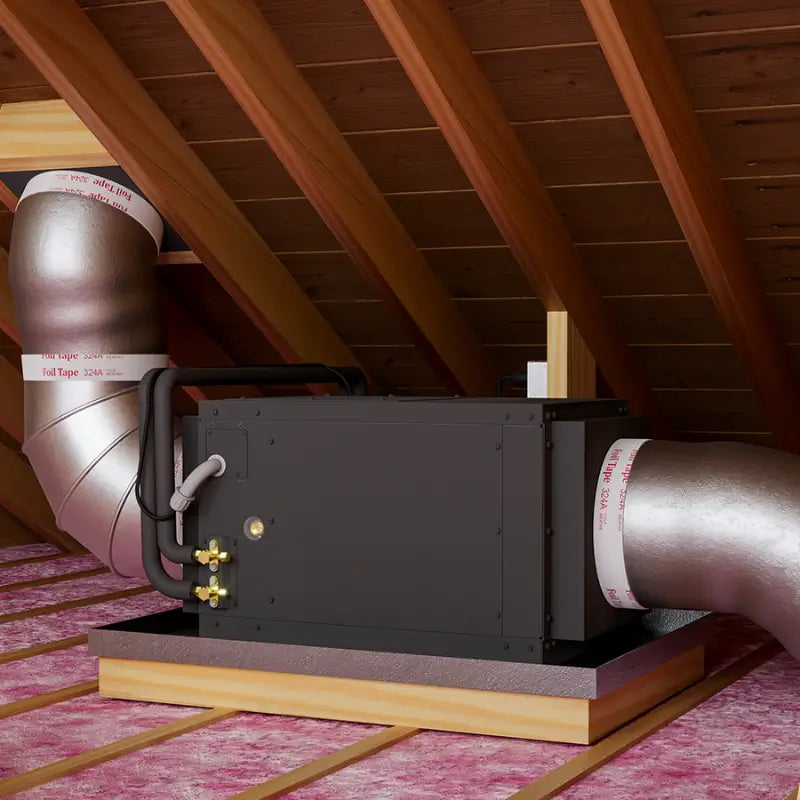

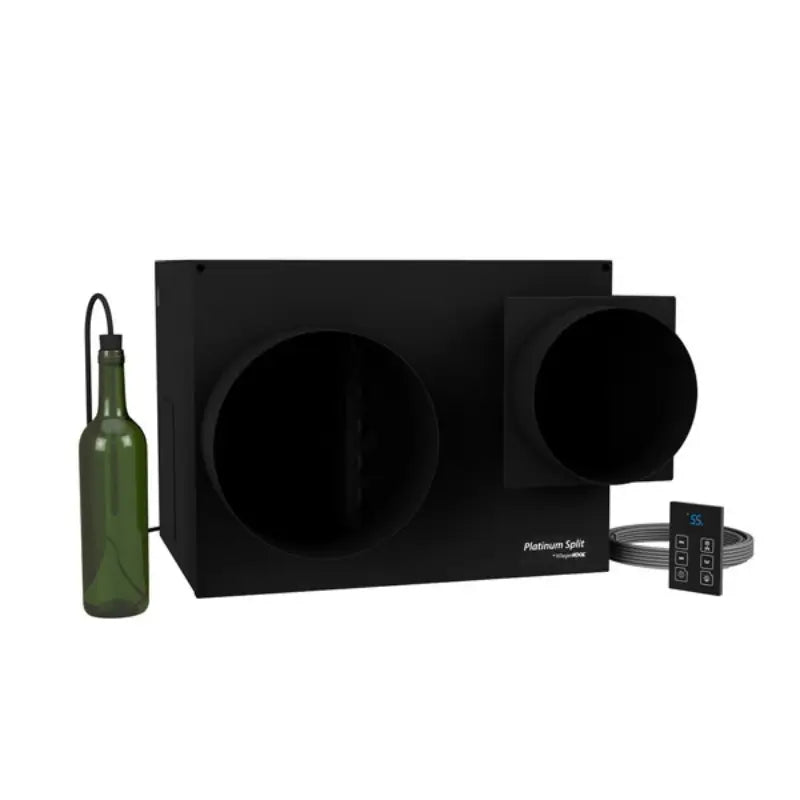

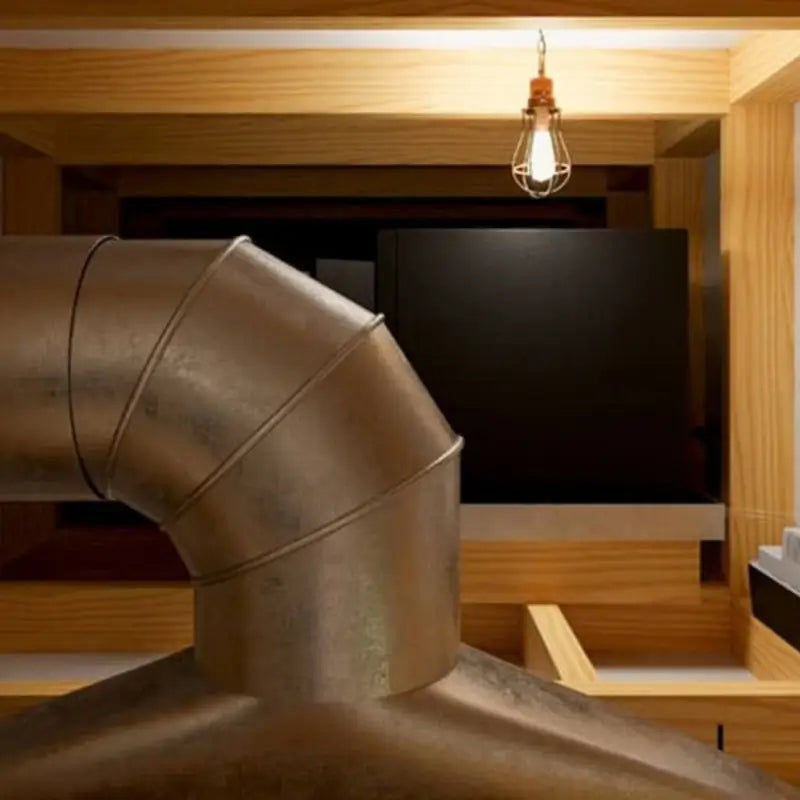

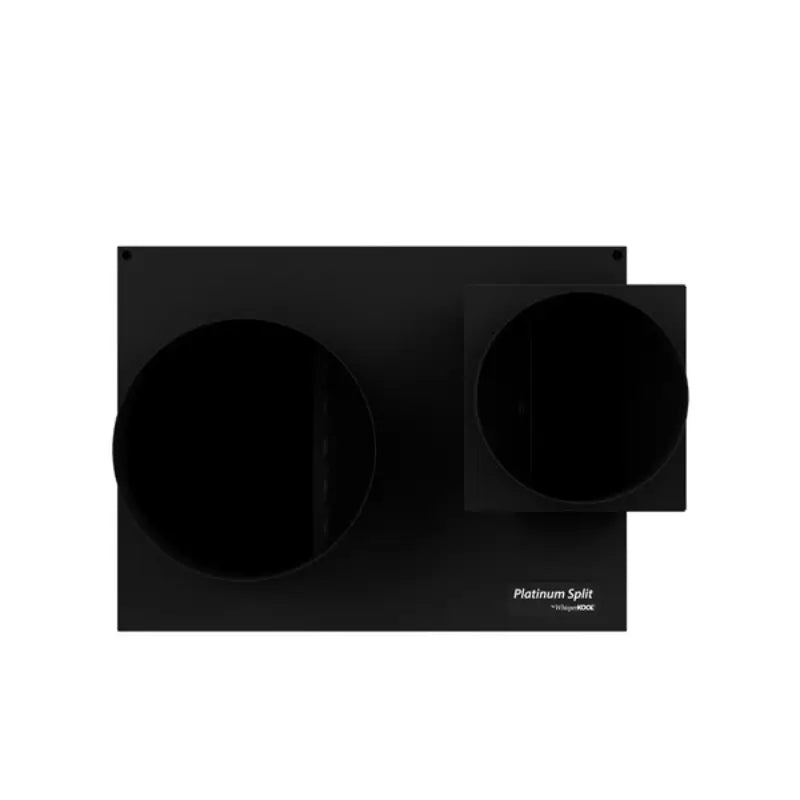

Evaporator (Fan Coil Unit)
Installed in or near the cellar and connected via insulated ducting. Circulates cooled air while drawing warm return air back for conditioning.

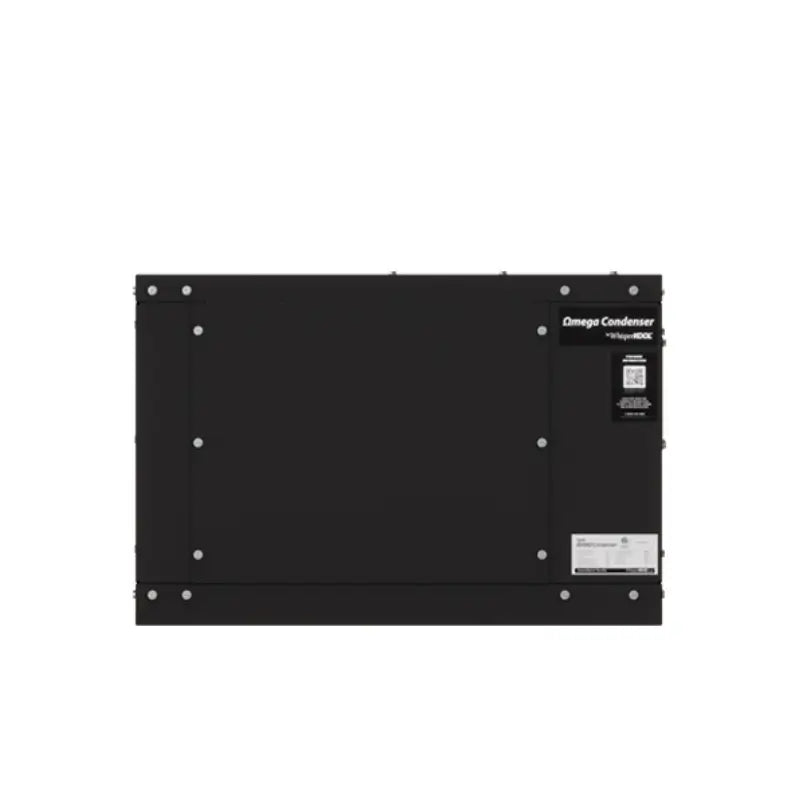

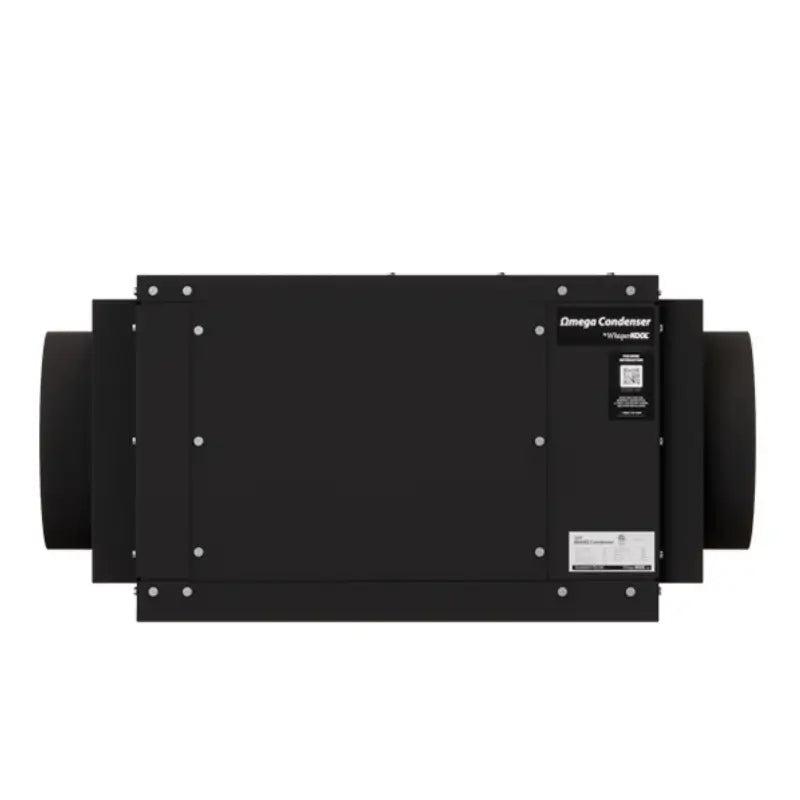

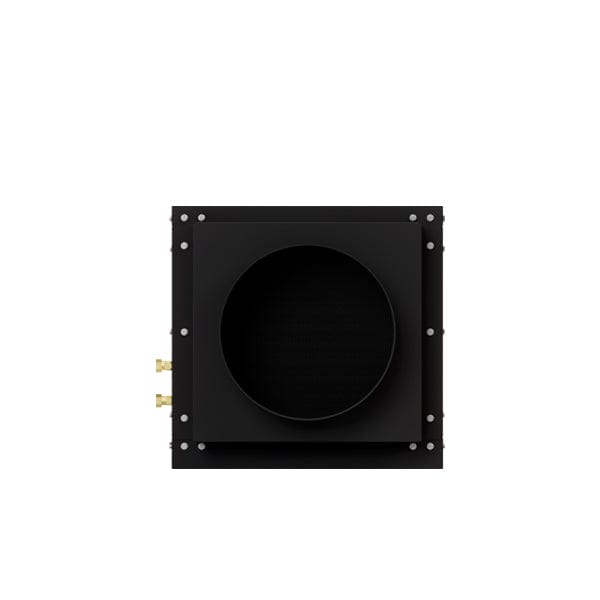

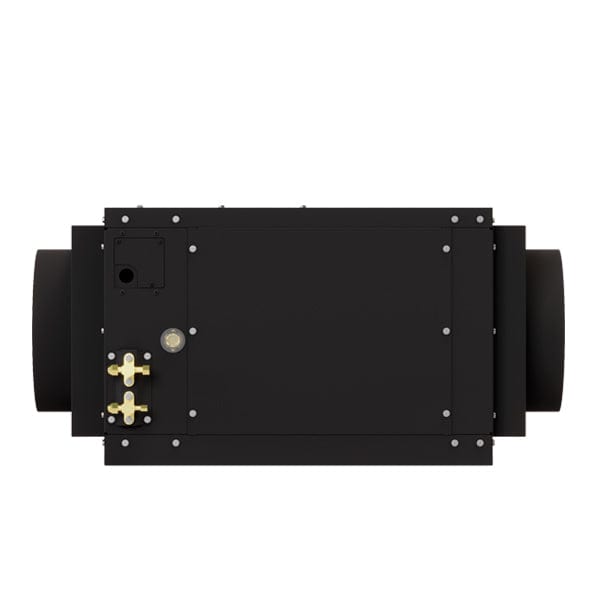

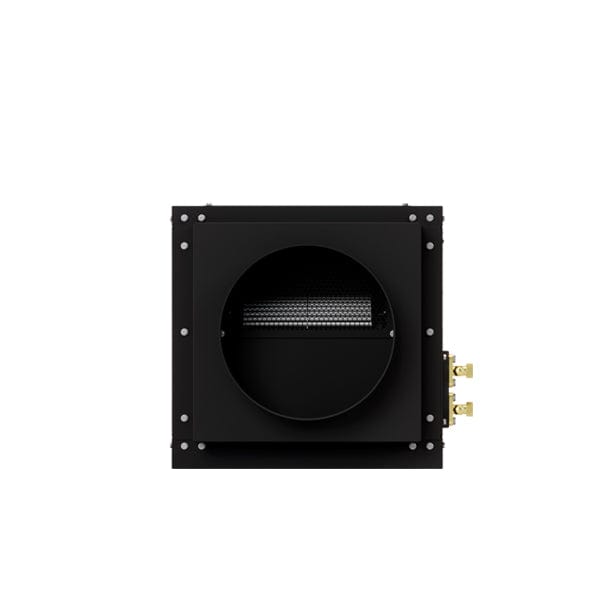

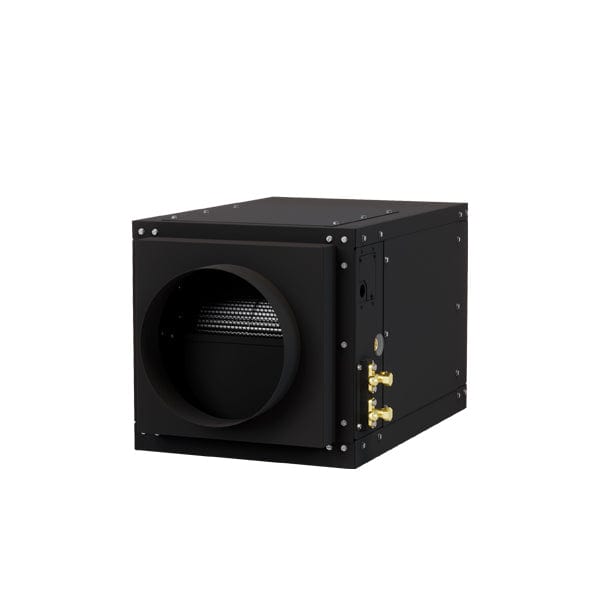

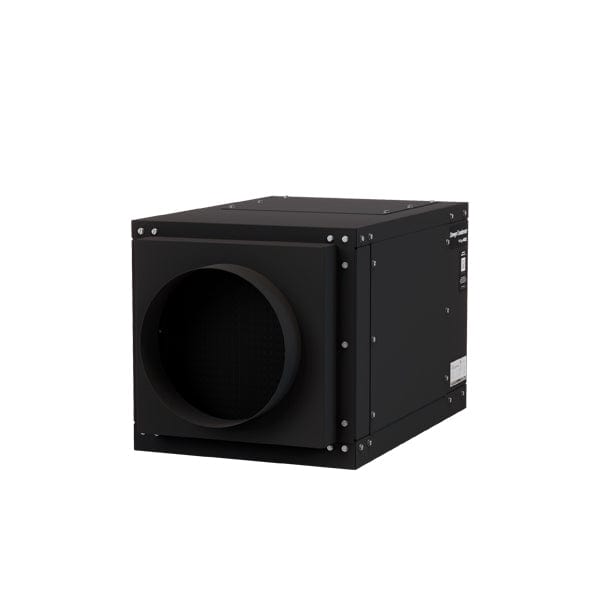

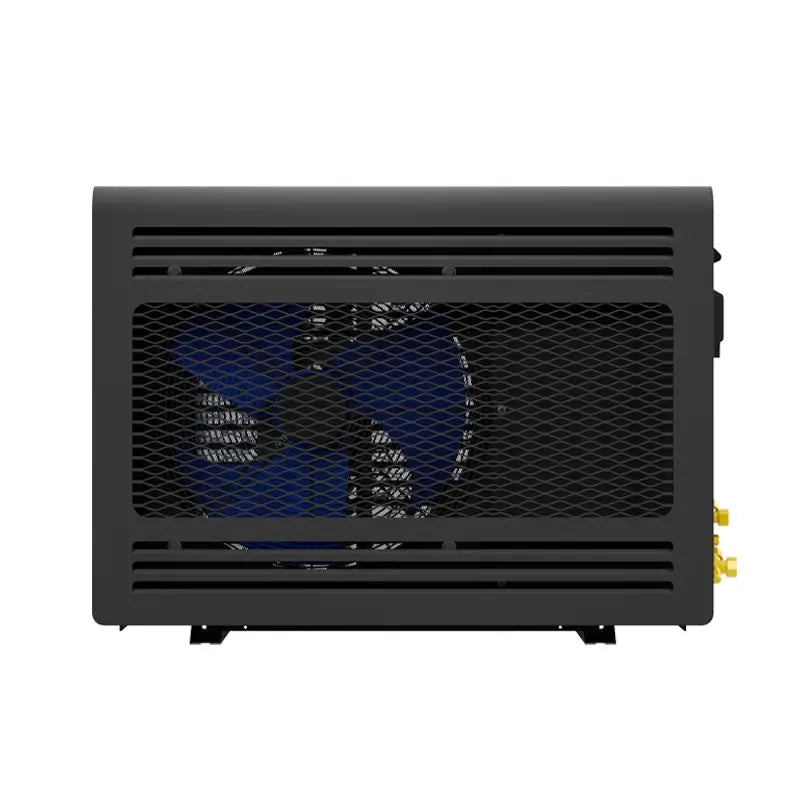

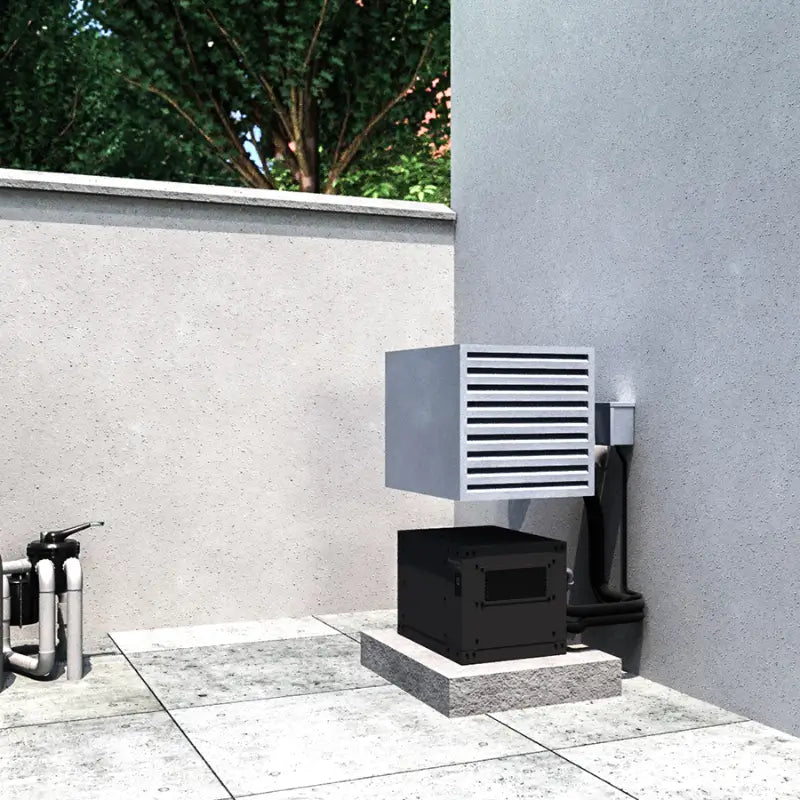

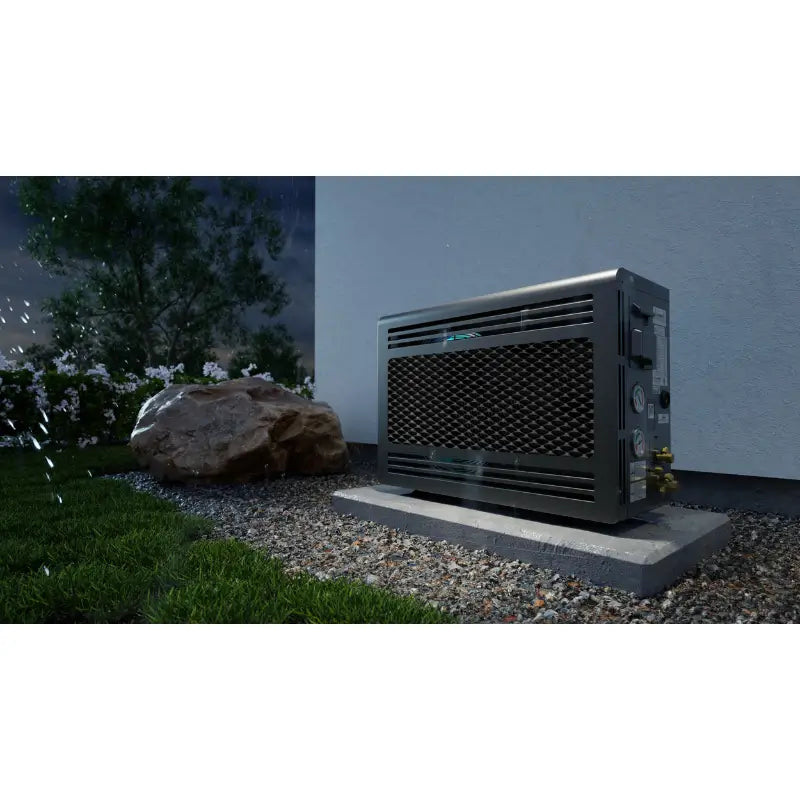

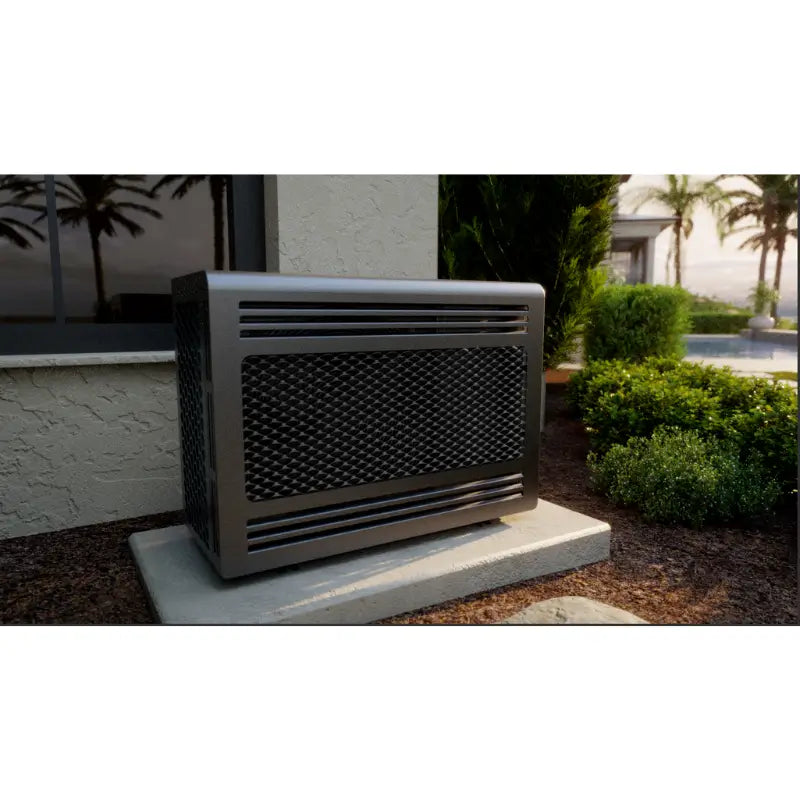

Condenser (Air-Cooled Unit)
Installed remotely (mechanical room, ventilated attic, or utility area). Removes heat from the refrigerant and exhausts it outside the cellar environment.
Because both components are remotely located and ducted, no visible cooling equipment is installed inside the cellar.
Cooling Performance & Capacity
Cooling capacity varies based on condenser intake temperature and fan speed.
Rated Cellar Capacity
Up to 1,000 cu. ft.* (with proper insulation and vapor barrier)
BTU Performance (Sensible / Total)
| Condenser Intake Temp |
Medium Speed |
High Speed |
| 60°F |
4,463 / 5,154 BTU |
4,724 / 5,337 BTU |
| 75°F |
3,912 / 4,348 BTU |
4,351 / 4,544 BTU |
| 85°F |
3,766 / 4,096 BTU |
4,082 / 4,277 BTU |
Important: Cooling output decreases as condenser intake temperature rises. Adequate ventilation is required in the condenser installation space.
Key Features
Fully Ducted Design
- No visible equipment inside the cellar
- Ideal for glass wine walls and architectural cellars
- Allows remote mechanical placement
Quiet Operation
- Evaporator: 42–46 dBA
- Condenser: 46–52 dBA
Flexible Installation
- Line set length up to 100 ft
- Adjustable medium and high fan speeds
- 120V dedicated circuits required
Advanced Digital Thermostat
- 50 ft control cable
- Bottle probe for accurate liquid temperature measurement
- Precision temperature regulation
Cold Ambient Protection
Maintains 55°F cellar temperature under approved operating conditions.
Technical Specifications
-
Model: Platinum Split 4000 OMEGA 110V
-
Cellar Capacity: Up to 1,000 cu. ft.*
-
Refrigerant: R-134a
-
Horsepower: 0.5 HP
Electrical
- Evaporator: 120V (15-amp dedicated circuit required)
- Condenser: 120V (15-amp dedicated circuit required)
- Evaporator Running Amps: 2.2
- Condenser Amps: 8.5
Dimensions
- Evaporator: 22.1”L x 22.5”W x 15.5”H
- Condenser: 23”L x 15.75”W x 15.3”H
Weight
- Evaporator: 56 lbs
- Condenser: 75 lbs
Line Set Requirements
- Liquid line: 1/4" OD
- Suction line: 1/2" OD (under 50 ft)
- Suction line: 5/8" OD (over 50 ft)
- Maximum line set distance: 100 ft
Drain Line
- 1/2" ID clear tubing (not included)
- Rigid PVC strongly recommended
Operating Limits
- Maximum condenser intake temperature: 120°F
- Designed to maintain 55°F cellar temperature
Warranty
Two-year limited warranty with up to one additional year grace period for installation (parts and labor).
*Capacity assumes proper insulation and vapor barrier.
Manuals for WhisperKool Ducted Platinum Split 4000 OMEGA:
Installation Requirements (Critical)
This system MUST be installed by a licensed HVAC-R technician.
Failure to comply voids the warranty.
Before installation, confirm:
- R-19 wall insulation minimum
- R-30 ceiling insulation recommended
- 6-mil vapor barrier on warm side
- Airtight door and sealed penetrations
- Proper insulated duct runs
- Dedicated electrical circuits
- Condenser ventilation below 120°F intake
Heat load calculations should be performed prior to equipment selection.
Platinum Split 4000 vs Platinum Split 8000
| Feature |
4000 |
8000 |
| Max Cellar Size |
1,000 cu. ft. |
1,750 cu. ft. |
| Max BTU @ 60°F |
5,337 |
5,521 |
| Condenser Amps |
8.5 |
9.5 |
| Best For |
Mid-size residential |
Large residential / light commercial |
Choose the 8000 model for larger heat loads or cellars approaching 1,500–1,750 cu. ft.
Summary
The WhisperKool Ducted Platinum Split 4000 OMEGA 110V is designed for properly constructed mid-sized wine cellars requiring silent operation and discreet installation.
When installed in a fully insulated and vapor-sealed space by a licensed HVAC professional, it provides stable 55°F wine storage with flexible mechanical placement and professional-grade reliability.
