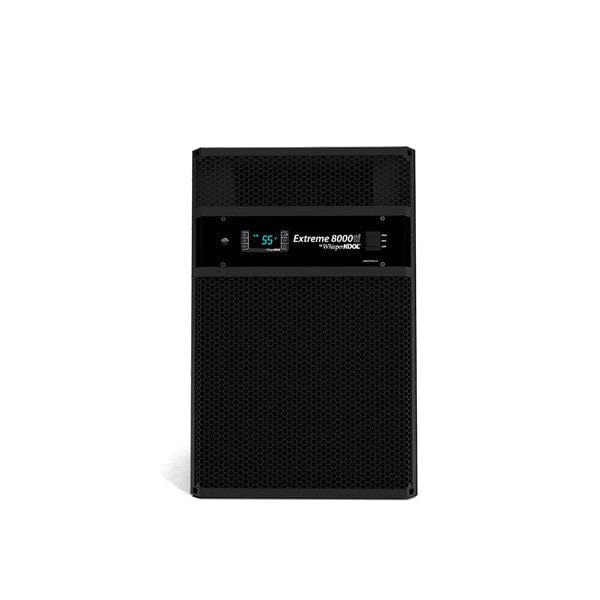

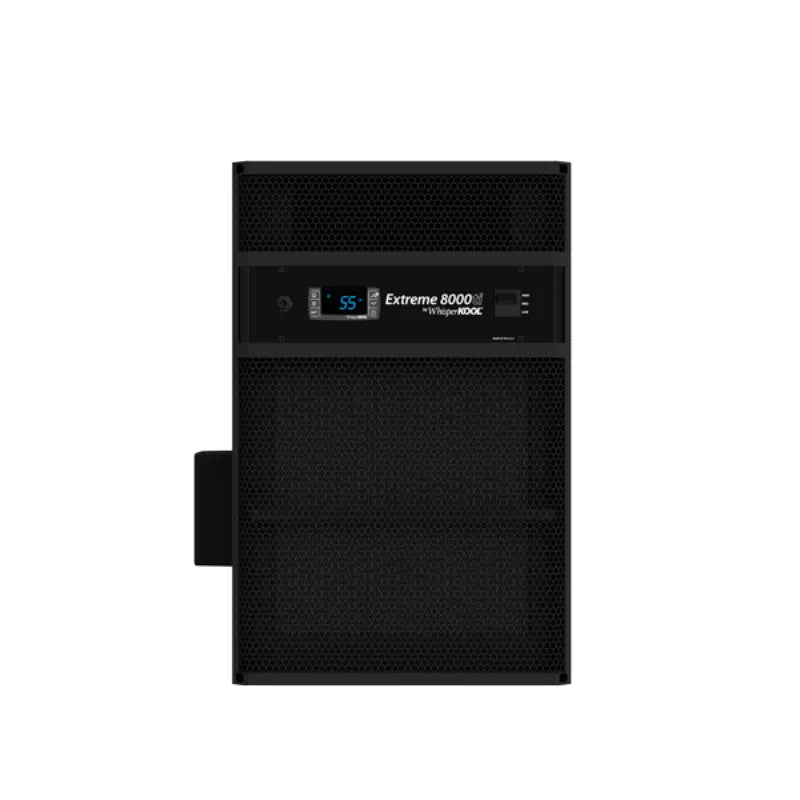

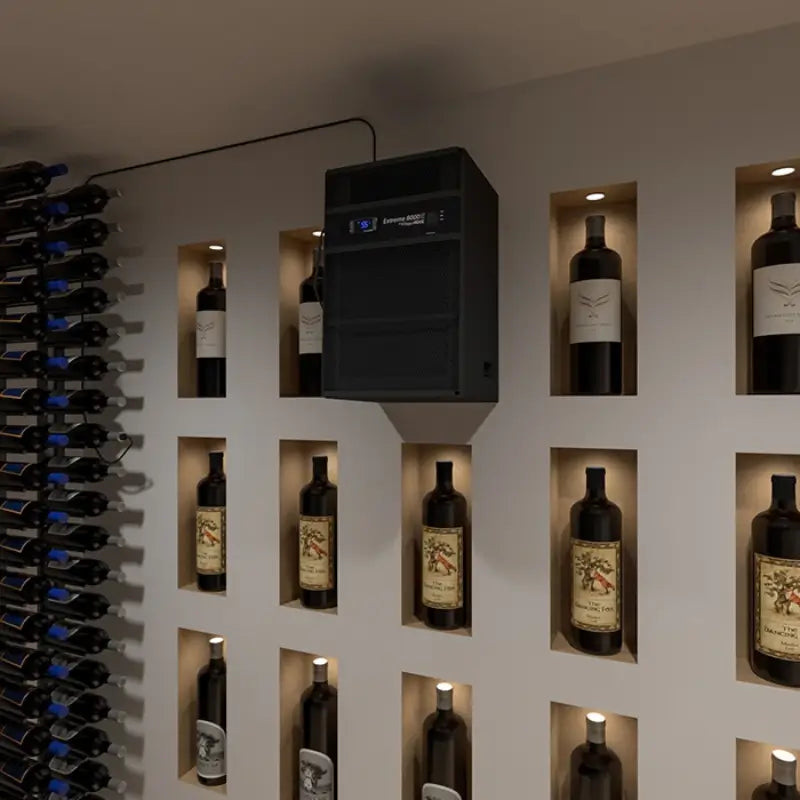

WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit
WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Description
Description
Through-the-Wall Self-Contained Cooling System for Cellars up to 1,250 cu. ft.
The WhisperKOOL Extreme 5000ti is a through-the-wall, self-contained wine cellar cooling unit designed for fully insulated cellars up to 1,250 cubic feet. It can maintain a 55°F cellar temperature with condenser air intake temperatures up to 110°F and includes an advanced digital controller with liquid-temperature bottle probe. A dedicated 20-amp circuit is required.
Other sizes: WhisperKOOL Extreme 3500 ti for 800 cu.ft. wine cellar, WhisperKOOL Extreme 5000 ti for 1250 cu.ft. wine cellar & WhisperKOOL Extreme 8000 ti Self-Contained Cooling Unit for 2000 cu.ft wine cellar.
W/ KDT PLUS REMOTE CONTROLLER & THERMOSTAT: WhisperKOOL Extreme 3500tiR Self-Contained Cooling Unit for 800 cu.ft., WhisperKOOL Extreme 5000tiR Self-Contained Cooling Unit for 1250 cu.ft & WhisperKOOL Extreme 8000tiR Self-Contained Cooling Unit for 2000 cu.ft wine cellar.
Is the Extreme 5000ti Right for Your Cellar?
Best For:
- Fully insulated cellars up to 1,250 cu. ft.
- Through-the-wall installations between standard wall studs
- Residential wine rooms with ambient exhaust temperatures below 110°F
- Installations where remote thermostat placement is not required
- Homeowners seeking a self-contained system without split-system complexity
Not Recommended For:
- Glass-enclosed modern cellars without proper insulation
- Spaces without a vapor barrier
- Cellars exceeding 1,250 cu. ft.
- Locations where condenser air temperatures exceed 110°F
- Ultra-quiet luxury installations where split systems are preferred
Installation & Environmental Requirements
The 5000ti is rated at 1,250 cu. ft. under the following assumptions:
- R-19 wall insulation (minimum)
- R-30 ceiling insulation (minimum)
- Fully sealed construction
- Proper vapor barrier installed
- Minimal glass exposure
If insulation or sealing is below these standards, effective capacity will decrease and the unit may short cycle or fail to maintain 55°F.
Electrical Requirements
- 115V
- 20-amp dedicated circuit required
- 230V available (subject to availability)
Electrical installation must comply with local code.
Ventilation Requirements
The condenser side can:

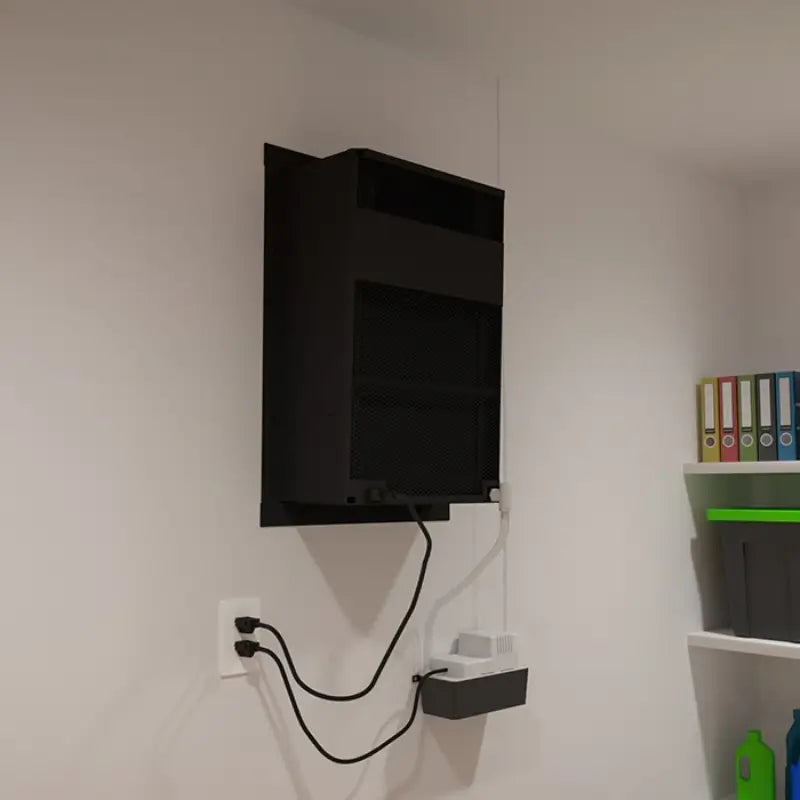

- Exhaust directly into an adjacent space below 110°F
- Be vented outdoors (exterior grille recommended)
- Be ducted if ventilation space is restricted
If condenser air exceeds 110°F, performance will decline and compressor strain may occur.
Key Engineering Features (Explained)

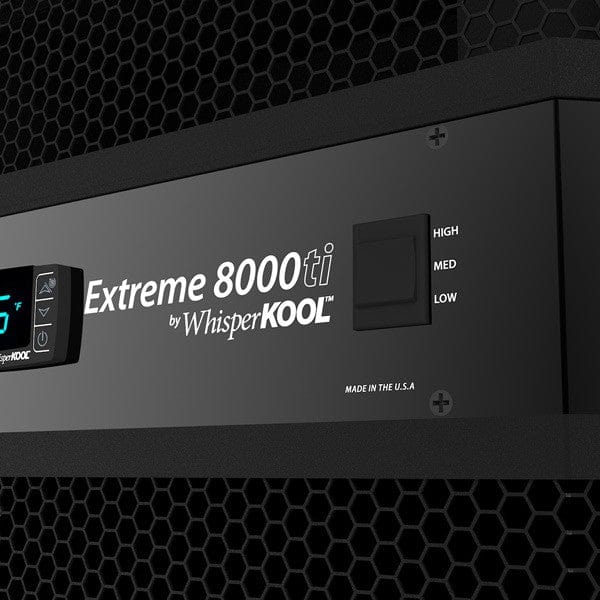

Variable-Speed Fans
Allow airflow adjustment based on cellar load and ambient conditions. This reduces short cycling and improves temperature stability in properly sized installations.

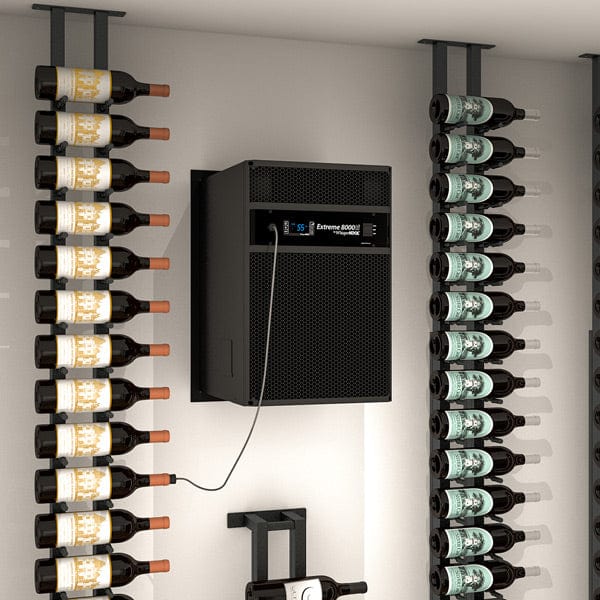

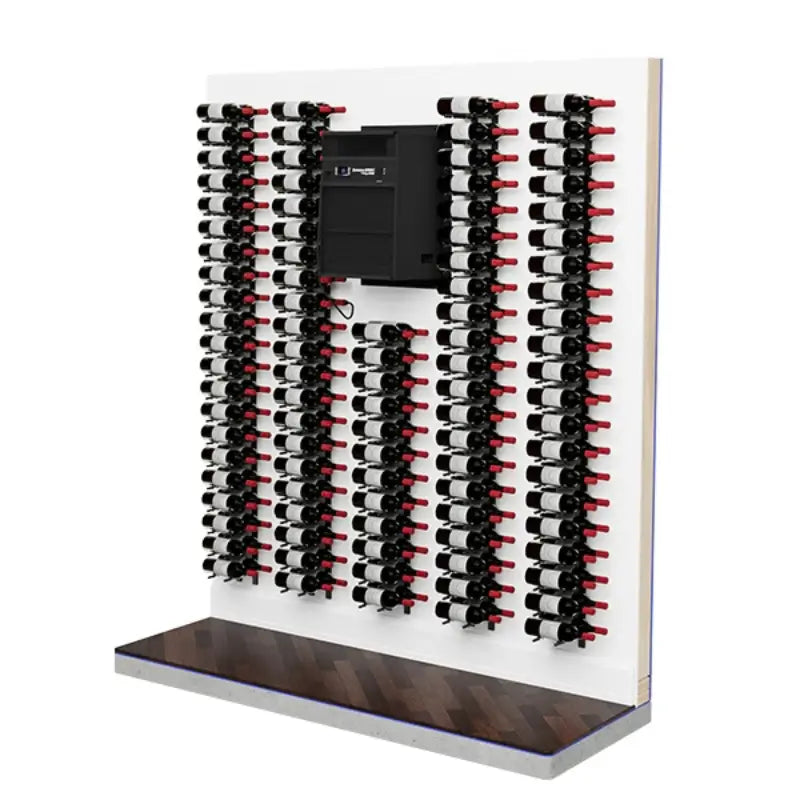

Through-the-Wall Design
Fits between standard wall studs for simplified installation without split-system components.

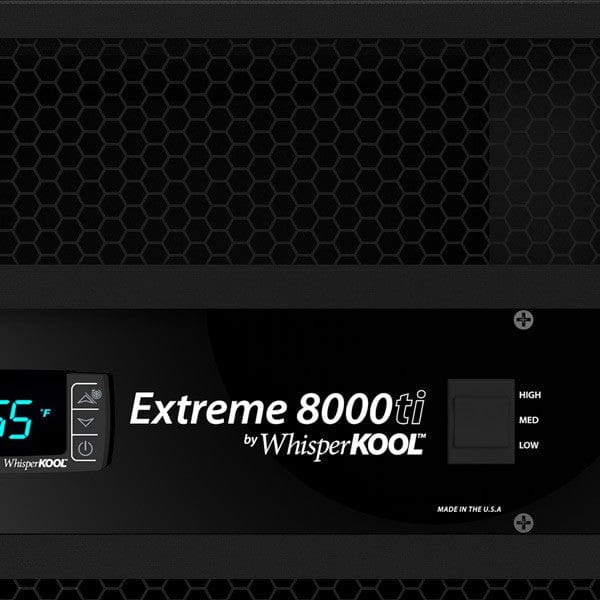

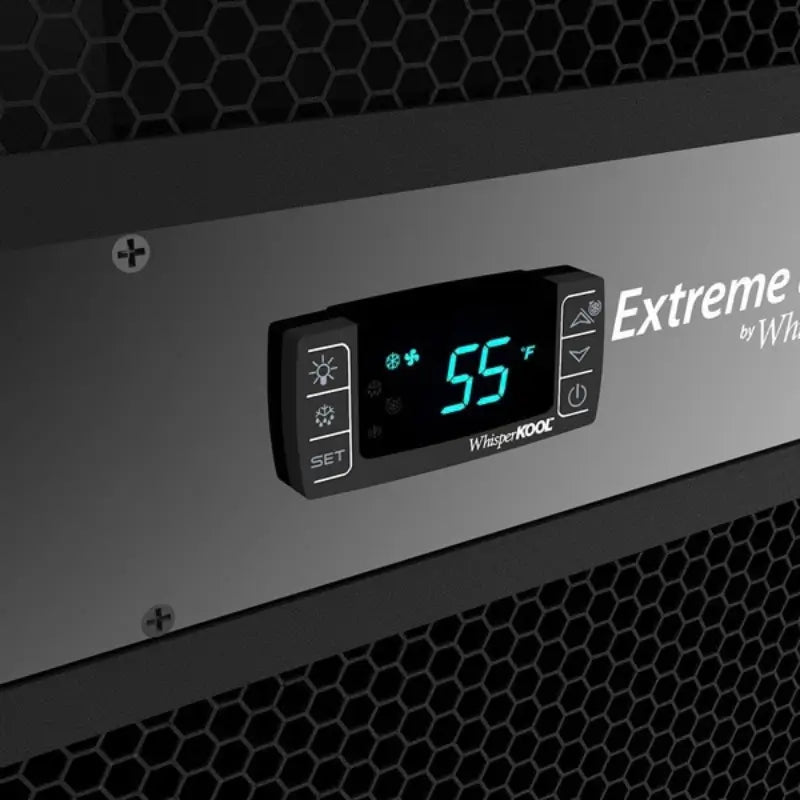

Advanced Digital Controller
Mounted on the unit. Includes Advanced System Protection Technology with monitoring probes that protect against overheating and system stress.

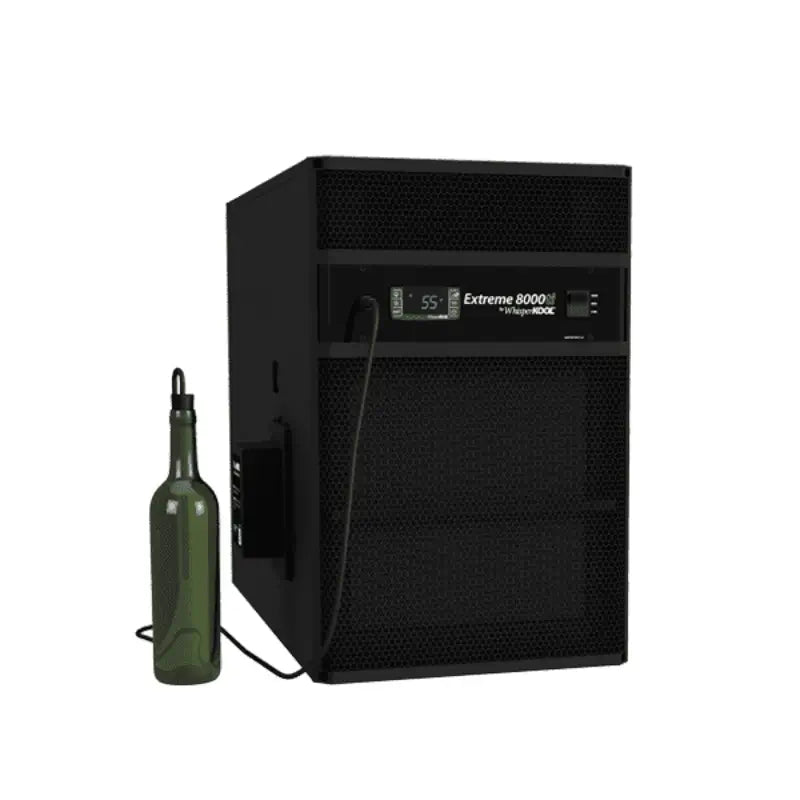

Liquid-Temperature Bottle Probe (50 ft. cable)
Measures the actual temperature of the wine rather than air temperature, reducing compressor cycling and temperature swings.
55°F Temperature Delta
Designed to maintain 55°F cellar temperature with condenser intake temperatures up to 110°F. Not intended for environments exceeding this limit.

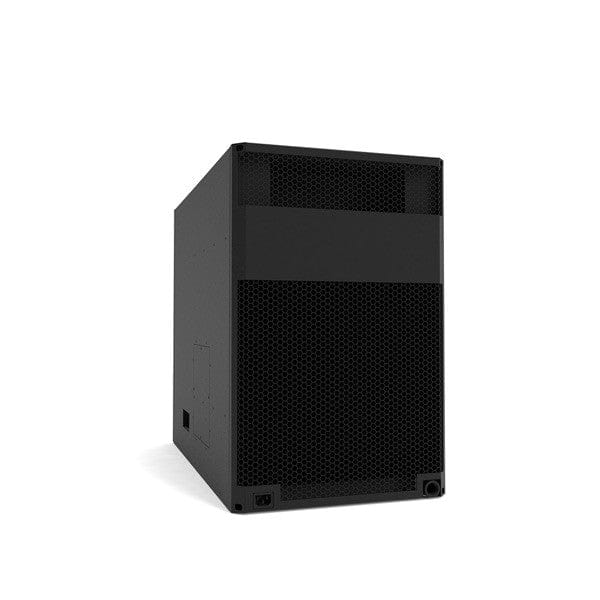

Fully Ductable Condenser Side
Allows redirecting exhaust air when direct venting is not possible.
Extreme Series Model Comparison
| Model | Max Cellar Size* | BTU @ 85°F Intake | Height | Ideal Application |
|---|---|---|---|---|
| 3500ti | 800 cu. ft. | 3,175 | 15.75" | Small closet cellars |
| 5000ti | 1,250 cu. ft. | 4,126 | 22.5" | Mid-size residential cellars |
| 8000ti | 2,000 cu. ft. | 6,131 | 22.5" | Large walk-in cellars |
Technical Specifications
- Model: Extreme 5000ti
- Maximum Cellar Size: 1,250 cu. ft.*
- BTU/h (85°F condenser intake): 4,126
- Dimensions: 28" L x 14.25" W x 22.5" H
- Weight: 150 lbs
- Refrigerant: R-134a
- Horsepower: 1.62 HP
- Voltage: 115V (20 amp dedicated circuit required) / 230V (availability dependent)
- Running Amps: 9 amps
- Drain Line: 1/2" ID clear plastic tubing (not included)
- Installation Type: Through-the-wall
- Thermostat: Advanced digital display with liquid-temperature bottle probe
- Maximum Exhaust Temperature: 110°F
- Ducting: Condensing side can be ducted
- Warranty: Two-year limited (parts and labor) / Five-year limited (compressor)
*Cellar size approximated in a fully insulated and sealed environment with proper vapor barrier. Heat load calculations should always be performed before selecting a cooling unit.
Manuals for WhisperKOOL Extreme 8000ti Self-Contained:
- Owner's Manual for WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit
- Features & Specification Sheet
- Warranty Information
Important Sizing Notice
Each wine cellar has unique heat loads influenced by:
- Glass exposure
- Insulation quality
- Ceiling height
- Door type
- Ambient room temperature
- Lighting and occupancy
A formal heat load calculation is recommended before final system selection.
Oversizing can cause short cycling. Undersizing can prevent temperature stability.
Final Buying Guidance
Confirm the following before purchasing:
- Proper insulation and vapor barrier are installed
- Cellar volume does not exceed 1,250 cu. ft.
- Exhaust ventilation space remains below 110°F
- A dedicated 20-amp circuit is available
If these conditions are met, the Extreme 5000ti is an effective and straightforward cooling solution for mid-size residential wine cellars.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
Yes. The system assumes a fully insulated cellar with a properly installed vapor barrier. Without one, condensation, mold growth, and compressor overwork may occur.
Yes, if the garage temperature does not exceed 110°F. If garage temperatures exceed this limit, ducting or alternative ventilation is required.
No. The rating assumes R-19 wall insulation, R-30 ceiling insulation, sealed construction, and minimal glass. Poor insulation reduces effective cooling capacity.
The unit is designed for simplified installation, but electrical work must meet local code and may require a licensed electrician. Ducting installations may also require professional assistance.
The unit may short cycle, run continuously, or fail to maintain 55°F. A larger system such as the Extreme 8000ti may be required.
The 5000ti has a controller mounted on the unit. The 5000tiR allows remote thermostat placement outside the cellar. Performance specifications are otherwise similar."]
