Product Overview
WhisperKOOL Platinum Split 8000 Ductless: Quick Decision Summary
Choose the Platinum Split 8000 Ductless when you need a high-capacity split wine cellar cooling system for a properly constructed cellar of approximately 1,750 cubic feet or less and want the condenser positioned remotely from the cellar.
| Best For |
Large custom wine cellars, modern wine rooms, glass wine walls, and installations where a visible evaporator grille is acceptable. |
| Rated Cellar Size |
Approximately 1,750 cu. ft. when the cellar is fully insulated, sealed, and protected with a proper vapor barrier. |
| System Type |
Ductless split wine cellar cooling system with an in-cellar evaporator and remotely located condenser. |
| Condenser Placement |
Can be installed remotely up to approximately 100 feet from the evaporator when correctly installed. |
| Professional Installation |
A qualified HVAC-R technician is required for refrigerant piping, charging, electrical work, drainage, setup, and commissioning. |
Things to Know Before Ordering
- The cellar must be fully insulated and sealed.
- A properly installed vapor barrier is required.
- A heat-load calculation should be completed before choosing the system.
- The evaporator grille remains visible inside the cellar.
- The condenser can be installed remotely up to approximately 100 feet away.
- Professional HVAC-R installation is required.
- Glass walls must be included in the heat-load calculation.
- This system is not intended as a DIY cooling solution.
Buyer Fit
Is the Platinum Split 8000 Ductless Right for Your Cellar?
This System Is Appropriate If:
- Your cellar is approximately 1,750 cu. ft. or less.
- The room is fully insulated and sealed.
- A vapor barrier is installed.
- You want a visible grille installation using a ductless-style evaporator.
- You prefer remote condenser placement.
- A licensed HVAC-R technician will perform the installation.
This System Is Not Appropriate If:
- The cellar is uninsulated or only partially insulated.
- The space shares air with unconditioned areas.
- Glass walls are installed without accounting for the additional heat load.
- You are seeking a DIY installation solution.
Sizing recommendation: A heat-load calculation should always be completed before selecting a wine cellar cooling system.
System Configuration
Evaporator and Condenser Configuration

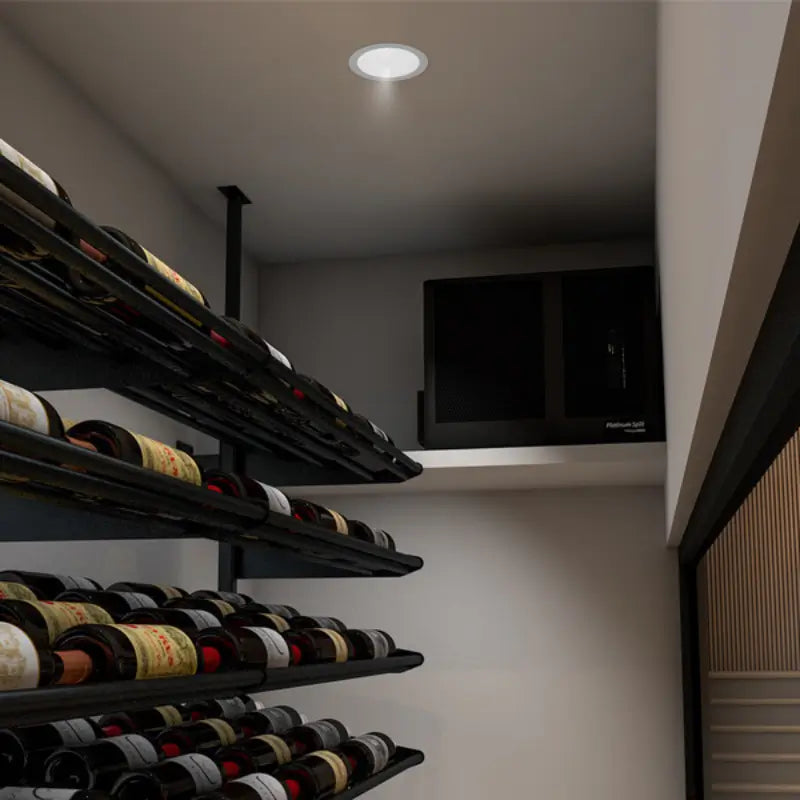

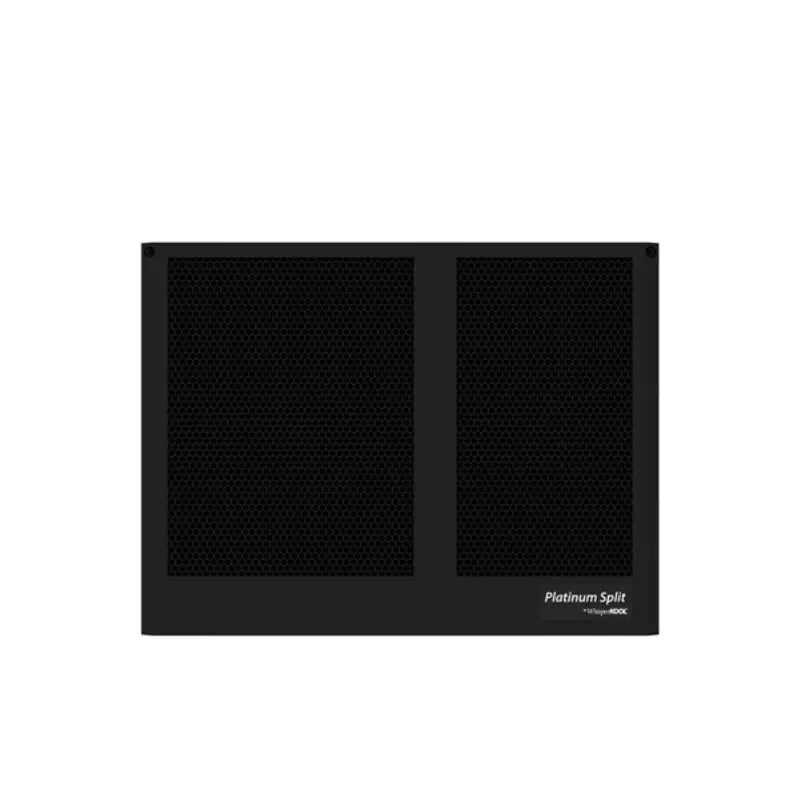

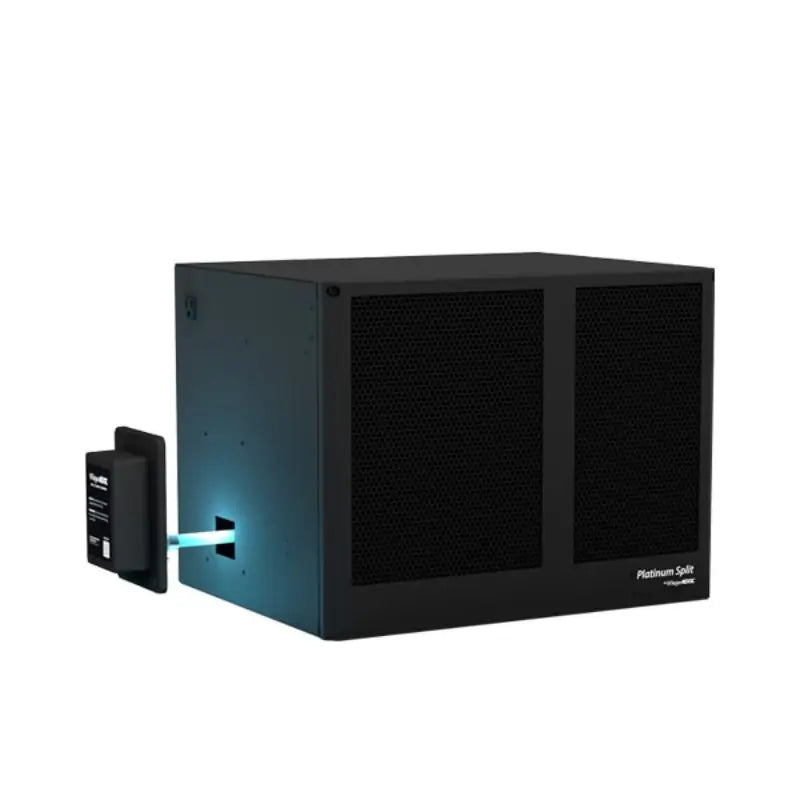

Evaporator — Installed Inside the Cellar
-
Dimensions: 16.1” L × 20.5” W × 15.5” H
- Visible grille design

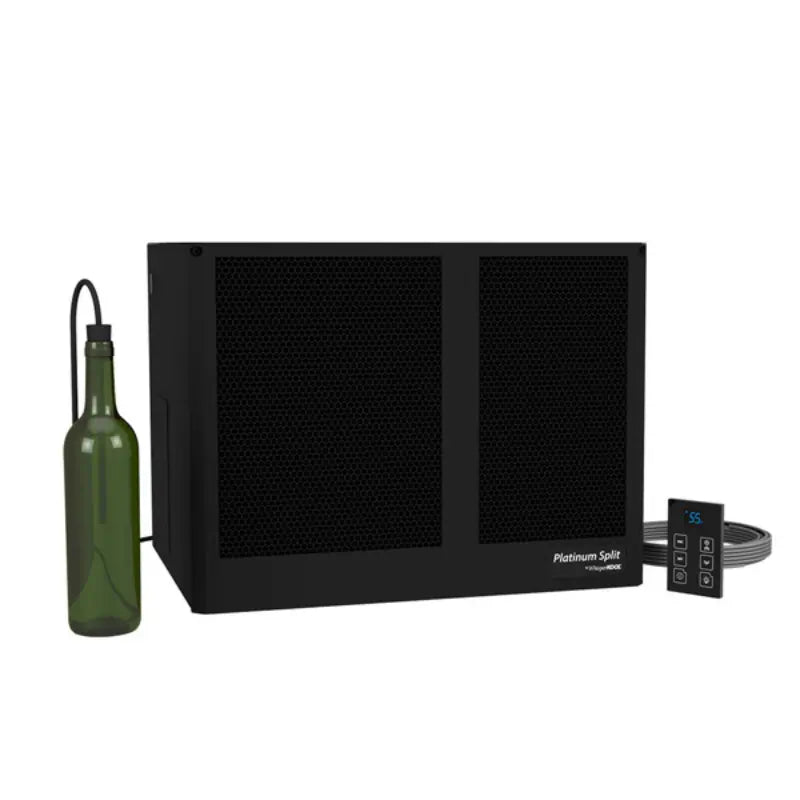

- Bottle probe included
- 2-speed fan control

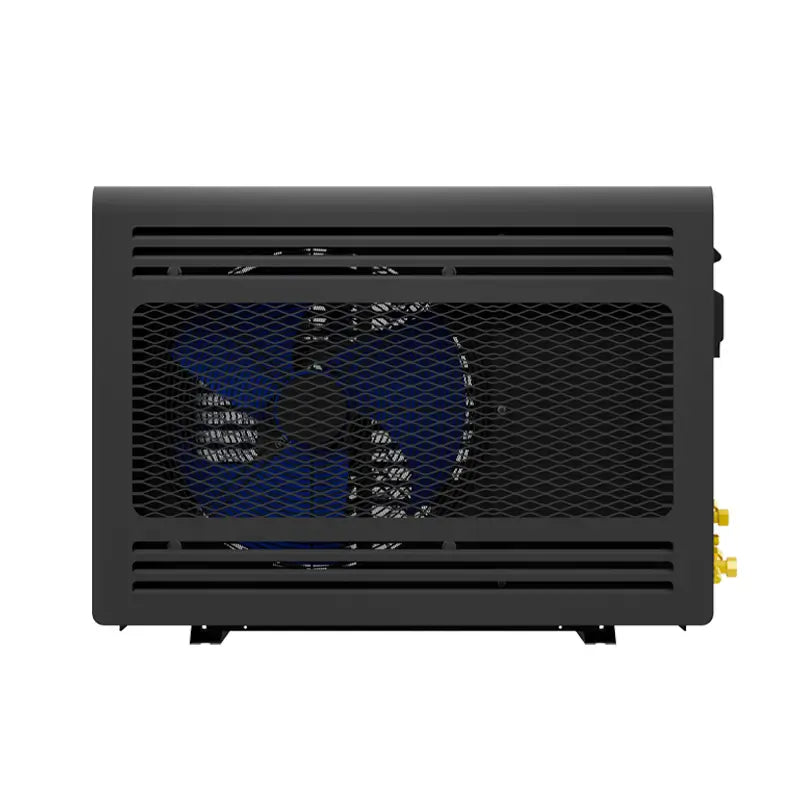

Condenser — Installed Remotely
-
Dimensions: 16.08” L × 16.23” W × 12.61” H
- Can be installed up to 100 ft from the evaporator
- Can be installed outdoors with optional exterior housing
- Must have adequate ventilation
Electrical Configuration
Voltage Options
Available in:
- 110V configuration
- 220V configuration
Voltage selection must match the electrical supply and installation requirements of the project.
Controls
Thermostat & Control Options

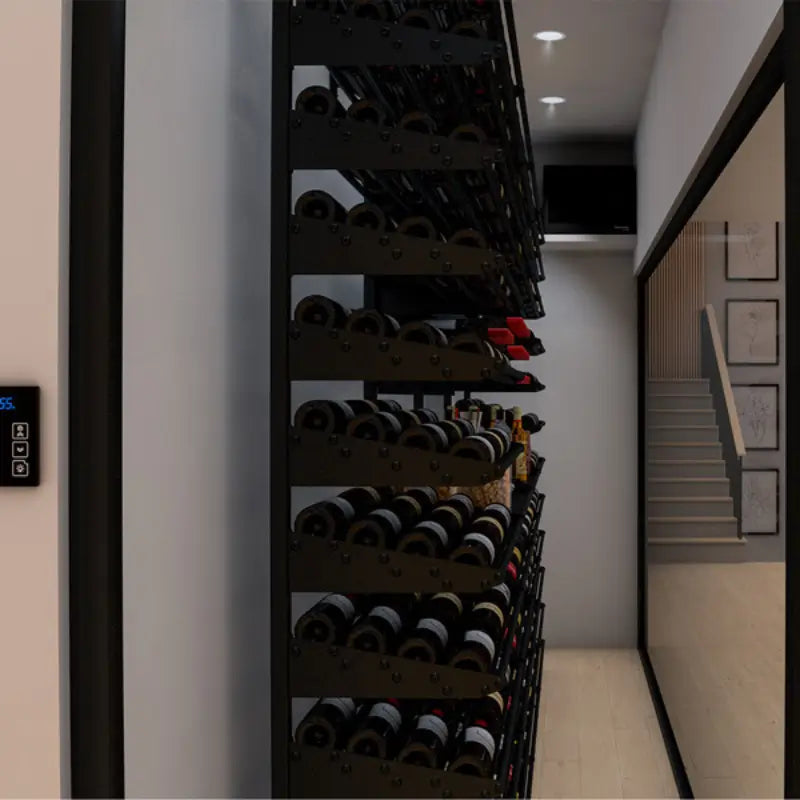

- KDT Digital Touch Display installable up to 50 ft away
- Advanced System Protection alarms
- Bottle probe for liquid-temperature measurement
- Optional 24V thermostat conversion kit
24V Smart Thermostat Option
With the 24V conversion kit, you can:
- Monitor conditions remotely
- Set alarm notifications
- Track run time and energy usage
24V Thermostat Notice
You must supply your own 24V smart thermostat. WhisperKOOL does not directly support third-party thermostat integration.
System Comparison
Why Choose a Ductless Split System?
| Feature |
Platinum Split 8000 Ductless |
Ducted System |
| Grille Visibility |
Visible |
Hidden |
| Installation Flexibility |
High |
Very High |
| Remote Condenser |
Yes — up to 100 ft |
Yes |
| Best For |
Glass wine walls & modern builds |
Hidden mechanical design |

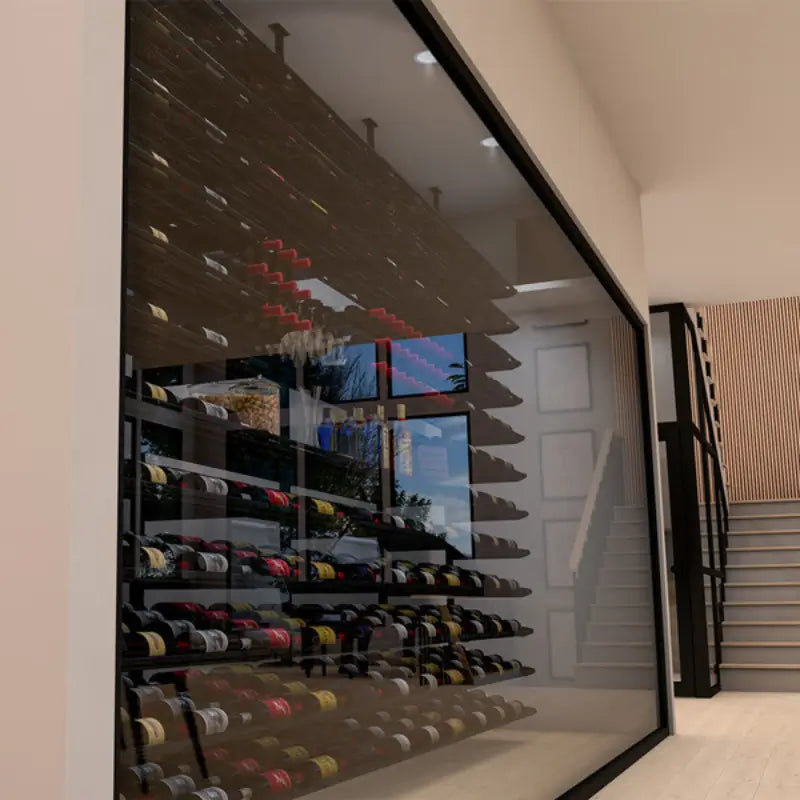

Ductless systems are often selected for glass wine walls and contemporary cellar designs where grille visibility is acceptable.
Installation
Installation Requirements
To achieve rated performance:
- Cellar must be fully insulated.
- Vapor barrier must be installed on the warm side.
- Dedicated electrical circuits are required.
- 1/2” ID drain line is required.
- HVAC-R technician must handle refrigerant charging and system setup.
Installation warning: Improper installation will reduce performance and void warranty coverage.
Optional Add-Ons
Optional Accessories
UV-C Light Technology
- Reduces mold and bacteria inside the system.
- Supports long-term performance.
Exterior Protective Housing
- Galvanized steel cabinet
- Hinged access panel
- Rain trough for moisture control
-
Dimensions: 20” × 20” × 27”
Condenser Coil Coating
- Recommended for coastal installations.
- Protects against salt-air corrosion.
Warranty
Warranty
| Product Warranty |
Limited 2-Year Product Warranty |
| Professional Installation |
Required to maintain warranty eligibility. |
Professional installation is required to maintain warranty eligibility.
Downloads
WhisperKOOL Platinum Split 8000 Ductless Manuals & Resources
Use the product manuals and technical documentation below when planning, installing, commissioning, or servicing the system.
Questions & Answers
Frequently Asked Questions
What happens if my cellar is not properly insulated?
The system may not maintain temperature, humidity control may be unstable, and performance will be reduced.
How large of a cellar can this unit cool?
It is rated for cellars up to approximately 1,750 cubic feet when properly insulated and sealed with a vapor barrier.
Does this system require professional installation?
Yes. A qualified HVAC-R technician is required. Failure to use a licensed installer will void the warranty.

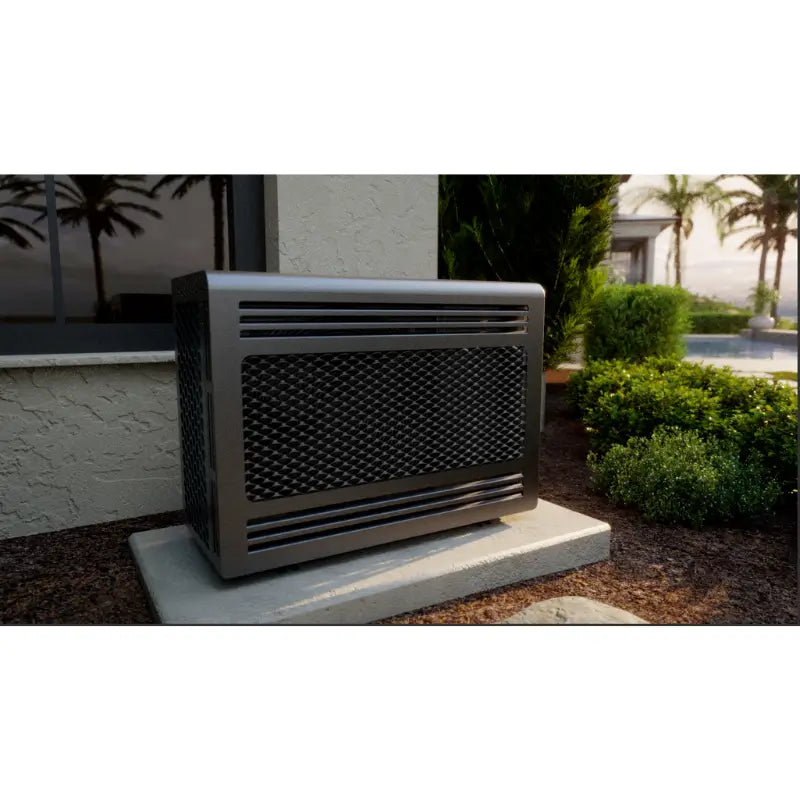

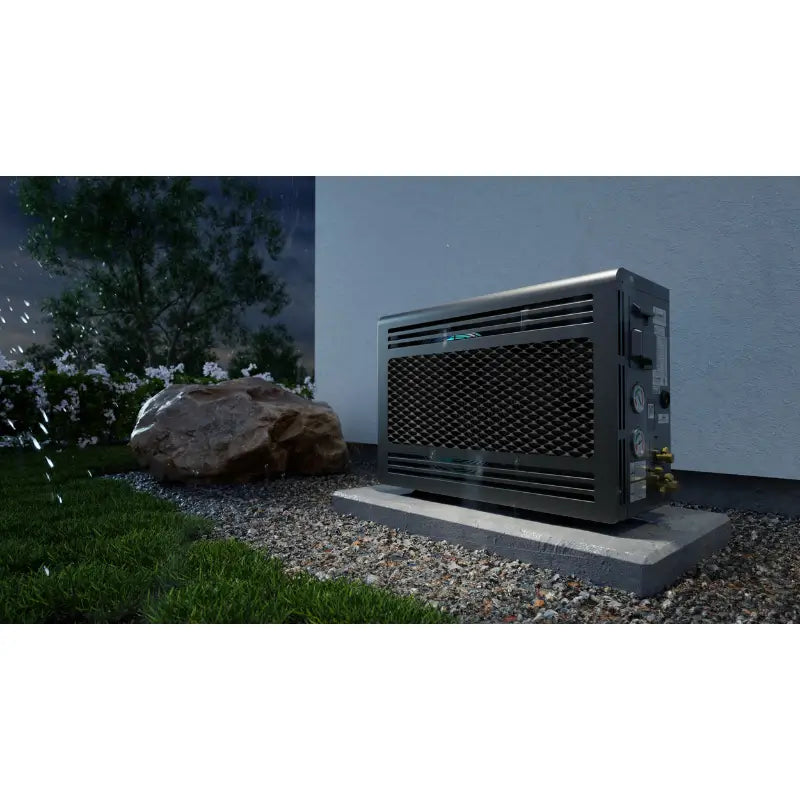

Can the condenser be installed outdoors?
Yes. The condenser can be installed outdoors with the optional exterior protective housing, provided ventilation requirements are met.
What is the difference between ductless and ducted split systems?
A ductless system has a visible grille inside the cellar. A ducted system allows hidden air distribution through ductwork.
Can I use a smart thermostat?
Yes, with the optional 24V conversion kit. However, you must supply your own thermostat, and WhisperKOOL does not directly support third-party thermostat integration.
Is this suitable for glass wine walls?
Yes, ductless split systems are commonly selected for glass wine wall installations. However, additional heat load calculations may be required.
Expert Sizing Guidance
Need Help Confirming Fit?
Every cellar has unique cooling requirements. If you are unsure whether the Platinum Split 8000 Ductless is the correct fit, request a professional heat-load calculation before purchasing.
Cellar dimensions, insulation, vapor barrier construction, glass area, ambient temperature, exterior exposure, lighting, and other heat sources should all be evaluated before the cooling system is selected.
