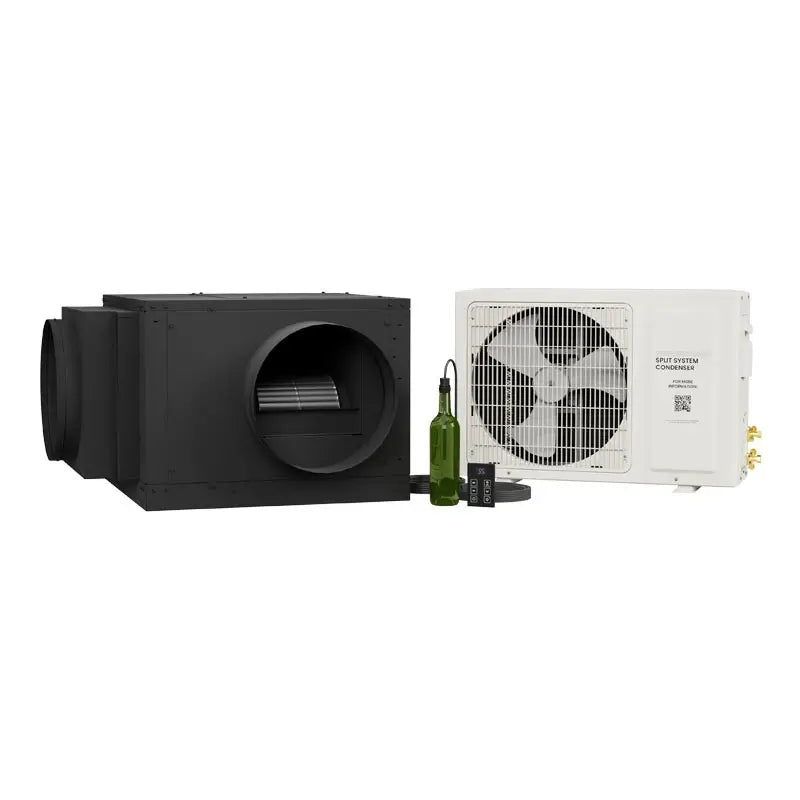

WhisperKOOL Quantum SS9000 Ducted Split System 220V High Efficiency

WhisperKOOL Quantum SS9000 220V Ducted Split Wine Cellar Cooling System

For Fully Insulated Wine Cellars Up to 3,000 Cu. Ft.

The WhisperKOOL Quantum SS9000 is a professional-grade, fully ducted split wine cellar cooling system designed for cellars up to 3,000 cubic feet when constructed with proper insulation and a vapor barrier.

It features a 1 HP compressor, 220V high-efficiency condenser, and remote evaporator installation to deliver stable 55°F cellar temperatures in ambient conditions up to 120°F.

This system requires professional HVAC-R installation and dedicated 120V and 220V electrical circuits.

Available in WhisperKOOL Quantum SS9000 110V Copeland Condenser for 3000 cu.ft wine cellar.

Other Size: WhisperKOOL Quantum SS12000 220V High-Efficiency Condenser for 4000 cu.ft wine cellar.

Quick Technical Snapshot

The 85°F rating is the industry standard reference for residential sizing.

Cooling capacity decreases as condenser intake temperature rises.

Installation Requirements

The 3,000 cu. ft. rating assumes:

• Minimum R-19 insulated walls
• R-30 insulated ceiling recommended
• Proper vapor barrier installed on warm side of walls
• Airtight construction
• Minimal direct glass exposure

Electrical Requirements

• Evaporator: 120V (5-amp dedicated circuit required)
• Condenser: 220V (15-amp dedicated circuit required)

Both circuits are required.

Ducting & Line Set Specifications

• 14” supply duct
• 14” return duct
• Up to 35 ft. per duct run
• Maximum 100 ft. line set between evaporator and condenser

Line Set Sizes

• Liquid line: 3/8” OD
• Suction line:
  • 5/8” (less than 50 ft.)
  • 3/4” (greater than 50 ft.)

Professional refrigerant charging and configuration are required.

System Configuration

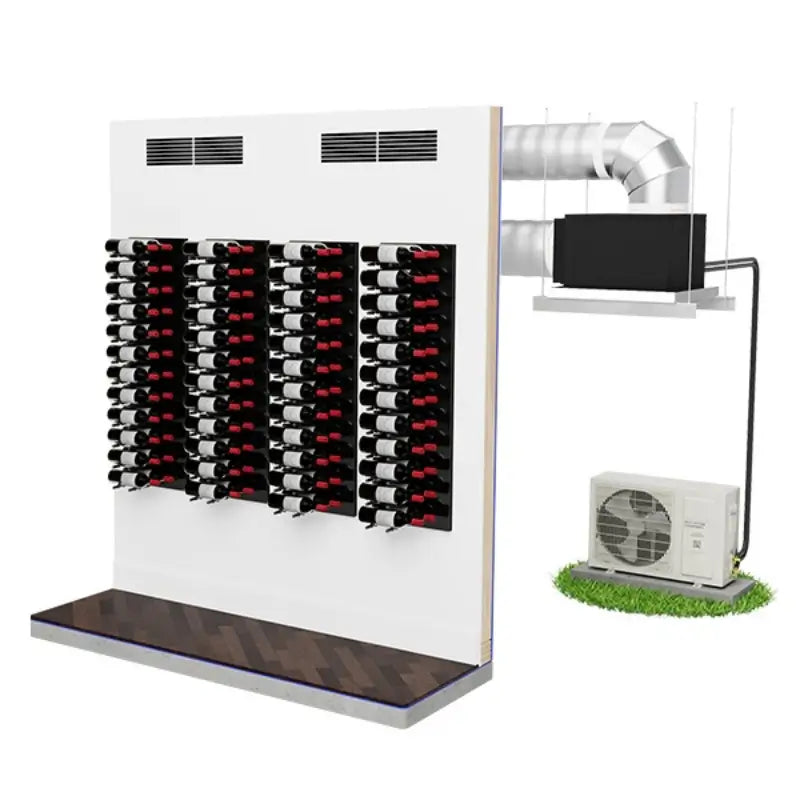

Split System Design

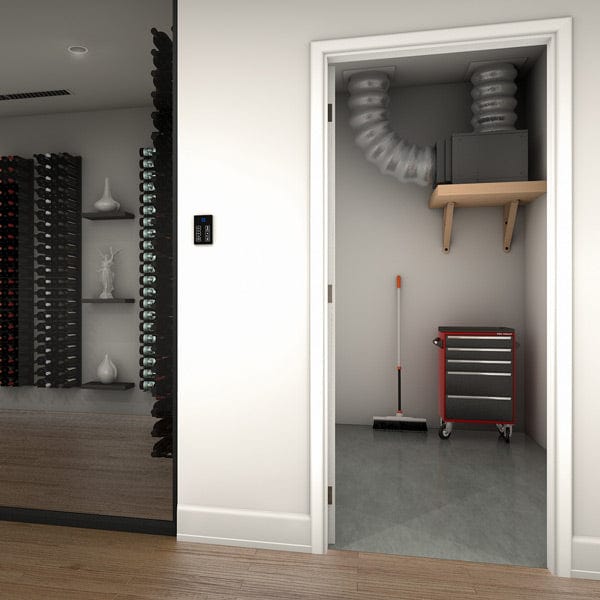

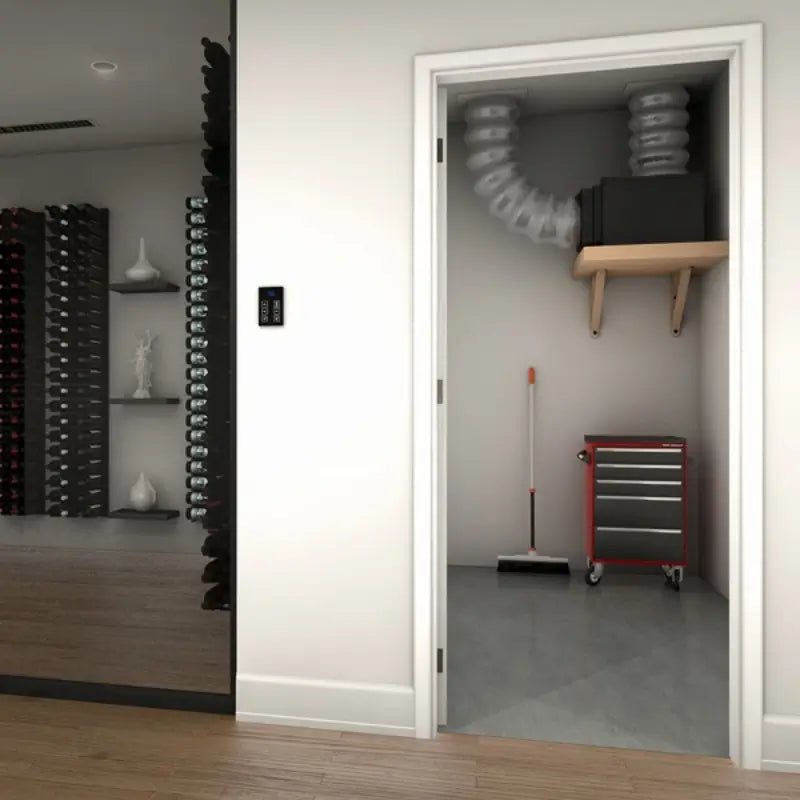

• Evaporator installs inside cellar

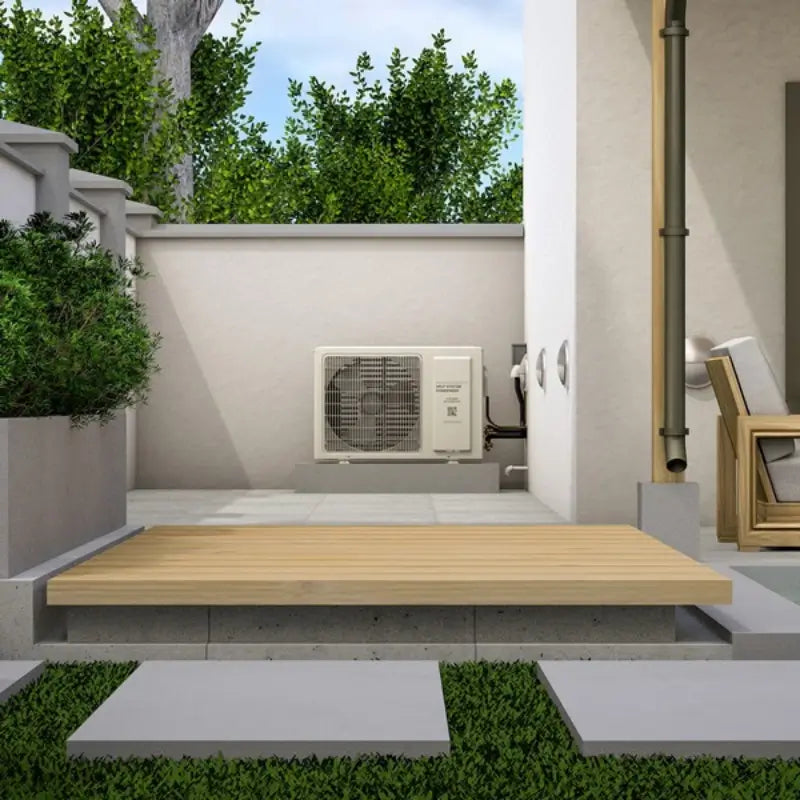

• Condenser installs remotely (indoor or outdoor with optional housing)

Dimensions

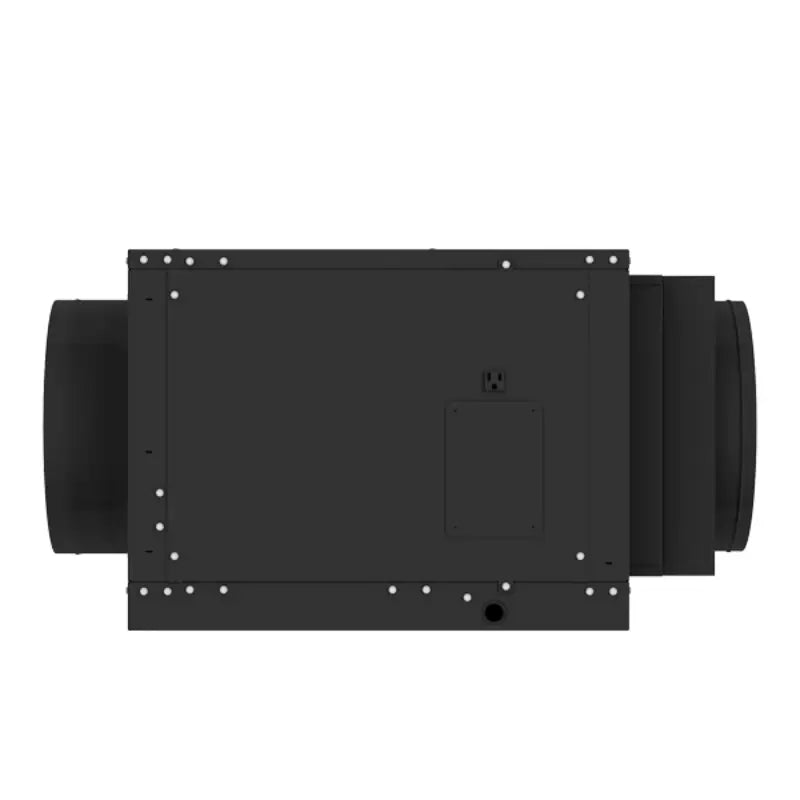

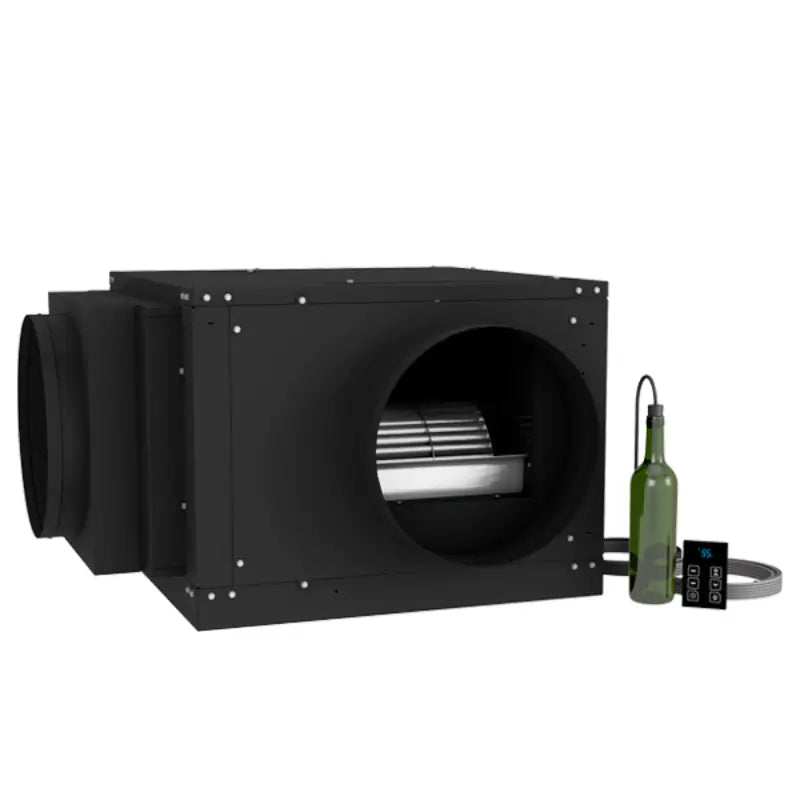

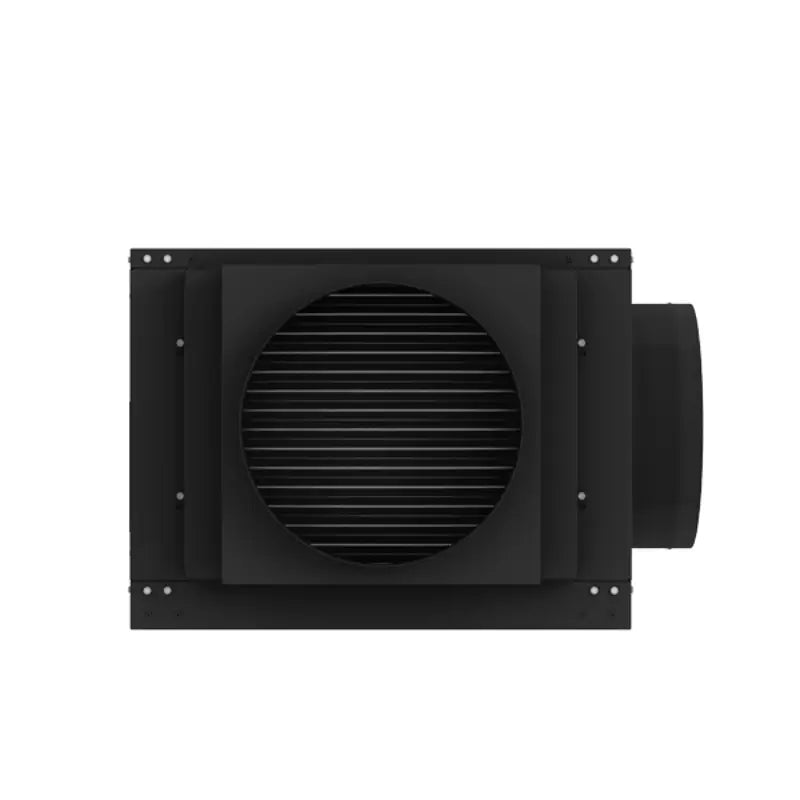

Evaporator

• 29.5” L x 30.9” W x 19.8” H
• Weight: 96 lbs

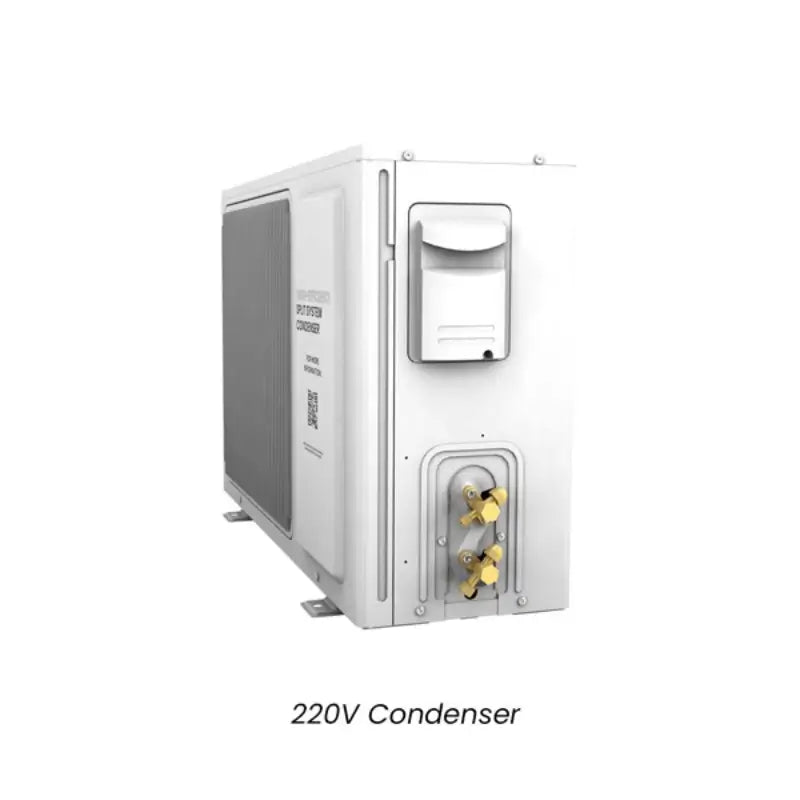

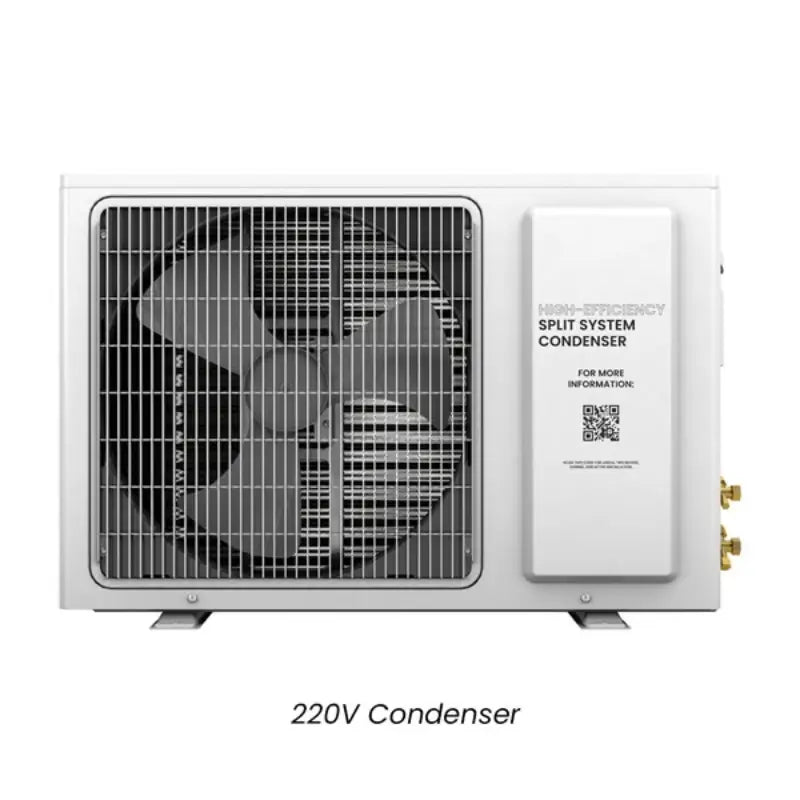

Condenser

• 31.18” L x 10.75” W x 21.18” H
• Weight: 64 lbs

Airflow & Sound Performance

Fully ducted configuration reduces cellar noise significantly.

Airflow (CFM):

• 590 (Low)
• 650 (Medium)
• 710 (High)

Manuals for WhisperKOOL Quantum SS9000 Ducted Split:

• 220V High Efficiency (H.E.) Condenser Owner's Manual

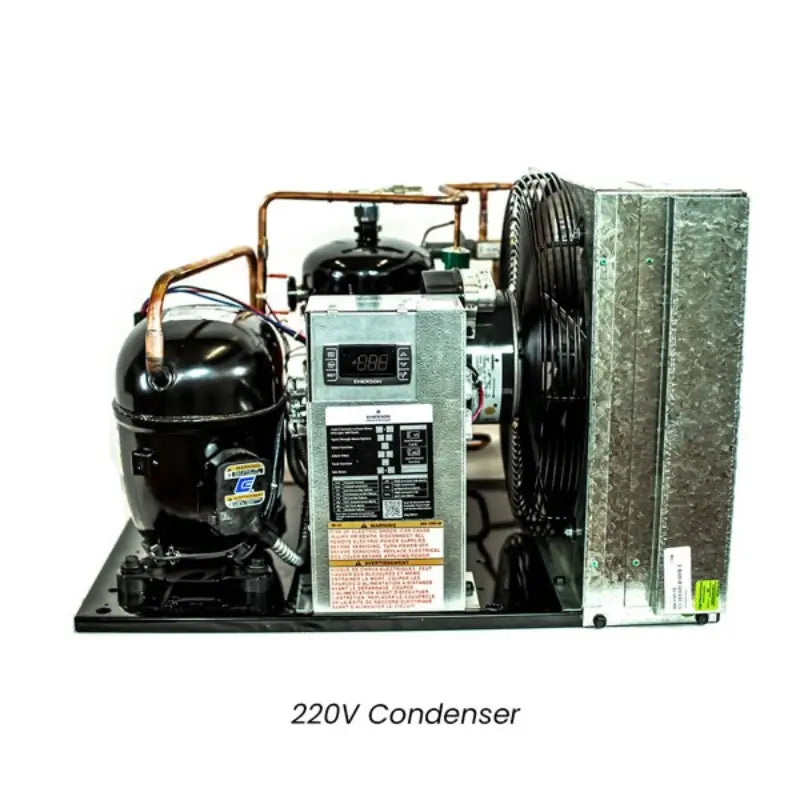

• 220V (Copeland) Condenser Owner's Manual
• Quick Start Guide
• Warranty Checklist
• 220V H.E Product Sheet
• 220V Copeland Product Sheet
• Charge Chart
• Maintenance Checklist

Humidity Management

The Quantum SS9000 is designed to maintain relative humidity between 50–70% in properly sealed environments.

In dry climates or high-ventilation conditions, a supplemental humidification system may be required.

Ambient Operating Range

The 220V high-efficiency condenser operates in:

• Low ambient temperatures down to -15°F
• High ambient temperatures up to 120°F

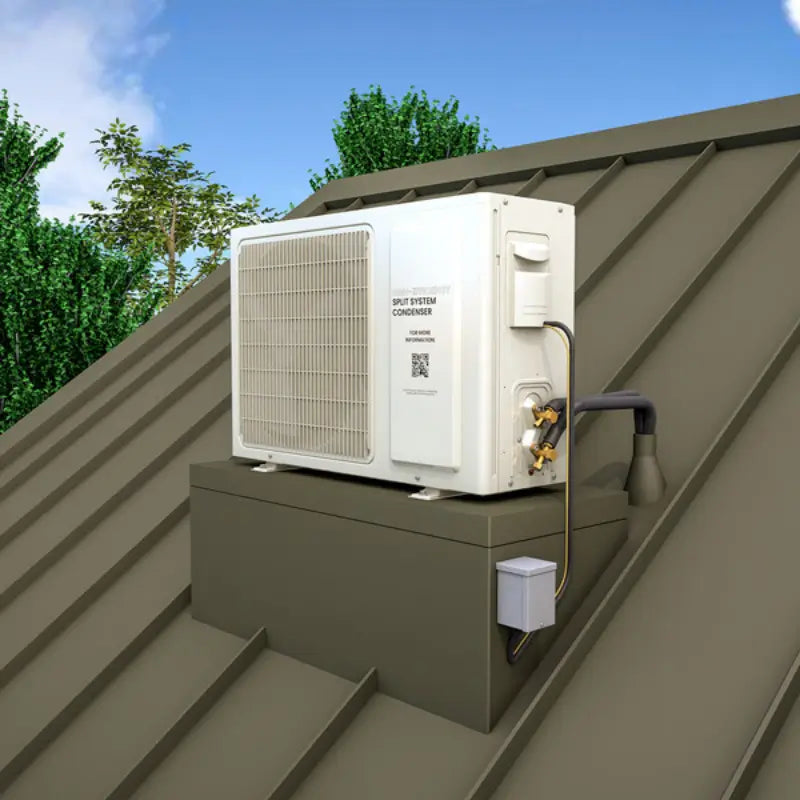

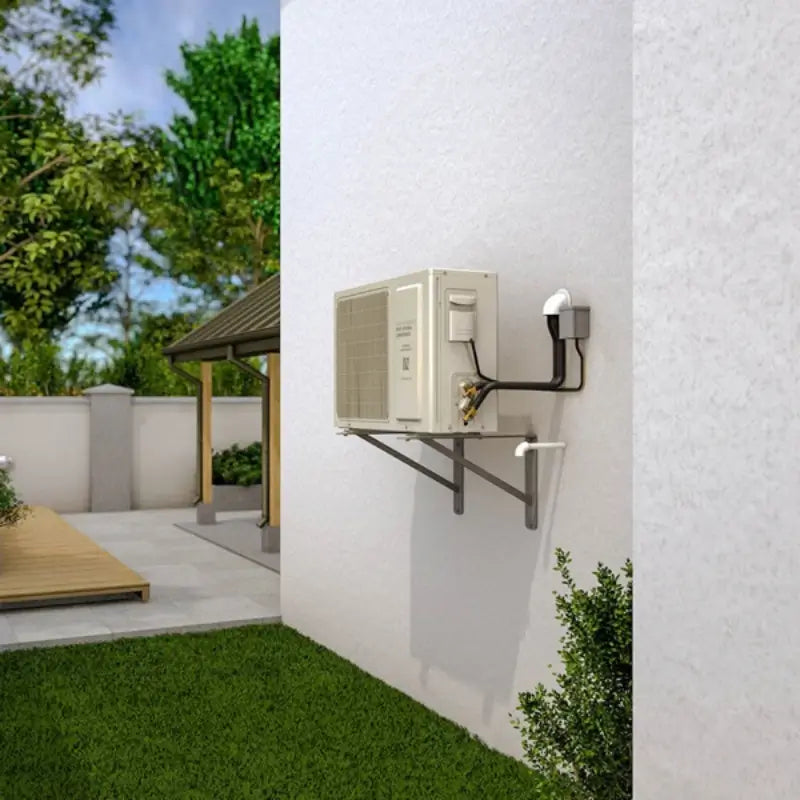

Exterior condenser housing is recommended for outdoor installations.

Warranty

• 2-Year Limited Warranty (Parts & Labor)
• Additional 1-Year Grace Period for Installation

Warranty requires professional HVAC-R installation.

Quantum SS9000 vs Quantum SS12000

Final Recommendation

The WhisperKOOL Quantum SS9000 is a professional ducted split cooling solution for large, properly constructed wine cellars requiring quiet performance and installation flexibility.

Before purchase, confirm:

• Cellar volume
• Insulation quality
• Vapor barrier installation
• Electrical availability
• Line set routing feasibility

If you need assistance verifying sizing, our cooling specialists can review your cellar specifications before ordering.
