WhisperKOOL Quantum SS9000 Ducted Split Wine Cellar Cooling System
The WhisperKOOL Quantum SS9000 is a high-capacity ducted split wine cellar cooling system designed for large residential and commercial wine cellars up to approximately 3,000 cubic feet.
This system separates the evaporator (installed in the cellar) from the condenser (installed remotely) to reduce noise and provide flexible installation options. The evaporator can be ducted, allowing the cooling equipment to be located outside the cellar while maintaining stable storage conditions for wine.
The Quantum series is engineered to maintain ideal wine storage temperatures of 55°F with proper humidity levels, even in demanding environments where condenser air temperatures reach up to 120°F.
With corrosion-resistant components, advanced monitoring technology, and flexible installation capabilities, the WhisperKOOL Quantum SS9000 is designed for wine collectors, hospitality environments, and custom cellar installations that require reliable temperature control.
What Size Wine Cellar Can the Quantum SS9000 Cool?
The WhisperKOOL Quantum SS9000 is designed for wine cellars up to approximately 3,000 cubic feet, assuming the cellar is:
fully insulated
properly sealed with a vapor barrier
constructed with appropriate cellar materials
Because each wine cellar has unique cooling requirements, a heat load calculation should always be performed before selecting a cooling system.
Factors that influence cooling performance include:
insulation quality
glass doors or walls
cellar location within the home
ambient temperature surrounding the condenser
duct configuration

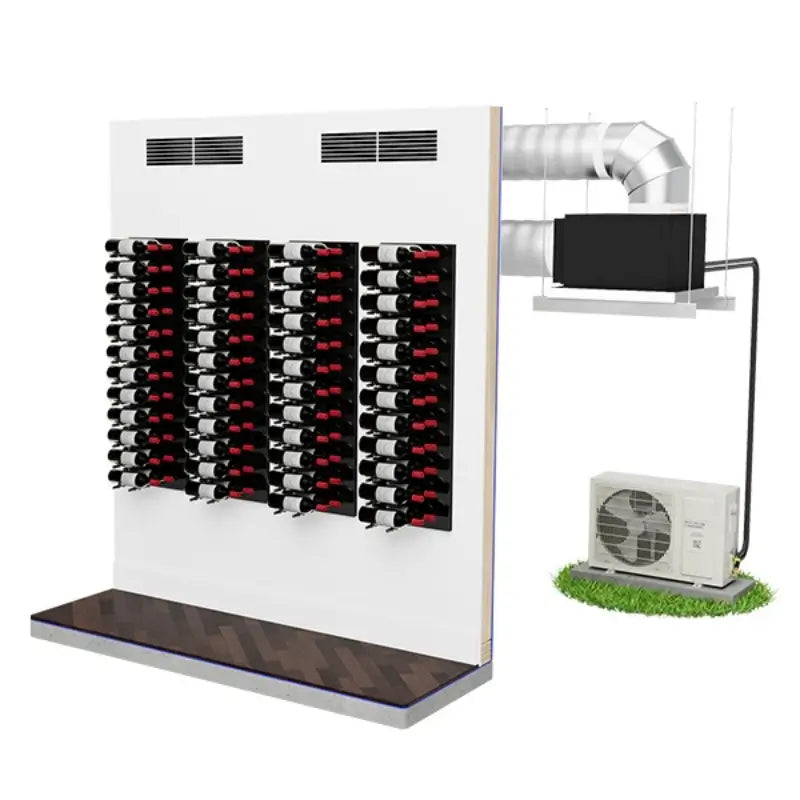

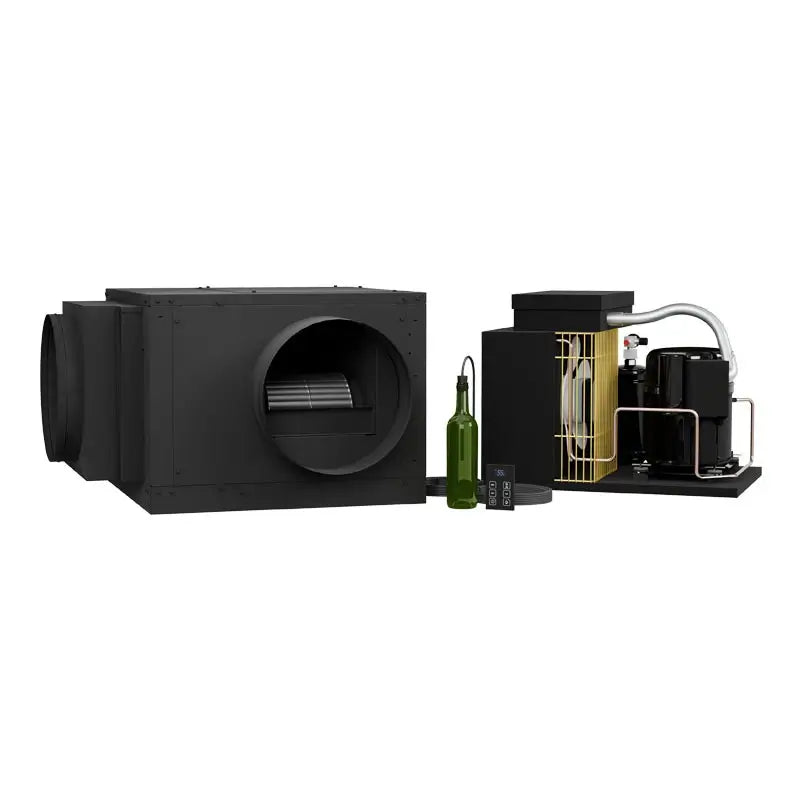

How the Quantum Split Cooling System Works
The Quantum SS9000 uses a split system design, meaning the cooling components are separated into two units:

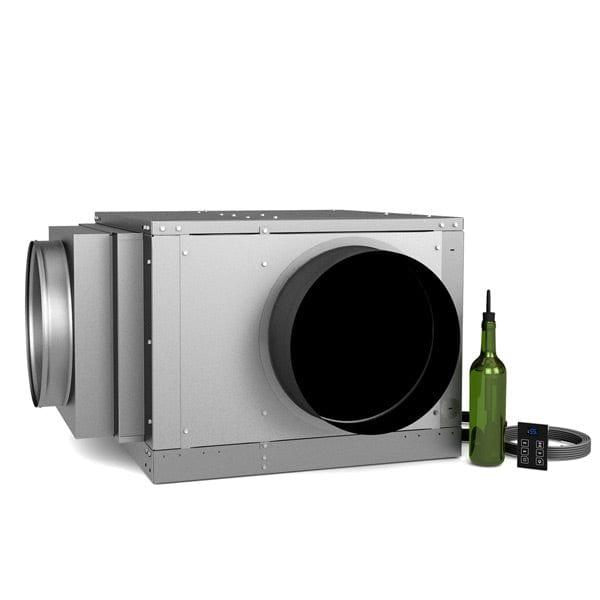

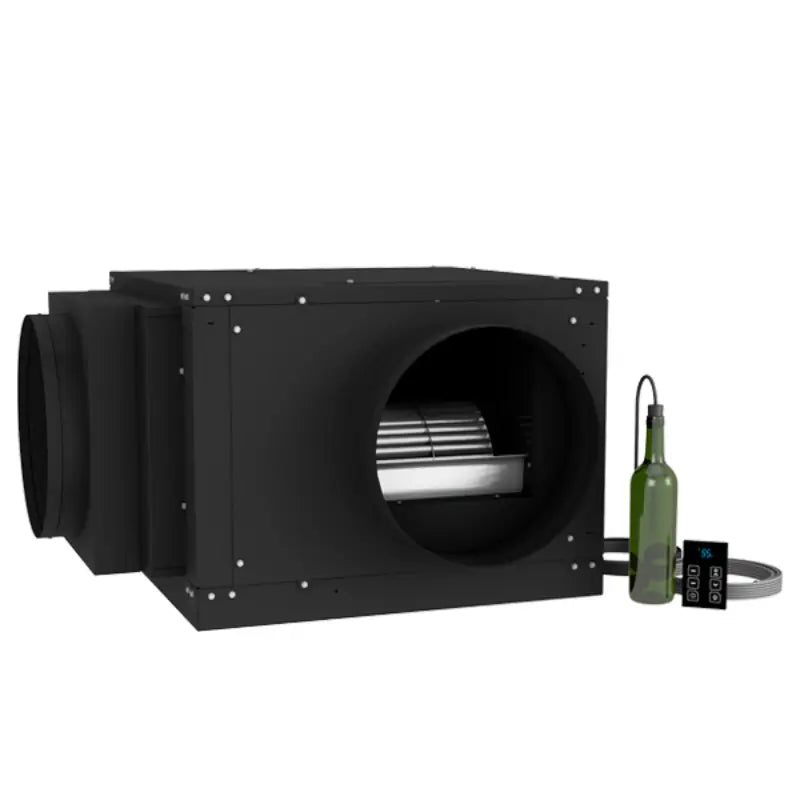

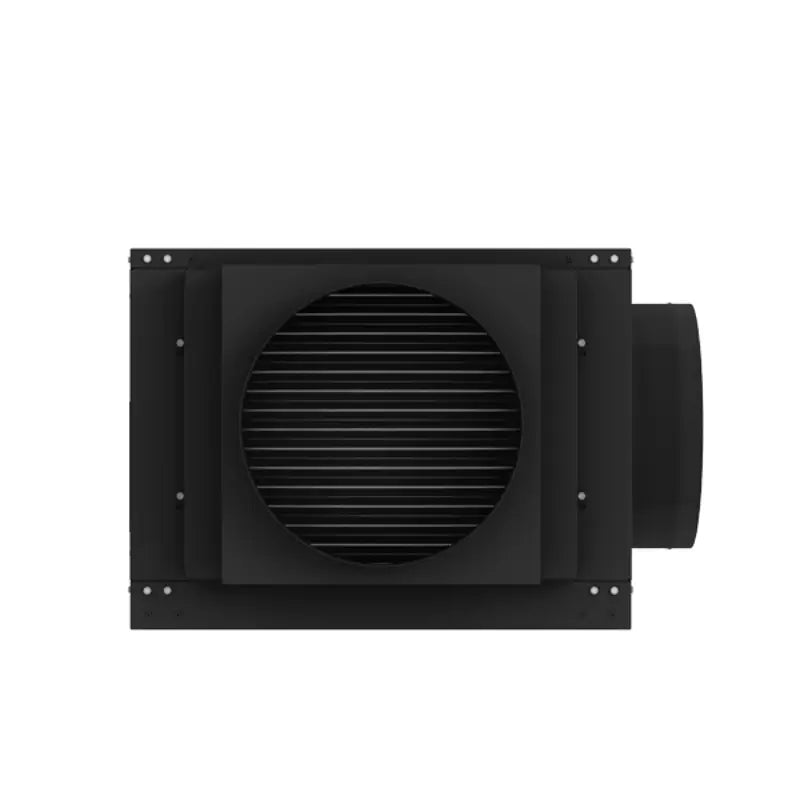

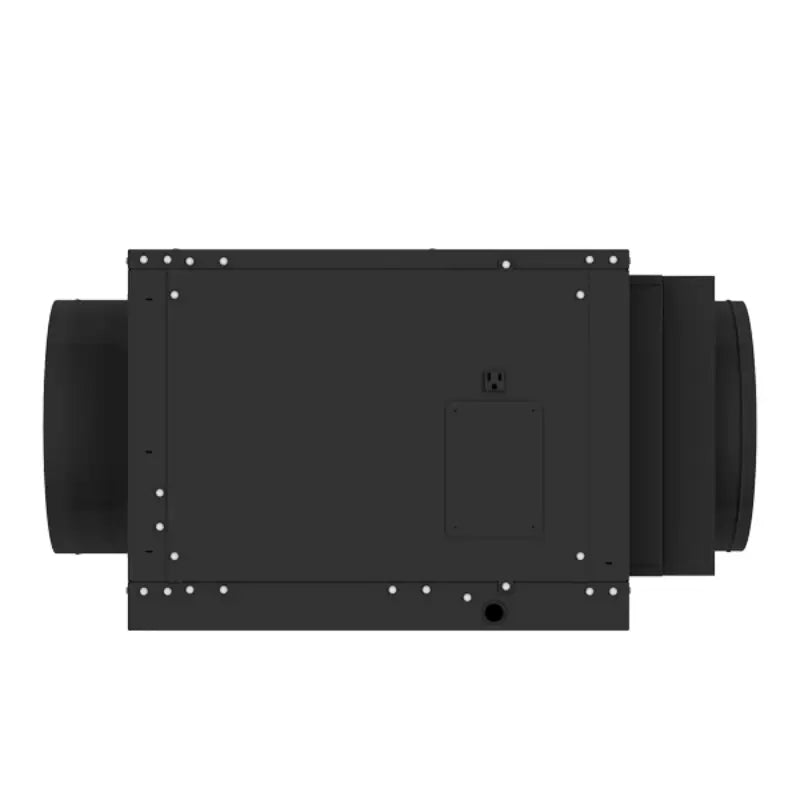

Evaporator Unit
installed inside or near the wine cellar
distributes cooled air through ducting

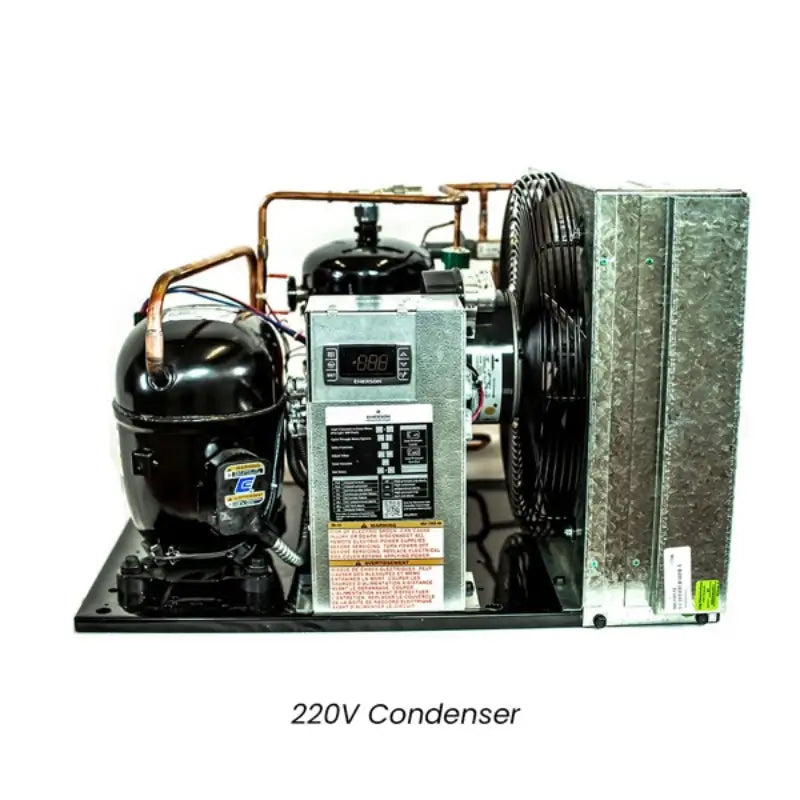

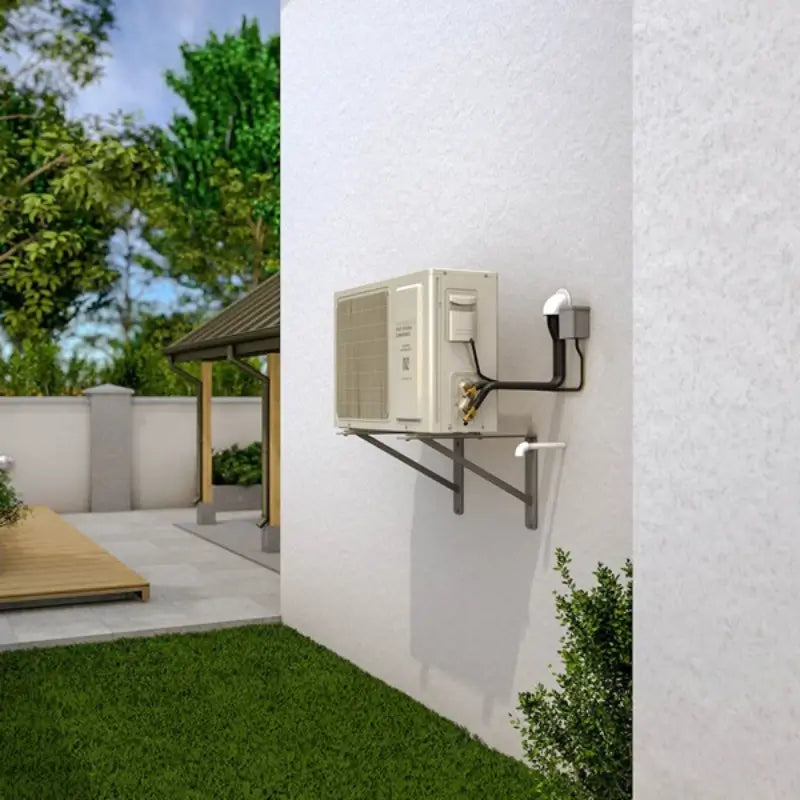

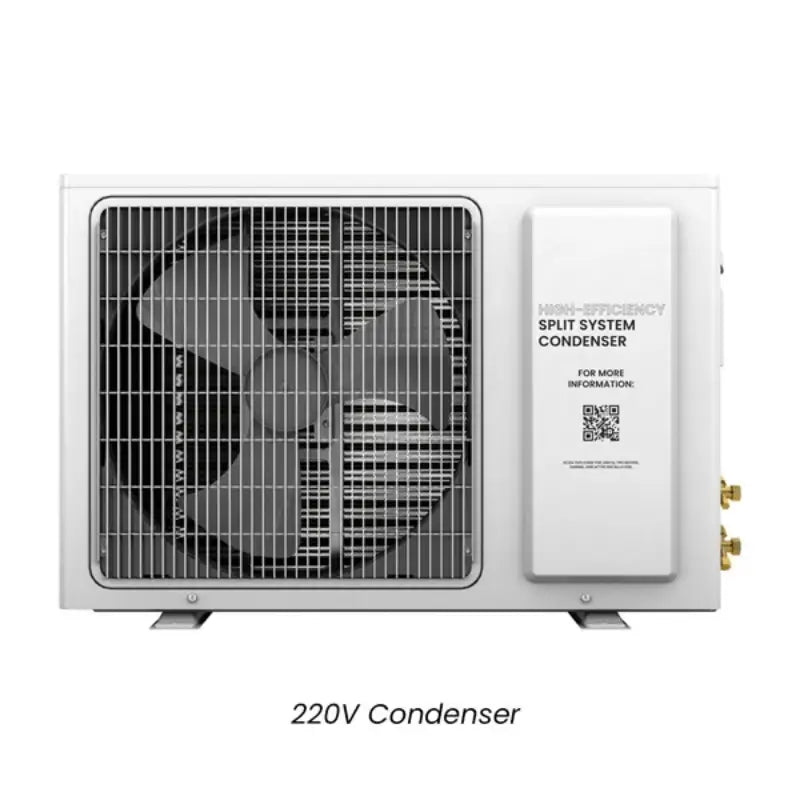

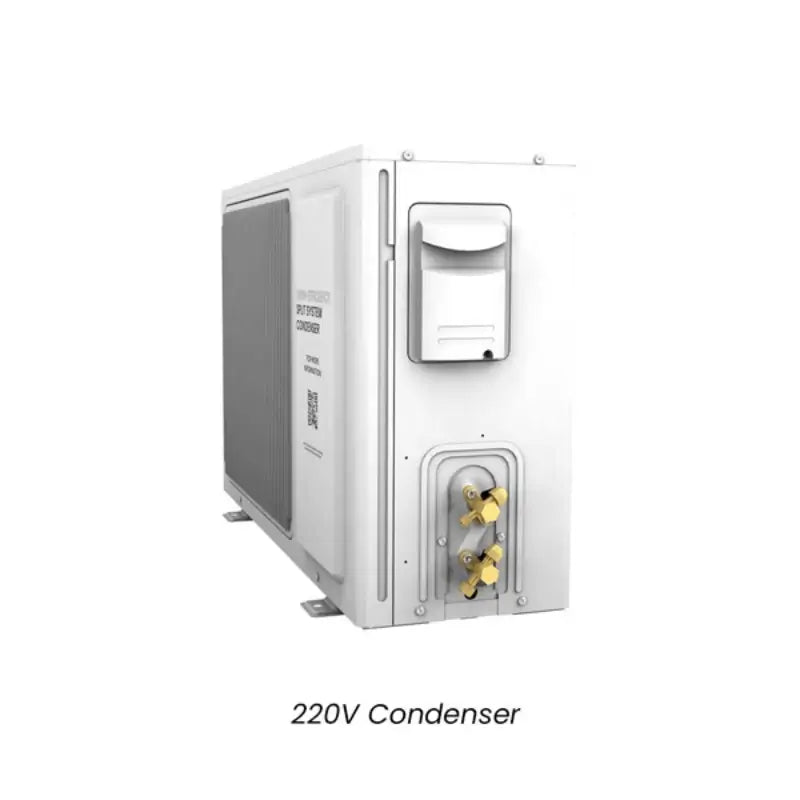

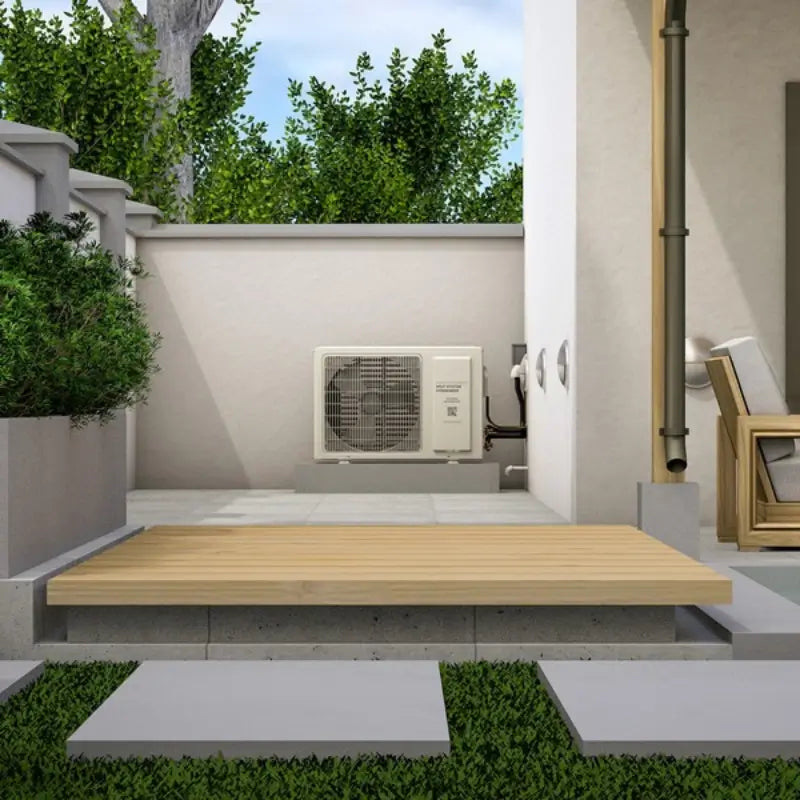

Condenser Unit
installed remotely or outdoors
dissipates heat removed from the cellar
This configuration reduces noise inside the cellar and allows the cooling system to be installed in mechanical rooms, garages, or outdoor areas.
The evaporator and condenser can be installed up to 100 feet apart using a refrigerant line set, providing flexible installation options for complex cellar designs.
Best Applications
The WhisperKOOL Quantum SS9000 is best suited for:
wine cellars up to 3,000 cu. ft.
large residential wine rooms
restaurant and hospitality wine storage
custom luxury wine cellars
installations requiring quiet cellar environments
wine rooms where equipment must be installed remotely
Key Features

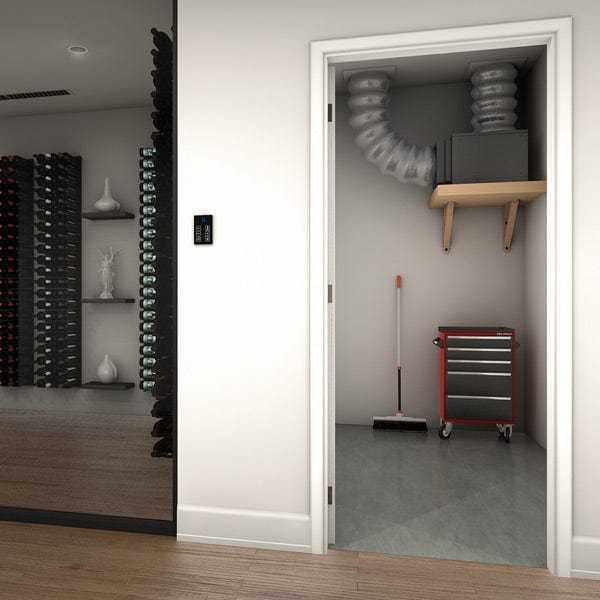

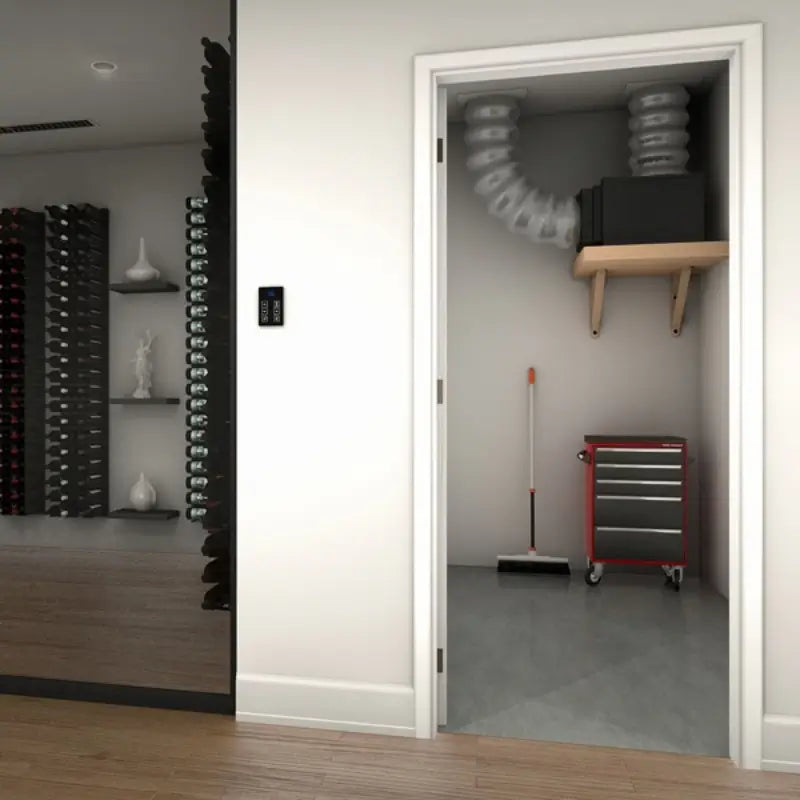

Fully Ducted Installation
The Quantum SS9000 supports fully ducted airflow, allowing the evaporator to be installed away from the cellar while delivering conditioned air through supply and return ducts.
This design:
reduces equipment noise inside the cellar
provides flexible installation locations
improves airflow distribution within larger wine rooms.

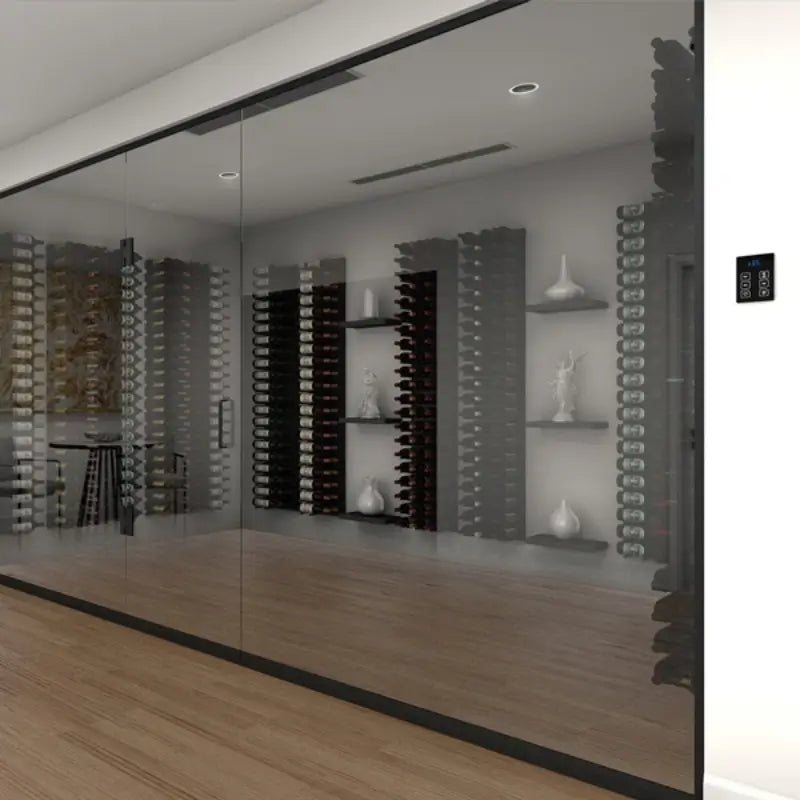

KDT Remote Digital Touch Display
The KDT Digital Touch Display allows users to monitor and control cellar conditions remotely.
The controller can be installed up to 50 feet from the cooling unit and includes Advanced System Protection that alerts users when system conditions fall outside recommended ranges.
Bottle Probe Temperature Monitoring
The WhisperKOOL bottle probe measures the temperature of the wine rather than the surrounding air.
This ensures more accurate cellar temperature control and protects wine from temperature fluctuations that can negatively affect aging.
Quiet Operation
Because the condenser is installed remotely and the evaporator can be ducted, the Quantum system provides quiet operation inside the wine cellar, making it ideal for luxury residential installations and tasting rooms.
Corrosion-Resistant Components
Quantum systems include electro-fin coated coils that resist corrosion caused by humidity and wine outgassing, helping extend the lifespan of the cooling unit.
Cooling Capacity
The WhisperKOOL Quantum SS9000 delivers approximately:
9,572 – 10,786 BTU/h
Cooling output varies depending on the temperature of the condenser intake air.
Condenser Air Intake Temperature
Sensible / Total BTU/h
60°F
10,985 / 11,316
75°F
10,711 / 11,019
85°F
10,145 / 10,786
Total BTU/h represents the overall cooling capacity, while sensible BTU/h reflects the cooling used to reduce air temperature.
Wine cellar cooling systems balance sensible and latent cooling to maintain proper temperature and humidity.
Installation Requirements
The WhisperKOOL Quantum SS9000 is a split system cooling unit and must be installed by a licensed HVAC-R technician.
Installation includes:
refrigerant line set connection
electrical wiring
condensate drain installation
duct installation
system charging and testing
The condenser can be installed up to 100 feet from the evaporator, allowing placement in mechanical rooms, garages, or outdoor areas.
IMPORTANT: Failure to install the system by a qualified HVAC-R technician will void the manufacturer warranty.
Technical Specifications
Quantum SS9000
Specification
Details
Maximum Cellar Size
3,000 cu. ft.*
Cooling Type
Ducted Split System
Cooling Capacity
9,572 – 10,786 BTU/h
Evaporator Airflow
590 / 650 / 710 CFM
Noise Level
52 dBA (evaporator) / 48 dBA (condenser)
Refrigerant
R-134a
Compressor Power
1 HP
Voltage Requirements
Evaporator: 120V (15-amp circuit)
Condenser: 220V (15-amp circuit)
Evaporator Weight
96 lbs
Condenser Weight
64 lbs
Evaporator Amps
9.2 running amps
Condenser Electrical
LRA 20 / RLA 4.25 / FLA 4.89
Dimensions
Component
Dimensions
Evaporator
29.5” L × 30.9” W × 19.8” H
Condenser
31.18” L × 10.75” W × 21.18” H
Installation Specifications
Requirement
Details
Liquid Line
3/8" OD
Suction Line
5/8" OD (under 50 ft) / 3/4" OD (over 50 ft)
Drain Line
3/4" Female (CPVC/PVC)
Supply Duct
14 inches
Return Duct
14 inches
Maximum Duct Length
35 ft per duct
Maximum Line Set Distance
100 ft
Manuals for WhisperKOOL Quantum SS9000 Ducted Split:
The Quantum split system can maintain a 55°F wine cellar temperature even when condenser intake air temperatures reach 120°F, making it suitable for warm climates or mechanical rooms.
Optional Accessories
Several accessories are available to enhance installation flexibility and system performance.

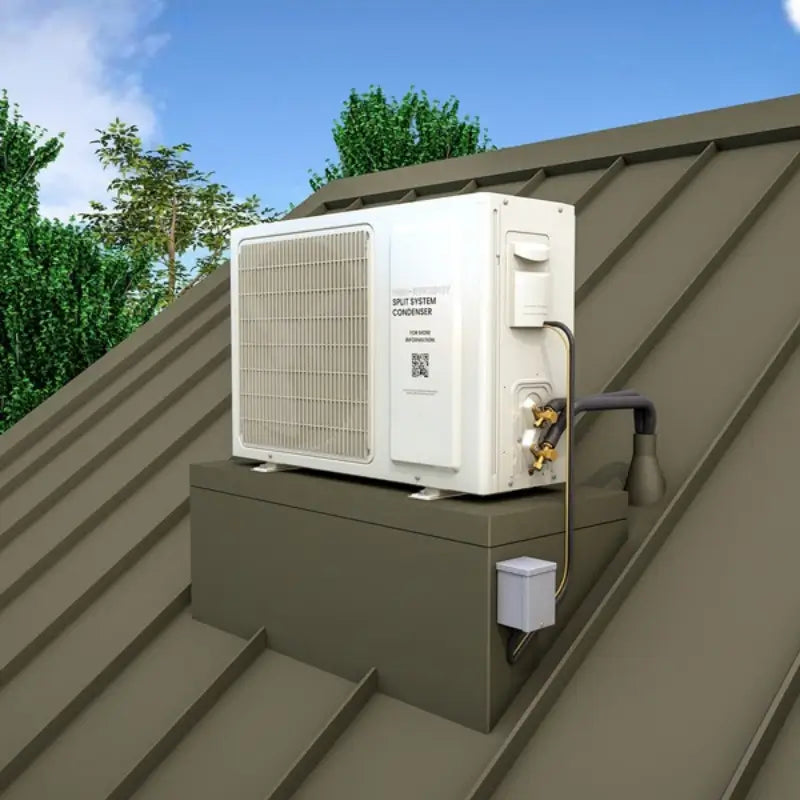

Exterior Condenser Housing
Protects the condenser from weather exposure when installed outdoors.
UV-C Lighting System
Helps maintain cleaner air inside the cooling unit and reduce microbial growth.
24V Thermostat Conversion Kit
Allows connection to a third-party smart thermostat for remote monitoring and temperature control.
Note: WhisperKOOL does not provide smart thermostats and does not support third-party thermostat troubleshooting.
Warranty
The WhisperKOOL Quantum split system includes:
Two-year limited manufacturer warranty
Additional one-year installation grace period
Warranty coverage applies to parts and labor when the system is installed by a licensed HVAC-R technician.
