Product Overview

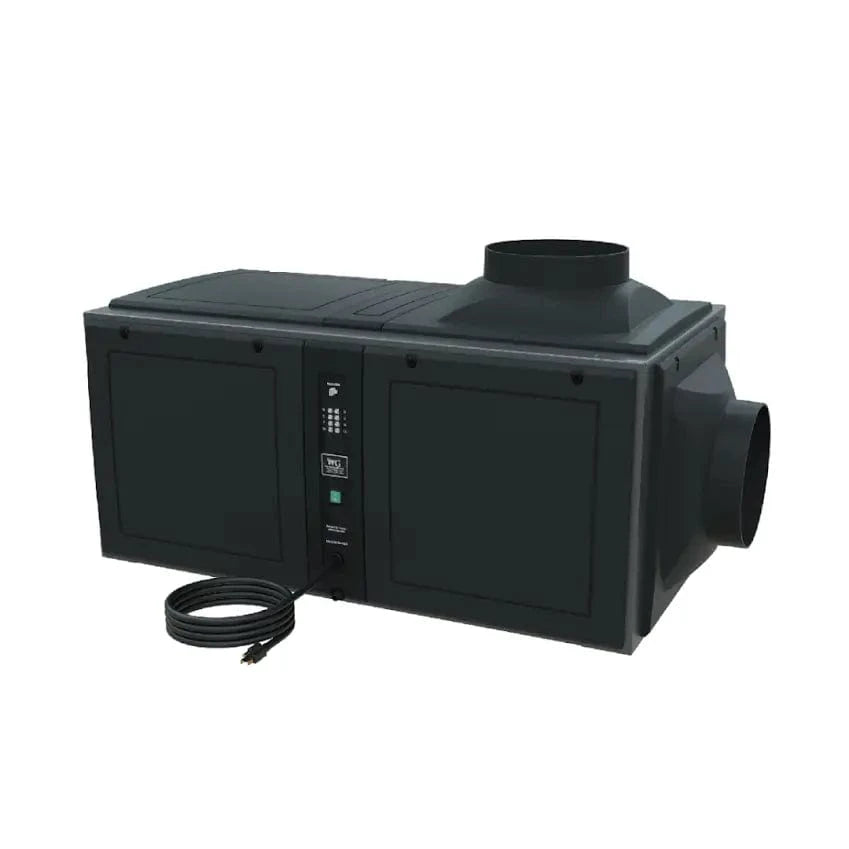

Wine Guardian DP200WC Pro: Quick Decision Summary
Choose the DP200WC Pro when a large wine cellar requires high-capacity ducted cooling but conventional air-cooled condenser ventilation is impractical. The water-cooled design allows condenser heat to be transferred through a building water loop instead of discharged through outside air.
| Best For |
Large residential wine cellars, commercial wine-storage rooms, restaurants, hospitality wine programs, luxury estates, high-rise buildings, and wine vault installations.
|
| System Type |
Water-cooled ducted split wine cellar cooling system.
|
| Recommended Cellar Size |
Approximately 1,500–7,000 cubic feet according to the supplied product information.
|
| Maximum Cooling Capacity |
Up to approximately 15,785 BTU/h in the supplied content.
|
| Primary Advantage |
High-capacity ducted cooling without depending on exterior condenser-air ventilation.
|
Things to Know Before Ordering
- The DP200WC Pro uses a water-cooled condenser.
- A compatible building water loop or water-cooling infrastructure is required.
- The supplied cellar-size range is approximately 1,500–7,000 cubic feet.
- Published maximum cooling capacity is approximately 15,785 BTU/h.
- Published evaporator airflow is up to approximately 799 CFM.
- The supplied operating temperature range is 52°F–70°F.
- The supplied electrical requirement is 208–230V / 1 Phase / 60 Hz.
- The system uses a 24-volt control platform.
- Optional humidification, electric heat, monitoring sensors, duct accessories, advanced controllers, and extended warranty coverage are available.
- A professional heat-load calculation should be completed before purchase.
For smaller installations, compare the DP88WC, DP50WC, or DP25WC.
Key Features
Key Features of the Wine Guardian DP200WC Pro
Water-Cooled Condenser
The DP200WC removes condenser heat through a water loop rather than outside air.
This makes the system useful where conventional air-cooled condenser ventilation is not practical.
Fully Ducted Air Distribution
Conditioned air is delivered through ductwork, allowing the main cooling equipment to remain outside the finished wine cellar.
Designed for Large Wine Cellars
The supplied product information positions the DP200WC Pro for large residential and commercial wine cellars between approximately 1,500 and 7,000 cubic feet.
Stable Wine-Storage Conditions
The supplied content identifies:
- Recommended wine-storage temperature around 55°F
- Recommended humidity range around 55%–65% RH
Optional humidification can be added when active humidity control is required.
24-Volt Smart Controls
The system operates on a 24-volt control platform that supports integration with:
- Wine Guardian controllers
- Remote temperature sensors
- Building-management systems
- Smart-home automation systems
Quiet Operation
Remote mechanical placement and ducted airflow help reduce equipment noise inside the wine cellar.
Durable Industrial Construction
The supplied content identifies:
- Aluminum chassis construction
- Powder-coated panels
- Service-friendly access panels
- Professional refrigeration components designed for long-term operation
Buyer Fit
Who Is the Wine Guardian DP200WC Pro Best For?
Large Residential Wine Cellars
The DP200WC Pro is intended for large private collections where high cooling capacity and hidden mechanical equipment are required.
Commercial Wine Storage Rooms
Commercial projects can use the system where substantial cooling demand and water-based heat rejection align with the building infrastructure.
Restaurants and Hospitality Wine Programs
Restaurants, hotels, clubs, and hospitality venues can use the DP200WC where high-capacity climate control is required without conventional outside-air condenser discharge.
Luxury Estates
Large custom residential projects can use the water-cooled system where mechanical design favors connection to a building water loop.
High-Rise Buildings
The water-cooled design is particularly useful where exterior condenser ventilation is unavailable or impractical.
Wine Vault Installations
Large enclosed wine-storage environments can use the DP200WC when the calculated heat load and available water infrastructure support the system.
When the DP200WC Pro Is Not the Right Choice
- Do not select it for small cellars when a lower-capacity water-cooled model is sufficient.
- Do not use it where suitable water-cooling infrastructure is unavailable.
- Do not select it if a self-contained air-cooled system better matches the project.
- Do not use it where a through-the-wall cooling solution is required.
- Do not select it by cubic footage alone.
- Consider DP25WC, DP50WC, or DP88WC for lower-capacity installations.
Model Comparison
DP200WC Pro Compared With Smaller Water-Cooled Pro Models
| Model |
General Position |
When to Consider It |
| DP25WC |
Smallest water-cooled option referenced |
Consider for lower-capacity installations |
| DP50WC |
Mid-size water-cooled option |
Consider when DP25WC is too small but DP200WC is unnecessary |
| DP88WC |
Larger mid-capacity water-cooled option |
Consider for projects below DP200WC demand |
| DP200WC Pro |
Highest-capacity supplied water-cooled Pro model |
Consider for large residential and commercial installations |
Choose the Model From the Heat Load
Cellar volume is only preliminary guidance. Insulation, vapor barrier, glass area, ambient conditions, duct configuration, and other project factors can materially change the required capacity.
System Operation
How the DP200WC Water-Cooled Cooling System Works
1. Warm Cellar Air Returns to the Evaporator
Warm wine-cellar air travels through the return-air duct to the evaporator unit.
2. The Evaporator Removes Heat
The evaporator cools the incoming air before redistributing conditioned air through the supply ductwork.
3. Refrigerant Transfers Heat Away From the Cellar
The split refrigeration system carries the absorbed heat to the water-cooled condensing section.
4. The Water Loop Removes Condenser Heat
The condensing unit transfers heat from the refrigerant into the building water loop instead of rejecting heat through outside air.
5. Conditioned Air Returns to the Wine Cellar
The cellar receives cooled air through ductwork while the main mechanical equipment remains out of sight.
Why Water Cooling Matters
The water-cooled condenser makes the DP200WC useful in buildings where exterior venting or outdoor condenser placement is not practical.
Airflow
Evaporator Airflow and Duct Planning
| Fan Motor |
90–220 Watts |
| Rated Airflow |
Up to approximately 799 CFM |
| Condensate Drain |
0.5 in. |
Provide Correctly Sized Ductwork
The wine cellar must include correctly sized supply and return ductwork capable of handling the airflow requirements of the DP200WC.
Avoid Restrictive Air Paths
Long runs, sharp bends, restrictive grilles, and undersized ducts can reduce airflow and negatively affect performance.
Large-System Airflow Planning
With supplied evaporator airflow approaching 799 CFM, the DP200WC requires substantial duct capacity. Duct design should be treated as a core part of system planning.
Installation
Installation Requirements and Planning Considerations
Qualified HVAC-R Installation Is Required
The supplied content states that the DP200WC must be installed by a qualified HVAC-R technician experienced with refrigeration systems.
Provide Water-Cooling Infrastructure
The water-cooled condenser requires a compatible building water loop or other approved water-cooling infrastructure.
Provide Proper Wall and Ceiling Insulation
The cellar should be constructed as a conditioned wine-storage environment with appropriate insulation.
Install a Sealed Vapor Barrier
A properly sealed vapor barrier helps control moisture migration and reduces condensation risk.
Use an Insulated Cellar Door
The supplied installation guidance identifies an insulated cellar door as part of proper cellar construction.
Provide Correctly Sized Ductwork
Supply and return ductwork must be sized for the required airflow and installation layout.
Provide Adequate Drainage
Condensate drainage must be installed correctly and verified during commissioning.
Installation Warning
Improper insulation, vapor-barrier construction, drainage, duct design, or water-cooling infrastructure can lead to condensation, reduced cooling performance, and premature system wear.
Specifications
Wine Guardian DP200WC Pro Technical Specifications
General Specifications
| Brand |
Wine Guardian |
| Model |
DP200WC |
| Series |
Sentinel Series Pro Ducted |
| Cooling Type |
Water-Cooled Ducted Split System |
| Recommended Cellar Size |
Approximately 1,500–7,000 cubic feet |
| Maximum Published Cooling Capacity |
Approximately 15,785 BTU/h |
| Frequency |
60 Hz |
| Electrical Supply |
208–230V / 1 Phase |
| Weight |
206 lb |
Dimensions
| Length |
41.5 in. |
| Width |
22.5 in. |
| Height |
19 in. |
Evaporator Section
| Cabinet Construction |
Aluminum chassis with UL-rated plastic panels |
| Finish |
Gray powder-coated PVC acrylic blend |
| Condensate Drain |
0.5 in. |
| Fan Motor |
90–220 Watts |
| Rated Airflow |
Up to approximately 799 CFM |
Condensing Unit
| Enclosure Construction |
Aluminum |
| Finish |
Anodized |
| Electrical |
208–230V / 1 Phase |
| Compressor Amperage |
Up to approximately 11.3 amps |
| Minimum Circuit Ampacity |
Approximately 4.2–10 amps |
Control Platform
| Control Voltage |
24V |
| Compatible Controls |
Wine Guardian controllers, remote sensors, building-management systems, and smart-home automation systems |
Optional Add-Ons
Optional Accessories
Integrated Humidifier System
An integrated humidification option is available where active humidity control is required.
Freestanding Humidifier
A separate freestanding humidifier is also listed as an available option.
Electric Heat Kit
Optional electric heating can provide supplemental heat where cellar temperatures may fall below the desired operating range.
Wireless2Base™ Remote Sensors
Remote sensors can expand monitoring across larger cellar spaces.
Duct Kits and Grille Adapters
Optional ducting accessories can support the final supply-and-return air-distribution design.
Advanced System Controllers
Additional controller options are listed for projects requiring expanded system integration.
Extended Warranty Options
Extended warranty coverage is identified as an available option. Confirm current eligibility, terms, and exclusions before purchase.
Accessory Selection
Choose accessories based on actual project requirements. Do not assume every DP200WC installation requires humidification, electric heat, additional sensors, advanced controls, or accessory duct components.
System Components
What's Included
- Wine Guardian DP200WC ducted cooling unit
- Service panels and duct collars
- Integrated 24-volt control electronics
- Installation and operation manuals
Additional installation components may be required depending on the cellar design and water-cooling infrastructure.
Downloads
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Questions & Answers
Frequently Asked Questions
What size wine cellar is the Wine Guardian DP200WC Pro designed for?
The supplied product information positions the DP200WC Pro for approximately 1,500–7,000 cubic feet. Final selection should be based on a professional heat-load calculation.
What is the maximum cooling capacity of the DP200WC Pro?
The supplied content lists total cooling capacity up to approximately 15,785 BTU/h with sensible capacity around 10,455 BTU/h.
What makes the DP200WC different from an air-cooled system?
The DP200WC transfers condenser heat into a building water loop rather than relying on outside-air heat rejection.
Does the DP200WC require ductwork?
Yes. It is a fully ducted system that distributes conditioned air through supply and return ductwork.
Does the DP200WC require a water loop?
Yes. The water-cooled condenser requires suitable building water infrastructure or another compatible water-cooling arrangement.
What electrical service does the DP200WC require?
The supplied specifications list 208–230V / 1 Phase / 60 Hz electrical service.
How much airflow does the DP200WC provide?
The supplied evaporator specifications list airflow up to approximately 799 CFM.
Can the DP200WC provide humidity control?
Yes. Integrated and freestanding humidifier options are listed for projects requiring active humidity control.
When should I choose the DP88WC instead?
Choose the DP88WC when the calculated cooling load does not require DP200WC capacity. Avoid oversizing simply because the DP200WC is the largest supplied water-cooled Pro model.
Why is a heat-load calculation important?
Insulation, vapor-barrier quality, glass surfaces, ambient conditions, duct configuration, and other project variables can materially change the required cooling capacity.
Important Product Guidance
Use the DP200WC Pro When Large Cellars Need High-Capacity Water-Cooled Heat Rejection
The DP200WC Pro is best suited to large residential and commercial projects where ducted conditioned air is required but conventional exterior condenser-air ventilation is unavailable, restricted, or undesirable.
Verify current manufacturer specifications, water-loop requirements, duct design, electrical service, drainage, accessory compatibility, installation instructions, and warranty documentation before ordering. Final system sizing should be based on a project-specific heat-load calculation.
