Wine Guardian Sentinel Series Pro

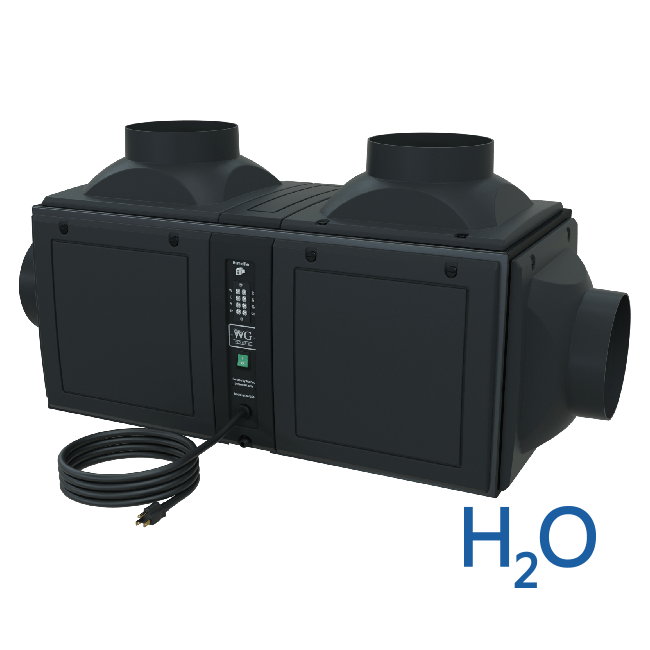

Wine Guardian DP25WC Pro Water-Cooled Ducted Wine Cellar Cooling System
The Wine Guardian DP25WC Pro is a water-cooled ducted wine cellar cooling system designed for wine cellars between approximately 250 and 2,000 cubic feet. Instead of rejecting condenser heat through outside air, the system transfers heat into a connected water supply, making it useful for interior wine rooms, high-rise buildings, condominiums, apartments, restaurants, and other projects where conventional exterior ventilation is unavailable.
Part of the Sentinel Series Pro Ducted lineup, the DP25WC combines water-cooled heat rejection with fully ducted air distribution. The cooling equipment can be installed outside the finished wine cellar while conditioned air is delivered through supply and return ductwork.
This configuration helps reduce mechanical noise inside the cellar, keeps equipment hidden, and provides flexible installation options for residential, commercial, and hospitality wine-storage environments.
Wine Guardian DP25WC Pro: Quick Decision Summary
Choose the DP25WC Pro when a small to medium wine cellar requires quiet, concealed ducted cooling but outdoor condenser-air exhaust is not practical or available.
| Best For |
Residential wine cellars, condominium wine rooms, luxury apartment cellars, restaurant wine-storage rooms, commercial wine displays, and hospitality wine-cellar installations. |
|---|---|
| System Type |
Water-cooled ducted wine cellar cooling system. |
| Recommended Cellar Size |
Approximately 250–2,000 cubic feet. |
| Cooling Capacity |
Approximately 3,000–4,520 BTU in the supplied technical specifications. |
| Temperature Range |
52°F–70°F. |
| Primary Advantage |
Provides ducted wine-cellar cooling without requiring traditional outdoor condenser-air heat rejection. |
Things to Know Before Ordering
- The DP25WC Pro is a water-cooled ducted system.
- A compatible building water supply is required for condenser heat rejection.
- The supplied cellar-size range is approximately 250–2,000 cubic feet.
- The supplied cooling range is approximately 3,000–4,520 BTU.
- Published free-blow airflow is 245 CFM.
- The system uses 24-volt thermostat-compatible controls.
- The supplied temperature range is 52°F–70°F.
- The supplied electrical requirement is 115V / 1 Phase / 60 Hz.
- The supplied water usage is 0.30 GPM.
- The supplied pressure drop is 0.40 PSI.
- The supplied water connection is 0.5-inch O.D.
- Optional humidification, remote monitoring, Wireless2Base™ controls, electric heat, ambient kits, duct accessories, and extended warranty options are available.
- Final selection should be based on a professional heat-load calculation.
For larger installations, compare the DP50WC, DP88WC, or DP200WC.
When Is the Wine Guardian DP25WC Pro the Right Choice?
High-Rise Wine Cellars
The water-cooled design is useful where traditional air-cooled systems cannot conveniently exhaust heat outdoors.
Condominiums and Apartments
Multi-unit residential buildings can benefit from water-based heat rejection when exterior condenser placement is restricted.
Interior Wine Rooms
Interior wine rooms without access to exterior ventilation can use the connected water supply to remove condenser heat.
Mechanical Rooms With Limited Heat-Rejection Options
The DP25WC is suitable for installations where condenser heat cannot be safely rejected into surrounding spaces.
Projects Where Outdoor Condenser Placement Is Not Allowed
The water-cooled configuration provides an alternative when the project cannot accommodate a conventional outdoor condensing unit.
When to Consider a Different Wine Guardian System
- Do not select the DP25WC if a suitable water supply is unavailable.
- Do not use it where supply and return ductwork cannot be installed.
- Do not size the system by cubic footage alone.
- Consider the DP50WC when the calculated load exceeds DP25WC capacity.
- Consider the DP88WC or DP200WC for substantially larger projects.
- Consider an air-cooled system when conventional heat rejection is easier for the project.
DP25WC Pro Compared With Other Water-Cooled Pro Models
| Model | Cooling Capacity in Supplied Comparison | Recommended Cellar Size |
|---|---|---|
| DP25WC | ~3,000–4,520 BTU | 250–2,000 ft³ |
| DP50WC | ~6,500–7,000 BTU | 500–4,000 ft³ |
| DP88WC | ~9,000–10,000 BTU | 1,000–6,000 ft³ |
| DP200WC | ~17,000+ BTU | Large commercial cellars |
Use the Comparison as Preliminary Guidance
Selecting the correct model depends on total heat load and cellar construction. Insulation, vapor-barrier quality, glass exposure, door design, ambient temperature, ceiling height, and duct configuration can all materially affect required capacity.
Why Use a Water-Cooled Wine Cellar Cooling System?
Water-cooled systems are generally used when air-cooled systems cannot conveniently exhaust condenser heat outdoors.
No Traditional Outdoor-Air Heat Rejection Required
The DP25WC transfers heat into a connected water supply rather than relying on outside airflow.
Useful for Interior Installations
Interior wine rooms located away from exterior walls can benefit from water-based condenser heat rejection.
Useful for High-Rise and Multi-Unit Buildings
Condominiums, apartments, and high-rise projects often have tighter restrictions on exterior equipment and exhaust routing.
Useful in Enclosed Mechanical Environments
The water-cooled configuration provides an alternative where hot condenser air cannot be rejected into the surrounding equipment space.
Confirm the Water Supply Before Ordering
The DP25WC requires continuous water supply and appropriate drainage for condenser heat rejection. Water usage, pressure drop, connection size, plumbing compatibility, and drainage should be confirmed before final equipment selection.
Key Features and Benefits of the Wine Guardian DP25WC Pro
Water-Cooled Condenser
The DP25WC uses a water-cooled condenser to remove heat instead of relying on outside airflow.
Fully Ducted Cooling Design
The system connects to supply and return ductwork so that cooling equipment can remain outside the wine cellar while conditioned air is delivered into the storage space.
Quiet Operation
Remote equipment placement helps reduce mechanical noise inside the wine room.
Precision Temperature Control
The supplied content identifies a wine-storage temperature range of:
52°F–70°F
Smart-Ready Control System
The DP25WC operates with 24-volt control wiring for compatibility with thermostats and building-management systems.
Service-Friendly Construction
The supplied content identifies removable access panels, service ports, and diagnostic components designed to simplify technician access.
Durable Cabinet Construction
The cabinet uses an aluminum chassis with UL-rated composite panels designed for durability in cellar environments.
How the Wine Guardian DP25WC Pro Water-Cooled System Works
1. Warm Cellar Air Returns Through Ductwork
Warm wine-cellar air travels through the return duct to the remotely installed cooling unit.
2. The Cooling System Removes Heat
The refrigeration system absorbs heat from the returning cellar air.
3. Conditioned Air Returns to the Wine Cellar
Cooled air is distributed back into the wine cellar through the supply ductwork.
4. Condenser Heat Transfers Into the Water Supply
Instead of venting hot condenser air outdoors, the DP25WC transfers heat into the connected building water supply.
5. Condensate Is Routed to Drainage
Moisture removed from the cellar air must be routed through the condensate drain system.
Cooling Capacity and Recommended Cellar Size
The supplied product content positions the DP25WC for small to medium wine cellars that are properly insulated and constructed with an appropriate vapor barrier.
| Cellar Size Category | Typical Volume |
|---|---|
| Small Cellar | 250–750 ft³ |
| Medium Cellar | 750–1,500 ft³ |
| Larger Compact Cellar | Up to 2,000 ft³ |
Factors That Affect Actual Sizing
- Insulation quality
- Vapor-barrier installation
- Glass exposure
- Door type
- Ambient room temperature
Professional Load Calculation Recommended
Cellar volume is only preliminary guidance. A professional heat-load calculation should be completed before final model selection.
DP25WC Cooling Performance
Cooling capacity varies with condenser inlet temperature and airflow conditions.
| Condenser Temperature | Cooling Capacity |
|---|---|
| 60°F | 4,520 BTU |
| 70°F | 4,300 BTU |
| 80°F | 3,760 BTU |
| 90°F | 3,540 BTU |
The supplied product content notes that cooling capacity may decrease as ambient temperature increases or airflow is reduced.
Performance Is Condition-Dependent
Do not treat the highest listed BTU figure as a fixed output under every installation condition. Use the applicable manufacturer performance data and project-specific load calculation when sizing the system.
Airflow Specifications
| Free-Blow Airflow | 245 CFM |
|---|---|
| Cooling Capacity Range | 3,000–4,520 BTU |
| Temperature Range | 52°F–70°F |
| Control Type | 24-Volt thermostat compatible |
Airflow Planning
Proper supply and return duct design helps maintain cooling performance. Restrictive grilles, undersized ducts, excessive bends, or poor return-air design can reduce effective airflow.
Water-Cooled Condenser Requirements
| Water Usage | 0.30 GPM |
|---|---|
| Pressure Drop | 0.40 PSI |
| Pipe Connection | 0.5 in. O.D. |
The supplied content states that water-cooled systems require continuous water supply and appropriate drainage to remove condenser heat.
Verify Plumbing Compatibility
Confirm the available water supply, flow conditions, pressure characteristics, connection size, drainage, and installation requirements before ordering.
Wine Guardian DP25WC Pro Technical Specifications
General Specifications
| Brand | Wine Guardian |
|---|---|
| Model | DP25WC |
| Series | Sentinel Series Pro Ducted |
| Cooling Type | Water-Cooled Ducted |
| Cooling Capacity | 3,000–4,520 BTU |
| Recommended Cellar Volume | 250–2,000 ft³ |
| Electrical | 115V / 1 Phase / 60 Hz |
| Control Type | 24-Volt thermostat compatible |
| Temperature Range | 52°F–70°F |
| Airflow — Free Blow | 245 CFM |
| Weight | 80 lb |
Dimensions
| Width | 33.45 in. |
|---|---|
| Depth | 16.6 in. |
| Height | 15.56 in. |
Water-Cooled Condenser
| Water Usage | 0.30 GPM |
|---|---|
| Pressure Drop | 0.40 PSI |
| Pipe Connection | 0.5 in. O.D. |
Optional Accessories
Integrated or Freestanding Humidifiers
Optional humidification can provide active humidity management where required by the wine-cellar environment.
Remote Monitoring Systems
Optional monitoring accessories can provide greater visibility into cellar conditions.
Wireless2Base™ Controls
The supplied content lists Wireless2Base™ control options for expanded monitoring and control flexibility.
Electric Heating Module
Optional electric heat can provide supplemental heating in colder environments.
Low-Ambient Operation Kit
A low-ambient kit is listed for installations exposed to colder operating conditions.
High-Ambient Operation Kit
A high-ambient kit is listed for installations exposed to warmer operating conditions.
Duct Kits and Grilles
Optional duct components can support airflow distribution and finished installation design.
Extended Warranty Options
Extended warranty coverage is listed as available. Confirm current terms, eligibility, and exclusions before purchase.
Accessory Selection
Choose accessories based on actual project requirements. Do not assume humidification, remote monitoring, Wireless2Base™ controls, electric heat, ambient kits, duct accessories, or extended warranty coverage are included with the standard DP25WC Pro.
Installation Requirements and Planning Considerations
Indoor Mechanical Installation
The supplied content identifies the DP25WC for indoor installation with ducted airflow.
Supply and Return Ductwork
The cooling unit connects to the wine cellar through supply and return ducts.
Building Water Connection
The condenser must connect to a suitable building water supply for heat rejection.
Condensate Drainage
Condensate must be routed to an appropriate drain line.
Proper Cellar Construction
The cellar should be properly insulated and constructed with an appropriate vapor barrier.
Qualified HVAC Installation
Because water-cooled systems require plumbing, airflow design, electrical service, and drainage, the supplied content recommends installation by a qualified HVAC professional experienced with wine-cellar systems.
Installation Warning
Do not finalize equipment selection until the heat load, duct design, water source, plumbing, electrical service, drainage, insulation, vapor barrier, and service access have been confirmed.
What's Included
- Wine Guardian DP25WC Pro cooling unit
- Built-in control electronics
- Supply and return duct connection points
- Water-cooled condenser connections
- Installation and operation documentation
Wine Guardian DP25WC Pro Videos
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Why Wine Guardian Cooling Systems Are Widely Used
The supplied content positions Wine Guardian systems as purpose-built for wine-storage environments rather than general refrigeration.
- Precise temperature stability
- Quiet residential operation
- Flexible ducted installation options
- Long service-life positioning
- Climate systems engineered specifically for wine-aging conditions
The supplied content also states that Wine Guardian has been manufacturing wine-cellar climate systems for more than two decades.
Frequently Asked Questions
What size wine cellar is the Wine Guardian DP25WC Pro designed for?
The supplied product content positions the DP25WC Pro for approximately 250–2,000 cubic feet. Final selection should be based on a professional heat-load calculation.
What is the cooling capacity of the DP25WC Pro?
The supplied technical specifications list approximately 3,000–4,520 BTU, while the performance table lists 4,520 BTU at a 60°F condenser temperature.
What makes the DP25WC different from an air-cooled system?
The DP25WC transfers condenser heat into a connected water supply instead of relying on traditional outside-air heat rejection.
Does the DP25WC require a continuous water supply?
Yes. The supplied content states that water-cooled systems require continuous water supply and appropriate drainage for condenser heat rejection.
How much water does the DP25WC use?
The supplied water-cooled condenser table lists water usage of 0.30 GPM.
How much airflow does the DP25WC provide?
The supplied technical specifications list 245 CFM free-blow airflow.
What electrical service does the DP25WC require?
The supplied specifications identify 115V / 1 Phase / 60 Hz power.
Can the DP25WC provide humidity control?
Yes. Integrated and freestanding humidifier options are listed as optional accessories.
Can the DP25WC integrate with smart controls?
The supplied content identifies 24-volt control wiring and lists Wireless2Base™ controls and remote monitoring systems as available options.
When should I choose the DP50WC instead?
Choose the DP50WC when the project-specific heat load exceeds the practical capacity of the DP25WC. Final selection should be based on the actual heat load rather than cellar volume alone.
Use the DP25WC Pro for Small to Medium Wine Cellars That Need Water-Cooled Ducted Cooling
The DP25WC Pro is best suited to residential, commercial, and hospitality wine-storage projects where concealed ducted cooling is desired but conventional outdoor condenser-air heat rejection is unavailable or impractical.
Verify current manufacturer specifications, water-supply requirements, duct design, airflow, electrical service, plumbing, drainage, accessory compatibility, installation instructions, and warranty documentation before ordering. Final system sizing should be based on a project-specific heat-load calculation.
