Wine Guardian Sentinel Series
Wine Guardian DS050 Ducted Split Wine Cellar Cooling System
The Wine Guardian DS050 is a ducted split wine cellar cooling system designed for medium-sized wine cellars between approximately 650 and 3,000 cubic feet. The system separates the evaporator from the condensing unit so the compressor and heat-producing components can remain outside the wine room while conditioned air is delivered through insulated ductwork.
This configuration provides quiet operation, flexible installation, and stable wine-storage conditions while keeping major mechanical equipment hidden from view.
The supplied product content positions the DS050 for custom residential wine cellars, restaurant wine-storage rooms, tasting rooms, hospitality wine displays, and medium commercial wine-storage environments.
Wine Guardian DS050: Quick Decision Summary
Choose the DS050 when a medium-sized wine cellar needs quiet ducted cooling with the condenser and compressor located away from the finished wine room.
| Best For |
Custom residential wine cellars, restaurant wine-storage rooms, tasting rooms, hospitality wine displays, and medium commercial wine-storage environments. |
|---|---|
| System Type |
Ducted split wine cellar cooling system. |
| Recommended Cellar Size |
Approximately 650–3,000 cubic feet. |
| Quick-Fact Cooling Capacity |
Up to approximately 6,458 BTU in the supplied content. |
| Highest Detailed Capacity |
6,765 BTU/h at 70°F condenser-air temperature. |
| Primary Advantage |
Quiet wine-cellar operation with remotely located compressor equipment and concealed ducted air distribution. |
Things to Know Before Ordering
- The DS050 is a ducted split wine-cellar cooling system.
- The evaporator and condensing unit are separate components.
- The supplied cellar-size range is approximately 650–3,000 cubic feet.
- The supplied quick facts list maximum cooling capacity at 6,458 BTU.
- The detailed performance table lists up to 6,765 BTU/h.
- Published evaporator maximum airflow is 410 CFM.
- Published airflow at rated pressure is 359 CFM at 0.20 in. WC.
- The evaporator requires 115V / 1 Phase / 60 Hz power.
- The condenser requires 208–230V / 1 Phase / 60 Hz power.
- Optional humidification, electric heating, remote sensors, climate-protection accessories, and duct kits are available.
- A professional heat-load calculation should be completed before purchase.
For smaller cellars, compare the DS025 Split System. For larger installations, review the DS088 or DS200 ducted split systems.
Who Is the Wine Guardian DS050 Best For?
Wine Cellars Between Approximately 650 and 3,000 Cubic Feet
The supplied content positions the DS050 for medium-sized wine-cellar applications within this general range.
Quiet Cooling Near Living or Entertaining Areas
Because the compressor is installed remotely, the DS050 is well suited to wine rooms near kitchens, living rooms, tasting areas, and entertainment spaces.
Custom Ducted Cellar Designs
The evaporator distributes conditioned air through supply and return ductwork, making the DS050 suitable for custom-built wine cellars and designer wine displays.
Projects With Remote Mechanical Space
The condensing unit can be located in a mechanical room, garage, or exterior location where heat can dissipate safely.
When to Consider a Different Cooling System
- Consider a smaller system if the cellar is under approximately 500 cubic feet.
- Do not choose the DS050 if ductwork cannot be installed.
- Consider another solution if a simple plug-in cooling system is preferred.
- Consider the DS025 for smaller calculated heat loads.
- Consider the DS088 or DS200 when more cooling capacity is required.
Wine Guardian Sentinel Series Ducted Split Comparison
| Model | Maximum Cooling Capacity in Supplied Comparison | General Position |
|---|---|---|
| DS025 | 4,100 BTU/h | Small wine cellars |
| DS050 | 6,700 BTU/h | Medium wine cellars |
| DS088 | 9,840 BTU/h | Large wine cellars |
| DS200 | 17,000+ BTU/h | Commercial wine storage |
Use the Comparison as General Guidance
The supplied comparison figures are approximate. Final model selection should account for insulation, vapor-barrier quality, glass area, ambient temperature, lighting, duct design, and the actual heat load of the wine cellar.
Key Features and Benefits of the Wine Guardian DS050
Split-System Design for Quiet Cooling
The DS050 separates the evaporator and condenser into two components.
The condenser is installed outside the wine cellar, typically in a mechanical room, garage, or exterior location, while the evaporator distributes conditioned air into the wine room.
This keeps compressor noise away from the cellar and creates a quieter wine-storage environment.
Flexible Ducted Installation
Supply and return air move through ductwork, allowing the cooling equipment to remain hidden while distributing conditioned air more evenly throughout the cellar.
Precision Temperature Control
The supplied content identifies temperature-control accuracy within ±1°F.
Humidity Accuracy
The supplied content identifies humidity accuracy within approximately ±10% RH.
Wireless2Base™ Digital Controller
The supplied package includes the Wine Guardian Wireless2Base™ digital controller for monitoring:
- Temperature
- Humidity
- System operation
Durable Commercial Construction
The DS050 uses reinforced composite panels and an aluminum chassis designed for wine-storage environments.
The supplied multi-panel design also supports easier service access.

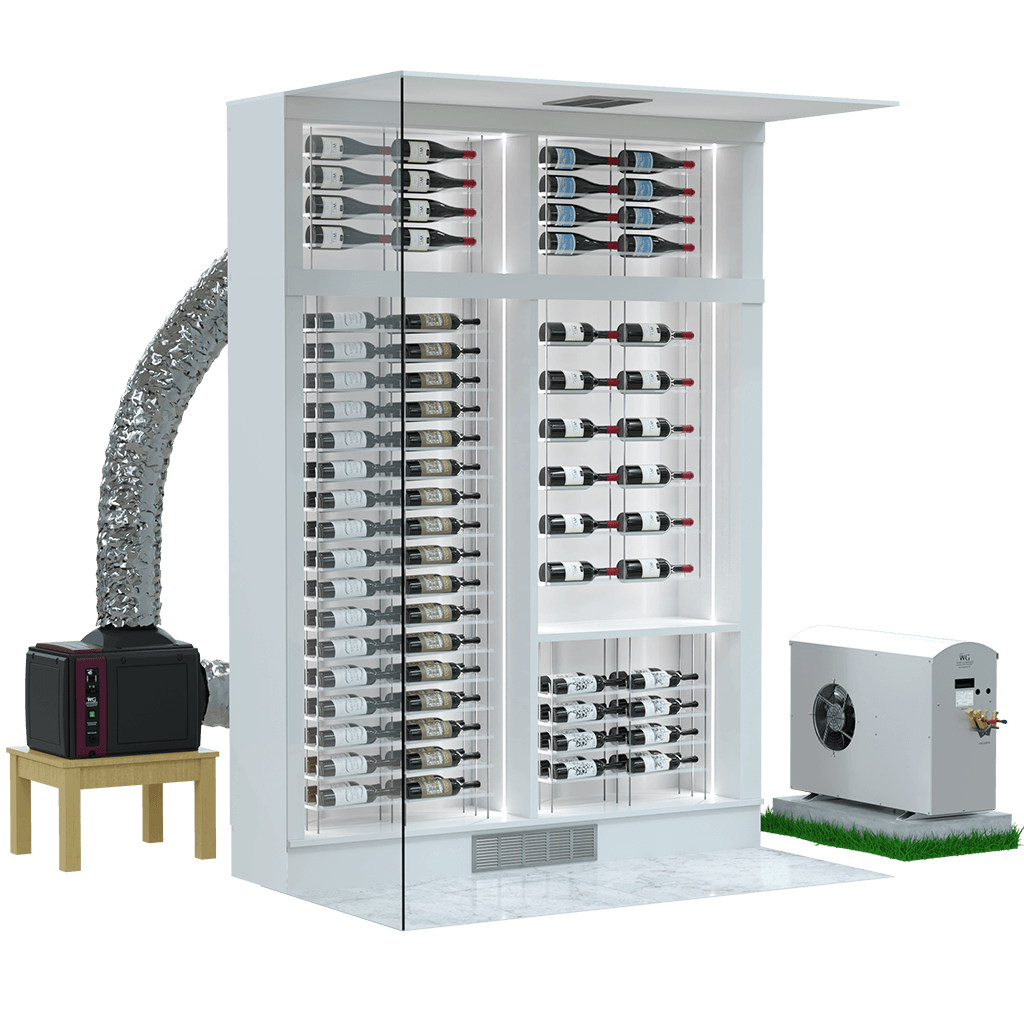

How the Wine Guardian DS050 Ducted Split System Works
1. Warm Cellar Air Returns Through Ductwork
Warm air from the wine cellar travels through the return duct to the evaporator.
2. The Evaporator Removes Heat
The evaporator removes heat from the returning cellar air.
3. Conditioned Air Returns Through Supply Ductwork
The evaporator fan sends cooled air back into the wine cellar through insulated supply ducts.
4. Refrigerant Transfers Heat to the Condensing Unit
The refrigeration line set transfers absorbed heat from the evaporator to the remotely installed condenser.
5. The Condenser Rejects Heat Away From the Wine Room
The condensing unit releases heat at its remote installation location, keeping compressor noise and heat away from the finished cellar.
Why Split Configuration Matters
The split arrangement allows quieter wine-cellar operation and gives installers more flexibility when deciding where heat-producing mechanical equipment should be located.
DS050 Cooling Performance
Cooling capacity varies depending on the temperature of the air entering the condenser.
| Condenser Air Temperature | Total Cooling Capacity | Sensible Cooling |
|---|---|---|
| 40°F (4°C) | 5,535 BTU/h | 4,203 BTU/h |
| 60°F (15°C) | 6,458 BTU/h | 5,023 BTU/h |
| 70°F (21°C) | 6,765 BTU/h | 5,330 BTU/h |
| 80°F (27°C) | 6,663 BTU/h | 5,125 BTU/h |
| 100°F (32°C) | 5,740 BTU/h | 4,510 BTU/h |
| 115°F (46°C) | 5,125 BTU/h | 3,793 BTU/h |
| 122°F (50°C) | 4,818 BTU/h | 3,485 BTU/h |
Total cooling capacity includes both temperature reduction and moisture removal.
Sensible cooling represents the portion of cooling dedicated to lowering air temperature.
Why the Source Shows 6,458 and 6,765 BTU
The supplied quick-fact and general-specification sections list a maximum cooling capacity of 6,458 BTU, while the detailed performance table lists 6,765 BTU/h at a 70°F condenser-air temperature.
Both values are retained because they come from different source sections and operating references.
Evaporator Airflow Specifications
| Fan Motor Size | 115 Watts |
|---|---|
| Maximum Airflow | 410 CFM |
| Airflow at Rated Pressure | 359 CFM @ 0.20 in. WC |
Airflow Planning
Correct duct sizing and low-resistance air distribution are important for maintaining the supplied airflow and cooling performance.
Wine Guardian DS050 Technical Specifications
General Specifications
| Brand | Wine Guardian |
|---|---|
| Model | DS050 |
| Series | Sentinel Series |
| Cooling System Type | Ducted Split System |
| Recommended Cellar Size | 650–3,000 cubic feet |
| Maximum Cooling Capacity in General Specifications | 6,458 BTU |
| Temperature Accuracy | ±1°F |
| Humidity Accuracy | ±10% RH |
| Controller | Wireless2Base™ Digital Control |

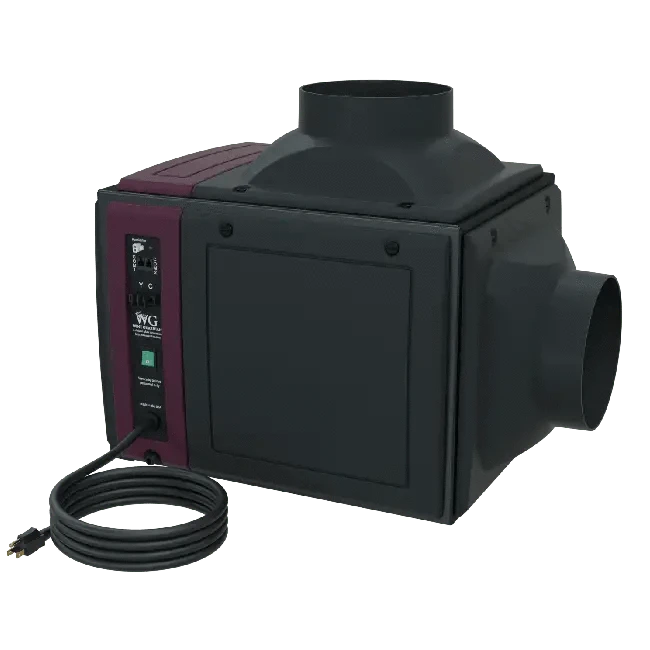

Evaporator Unit
| Fan Motor Size | 115 Watts |
|---|---|
| Maximum Airflow | 410 CFM |
| Airflow at Rated Pressure | 359 CFM @ 0.20 in. WC |
| Length | 23.81 in. |
| Width | 16.60 in. |
| Height | 19.65 in. |
| Weight | 54 lb |

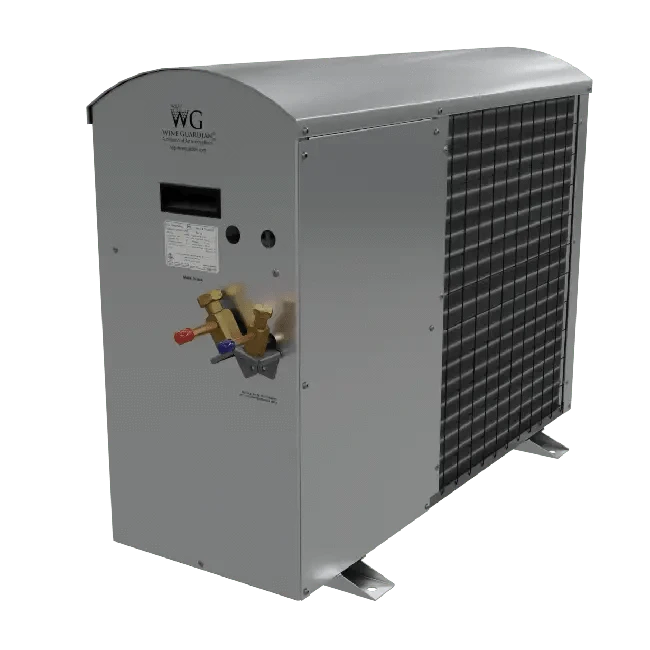

Condensing Unit
| Compressor Current | 11.3 Amps |
|---|---|
| Fan Motor | 75 Watts |
| Airflow | 375 CFM |
| Length | 34 in. |
| Width | 12 in. |
| Height | 26 in. |
| Weight | 76 lb |
Electrical Requirements
| Component | Electrical Specification |
|---|---|
| Evaporator Power | 115V / 1 Phase / 60 Hz |
| Condenser Power | 208–230V / 1 Phase / 60 Hz |
| Cooling Current Draw | Approximately 9.5 Amps |
| Optional Heater | 1,000 W or 2,000 W electric heater |

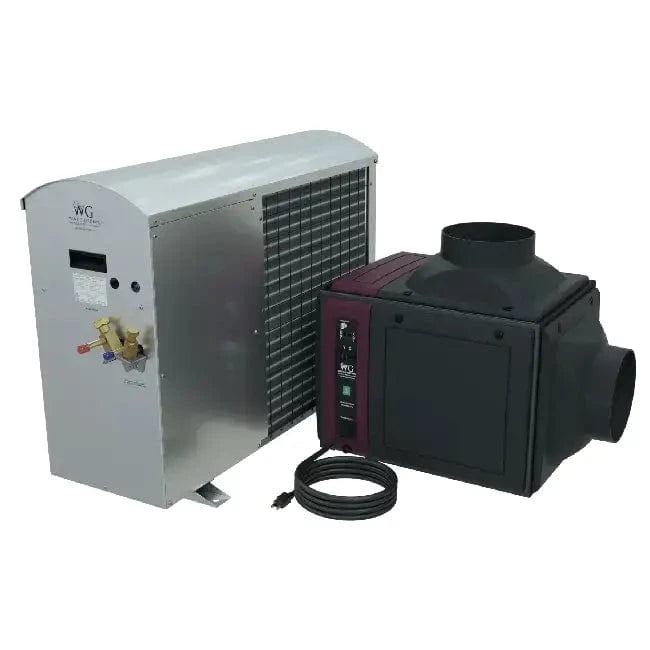

What's Included
- DS050 evaporator unit
- DS050 condensing unit
- Wireless2Base™ digital controller
- Supply and return duct collars
- Installation and user manuals
The supplied content states that the digital controller installs inside the wine cellar to monitor storage conditions.
Optional Accessories
All Wine Temperatures Bundle
The supplied content states that this option allows cooling temperatures as low as approximately 45°F.
Integrated Humidifier
Optional integrated humidification can support appropriate cellar humidity where active moisture control is required.
Extreme Climate Protection Kit
This option is listed for installations exposed to unusually hot or cold operating environments.
Remote Sensors and Controllers
Optional sensors and controllers can support temperature and humidity monitoring in multiple cellar zones.
Duct Kits and Grilles
Optional duct kits and grilles can provide finished air-distribution solutions for custom wine-cellar designs.
Accessory Selection
Select accessories according to the actual project requirements. Do not assume temperature bundles, humidification, extreme-climate protection, remote sensors, controllers, duct kits, or grilles are included with the standard DS050.
Installation Requirements and Planning Considerations
Qualified HVAC Technician Required
The supplied content states that the DS050 must be installed by a qualified HVAC technician because refrigeration lines connect the evaporator and condenser units.
Correct Refrigerant Charging
Professional commissioning helps ensure that the refrigeration circuit is properly charged and operating correctly.
Proper Duct Airflow
The supply and return duct system should be designed to maintain adequate airflow through the evaporator.
Remote Condenser Placement
The supplied content identifies mechanical rooms, garages, and exterior locations as typical condenser locations where heat can dissipate safely.
Cellar Insulation and Vapor Barrier
The wine cellar should be properly insulated and sealed to reduce heat and moisture infiltration.
Installation Recommendation
Professional installation helps support correct refrigerant charging, proper duct airflow, and reliable system operation.
Why Choose Wine Guardian?
The supplied product content describes Wine Guardian systems as widely used by wine-cellar designers, architects, and professional installers.
The brand focuses specifically on climate-control systems engineered for wine-storage environments.
- Stable temperature control
- Quiet operation
- Flexible installation options
- Durable construction for humid cellar environments
Wine Guardian DS050 Videos
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Frequently Asked Questions
What size wine cellar is the Wine Guardian DS050 designed for?
The supplied product content positions the DS050 for approximately 650–3,000 cubic feet. Final system selection should be based on a professional heat-load calculation.
What is the cooling capacity of the DS050?
The supplied quick facts and general specifications list up to 6,458 BTU. The detailed performance table lists up to 6,765 BTU/h at a 70°F condenser-air temperature.
Is the DS050 a split cooling system?
Yes. The evaporator and condensing unit are separate components connected by refrigeration lines.
Does the DS050 require ductwork?
Yes. The evaporator distributes conditioned air through supply and return ductwork.
How much airflow does the DS050 provide?
The supplied evaporator specifications list up to 410 CFM and 359 CFM at 0.20 in. WC rated pressure.
What electrical service does the DS050 require?
The supplied specifications list 115V / 1 Phase / 60 Hz for the evaporator and 208–230V / 1 Phase / 60 Hz for the condenser.
Can the DS050 provide humidity control?
Yes. An integrated humidifier is listed as an optional accessory.
Can the DS050 cool below normal wine-aging temperatures?
The supplied content identifies an All Wine Temperatures Bundle that allows cooling temperatures down to approximately 45°F.
When should I choose the DS025 instead?
Choose the DS025 when the calculated cooling requirement is lower and does not require DS050 capacity.
When should I choose the DS088 or DS200?
Choose a larger Sentinel Series split model when the project-specific heat load exceeds the practical capacity of the DS050.
Use the DS050 for Medium Wine Cellars That Need Quiet Ducted Split Cooling
The DS050 is best suited to residential and commercial wine-storage projects where ducted conditioned air is required while the compressor and condenser remain remotely located for quieter operation and installation flexibility.
Verify current manufacturer specifications, refrigerant requirements, duct design, condenser placement, electrical service, accessory compatibility, installation instructions, and warranty documentation before ordering. Final equipment sizing should be based on a project-specific heat-load calculation.
