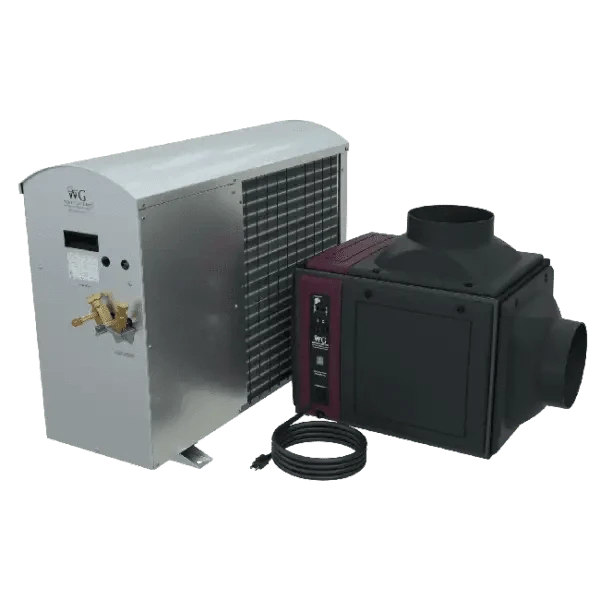

Wine Guardian DS200 Ducted Split System Wine Cooling Unit
Wine Guardian DS200 Ducted Split System Wine Cooling Unit - Base Model / Base Model is backordered and will ship as soon as it is back in stock.
Wine Guardian DS200 Ducted Split System Wine Cooling Unit
Fan-Coil Options: Base Model, Condenser Options: Base Model
Wine Guardian DS200 Ducted Split System Wine Cooling Unit
Wine Guardian DS200 Ducted Split System Wine Cooling Unit - Base Model / Base Model is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Wine Guardian Sentinel Series
Wine Guardian DS200 Ducted Split Wine Cellar Cooling System
The Wine Guardian DS200 is a high-capacity ducted split wine cellar cooling system designed for large residential and commercial wine cellars up to approximately 6,000 cubic feet. The system separates the evaporator and condensing unit, allowing the compressor and heat-rejection equipment to be installed remotely from the finished wine cellar.
This split configuration helps deliver quiet operation, flexible installation, and precise climate control while keeping major mechanical equipment away from the wine-storage environment.
Part of the Wine Guardian Sentinel Series, the DS200 is positioned for luxury residential cellars, restaurant wine rooms, hospitality venues, commercial wine storage, and large custom wine-cellar installations where stable temperature and humidity conditions are important.
The supplied product content identifies typical wine-storage conditions around 55°F and 55%–65% relative humidity when the cellar is properly insulated, sealed, and equipped for humidity management.
Wine Guardian DS200: Quick Decision Summary
Choose the DS200 when a large wine cellar needs concealed ducted airflow and the condenser should be located remotely to reduce heat and mechanical noise near the wine room.
| Best For |
Large residential wine cellars, restaurant wine storage, hospitality wine programs, commercial wine collections, and large custom cellar installations. |
|---|---|
| System Type |
Ducted split wine cellar cooling system. |
| Recommended Cellar Size |
Up to approximately 6,000 cubic feet in the supplied product content. |
| Cooling Capacity |
The supplied quick overview lists approximately 15,785 BTU, while the detailed performance table lists up to 17,425 BTU under the stated operating condition. |
| Installation |
Evaporator ducted near the cellar with the condensing unit installed remotely. |
| Primary Advantage |
Large-cellar cooling with reduced compressor noise near the wine room and flexible condenser placement. |
Things to Know Before Ordering
- The DS200 is a ducted split system.
- The evaporator and condensing unit are separate components.
- Refrigerant lines connect the two sections.
- The supplied cellar-size guidance is up to approximately 6,000 cubic feet.
- The supplied quick overview lists up to approximately 15,785 BTU cooling capacity.
- The detailed performance table lists up to 17,425 BTU at 60°F condenser-air temperature.
- Published evaporator free-blow airflow is 759 CFM.
- Published condenser airflow is 875 CFM.
- Both major components are listed for 208–230V / 1 Phase / 60 Hz power.
- Optional integrated humidification is available.
- Wireless2Base™ remote monitoring is identified in the supplied content.
- A professional heat-load calculation should be completed before purchase.
For smaller applications, compare the DS025, DS050, or DS088.
Who Is the Wine Guardian DS200 Best For?
Large Residential Wine Cellars
The supplied content positions the DS200 for large residential wine rooms where smaller Sentinel Series split systems do not provide sufficient capacity.
Restaurant Wine Storage
Restaurants can benefit from remote compressor placement and concealed ducted air distribution in customer-facing wine-storage environments.
Hospitality Wine Programs
Hotels, clubs, tasting venues, and other hospitality applications can use the DS200 where quiet operation and large-cellar cooling are priorities.
Commercial Wine Collections
The DS200 can serve commercial wine-storage environments when the calculated load, ducting, and electrical infrastructure match the system requirements.
Large Custom Wine Cellar Installations
The split configuration provides flexibility for architecturally complex cellar projects where the condenser must be located away from the wine room.
When the DS200 May Not Be the Right Choice
- Do not select the DS200 for a small wine room simply because it offers more capacity.
- Do not use it where duct routing cannot be accommodated.
- Do not proceed if remote condenser placement is not possible.
- Do not select the system by cubic footage alone.
- Consider the DS025, DS050, or DS088 for smaller cooling loads.
- Use a professional heat-load calculation before choosing the final model.
Wine Guardian Sentinel Series Ducted Split Comparison
| Model | Max Cooling Capacity in Supplied Comparison | Recommended Cellar Size |
|---|---|---|
| DS025 | ~4,100 BTU | ~1,500 cu. ft. |
| DS050 | ~6,700 BTU | ~3,000 cu. ft. |
| DS088 | ~10,455 BTU | ~4,500 cu. ft. |
| DS200 | ~15,785 BTU | ~6,000 cu. ft. |
Use the Supplied Comparison as General Guidance
The comparison values above are preserved from the source content. Final equipment selection should account for insulation, vapor barrier, glass area, ambient conditions, lighting, door usage, duct design, and the actual project heat load.
Key Features and Benefits of the Wine Guardian DS200
High Cooling Capacity
The supplied product content identifies approximately 15,785 BTU in the quick overview, while the detailed cooling table lists higher capacity under certain condenser-air conditions.
Ducted Split-System Design
The DS200 separates the evaporator and condenser into two components connected by refrigerant lines.
The evaporator serves the cellar through supply and return ductwork while the condenser can be installed remotely.
Quiet Operation
Because the compressor and condenser are located away from the wine room, the DS200 helps minimize mechanical noise inside the cellar.
Wireless2Base™ Remote Monitoring
The supplied content identifies a Wireless2Base™ digital controller for cellar-condition monitoring and support for additional sensors.
Optional Humidity Control
An optional integrated humidifier can support relative humidity around:
55%–65% RH
Durable Construction
The supplied content identifies:
- UL-rated composite panels
- Aluminum construction
- Service-access panel design
Service-Friendly Design
Multi-panel access is intended to simplify maintenance and service for qualified HVAC technicians.
How the Wine Guardian DS200 Ducted Split System Works
1. Warm Cellar Air Returns to the Evaporator
Warm wine-cellar air travels through insulated return ductwork to the evaporator section.
2. The Evaporator Removes Heat
The evaporator absorbs heat from the returning cellar air.
3. Conditioned Air Returns Through Supply Ductwork
The evaporator fan sends cooled air back into the wine cellar through the supply-air duct system.
4. Refrigerant Transfers Heat to the Condensing Unit
The refrigeration circuit carries absorbed heat from the evaporator to the remote condensing unit.
5. The Condenser Rejects Heat Away From the Cellar
The condensing unit can be installed outdoors or in a suitable mechanical location away from the wine room.
Why the Split Configuration Matters
Separating the evaporator from the condensing unit helps eliminate compressor noise inside the cellar, improves installation flexibility, and supports clean architectural integration.
DS200 Cooling Performance
The supplied performance table shows that DS200 cooling capacity varies with condenser-air temperature.
| Condenser Air Temperature | Total Cooling Capacity | Sensible Capacity |
|---|---|---|
| 40°F (4°C) | 17,118 BTU | 11,173 BTU |
| 60°F (15°C) | 17,425 BTU | 11,173 BTU |
| 70°F (21°C) | 16,195 BTU | 10,968 BTU |
| 80°F (27°C) | 15,785 BTU | 10,455 BTU |
| 100°F (32°C) | 14,145 BTU | 9,738 BTU |
| 115°F (46°C) | 12,608 BTU | 8,815 BTU |
Why the Source Shows 15,785 and 17,425 BTU
The supplied quick overview lists the DS200 at approximately 15,785 BTU, while the detailed performance table lists 17,425 BTU at a 60°F condenser-air temperature. Both values are retained because they appear in different source sections and operating contexts.
Performance Depends on Installation Conditions
Condenser-air temperature, airflow, cellar construction, insulation, vapor barrier, and other project-specific conditions can affect available cooling performance.
Evaporator and Condenser Airflow
Evaporator Specifications
| Fan Motor | 180 W |
|---|---|
| Airflow — Free Blow | 759 CFM |
| Airflow at Maximum Pressure Loss | 728 CFM |
Condensing Unit Airflow
| Fan Motor | 150 W |
|---|---|
| Airflow | 875 CFM |
Large-System Airflow Planning
The DS200 requires substantial airflow. Duct sizing, grille selection, return-air design, and pressure loss should be treated as core parts of system planning.
Installation Requirements and Planning Considerations
Provide a Sealed Wine Cellar
The supplied content identifies proper insulation and vapor-barrier construction as important for maintaining wine-storage conditions.
Provide Supply and Return Ductwork
The evaporator connects to the wine cellar through ducted supply and return air paths.
Plan the Remote Condenser Location
The condensing unit can be installed remotely, typically outdoors or in a suitable mechanical room.
Install Refrigerant Lines
The evaporator and condenser must be connected through a properly installed refrigeration line set.
Provide Condensate Drainage
The supplied evaporator specifications identify a 0.5-inch condensate drain connection.
Provide Correct Electrical Service
The supplied content identifies 208–230V / 1 Phase / 60 Hz electrical service for both the evaporator and condensing-unit sections.
Use Professional HVAC Installation
The supplied content recommends professional HVAC installation and periodic servicing.
Installation Warning
Do not finalize equipment selection before confirming the heat load, refrigerant-line routing, duct system, condenser placement, electrical service, drainage, insulation, vapor barrier, and future service access.
Wine Guardian DS200 Technical Specifications
System Overview
| Brand | Wine Guardian |
|---|---|
| Model | DS200 |
| Series | Sentinel Series |
| System Type | Ducted Split Wine Cellar Cooling System |
| Recommended Cellar Size | Up to approximately 6,000 cubic feet |
| Quick-Overview Cooling Capacity | Approximately 15,785 BTU |
| Highest Capacity in Supplied Performance Table | 17,425 BTU at 60°F condenser-air temperature |
| Electrical | 208–230V / 1 Phase / 60 Hz |
| Humidity Control | Optional integrated humidifier |

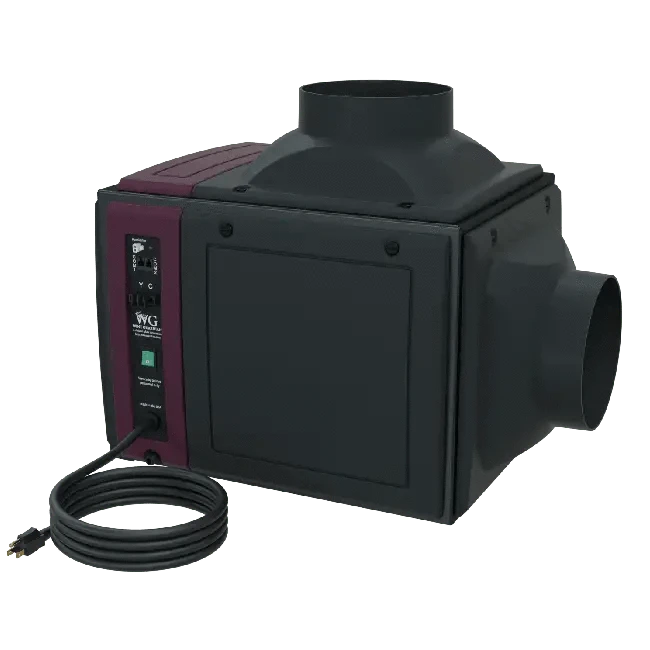

Evaporator Specifications
| Fan Motor | 180 W |
|---|---|
| Airflow — Free Blow | 759 CFM |
| Airflow at Maximum Pressure Loss | 728 CFM |
| Weight | 69 lb |
| Length | 23.81 in. |
| Width | 25.04 in. |
| Height | 19.65 in. |
| Condensate Drain | 0.5 in. |

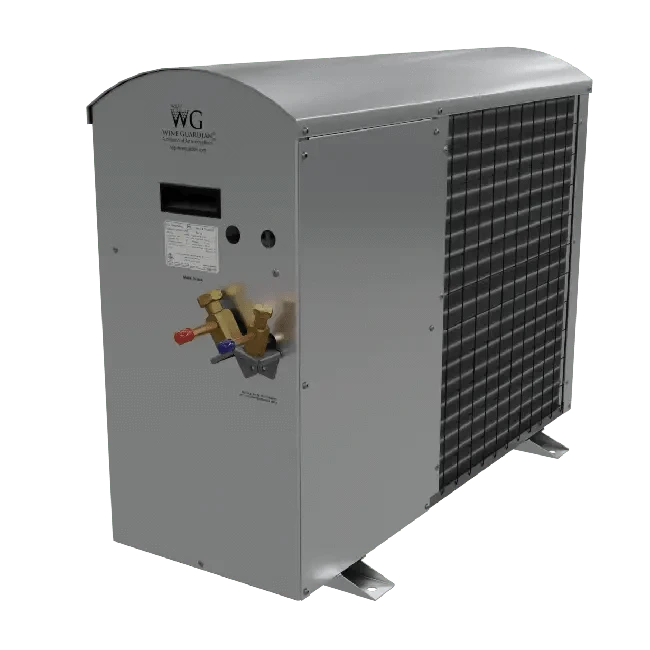

Condensing Unit Specifications
| Compressor Current | 11.3 Amps |
|---|---|
| Fan Motor | 150 W |
| Airflow | 875 CFM |
| Weight | 120 lb |
| Length | 34 in. |
| Width | 12 in. |
| Height | 26 in. |
Electrical Requirements
| Component | Power | MCA | MOP |
|---|---|---|---|
| Evaporator | 208–230V / 1PH / 60Hz | — | — |
| Condensing Unit | 208–230V / 1PH / 60Hz | 24.4 Amps | 35 Amps |
Optional Humidifier Capacity
| Water Temperature | Output |
|---|---|
| 60°F (15°C) | 0.42 lb/hr |
| 90°F (32°C) | 0.97 lb/hr |
| 120°F (49°C) | 1.11 lb/hr |
Optional Accessories
All Wine Temperatures Bundle
The supplied content states that this option allows cooling temperatures down to approximately 45°F.
Integrated Humidifier
The optional integrated humidifier can support approximately 55%–65% RH.
Remote Temperature Sensors
Additional sensors can support monitoring across multiple cellar zones.
Extreme Climate Protection Kit
The supplied content identifies an Extreme Climate Protection Kit for hot or cold outdoor installations.
Professional Duct Kits and Grilles
Optional duct kits and grilles can support clean architectural integration with custom wine-cellar designs.
Accessory Selection
Choose accessories according to the actual installation requirements. Do not assume temperature bundles, humidification, remote sensors, extreme-climate protection, or duct accessories are included with the standard DS200 system.
What's Included
- Wine Guardian DS200 evaporator unit
- Wine Guardian DS200 outdoor condensing unit
- Wireless2Base™ digital controller
- Supply and return duct collars
- Installation and quick-start documentation
Maintenance and Service
Routine maintenance helps support reliable cooling performance and long system life.
- Inspect and replace air filters as required.
- Check duct connections.
- Inspect refrigerant lines.
- Clear condensate drains.
- Verify electrical connections.
Professional Service Recommended
The supplied content recommends professional HVAC installation and periodic servicing.
Why Choose Wine Guardian?
The supplied content describes Wine Guardian systems as purpose-built for precision climate control in custom wine-storage environments.
- Manufactured in the United States
- More than 20 years of wine-cellar climate expertise in the supplied content
- Systems engineered specifically for wine storage
- Used in luxury residential and commercial wine-cellar applications
Wine Guardian DS200 Videos
Brochures, Manuals, Specifications, Warranty, and CAD Drawings
Frequently Asked Questions
What size wine cellar is the Wine Guardian DS200 designed for?
The supplied product content positions the DS200 for large wine cellars up to approximately 6,000 cubic feet. Final equipment selection should be based on a professional heat-load calculation.
What is the cooling capacity of the DS200?
The supplied quick overview lists approximately 15,785 BTU. The detailed performance table lists up to 17,425 BTU at a 60°F condenser-air temperature.
Is the DS200 a split system?
Yes. The evaporator and condensing unit are separate components connected by refrigerant lines.
Does the DS200 require ductwork?
Yes. The evaporator serves the wine cellar through supply and return ductwork.
How much airflow does the DS200 provide?
The supplied specifications list 759 CFM free-blow evaporator airflow, 728 CFM at maximum pressure loss, and 875 CFM condenser airflow.
What electrical service does the DS200 require?
The supplied content identifies 208–230V / 1 Phase / 60 Hz power for both the evaporator and condensing-unit sections.
Can the DS200 provide humidity control?
Yes. An optional integrated humidifier is listed for projects requiring active humidity management around approximately 55%–65% RH.
Can the DS200 cool below normal wine-aging temperatures?
The supplied content identifies an All Wine Temperatures Bundle that allows cooling temperatures down to approximately 45°F.
When should I choose the DS088 instead?
Choose the DS088 when the project-specific heat load does not require DS200 capacity. Avoid oversizing simply because the DS200 is the largest supplied Sentinel Series split model.
Why is remote condenser placement useful?
Remote condenser placement helps move compressor heat and mechanical noise away from the finished wine cellar while giving installers more flexibility in equipment location.
Use the DS200 for Large Wine Cellars That Need High-Capacity Ducted Split Cooling
The DS200 is best suited to large residential and commercial wine-storage projects where conditioned air should be distributed through ductwork while the condensing unit remains remotely located for quieter and more flexible installation.
Verify current manufacturer specifications, refrigerant requirements, duct design, condenser placement, electrical service, drainage, accessory compatibility, installation instructions, and warranty documentation before ordering. Final equipment sizing should be based on a project-specific heat-load calculation.
