What Is the Breezaire WKL 1060 Designed For?
The Breezaire WKL 1060 is a self-contained through-the-wall wine cellar cooling system designed for properly insulated wine cellars up to approximately 140 cubic feet.
It installs directly through the cellar wall and vents warm air out the rear of the unit into an adjacent room. It is engineered specifically to maintain stable wine storage temperatures between 50°F and 60°F.
This model is best suited for:
- Small residential wine cellars
- Closets converted into cellars
- Under-stair installations
- Compact, fully insulated wine rooms
Also available: Breezaire WKL 2200 (up to 265 cu. ft.), Breezaire WKL 3000 (up to 650 cu. ft.), Breezaire WKL 4000 (up to 1000 cu. ft.), Breezaire WKL 6000 (up to 1500 cu. ft.), Breezaire WKL 8000 (up to 2000 cu. ft.).
Quick Fit Summary
| Feature | Breezaire WKL 1060 |
|---|---|
| Maximum Cellar Size | Up to 140 cu. ft. |
| Installation Type | Through-the-Wall |
| Cooling Capacity | 1060 BTU |
| Exhaust Direction | Rear |
| Electrical Requirement | 115V, 60Hz, 3A |
| Noise Level | Moderate (compressor inside unit) |
| Best For | Small insulated wine cellars |
| Not Ideal For | Large or glass-heavy rooms |
What Cellar Conditions Are Required?
The WKL 1060 is rated for cellars up to 140 cubic feet only when properly constructed.
Minimum construction standards:
- R-19 insulated walls
- R-30 insulated ceiling
- Sealed vapor barrier
- Insulated exterior-grade door
- Minimal glass exposure
If insulation is inadequate, cooling performance will decrease and the unit may run continuously.
How Through-the-Wall Installation Works
The WKL 1060 is a self-contained system.
- The front of the unit faces into the wine cellar.

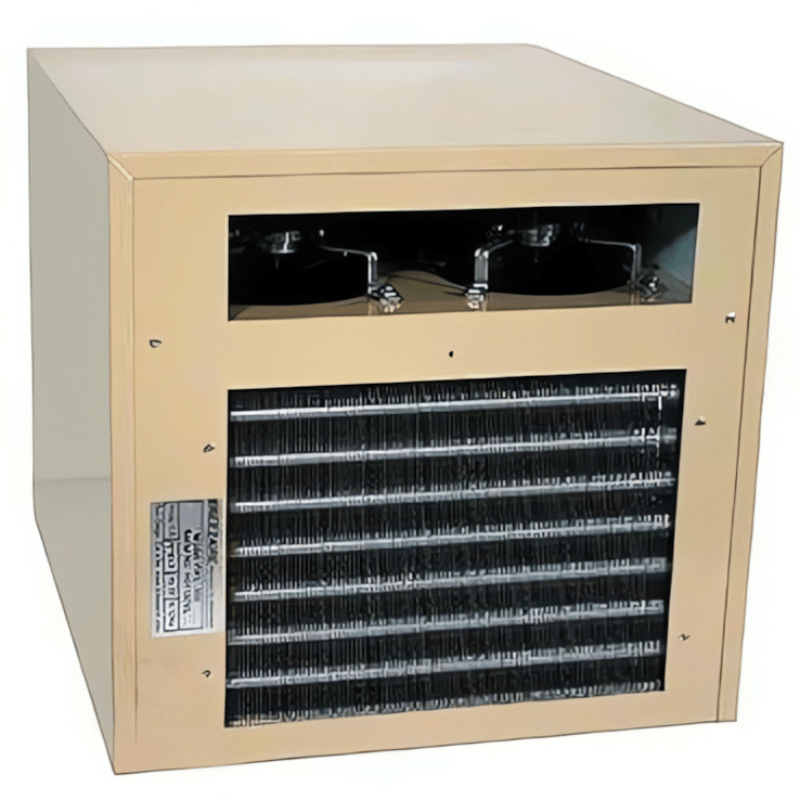

- The rear of the unit exhausts warm air into an adjacent space.
The exhaust room must:
- Be larger than the cellar
- Remain below 85°F
- Have adequate ventilation
Failure to provide proper rear ventilation can cause overheating and premature system wear.
When to Choose the WKL 1060
Choose this model if:
- Your cellar is under 140 cubic feet
- You want a simple through-the-wall installation
- You have proper rear ventilation space
- You prefer a standard 115V electrical setup
- You are not installing near noise-sensitive rooms
When the WKL 1060 Is NOT the Right Choice
Do not choose this model if:
- Your cellar exceeds 140 cubic feet
- The cellar has large glass walls
- The exhaust area cannot stay cool
- You require ultra-quiet interior operation
- You need a remote condenser (split system)
In those cases, a larger or split-system unit is required.
Temperature & Humidity Performance
The WKL 1060 is engineered specifically for wine storage — not general air conditioning.
It:
- Maintains stable cellar temperatures between 50–60°F
- Automatically manages defrost cycles
- Helps maintain proper humidity levels in sealed cellars
It is not a standalone humidification system.
Humidity stability depends on cellar construction quality.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Breezaire WKL 1060 |

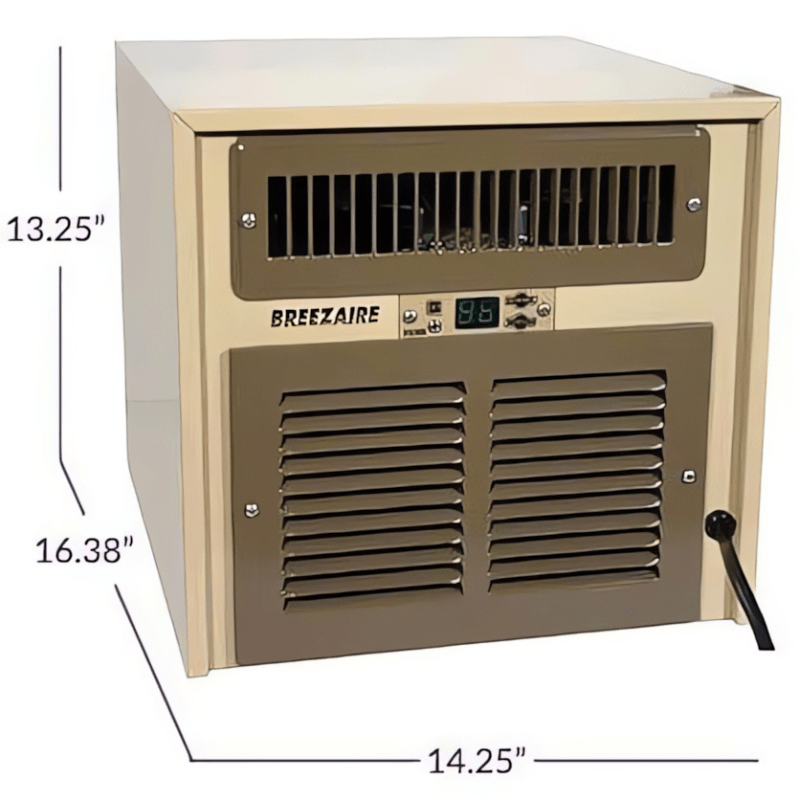

| Dimensions (H × W × D) | 13.25" × 14.25" × 16.38" |
| Weight | 45 lbs |
| Cooling Capacity | Up to 140 cu. ft. |
| BTU Cooling | 1060 BTU |
| Installation | Through-the-Wall |
| Exhaust Direction | Rear |
| Electronic Controls | Yes |
| Digital Temperature Display | LED Readout |
| Humidity Control | Automatic |
| Defrost System | Automatic |
| Electrical Requirements | 115 V, 60 Hz – 3 A |
| Warranty | 1 Year (Unit) · 5 Years (Parts) |
Manuals & Documentation
WKL 1060 vs Split Systems
| Feature | WKL 1060 | Split System |
|---|---|---|
| Compressor Location | Inside unit | Remote |
| Interior Noise | Moderate | Very low |
| Installation | Through-the-wall | Professional HVAC |
| Best For | Small residential cellars | Quiet / luxury builds |
Choose the WKL 1060 if you want simplicity.
Choose a split system if noise reduction is critical.
Before Ordering the WKL 1060
Confirm the following:
☐ Cellar does not exceed 140 cubic feet
☐ Insulation meets R-value standards
☐ Rear exhaust room is ventilated
☐ Door is insulated and sealed
☐ Electrical supply is 115V
If any of these conditions are not met, consult sizing guidance before purchasing.
Summary
The Breezaire WKL 1060 is a compact, through-the-wall wine cellar cooling unit designed for insulated wine cellars up to 140 cubic feet.
It is a practical solution for small residential installations where rear ventilation is available and moderate operating noise is acceptable.
It is not designed for oversized, glass-heavy, or under-insulated spaces.
When properly installed in a sealed cellar within rated capacity, it provides stable conditions suitable for long-term wine storage.
How a Bottle Probe Protects Your Wine Collection
How to Reset Your Breezaire Sentry III Controller
How to Set & Adjust Temperature on Breezaire Cooling Units
How to Set & Adjust All Settings on Breezaire Cooling Units
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
This model is simpler to install than split systems, but proper wall framing, rear ventilation, and electrical compliance are required. Improper installation can reduce performance and void warranty coverage.
The unit helps maintain appropriate humidity levels in properly sealed cellars. It does not actively add moisture. Poor sealing or frequent door opening will reduce humidity stability.
If the rear exhaust area exceeds recommended temperatures, the unit may overheat, short cycle, or lose cooling efficiency. Adequate ventilation behind the unit is critical.
The WKL 1060 is engineered to maintain cellar temperatures between 50°F and 60°F when properly sized and installed.
The WKL 1060 is rated for wine cellars up to 140 cubic feet when fully insulated and sealed. If your cellar exceeds this size or contains large glass panels, a higher-capacity model is required.
Because the compressor is inside the unit, the WKL 1060 produces moderate mechanical noise similar to a small air conditioning unit. It is not designed for silent installations. If noise is a concern, consider a split system."]
