WhisperKOOL Ceiling Mount 4000 Ductless Split System
WhisperKOOL Ceiling Mount 4000 Ductless Split System is backordered and will ship as soon as it is back in stock.
WhisperKOOL Ceiling Mount 4000 Ductless Split System is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Description
Description
Is This the Right Cooling System for Your Wine Cellar?

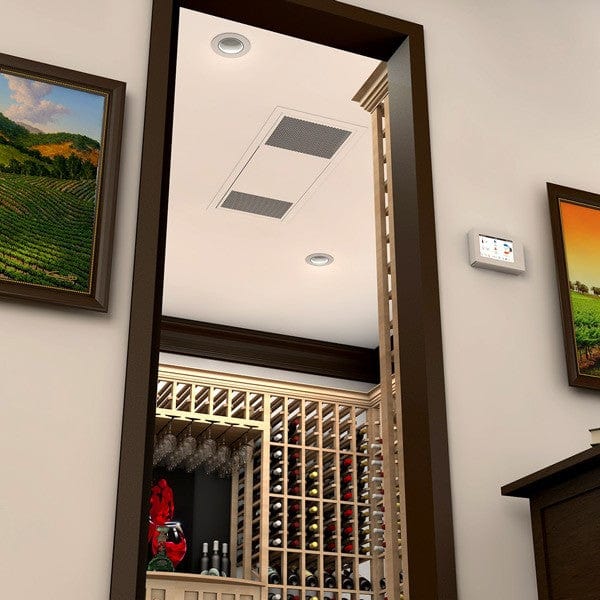

The WhisperKOOL Ceiling Mount Split System is designed for homeowners and contractors who want minimal visual impact with professional-grade cooling performance.
It is best for:

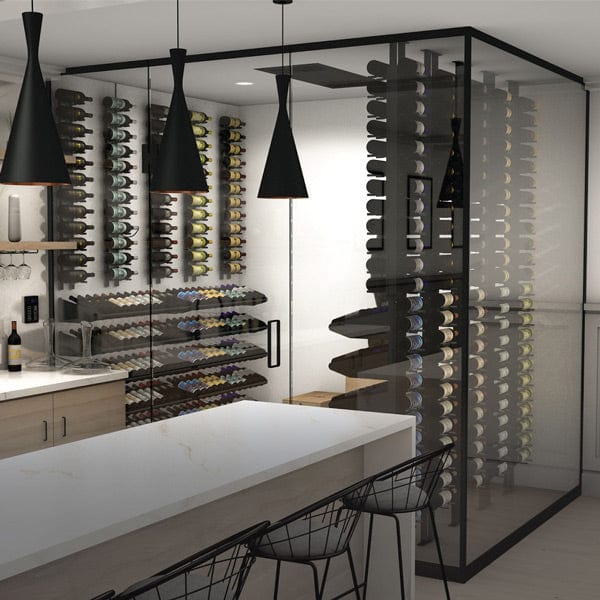

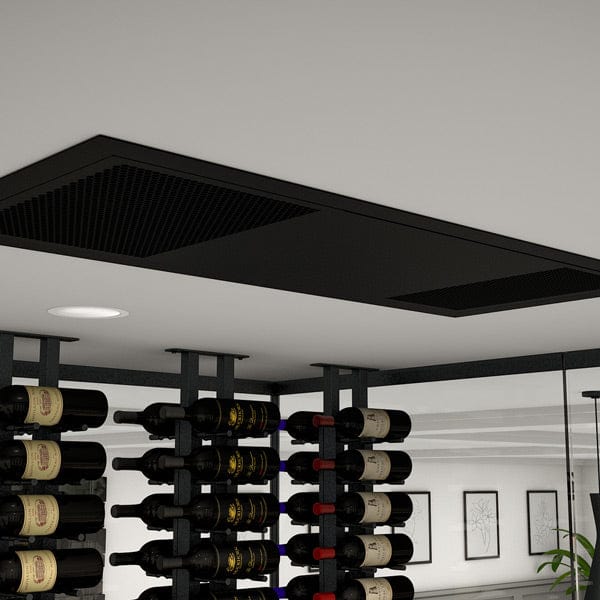

- Modern glass wine walls
- Cellars with limited wall space
- New builds or remodels with ceiling cavity access
- Fully insulated, sealed wine rooms
It is not ideal for:
- Uninsulated basements
- Rooms without a vapor barrier
- DIY installation
- Cellars exceeding 2,000 cubic feet
If your cellar is properly constructed and within capacity range, this system delivers discreet, stable 55°F storage even in warm climates.

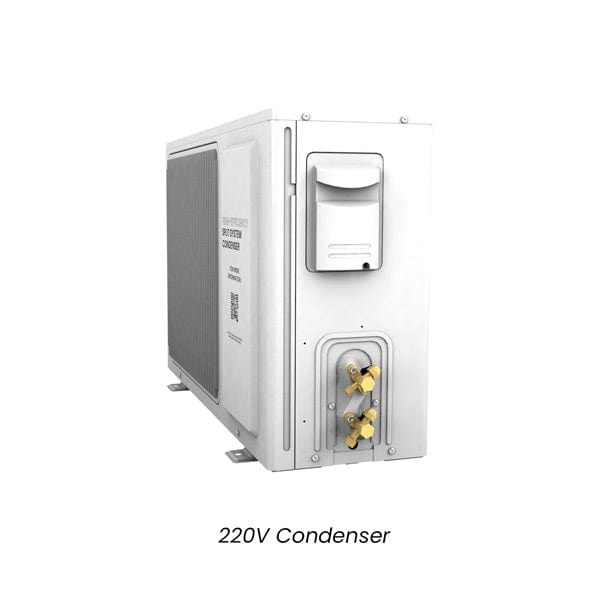

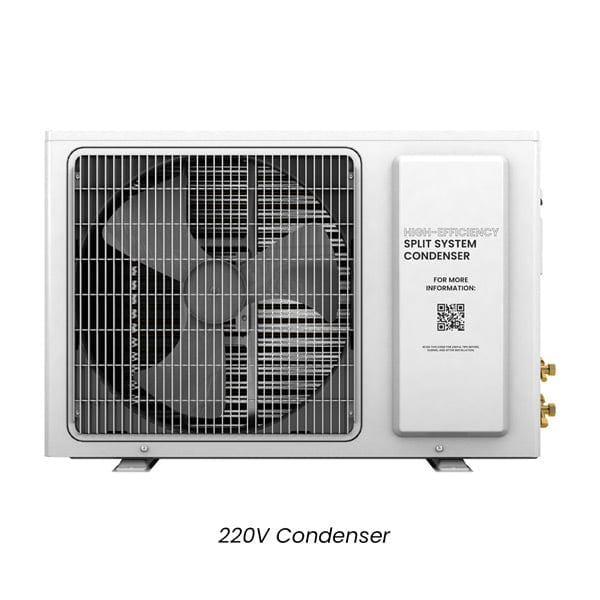

Available in WhisperKOOL Ceiling Mount 4000 220V Condenser & WhisperKOOL Ceiling Mount 4000 110V Condenser for 1000 cu.ft.
Other Sizes: WhisperKOOL Mini Ceiling Mount for 500 cu.ft. wine cellar, WhisperKOOL Ceiling Mount 8000 for 2000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount Twin 9000 for 3000 cu.ft. wine cellar and WhisperKOOL Ceiling Mount Twin 12000 for 3500 cu. ft.
4000 vs 8000 — Which Model Do You Need?
| Model | Recommended Cellar Size* | BTU Output (85°F condenser intake) | Horsepower |
|---|---|---|---|
| 4000 | Up to 1,000 cu. ft. | 4,000 BTU/h | 1.57 HP |
| 8000 | Up to 2,000 cu. ft. | 5,254 BTU/h | 2.06 HP |
*Assumes fully insulated enclosure with proper vapor barrier.
If your cellar includes:
- Large glass panels
- Stone or concrete surfaces
- High ambient exposure
- Poor door sealing
You may require upsizing beyond cubic footage guidelines.
When in doubt, confirm via cooling load evaluation.
How the Ceiling Mount Split System Works
This is a ductless split cooling system:

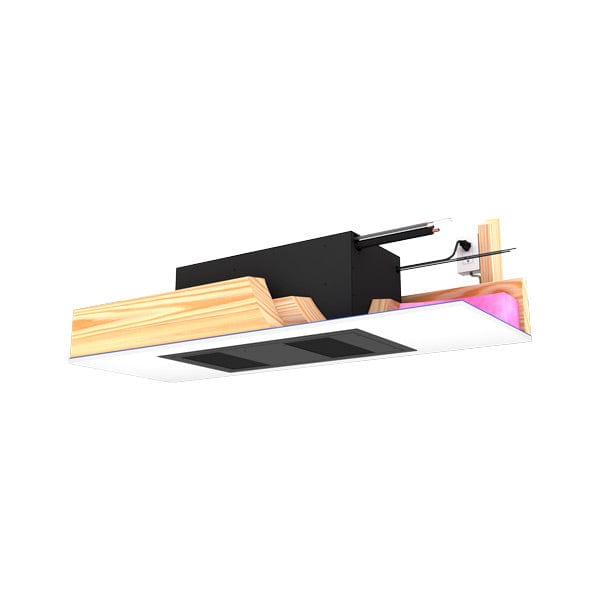

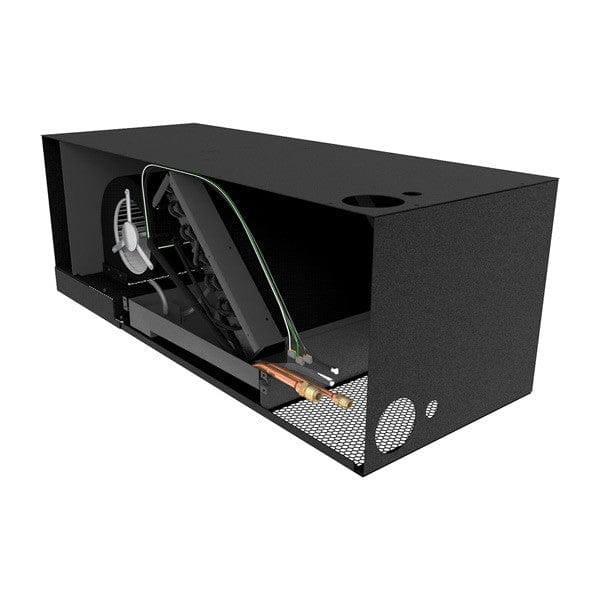

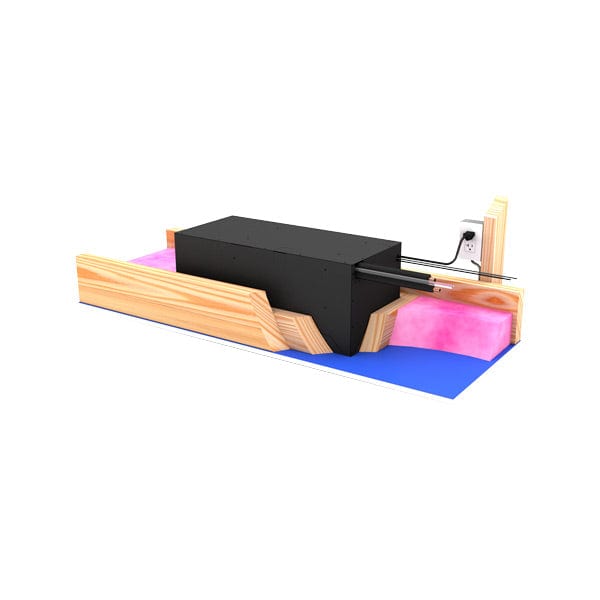

- The evaporator installs inside the cellar ceiling.
- The condenser installs remotely (garage, attic, utility room, or outdoors with housing).
- Refrigerant lines connect both units (up to 100 line feet).
- No ductwork required.
Because the compressor sits outside the cellar, interior noise is reduced compared to through-the-wall systems.
Performance Capabilities
- Maintains 55°F cellar temperature
- Designed to operate with condenser air intake temperatures up to 110°F
- Suitable for warm-climate installations (with proper ventilation)

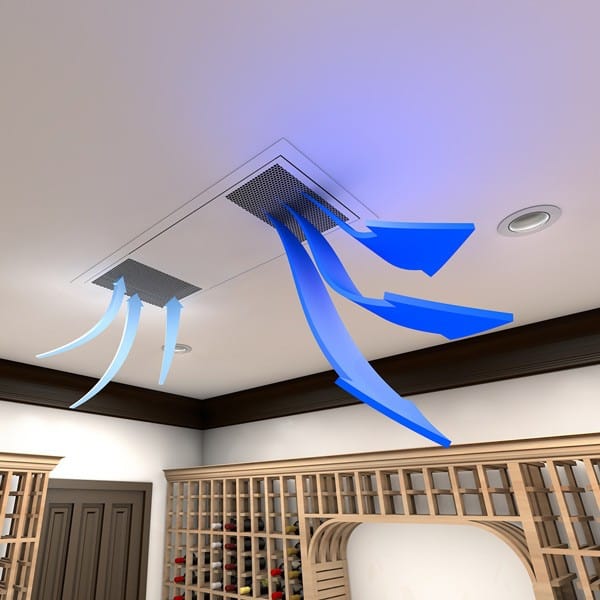

CFM: 321
Refrigerant: R-134a
Wine cooling systems are engineered for temperature stability, not rapid cooling like comfort HVAC.
Installation Requirements
Professional HVAC-R installation is required.
Failure to use a licensed technician voids the warranty.
Minimum cellar requirements:
- Full insulation
- Continuous vapor barrier
- Airtight door seal
- Dedicated 115V circuits
- Proper drainage planning
Improper room preparation is the most common cause of system failure.
Technical Specifications
Cooling & Electrical
| Specification | Model 4000 | Model 8000 |
|---|---|---|
| Capacity | Up to 1,000 cu. ft. | Up to 2,000 cu. ft. |
| BTU/h (85°F intake) | 4,000 | 5,254 |
| Horsepower | 1.57 HP | 2.06 HP |
| CFM | 321 | 321 |
| Evaporator Voltage | 115V (15-amp dedicated circuit required) | Same |
| Condenser Voltage | 115V (15-amp dedicated circuit required) | Same |
| Evaporator Amps | 1 (running) | 1 (running) |
| Condenser Amps | LRA 43 / RLA 8 | LRA 43 / RLA 8 |
Dimensions
Evaporator: 35.75” L x 12.75” H x 14.5” W
Condenser: 16.08” L x 16.23” W x 12.61” H
Confirm framing depth and service clearance before installation.
Weight
| Component | 4000 | 8000 |
|---|---|---|
| Evaporator | 80 lbs | 80 lbs |
| Condenser | 56 lbs | 66 lbs |
Drainage
¼” ID clear plastic tubing (not included).
Drain slope must be properly pitched to prevent backup.
Line Set Distance
Maximum distance between evaporator and condenser: 100 line feet
Longer runs may affect performance and require professional confirmation.
Thermostat & Monitoring

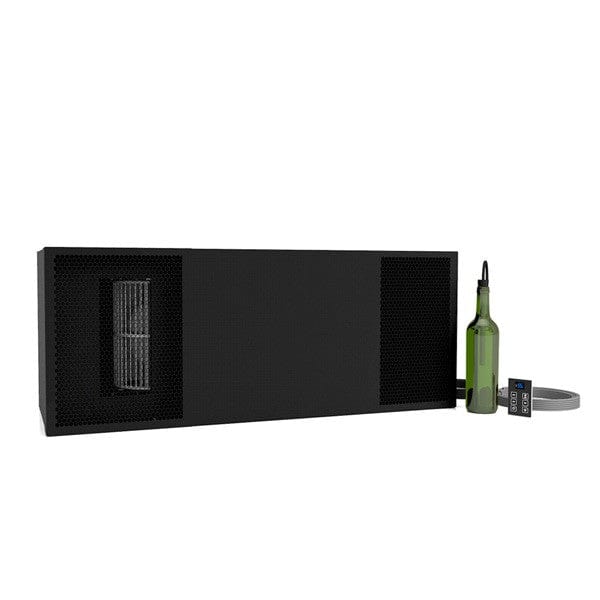

Includes:
- Advanced digital touch display (50 ft. cable)
- Liquid-temperature bottle probe (50 ft. cable)
The bottle probe measures wine liquid temperature rather than air, improving stability and reducing short cycling.
Manuals for WhisperKOOL Ceiling Mount 4000 Ductless Split:
Please click below to read and download the owner manual for this cooling system.
- Owner's Manual for WhisperKOOL Ceiling Mount 4000 Ductless Split System
- Technician's Manual for WhisperKOOL Ceiling Mount 4000 Ductless Split System
- Product Features & Specifications for WhisperKOOL Ceiling Mount 4000 Ductless Split System
- Warranty Information for WhisperKOOL Ceiling Mount 4000 Ductless Split System
- Owner's Manual (24V Thermostat Conversion Kit) for WhisperKOOL Ceiling Mount 4000
- Technician's Manual (24V Thermostat Conversion Kit) for WhisperKOOL Ceiling Mount 4000
- Product Sheet for WhisperKOOL Ceiling Mount 4000 Ductless Split System
Best For
- Contemporary residential wine cellars
- Glass wine walls
- Remodels with ceiling access
- Projects prioritizing low visual impact
Not Recommended For
- DIY installers
- Rooms lacking vapor barrier
- Commercial cellars requiring redundancy
- Cellars above 2,000 cu. ft.
Common Installation Mistakes to Avoid
- Skipping vapor barrier
- Installing condenser in unventilated space
- Undersizing for high-glass rooms
- Improper drain slope
- Sharing circuits with other appliances
Wine cooling systems require environmental preparation as much as mechanical installation.
Warranty
Two-Year Limited Warranty (Parts & Labor)
Valid only when installed by licensed HVAC-R technician.
Professional Recommendation
Before purchasing, confirm:
- Cubic footage
- Insulation R-value
- Vapor barrier presence
- Condenser placement location
- Electrical availability
Cooling system mis-sizing leads to condensation issues, excessive runtime, and shortened lifespan.
Final Call to Action
Not sure which model is right for your cellar?
Request a Cooling Load Evaluation to confirm sizing before purchase.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
Yes. A continuous vapor barrier is required to prevent moisture infiltration. Without it, condensation can form within walls and ceiling cavities, leading to mold, insulation failure, and cooling inefficiency.
Yes, but only with appropriate exterior housing and ventilation clearance. The condenser must receive adequate airflow and cannot be placed in sealed or overheated environments.
The system may run continuously, struggle to maintain 55°F, and experience premature wear. Cooling systems are designed for sealed environments, not unfinished basement spaces.
Up to 100 line feet. Longer distances may reduce efficiency and require professional load verification.
Yes. Because the compressor is located outside the cellar, interior noise levels are reduced compared to self-contained systems.
Select the 4000 for cellars under 1,000 cu. ft. with minimal glass exposure. Select the 8000 for cellars between 1,200–2,000 cu. ft., higher ambient temperatures, or significant glass/stone surfaces. When uncertain, perform a cooling load calculation."]
