WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency

WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency Review

Want to free up your cellar space from a bulky wine cooler unit? This WhisperKOOL Ceiling Mount Twin 9000 220V High Efficiency Ductless Split System is an excellent choice!

NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Ceiling Mount Twin 9000 220V. Failure to adhere to this requirement will void the warranty.

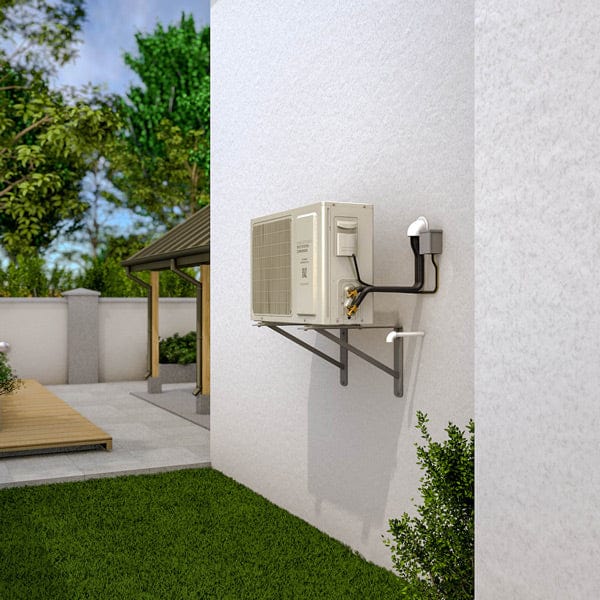

WhisperKOOL has designed a split wine room cooling unit called the Ceiling Mount Twin 9000 with 220V high-efficiency condenser, which features dual evaporators for larger capacities. This system allows you to keep your wine in the spotlight while keeping the cooling unit out of sight.

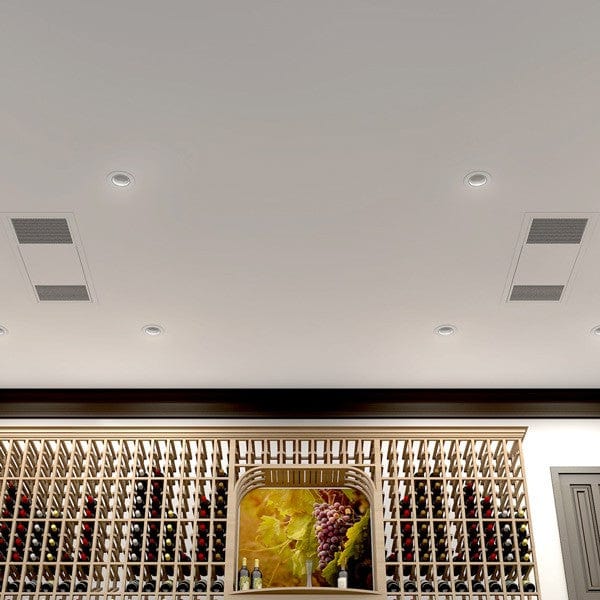

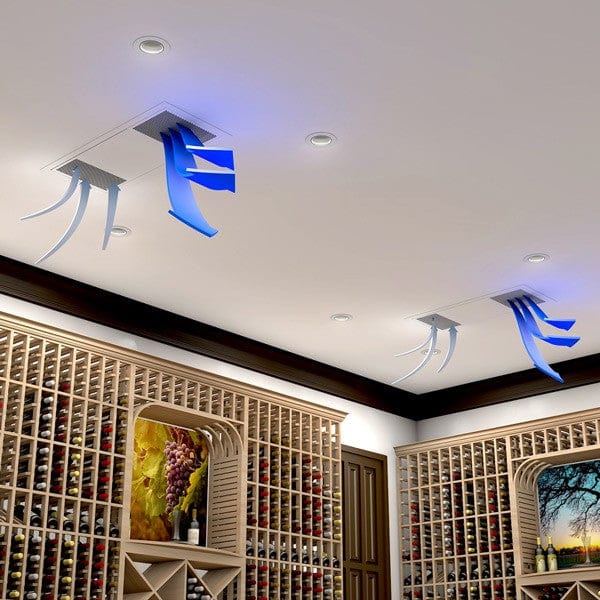

This WhisperKOOL wine cooling system is virtually invisible when installed in the cellar and efficiently draws the warmer air accumulated at the ceiling and cools it, then distributed throughout the space, keeping your wine at the ideal temperature without any disturbance. It does not require ducts and offers standard and 24V thermostat options. The exterior grille has a durable black powder-coated finish that can be custom-painted to match the cellar.

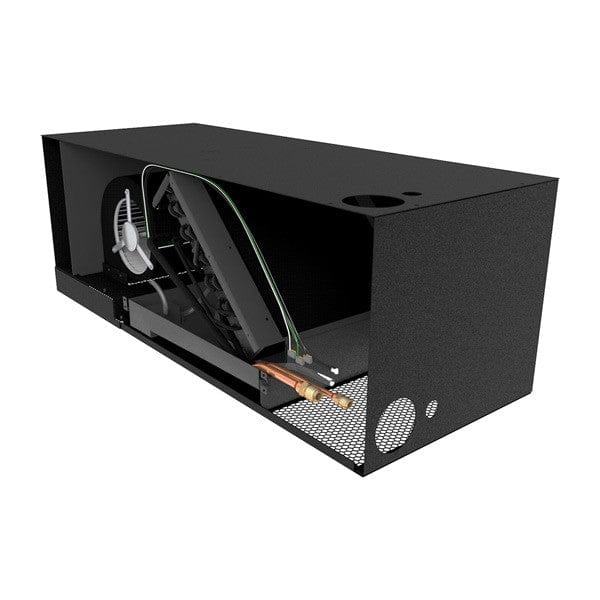

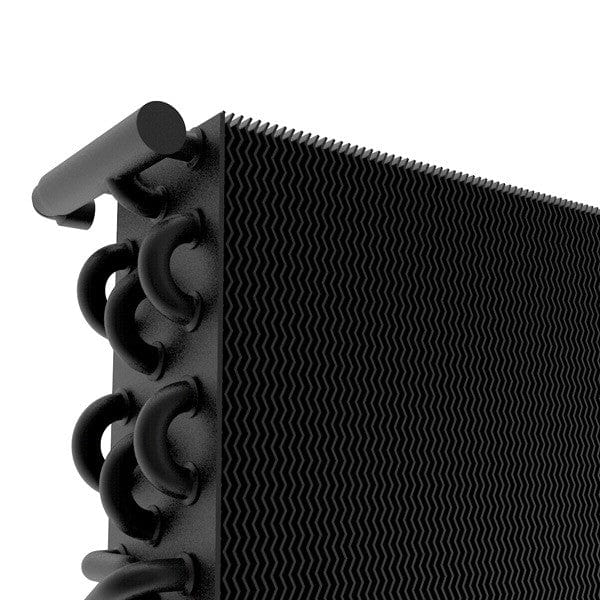

This WhisperKOOL wine cooling unit features an improved design for easier installation, with bottom-mounted wiring and line set access. Flare fittings simplify setup—no brazing needed. It also includes e-coated Duramax evaporator coils, a redesigned hex mesh grille, and a protective air filter for enhanced performance and durability.

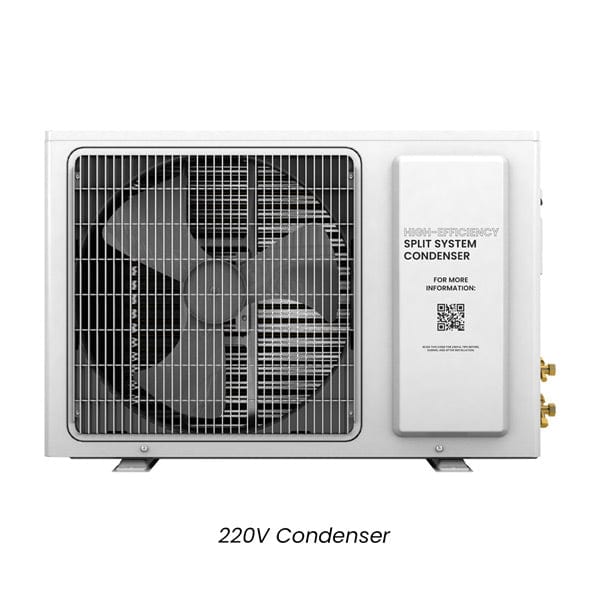

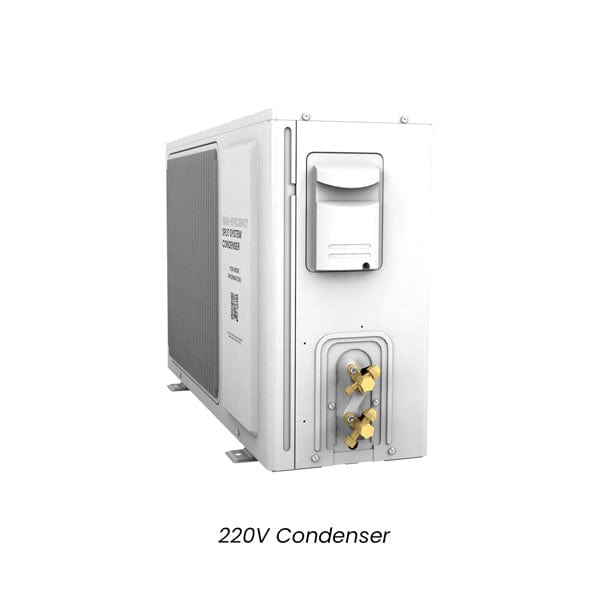

Available in WhisperKOOL Ceiling Mount Twin 9000 110V Condenser & Ceiling Mount Twin 9000 220V Condenser for 3000 cu.ft.

Other Sizes: WhisperKOOL Mini Ceiling Mount 220V H.E. for 500 cu.ft, WhisperKOOL Ceiling Mount 4000 220V H.E. for 1000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount 8000 220V H.E. for 3000 cu.ft. wine cellar and WhisperKOOL Ceiling Mount Twin 12000 220V H.E. for 3500 cu. ft.

WhisperKOOL Reviews: WhisperKOOL Ceiling Mount Series

Let's hear from Audie Burgan, our customer from Clovis, CA, giving his testimonial about the new WhisperKOOL Ceiling Mount cooling system he installed for his wine cellar.

If you want to pair your wine room cooling units with the best wine racks, check out Ultra Wine Racks & Cellars for unique and modern wine racks.

Buy the WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency today and enjoy your amazing wines at their best temperature!

Key Features

Features:

• TOUCH DISPLAY
  The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.

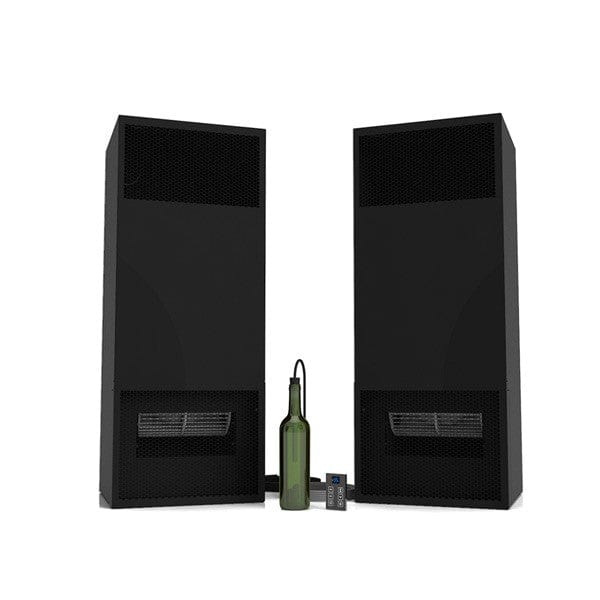

• BOTTLE PROBE
  The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.

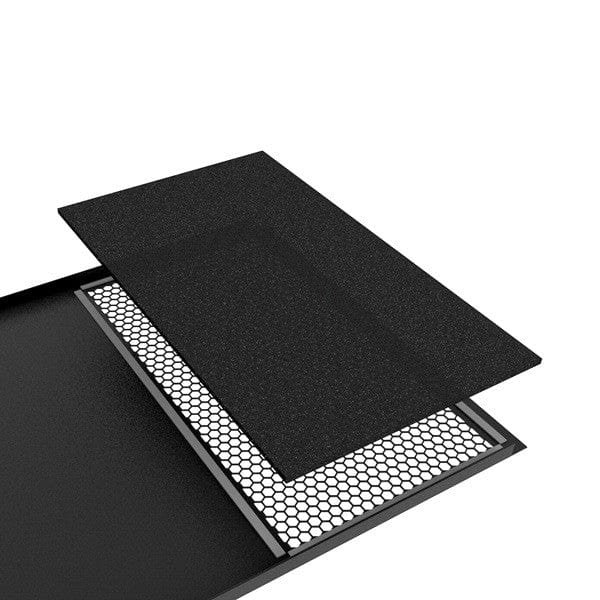

• AIR FILTER
  WhisperKOOL air filter has been added to protect the unit from the intake of potentially harmful debris during the initial start-up or installation of wine racks.


Manuals

Manuals:

High-Efficiency Owner Manual

Please click below to read and download the owner manual for this cooling system.

• Owner Manual for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency
• H.E. Owner Manual for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency
• Addendum for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency

Please click below to view all product specifications for WhisperKOOL Ceiling Mount Twin 9000 Split Ductless Wine Cellar Cooling Units - 220V H.E

• 220V High-Efficiency Product Sheets for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency

New 24-volt thermostat conversion kit for WhisperKOOL split systems

• 24V Thermostat Conversion Kit for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency

Product Warranty for WhisperKOOL Split System Units

A limited 2-year product warranty is offered with all WhisperKOOL split systems.

• High Efficiency 220 Warranty Registration for WhisperKOOL Ceiling Mount Twin 9000 Ductless Split System 220V High Efficiency

BTU/h

8500 – 10064

The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.

Specifications

Specifications:

• Cellar Size: Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
• Dimensions: Evaporator: 35.75”L x 14.5”W x 12.75”H | Condenser: 16.08”L x 16.23”W x 12.61″H
• Drain Line: 1/4″ ID clear plastic tubing (not provided)
• BTU/h: 8500 - 10064
• WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.

• Bottom View
  The signature WhisperKOOL Ceiling Mount was created to be mounted flush to the drywall or sheet rock and fitted between the ceiling joists.

• Top View
  The unit's top or side can be used for running electrical wiring, bottle probe wiring, and line set wiring.


24V THERMOSTAT CONVERSION KIT (OPTIONAL)

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

• Connect your thermostat to Wi-Fi to control the temperature from your phone, tablet, or laptop.
• Monitor run time and energy usage.
• Set alarm notifications.
• View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

For more information, check out 24V Thermostat Conversion Kit.

WhisperKOOL Accessories

WhisperKOOL Accessories (Optional)

You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system.

Exterior Protective Housing for WhisperKOOL Split Systems

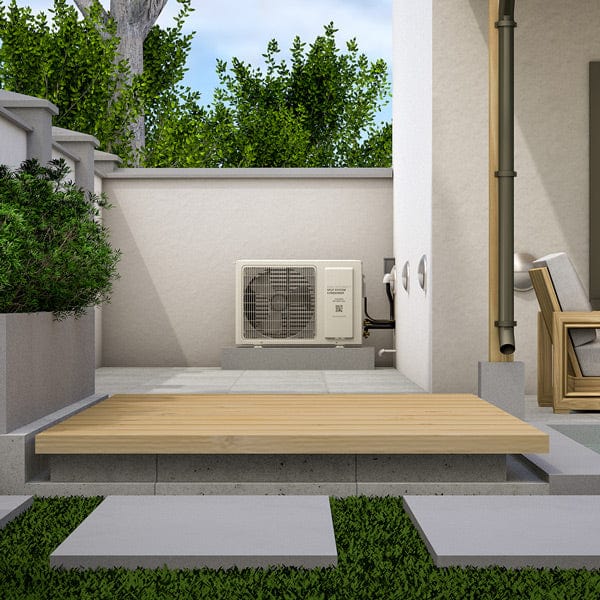

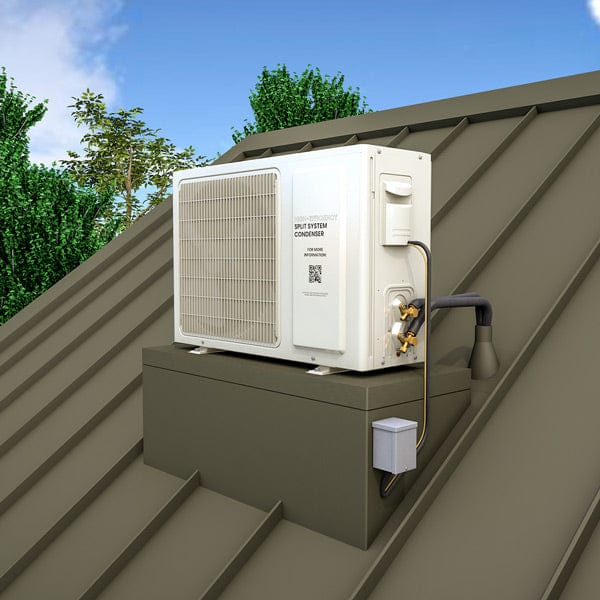

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.

• Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
• Easily assembled in the shop or on the job
• Rain Trough under hinge to catch moisture that might seep through the hinge
• WhisperKOOL® provides fasteners
• Dimensions (W x H x D): 20” x 20” x 27”

Condenser Coil Coating

The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.
