WhisperKOOL Mini Ceiling Mount Ductless Split System
WhisperKOOL Mini Ceiling Mount Ductless Split System - 220V H.E is backordered and will ship as soon as it is back in stock.
WhisperKOOL Mini Ceiling Mount Ductless Split System
WhisperKOOL Mini Ceiling Mount Ductless Split System - 220V H.E is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Description
Description
Is the WhisperKOOL Mini Ceiling Mount Right for Your Cellar?
The WhisperKOOL Mini Ceiling Mount is designed for properly insulated residential wine cellars up to 500 cubic feet. It is best suited for installations where wall space is limited and a split system is preferred to reduce in-cellar noise and vibration.
This unit requires:
- R19 minimum wall insulation
- R30 ceiling insulation
- A continuous 6 mil vapor barrier
- A sealed cellar door
- A dedicated 15-amp electrical circuit
- Professional HVAC installation
If these conditions are not met, cooling performance may decline and system lifespan may be reduced.
Available in WhisperKOOL Mini Ceiling Mount 220V Condenser & Mini Ceiling Mount 110V for 500 cu.ft.
Other Sizes: WhisperKOOL Ceiling Mount 4000 for 1000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount 8000 for 2000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount Twin 9000 for 3000 cu.ft. wine cellar and WhisperKOOL Ceiling Mount Twin 12000 for 3500 cu. ft.
Best For
- Fully insulated residential wine cellars under 500 cu. ft.
- Ceiling installations where wall space is limited
- Remote condenser placement (up to 100 ft away)
- Homeowners seeking quieter split-system operation
Not Ideal For
- Glass-heavy wine walls without load adjustments
- Stone or concrete rooms without proper insulation
- Commercial wine storage
- Condenser environments exceeding 110°F intake air
- Poorly sealed or improperly vapor-barriered rooms
If your cellar exceeds 500 cu. ft. or includes significant glass exposure, consider upgrading to a larger model such as the Ceiling Mount 4000.
How This System Works
The Mini Ceiling Mount is a split cooling system:

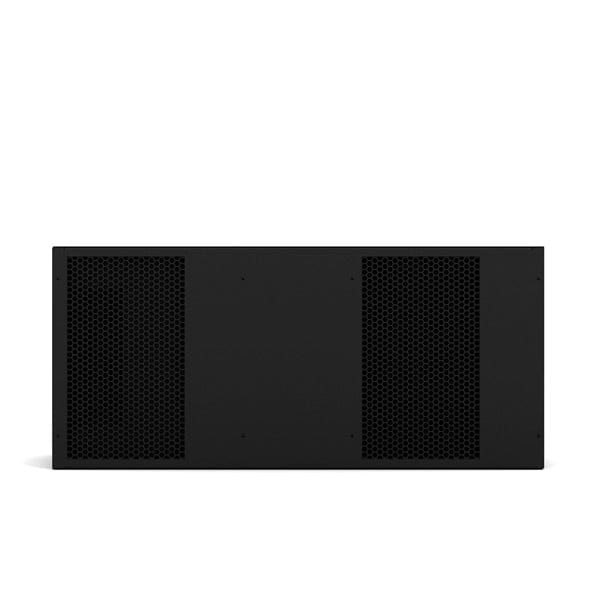

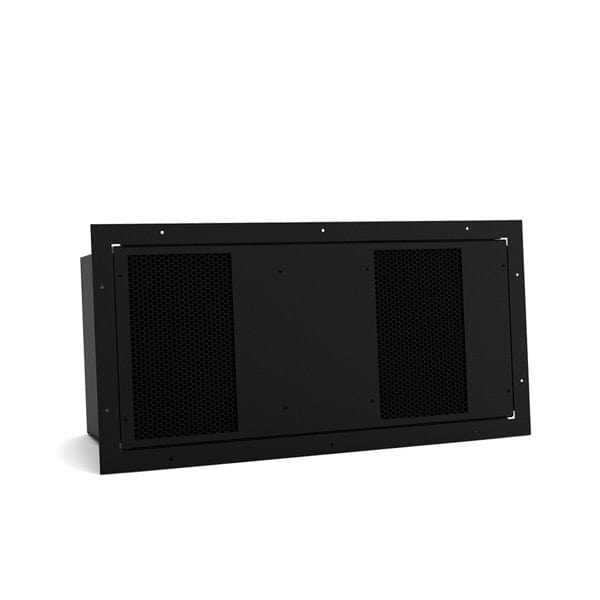

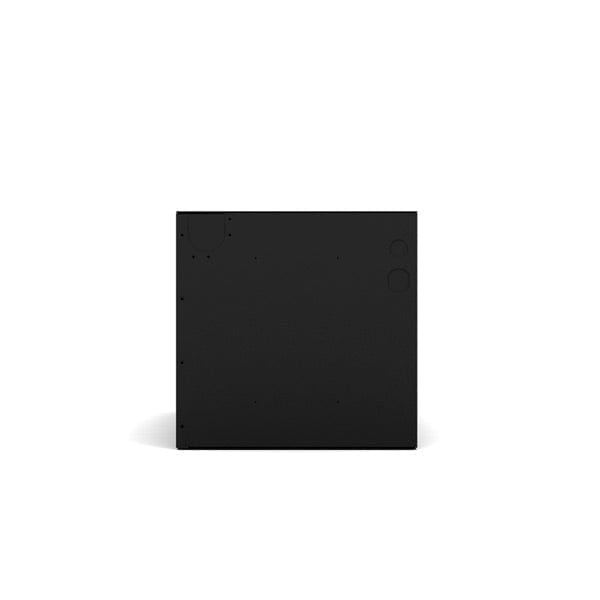

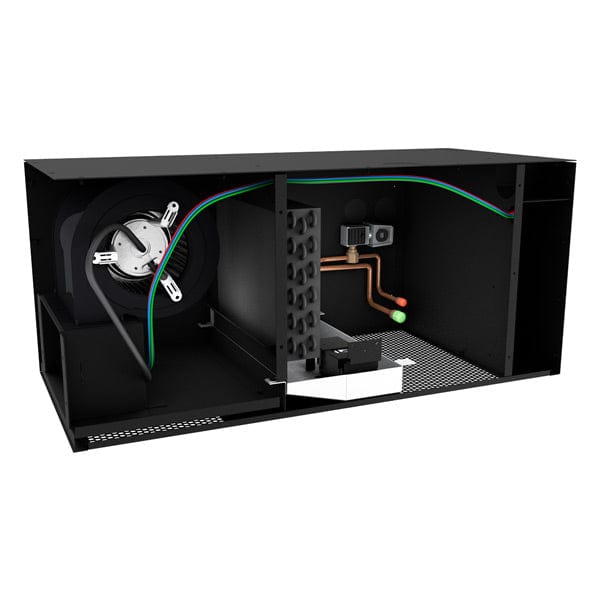

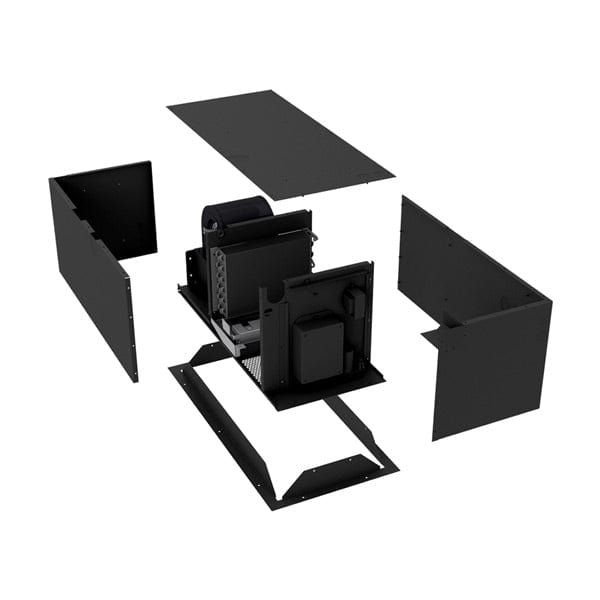

- Evaporator (Fan Coil Unit) installs through the cellar ceiling

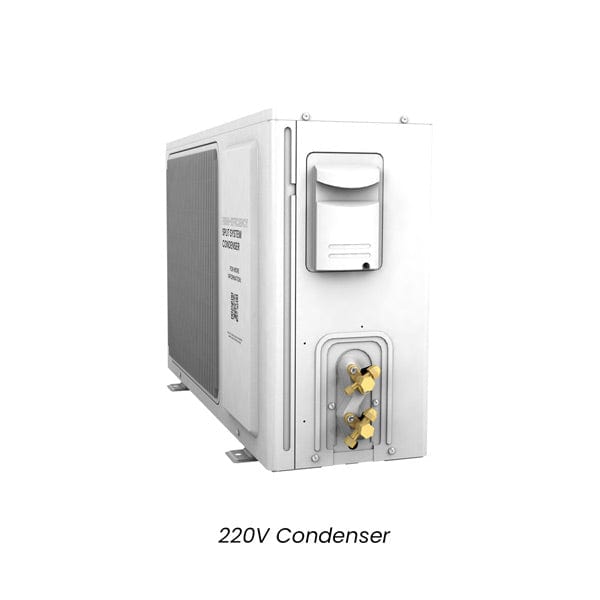

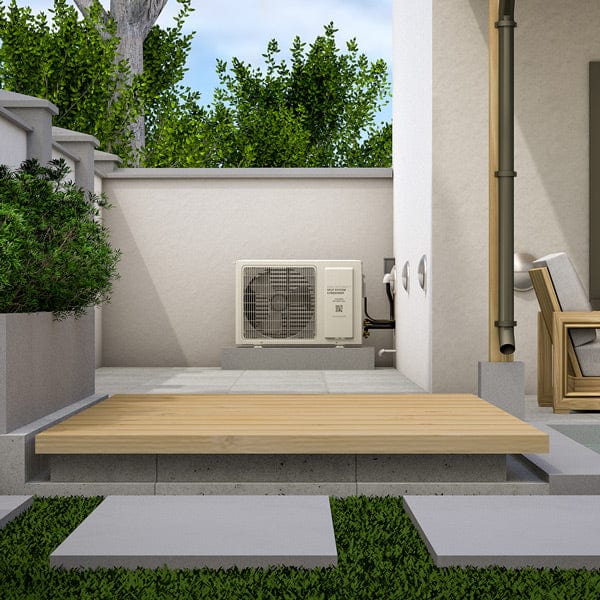

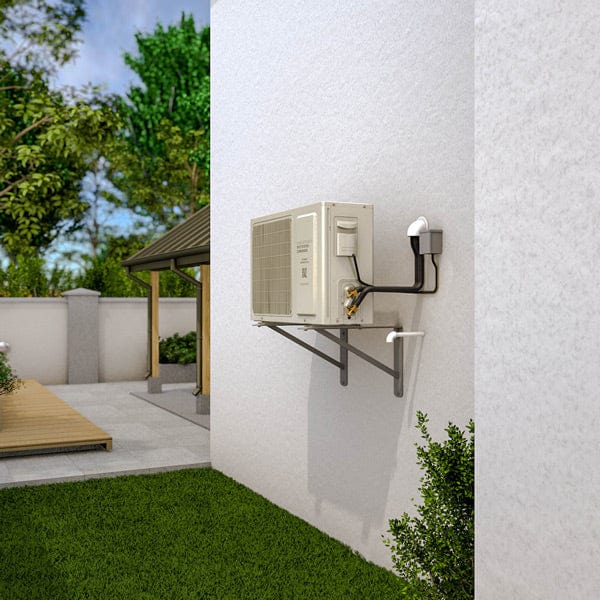

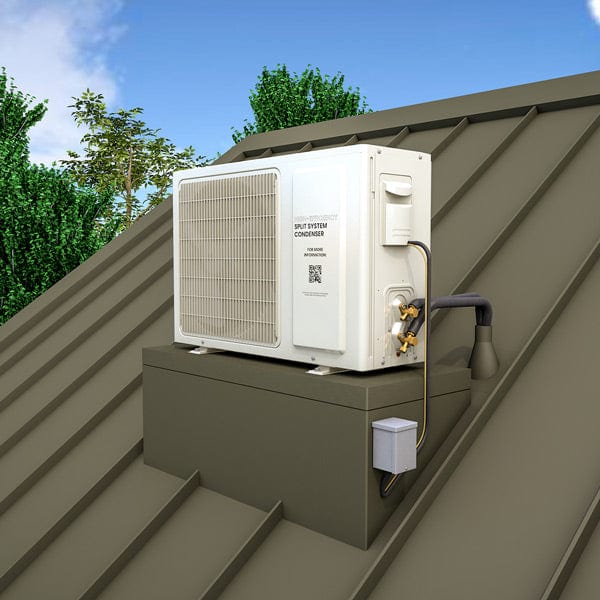

- Condenser (Air-Cooled Unit) installs remotely (attic, mechanical room, or exterior with protective housing)
The system draws warm air from the ceiling, cools it, and redistributes conditioned air throughout the cellar. Because the compressor is located outside the cellar, vibration and operational noise inside the room are minimized.
Performance Capabilities & Limits
- Designed to maintain 55°F cellar temperature
- Performance rated at 2167 BTU/h at 85°F condenser intake temperature
- Can operate with condenser intake air up to 110°F
Above 110°F intake temperature, cooling efficiency may decline. Installations in unconditioned garages or extreme desert climates may require a larger system.
Humidity is reduced during cooling cycles. This unit does not independently control humidity.
Technical Specifications
Cooling Capacity
2167 BTU/h (at 85°F condenser intake air temperature)
BTU output assumes a fully insulated, sealed cellar. Glass, exterior walls, or inadequate insulation increase heat load.
Maximum Cellar Size
Up to 500 cubic feet
Sizing assumes:
- R19 wall insulation
- R30 ceiling insulation
- Proper vapor barrier
- Minimal glass exposure
Undersized systems may fail prematurely or struggle to reach set temperature.
Temperature Delta
Maintains 55°F cellar temperature with condenser intake air up to 110°F under proper insulation conditions.
Refrigerant
R-134a refrigerant
Commonly used in wine cellar systems. Subject to environmental regulation changes over time.
Electrical Requirements
115V (15-amp dedicated circuit required)
Sharing the circuit with other appliances may cause performance instability or breaker trips.
Amperage
Evaporator: 1 running amp
Compressor: LRA 26 / RLA 4.4
Horsepower
1/6 HP
Noise Level
Approximately 51 dBA
Comparable to a quiet conversation.
Dimensions
Evaporator: 22.05”L x 11.08”W x 11.34”H
Condenser: 13.97”L x 15.85”W x 9.86”H
Weight
50 lbs (Evaporator)
50 lbs (Condenser)
Line Set Requirements
Liquid line: 1/4”
Suction line:
- 3/8” (under 50 ft.)
- 1/2” (over 50 ft.)
Correct line sizing is critical for compressor longevity and oil return.
Drain Line
1/4” ID clear plastic tubing
Installation

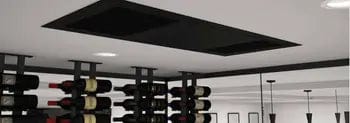

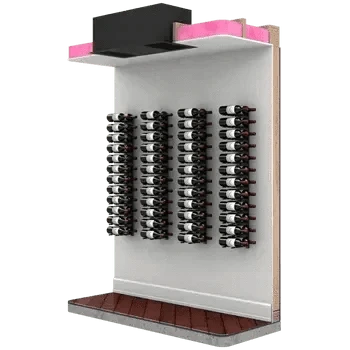

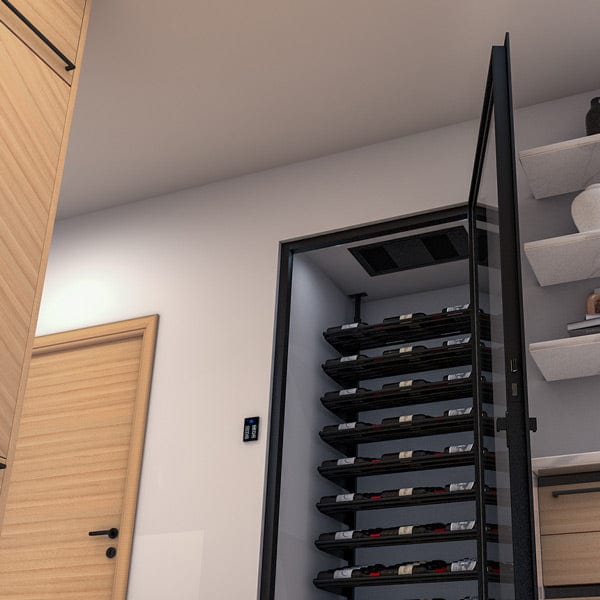

Evaporator installs through the cellar ceiling.
Condenser may be installed up to 100 line feet away.
Professional HVAC-R technician required. Failure to use qualified installation may void warranty.
Thermostat

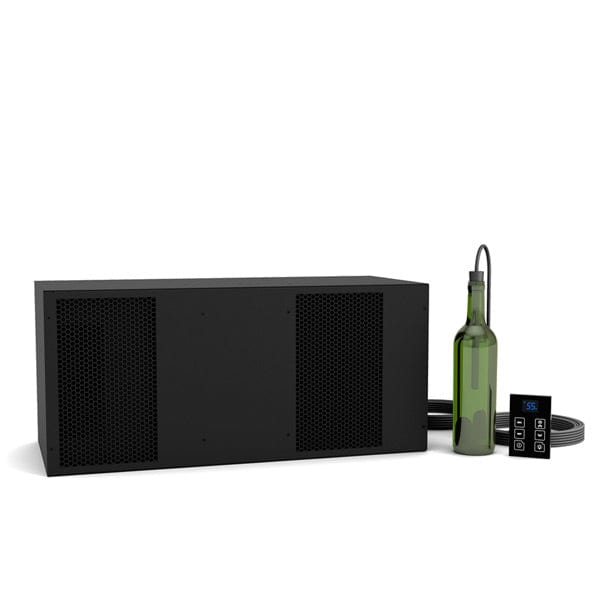

Advanced digital display with 50-ft cable
Includes 50-ft liquid-temperature bottle probe for accurate wine temperature measurement.
Warranty
Two-year limited warranty (parts and labor)
Warranty requires proper professional installation.
Manuals for WhisperKOOL Mini Ceiling Mount Ductless Split:
- Owner's Manual for WhisperKOOL Mini Ceiling Mount Ductless Split System
- Technician's Manual for WhisperKOOL Mini Ceiling Mount Ductless Split System
Mini Ceiling Mount vs Ceiling Mount 4000
| Feature | Mini Ceiling Mount | Ceiling Mount 4000 |
|---|---|---|
| Max Cellar Size | 500 cu ft | 1000+ cu ft |
| BTU Output | 2167 | Higher capacity |
| Best Use Case | Small residential | Larger residential |
| Glass Suitability | Limited | Better tolerance |
| Electrical | 115V | May require higher amp |
If your cellar includes large glass panels or exceeds 500 cubic feet, upgrading reduces strain and improves long-term reliability.
Installation Considerations
Most system failures result from:
- Inadequate vapor barriers
- Undersized equipment
- Excessive condenser heat exposure
- Shared electrical circuits
- Improper line set sizing
Confirm insulation and vapor barrier integrity before selecting a cooling system.
Optional Accessories
Exterior Protective Housing
Required for outdoor condenser installations. Protects from rain and environmental exposure.
Condenser Coil Coating
Recommended for coastal environments to protect against salt air corrosion.
24V Thermostat Conversion Kit (Optional)
Allows integration with compatible smart thermostats (thermostat not included).
Final Guidance
The WhisperKOOL Mini Ceiling Mount is a strong solution for small, properly insulated residential wine cellars where ceiling installation is preferred and condenser noise separation is desired.
Proper sizing and installation determine long-term reliability. When in doubt, verify insulation values and total heat load before selecting a system.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
📚 Frequently Asked Questions (FAQs)
No. Installation requires a qualified HVAC-R technician. Improper installation may void the warranty and reduce system lifespan.
If the cellar exceeds 500 cu. ft., the unit may struggle to maintain 55°F and may run continuously. Oversizing slightly is safer than undersizing in wine cellar applications.
Only if the total heat load remains within 2167 BTU capacity. Glass significantly increases heat transfer. In most glass-heavy designs, a larger unit is recommended.
51 dBA is comparable to a quiet conversation. Because this is a split system, the compressor is outside the cellar, reducing interior noise.
Humidity decreases naturally during cooling cycles. This unit does not provide independent humidity control.
Minimum R19 wall insulation, R30 ceiling insulation, and a continuous vapor barrier are required to achieve rated performance.
If condenser intake air regularly exceeds 110°F, cooling performance may decline. In extreme heat environments, a higher-capacity unit may be necessary."]
