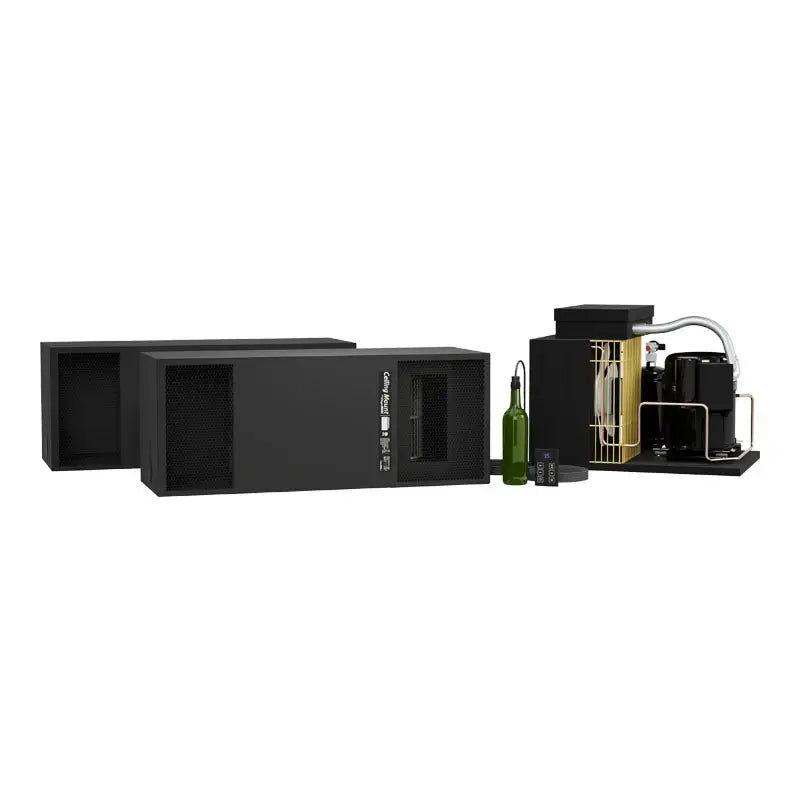

WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency

Ductless Split Wine Cellar Cooling System for Cellars up to 3,500 Cu. Ft.

The WhisperKOOL Ceiling Mount Twin 12000 (220V High-Efficiency) is a ductless split wine cellar cooling system engineered for large residential and light commercial wine cellars up to approximately 3,500 cubic feet.*

Designed to mount flush between ceiling joists, the dual-evaporator configuration provides strong, even airflow while keeping the cooling equipment discreetly integrated into the cellar ceiling. The remote condenser relocates heat and noise outside the wine room, creating a stable, quiet environment ideal for long-term wine storage.

This model is best suited for collectors seeking high-capacity performance without visible wall-mounted equipment or ductwork.

Available in other sizes: WhisperKOOL Mini Ceiling Mount 220V H.E. for 500 cu.ft, WhisperKOOL Ceiling Mount 4000 220V H.E. for 1000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount 8000 220V H.E. for 3000 cu.ft. wine cellar, and WhisperKOOL Ceiling Mount Twin 9000 220V H.E. for 3000 cu.ft. wine cellar.

Is the Twin 12000 Right for Your Cellar?

Recommended For:

• Wine cellars between 2,800–3,500 cubic feet
• Flush ceiling-mount installations
• Ductless split system designs
• 220V electrical availability
• Projects requiring dual evaporator airflow distribution

May Not Be Suitable If:

• The cellar exceeds 3,500 cubic feet
• The space includes large glass walls or uninsulated surfaces
• Vapor barrier or insulation is incomplete
• The cellar is located in extreme ambient heat without additional load calculation

*Performance ratings assume a fully insulated, sealed cellar with proper vapor barrier. A professional heat load calculation is strongly recommended prior to equipment selection.

Want to check more options? Take a look at our Ductless Split Wine Cooling Systems. You can also browse our other WhisperKOOL Wine Cellar Cooling Systems.

If you want to match your wine room cooling units with the best wine racks, feel free to browse our Ultra Wine Racks & Cellars for unique and modern wine racks.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

Key Engineering Advantages

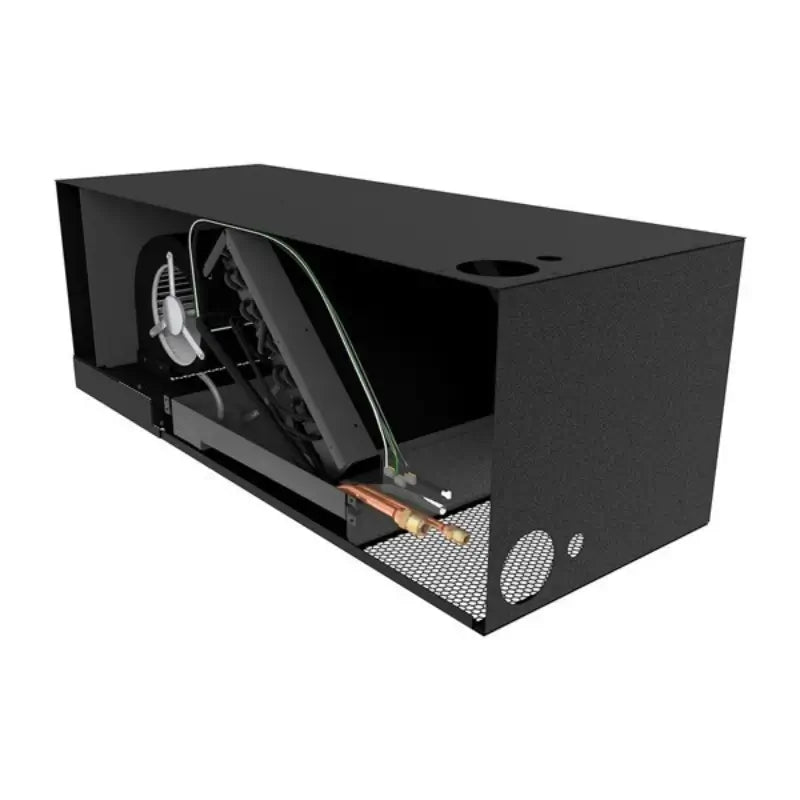

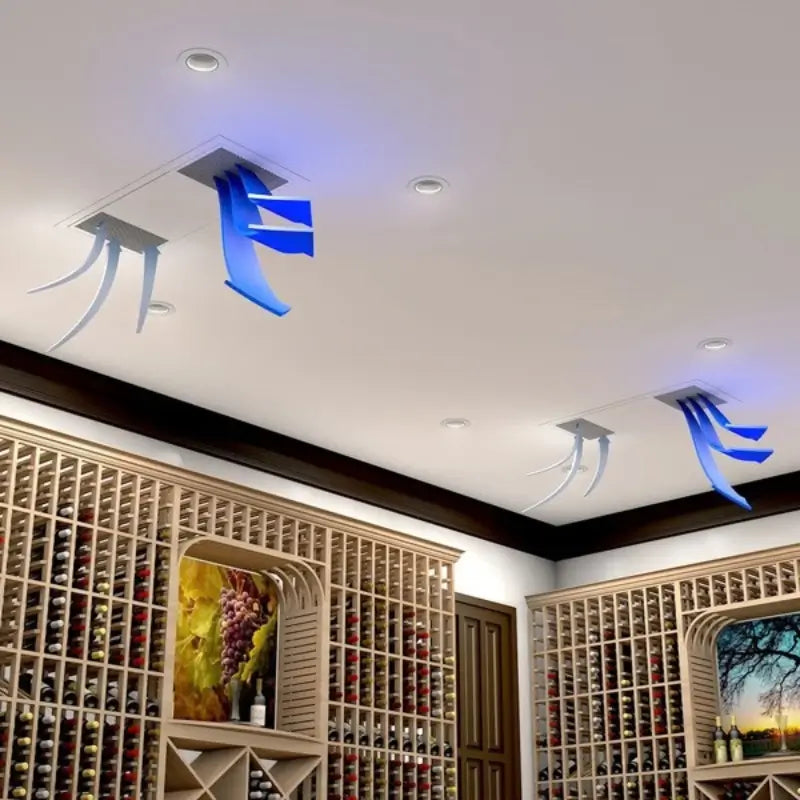

Dual Evaporator Configuration

Improves air distribution across larger spaces and helps reduce hot spots.

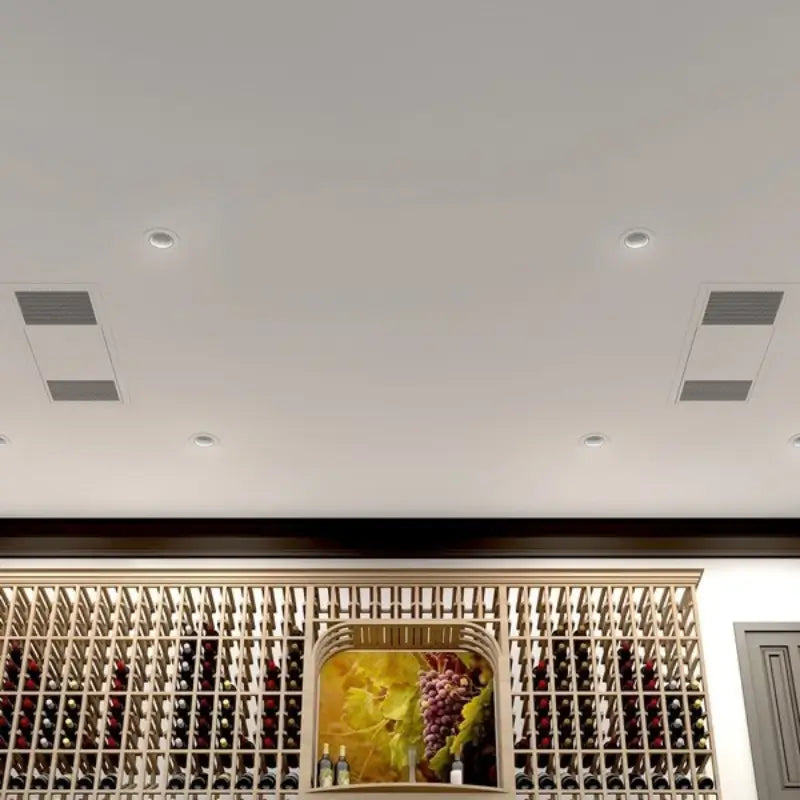

Flush Ceiling Installation

Mounts between joists for a clean architectural finish.

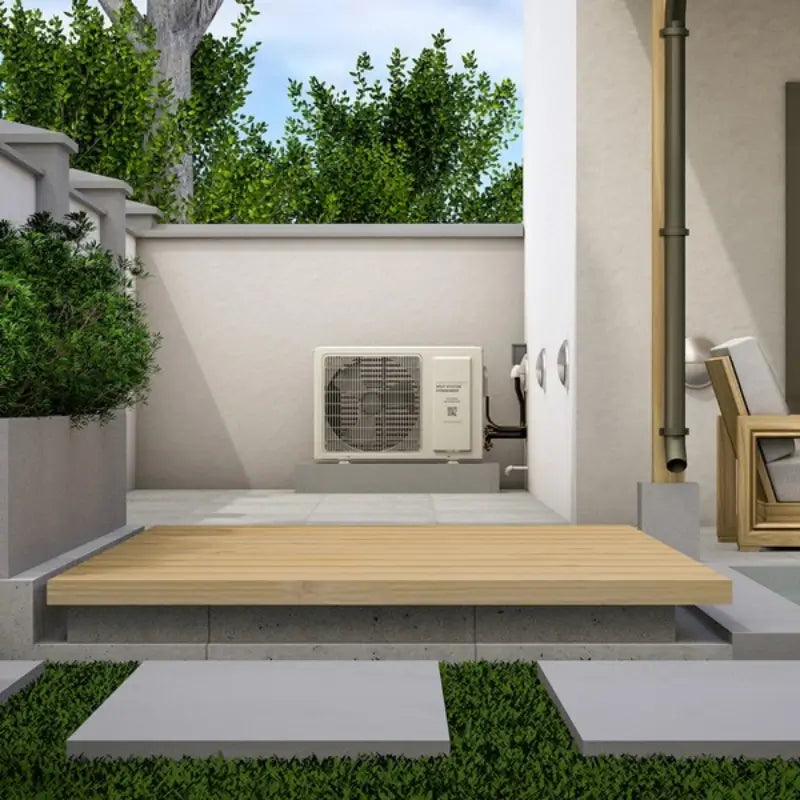

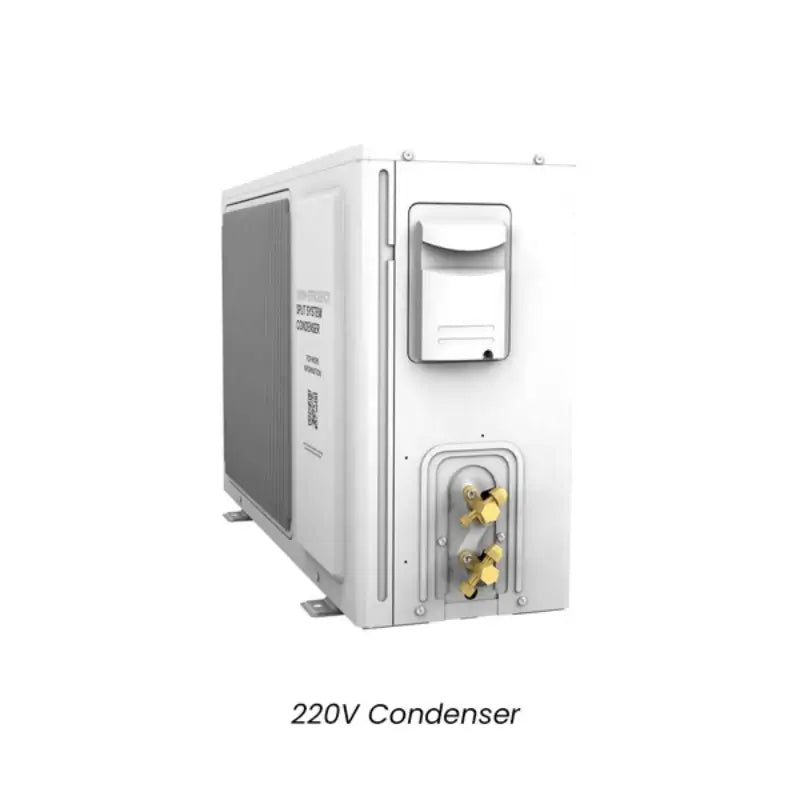

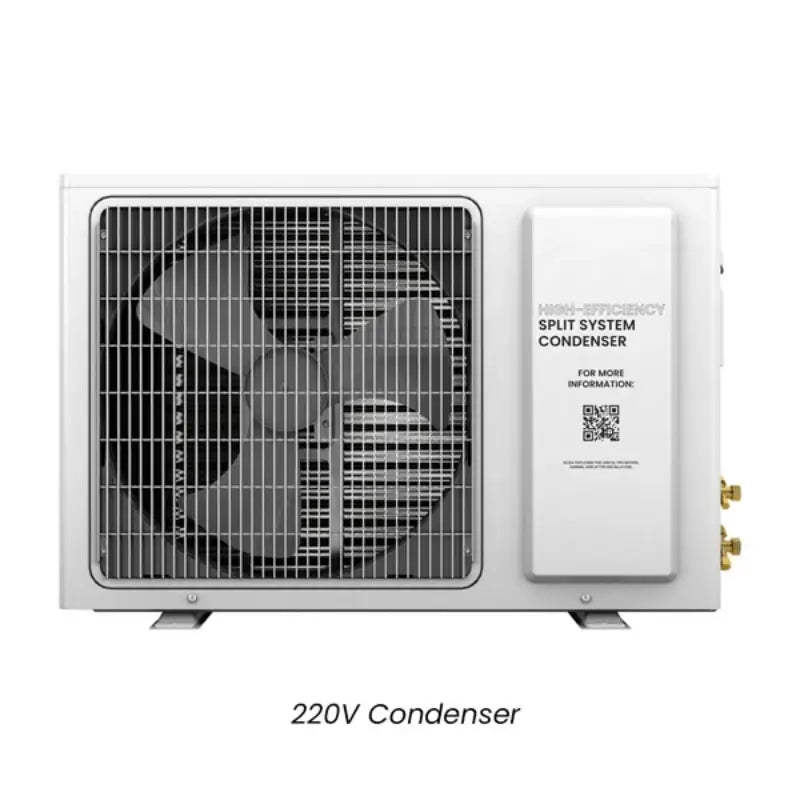

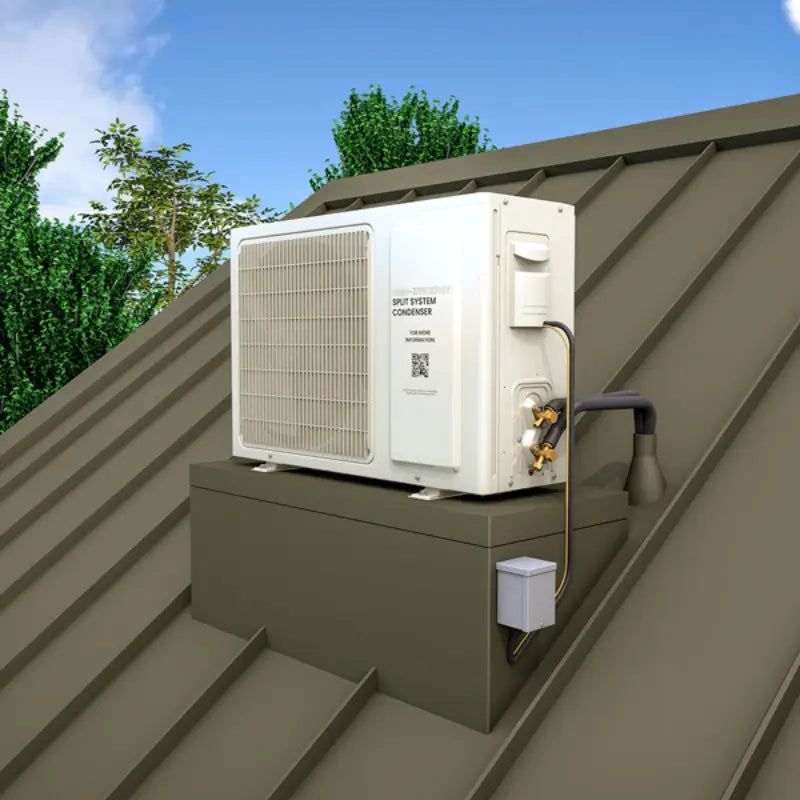

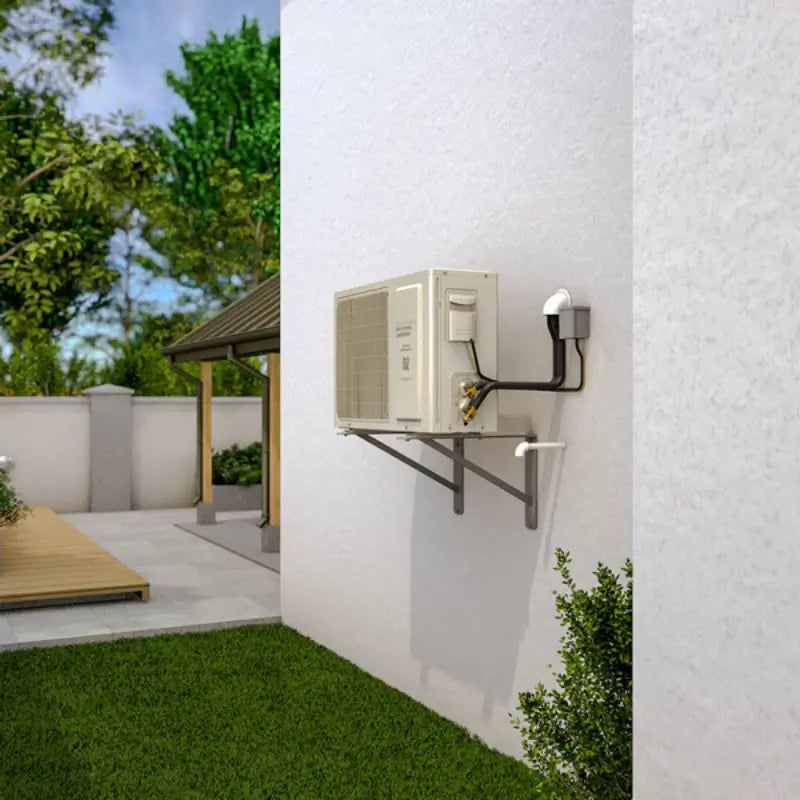

Remote High-Efficiency Condenser (220V)

Designed for reliable performance in high ambient conditions.

Extended Line Set Capability

Condenser may be installed up to 100 line feet from the evaporator.

KDT Advanced Digital Display

Includes 50-foot cable for flexible placement and system monitoring.

Liquid Temperature Bottle Probe

Measures liquid temperature for more accurate wine protection compared to ambient air sensors.

Performance & Cooling Capacity

Recommended Cellar Size

Up to 3,500 cubic feet*

Cooling Capacity (BTU/h – Sensible / Total)

Operating Capability

• Designed to maintain 55°F cellar temperature
• Rated for condenser air intake temperatures up to 120°F

Technical Specifications

• Voltage: 220V (15 amp dedicated circuit required)
  Refrigerant: R-134a
• Evaporator Dimensions: 35.75” L x 14.5” W x 12.75” H
• Condenser Dimensions: 31.18” L x 10.75” W x 23.25” H
• Weight:
  • Evaporator – 66 lbs
  • Condenser – 84 lbs
• Drain Line: 1/2” ID clear plastic tubing (not included)
• Running Amps:
  • Master: 1.74
  • Slave: 1.04
• Compressor Ratings:
  • LRA: 23.6
  • RLA: 5.76
  • FLA: 6.6

Manuals for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split:

• H.E. Owner Manual for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency
• 220V High-Efficiency Product Sheets for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency
• 24V Thermostat Conversion Kit for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency

• High Efficiency 220 Warranty Registration for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency
• 220V High-Efficiency Product Sheets for WhisperKOOL Ceiling Mount Twin 12000 Ductless Split System 220V High Efficiency

Installation Requirements

• Installation by a qualified HVAC-R technician is required
• Proper vapor barrier (minimum 6 mil recommended)
• Insulation typically R-19 (walls) / R-30 (ceiling)
• Dedicated 220V electrical circuit
• Maximum line set length: 100 feet

Improper insulation, lack of vapor barrier, or incorrect sizing may lead to performance issues or premature failure.

When to Choose the Twin 12000 Instead of the Twin 9000

Choose the Twin 12000 if:

• Your cellar exceeds 3,000 cubic feet
• You have glass doors or partial glass walls
• You live in high-heat climates (AZ, NV, TX, FL)
• You want additional cooling margin to reduce compressor strain

For smaller cellars under 3,000 cu. ft., the Twin 9000 may be sufficient.

Optional 24V Thermostat Conversion Kit

The 24V conversion kit allows integration with third-party smart thermostats.

Potential capabilities include:

• Wi-Fi temperature control
• Energy monitoring
• Alarm notifications
• Remote condition viewing

Note: WhisperKOOL does not supply smart thermostats. Selecting the 24V option replaces the standard controller and bottle probe. Manufacturer support does not extend to third-party thermostat issues.

Optional Protection & Accessories

• Exterior condenser housing (recommended for outdoor installations)
• Condenser coil coating (recommended for coastal environments)

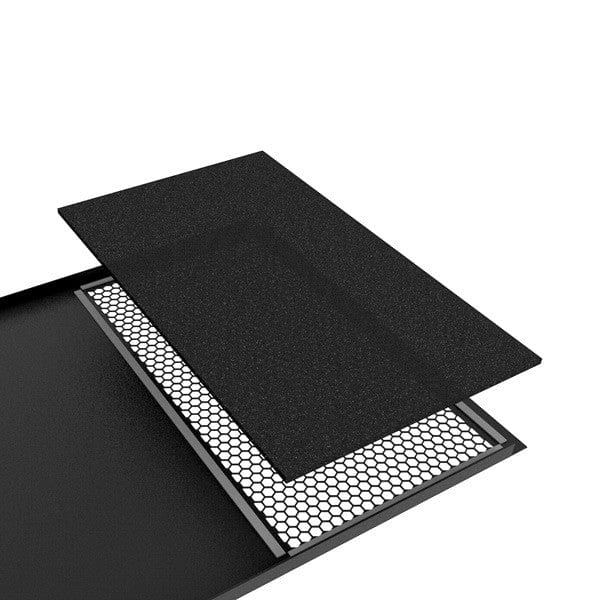

• Replacement filters and maintenance components

Warranty

Two-Year Limited Warranty (Parts and Labor)
Valid when installed by a qualified HVAC-R technician.

Professional Support

As an authorized WhisperKOOL dealer, Wine Cellar Authority assists with:

• Model comparisons
• Sizing guidance
• Installation coordination
• Cooling system planning

Selecting the correct cooling system is critical to protecting your wine collection. Our team is available to help ensure proper system selection for your specific cellar design.
