WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency

WhisperKOOL Ceiling Mount 8000 (220V High Efficiency) – Specifications, Requirements & Installation Guide

Quick Summary

• Maximum Cellar Size: Up to 2,000 cubic feet*
• System Type: Ductless split system with flush ceiling-mounted evaporator
• Condenser Voltage: 220V (dedicated circuit required)
• Evaporator Voltage: 120V (dedicated circuit required)
• Maximum Line Set Length: 100 feet
• Thermostat: Advanced digital display (50 ft cable) or optional 24V conversion
• Best For: Fully insulated residential or light commercial wine cellars
• Not Recommended For: Under-insulated cellars, high-glass designs, or spaces without vapor barrier

*Capacity assumes a fully insulated and sealed cellar with proper vapor barrier.

Available in WhisperKOOL Ceiling Mount 8000 110V Condenser & Ceiling Mount 8000 220V Condenser for 2000 cu.ft.

Other Sizes: WhisperKOOL Mini Ceiling Mount 220V H.E. for 500 cu.ft, WhisperKOOL Ceiling Mount 4000 220V H.E. for 1000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount Twin 9000 220V H.E. for 3000 cu.ft. wine cellar and WhisperKOOL Ceiling Mount Twin 12000 220V H.E. for 3500 cu. ft.

Who This System Is For

The WhisperKOOL Ceiling Mount 8000 is designed for wine collectors who want:

• A low-visibility cooling system
• A flush ceiling-mounted evaporator inside the cellar
• A remotely located condenser outside the cellar
• Quiet operation without ductwork
• Reliable performance in properly constructed wine rooms

It is ideal for:

• Cellars up to 2,000 cubic feet
• Residential wine rooms
• Remodel projects where wall space is limited
• Applications requiring condenser placement up to 100 feet away

When This System Is NOT Appropriate

This system may not perform as expected if:

• The cellar lacks a vapor barrier
• Insulation is below recommended R-values

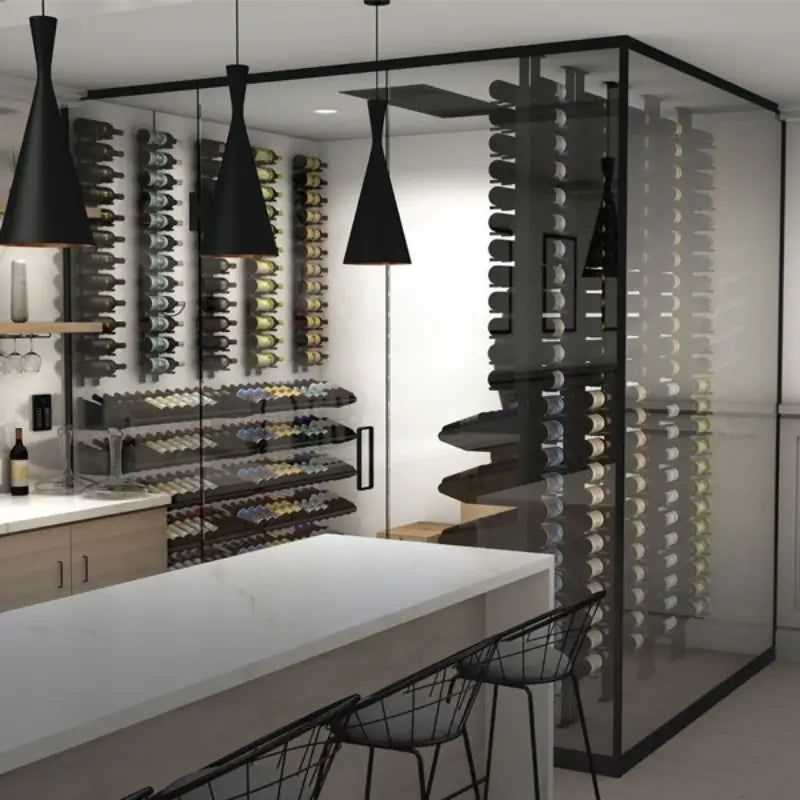

• There are large glass walls or doors
• The space is not fully sealed
• Dedicated electrical circuits are unavailable
• The condenser is exposed to extreme weather without protection

Improper installation or inadequate insulation can cause failure to reach temperature and may void the warranty.

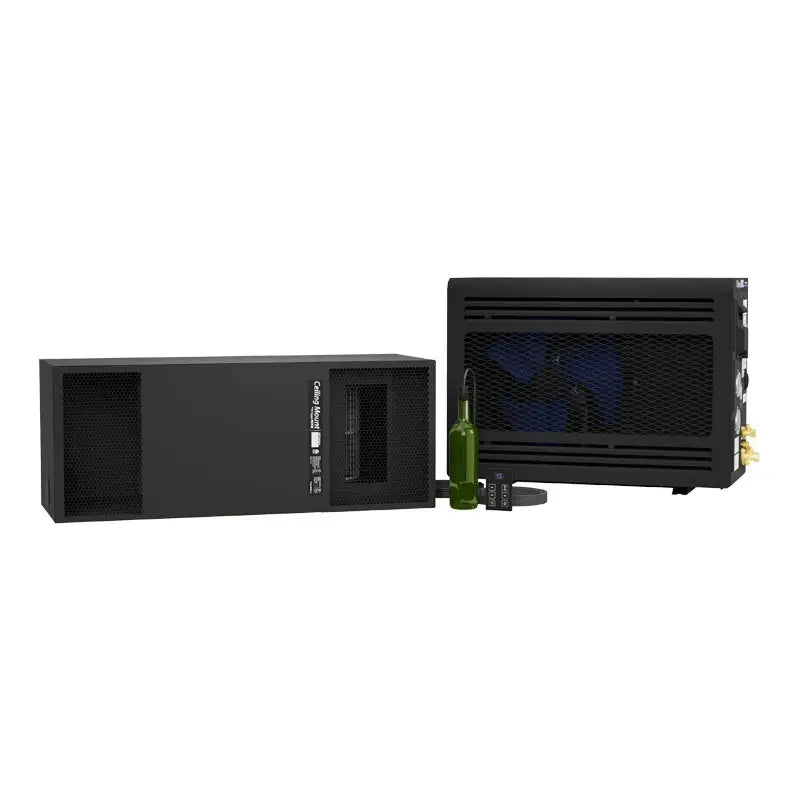

System Overview

The Ceiling Mount 8000 uses a split system design:

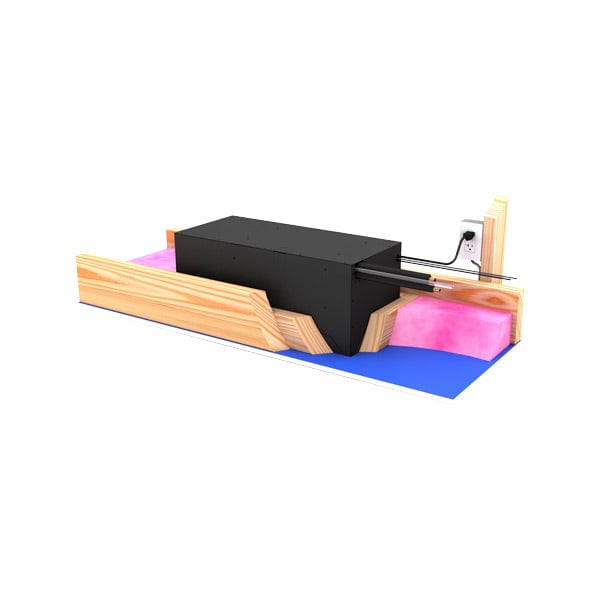

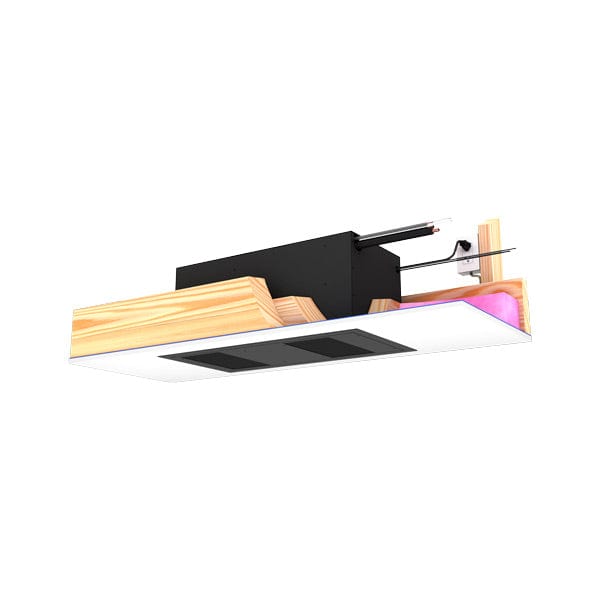

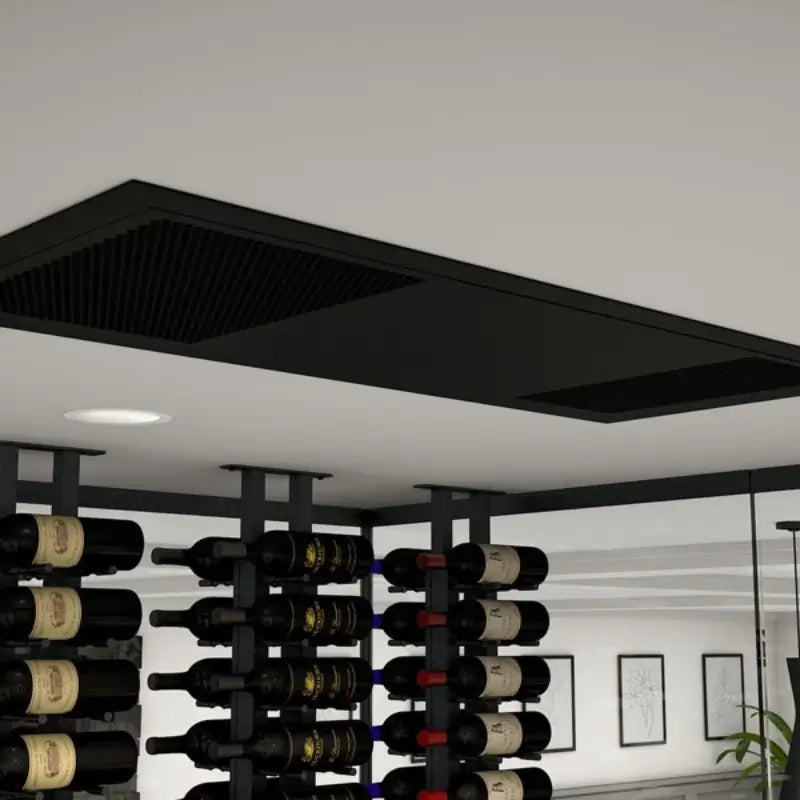

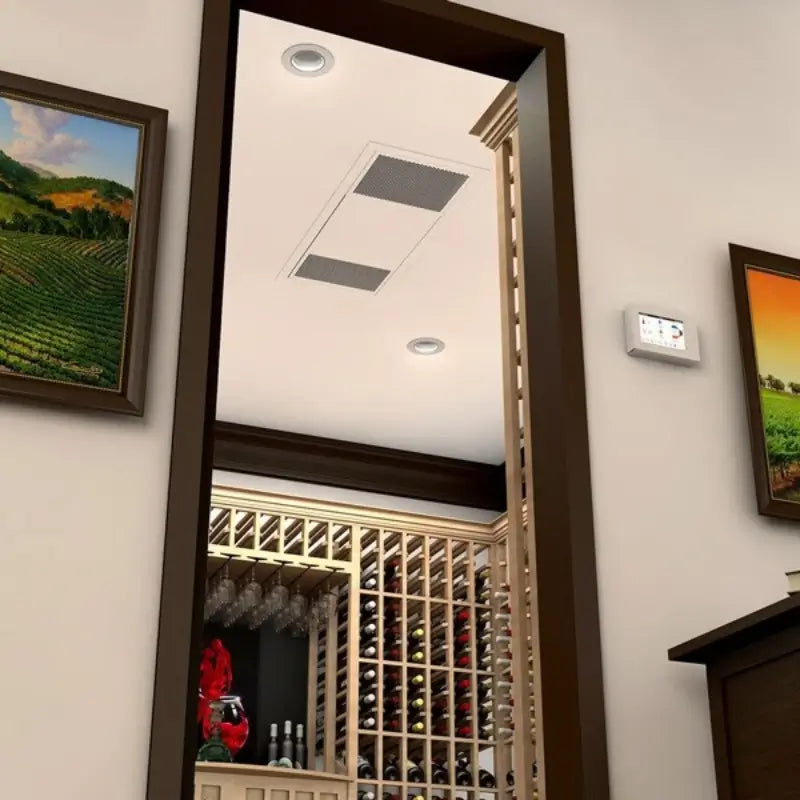

• The evaporator installs flush between ceiling joists inside the cellar.
• The condenser installs remotely (indoors or outdoors with protection).
• Refrigerant line set connects the two components.
• No ducting is required.

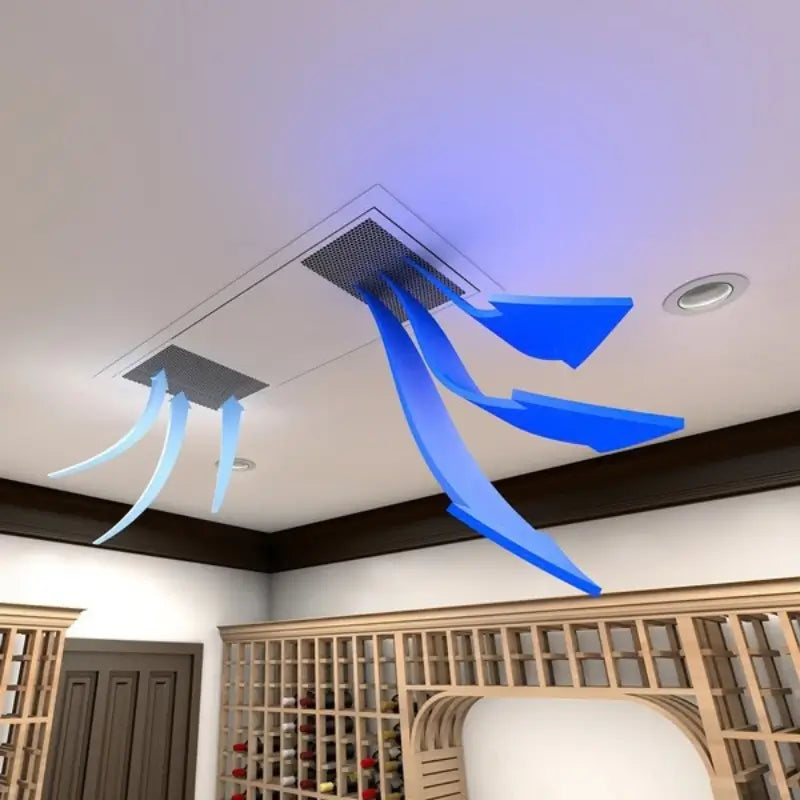

This configuration keeps the cooling system visually discreet while maintaining proper airflow at the ceiling level, where warm air naturally accumulates.

Cooling Performance

Maximum Rated Capacity: 2,000 cu. ft.*

BTU/h (Sensible / Total Output)

*Performance depends on cellar construction quality.

Electrical Requirements

Evaporator

• 120V
• 15-amp dedicated circuit required
• Running Amps: 1.4
• LRA: 13.2
• RLA: 3.19
• FLA: 3.66

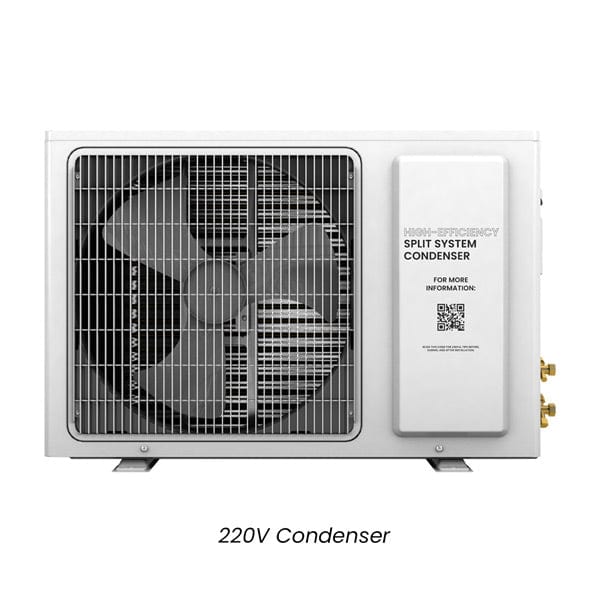

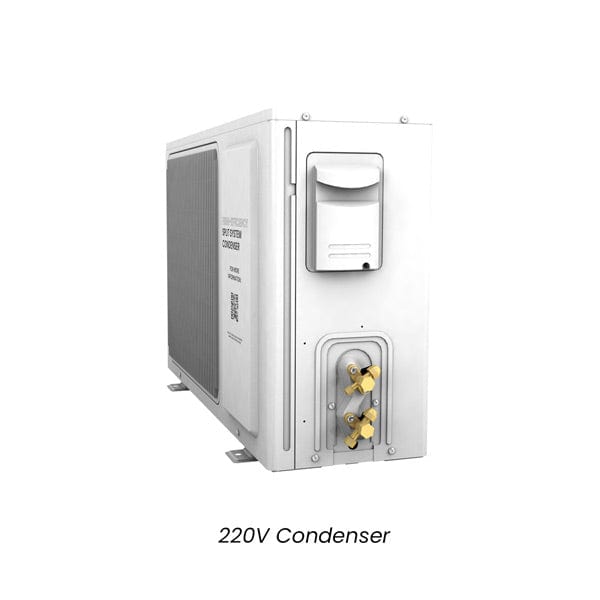

Condenser

• 220V
• 15-amp dedicated circuit required

Both components must be installed by a licensed HVAC-R technician.

Noise Levels

Designed for quiet residential operation.

Physical Specifications

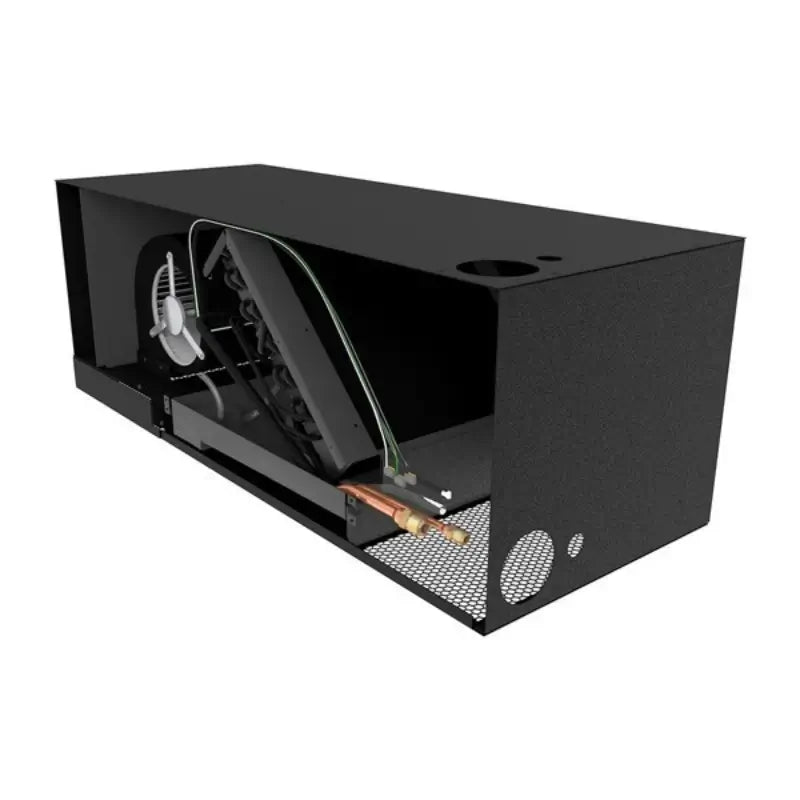

Evaporator

• Dimensions: 35.75” L x 14.5” W x 12.75” H
• Weight: 66 lbs

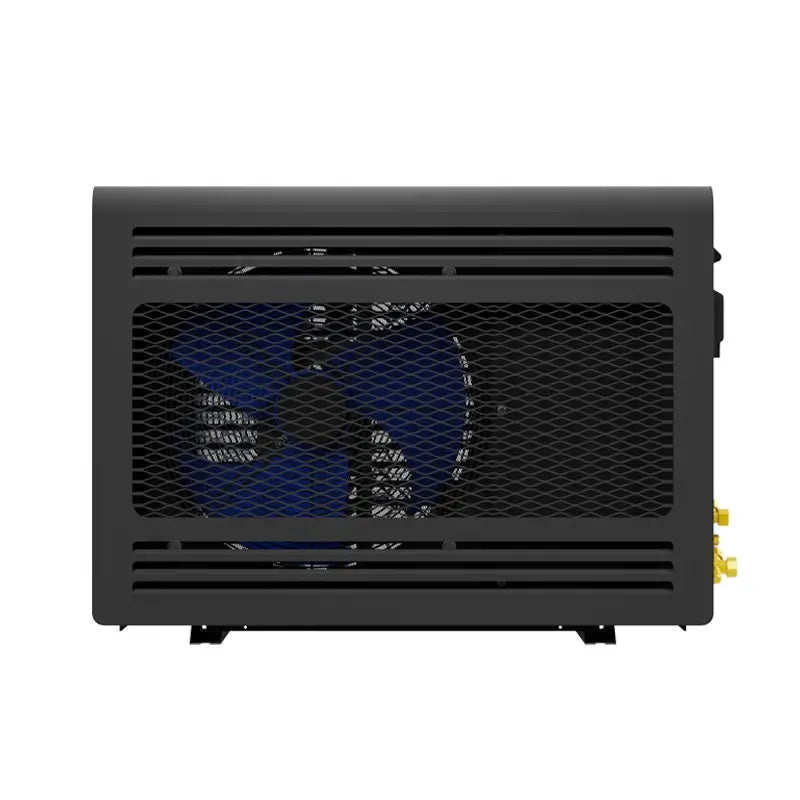

Condenser

• Dimensions: 31.18” L x 10.75” W x 21.18” H
• Weight: 56 lbs

Installation Requirements

• Fully insulated cellar enclosure required
• Vapor barrier required (minimum 6-mil recommended)
• Licensed HVAC-R installation required
• Hardwired electrical installation
• Maximum line set length: 100 feet
• Drain line: 1/2" ID clear plastic tubing (not included)

Operating Capability

• Maintains 55°F cellar temperature
• Maximum condenser air intake: 120°F

Performance may decrease in:

• Glass-heavy environments
• Stone or concrete rooms without insulation

• Cellars without proper sealing

Refrigerant

• R-134a

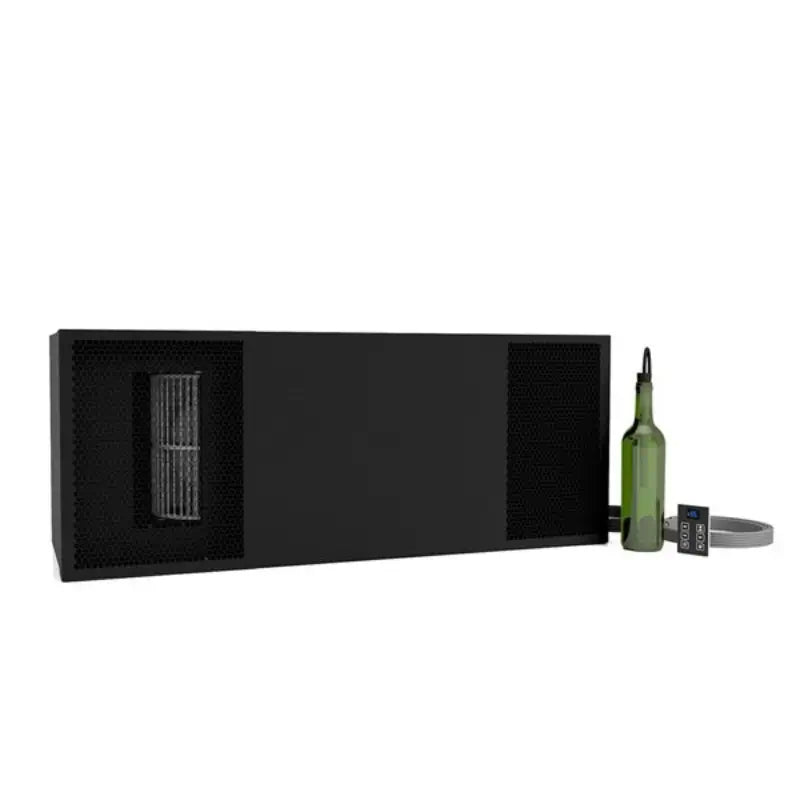

Thermostat & Controls

• Advanced digital display (50 ft cable included)
• Liquid-temperature bottle probe (retractable cable)
• Optional 24V thermostat conversion (customer-supplied thermostat required)

Note: WhisperKOOL does not provide smart thermostats. Technical support is not provided for third-party thermostats.

Manuals for WhisperKOOL Ceiling Mount 8000 Ductless Split:

• Owner Manual for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency
• H.E. Owner Manual for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency
• Addendum for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency
• 220V High Efficiency Product Sheets for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency
• 24V Thermostat Conversion Kit for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency
• High Efficiency 220 Warranty Registration for WhisperKOOL Ceiling Mount 8000 Ductless Split System 220V High Efficiency

Warranty

• Two-year limited warranty (parts and labor)
• Installation by qualified HVAC-R technician required
• Improper installation voids warranty

Optional Accessories

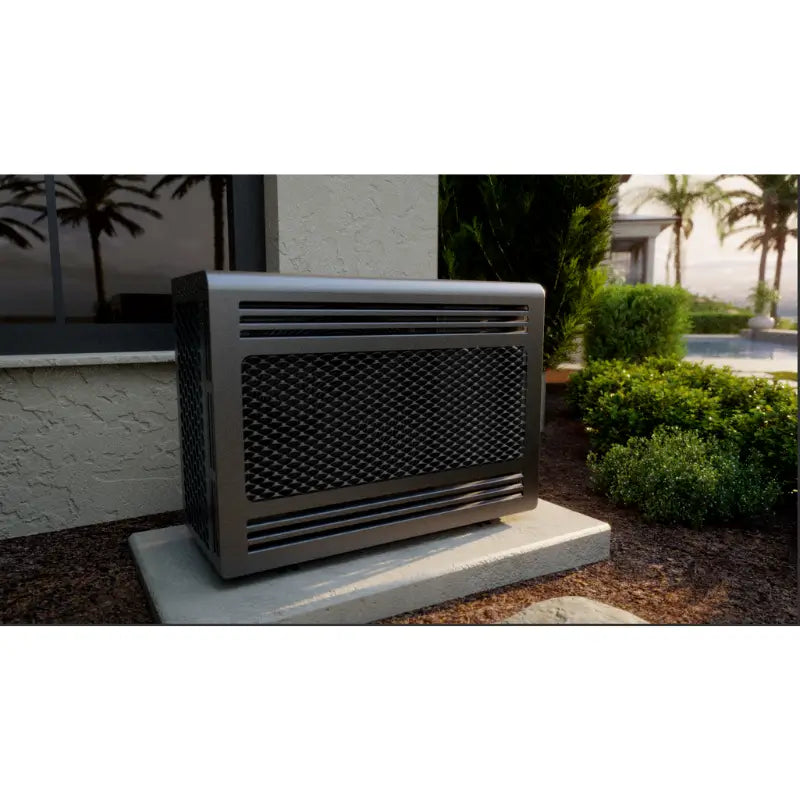

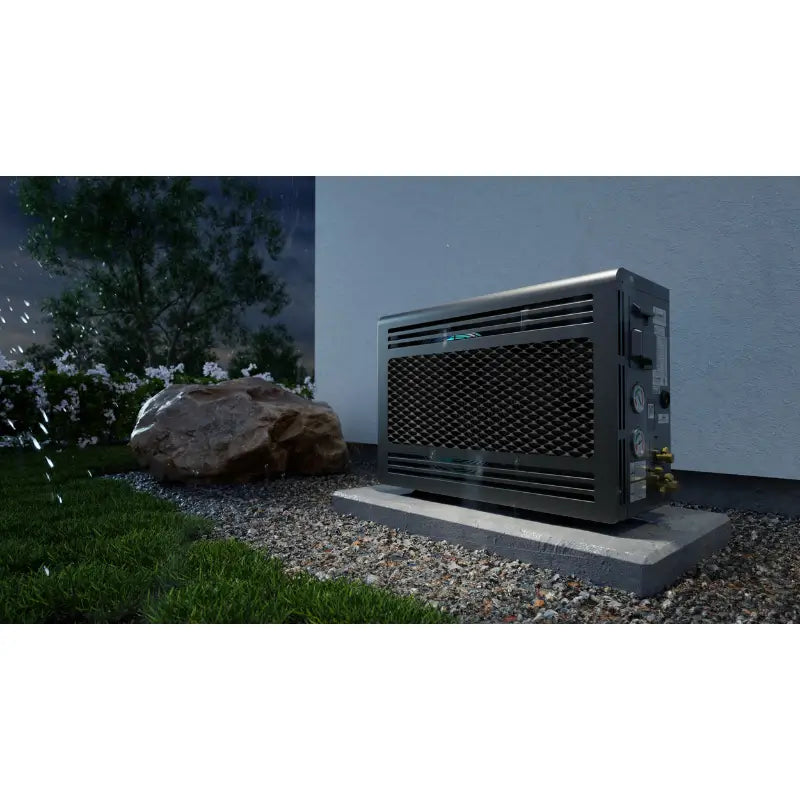

Exterior Condenser Protective Housing

Recommended for outdoor condenser installations to protect against weather exposure.

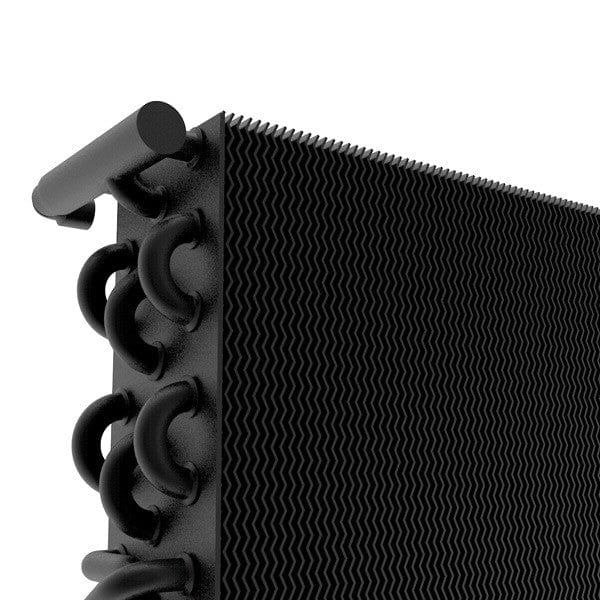

Condenser Coil Coating

Recommended for coastal environments exposed to salt air.

Model Comparison

Final Recommendation

The WhisperKOOL Ceiling Mount 8000 (220V High Efficiency) is best suited for:

• Properly constructed wine cellars up to 2,000 cubic feet
• Projects requiring a flush ceiling aesthetic
• Installations needing remote condenser placement

It is not a substitute for proper cellar construction.

A professional heat load calculation is always recommended prior to purchase.
