Product Overview
WhisperKOOL Platinum Mini Split: Quick Decision Summary
Choose the Platinum Mini Split Ductless when the wine cellar is approximately 500 cubic feet or less, the room is fully insulated and vapor sealed, and a visible evaporator grille is acceptable. The remote condenser configuration helps remove compressor heat and noise from the cellar while allowing flexible equipment placement.
| Best For |
Small residential wine cellars, modern wine rooms, glass wine walls, and projects requiring remote condenser placement. |
| Rated Cellar Size |
Up to approximately 500 cu. ft. when the room is fully insulated, sealed, and protected with a proper vapor barrier. |
| Cooling Output |
2,101 BTU/h at the published 85°F condenser air intake condition. |
| System Type |
Ductless split wine cellar cooling system with an in-cellar evaporator and remotely installed condenser. |
| Professional Installation |
A qualified HVAC-R technician is required for installation and commissioning. |
Things to Know Before Ordering
- The cellar must be approximately 500 cubic feet or less under the stated sizing conditions.
- The room must be fully insulated and sealed.
- A properly installed vapor barrier is required.

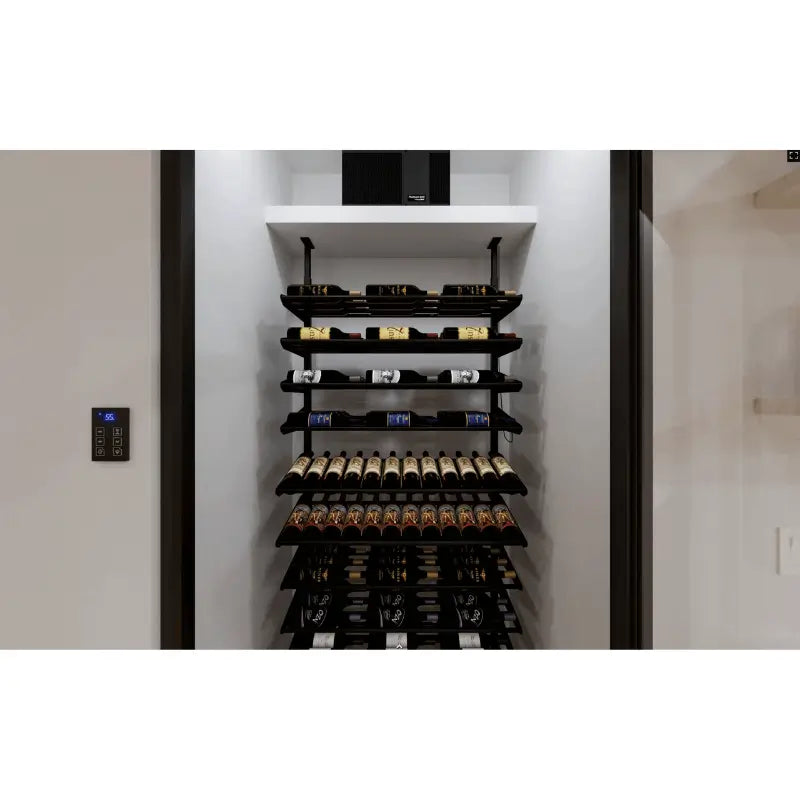

- The ductless evaporator grille remains visible inside the cellar.
- The condenser can be installed remotely up to approximately 100 line feet away.
- Large glass areas, high ambient temperatures, or poor insulation can increase the required cooling capacity.
- Professional HVAC-R installation is required.
- This system is intended for wine-cellar refrigeration, not general comfort cooling.
Buyer Fit
Is This the Right Cooling System for Your Cellar?
Best For
- Wine cellars up to 500 cu. ft.
- Fully insulated, vapor-barrier sealed rooms
- Glass wine walls
- Installations requiring remote condenser placement
- Projects requiring quiet in-cellar operation
Not Suitable For
- Uninsulated basements
- Rooms without a vapor barrier
- General comfort cooling
- DIY installation without HVAC certification
- Cellars exceeding 500 cu. ft.
Sizing recommendation: If your cellar exceeds 500 cubic feet or has substantial glass, high ambient heat, exterior exposure, or other elevated heat-load conditions, consider the Platinum Split 4000 or Platinum Split 8000.
System Design
How the Ductless Split System Works
The Platinum Mini Split uses two separate refrigeration components:
| Evaporator |

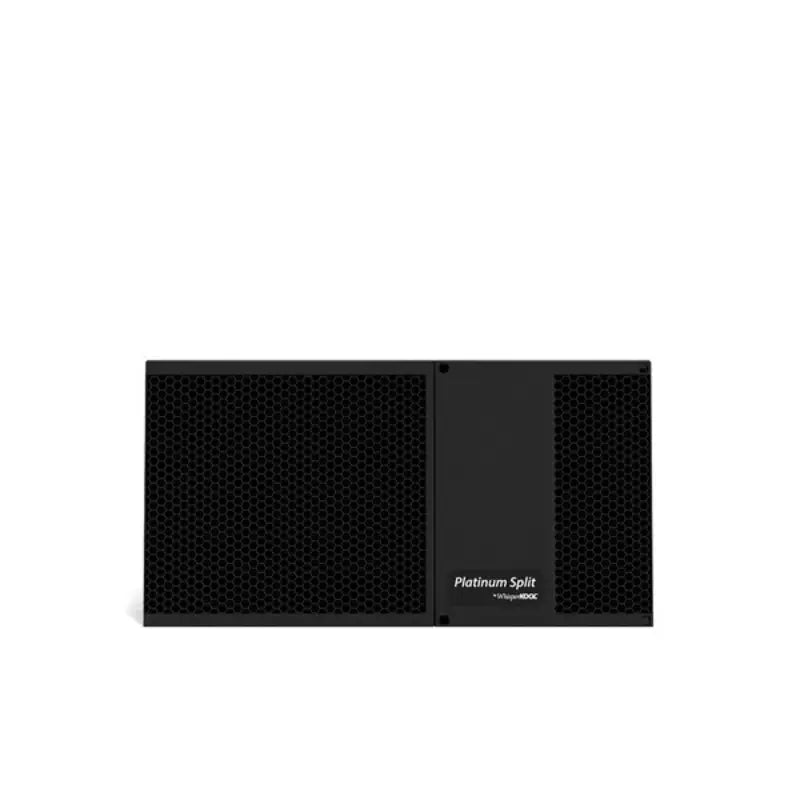

Fan coil unit installed inside the wine cellar. |
| Condenser |

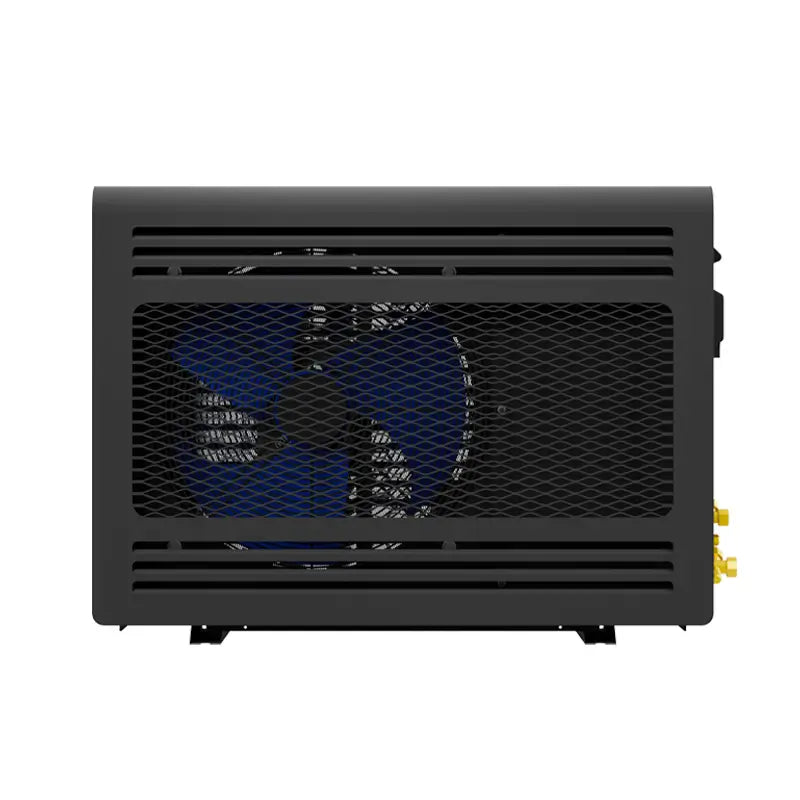

Air-cooled condensing unit installed remotely up to approximately 100 line feet away in a suitable utility room, attic, mechanical space, or outdoors with protective housing. |
Benefits of Remote Condenser Placement
- Heat is expelled outside the wine room
- Noise levels inside the cellar are reduced
- Installation flexibility increases
The ductless version includes a visible grille inside the cellar. If concealed airflow is required, a ducted split system may be more appropriate.
Installation
Installation & Construction Requirements
This is a professional-grade refrigeration system and must be installed by a qualified HVAC-R technician.
Required Conditions
- Fully insulated cellar including walls, ceiling, and door
- Proper vapor barrier on the warm side of the insulation
- Dedicated 115V, 15-amp circuits
- Properly sized refrigerant line set
- Condensate drainage planning
Failure to Meet These Requirements May Cause:
- Inability to maintain 55°F
- Continuous system runtime
- Condensation damage
- Premature compressor wear
- Voided warranty
Construction requirement: This cooling system will not compensate for poor cellar construction. Proper insulation, vapor control, sealing, drainage, and system sizing are essential to intended performance.
Key Features
Key Performance Features

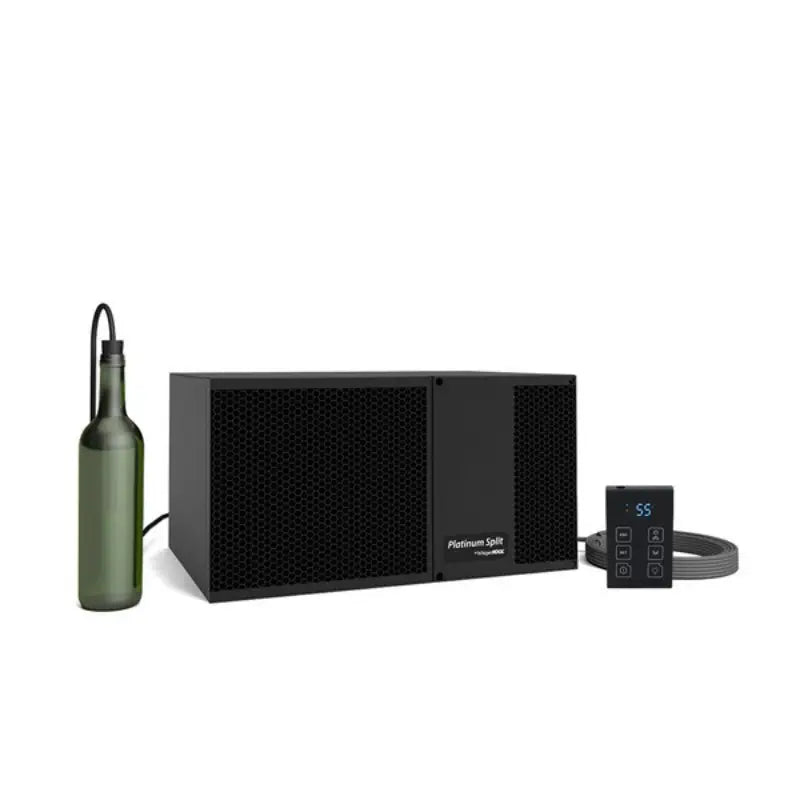

KDT Digital Touch Display
- Remote mount up to 50 ft.
- Advanced system protection alarms
- Digital monitoring and control
Liquid-Temperature Bottle Probe
- Measures actual liquid temperature
- Provides more representative wine-temperature monitoring than ambient-air readings alone
- Helps maintain stable wine storage conditions
Remote Condenser Placement
- Install up to 100 line feet away
- Optional exterior protective housing available

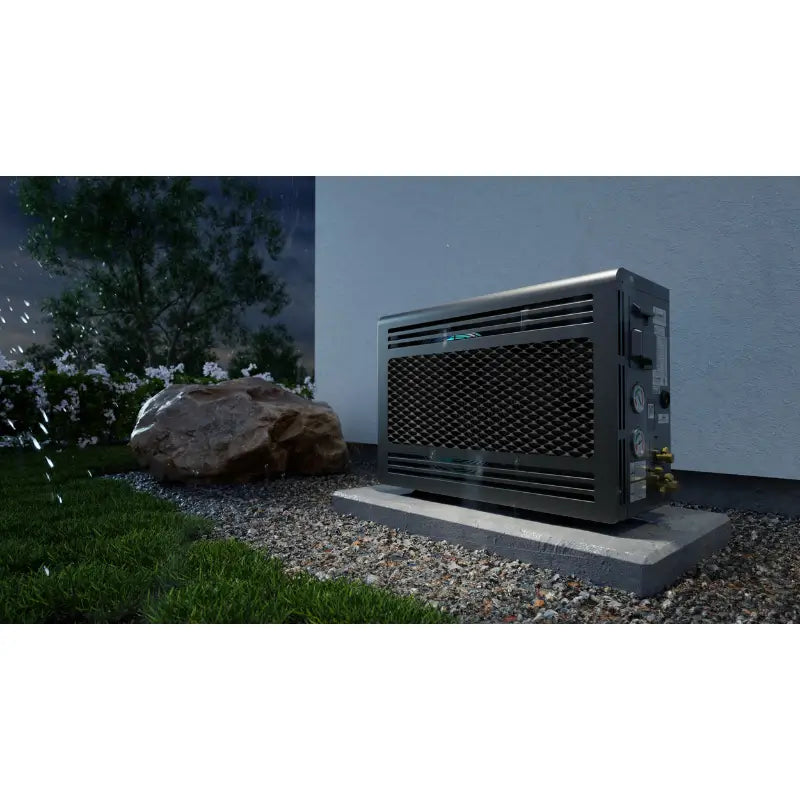

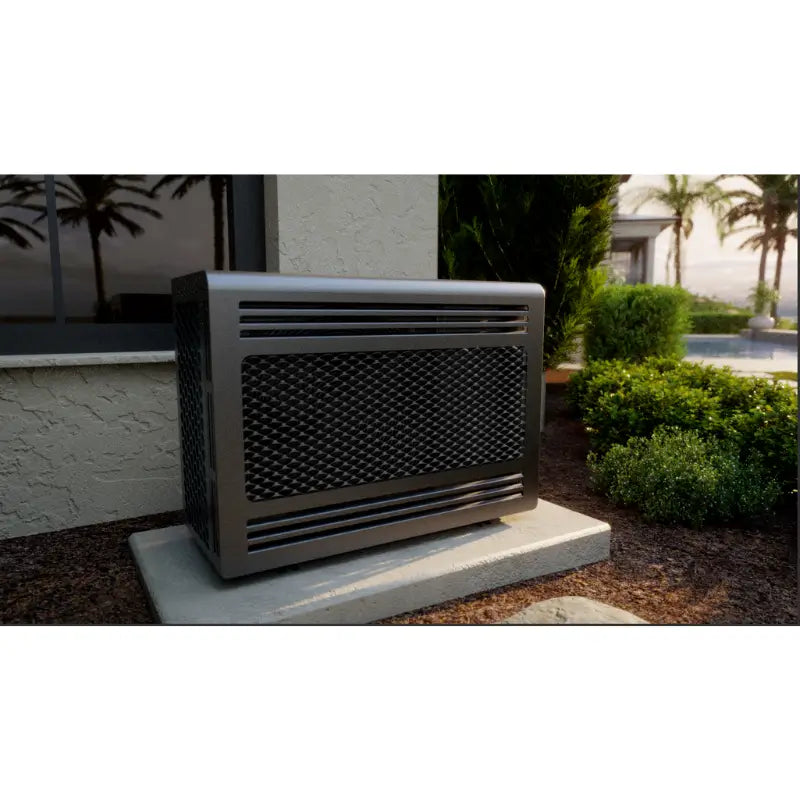

- Suitable for outdoor installation when properly protected
Technical Data
Technical Specifications
| Model |
WhisperKOOL Platinum Mini Split Ductless |
| Recommended Cellar Size |
Up to 500 cu. ft.* |
| Cooling Output |
2,101 BTU/h at 85°F condenser air intake |
| Horsepower |
0.82 HP |
| Refrigerant |
R-134a |
| Temperature Performance |
Maintains a 55°F cellar temperature with up to 110°F condenser intake under stated conditions. |
*Cellar must be fully insulated and sealed with a proper vapor barrier.
Airflow
| Evaporator |
99 CFM |
| Condenser |
223 CFM |
Electrical Requirements
| Component |
Voltage |
Dedicated Circuit |
Amps |
| Evaporator |
115V |
15 amp required |
1 running amp |
| Condenser |
115V |
15 amp required |
LRA 26 / RLA 4.4 |
Warranty requirement: Professional HVAC-R installation is required for warranty validation.
Dimensions & Weight
| Component |
Dimensions |
Weight |
| Evaporator |
13” L × 20” W × 10.5” H |
40 lbs |
| Condenser |
13.97” L × 15.85” W × 9.86” H |
38.8 lbs |
Line Set Requirements
| Liquid Line |
1/4” |
| Suction Line — Under 50 ft. |
3/8” |
| Suction Line — Over 50 ft. |
1/2” |
| Maximum Condenser Distance |
100 line feet |
Drain Requirements
- ½” ID clear plastic tubing
- Drain line not included
Proper drainage planning is required during installation.
Thermostat & Control
- Advanced digital display
- 50 ft control cable
- Retractable bottle probe
- System protection alarms
Warranty
- Two-Year Limited Warranty
- Valid only when installed by a qualified HVAC-R technician
Optional Add-Ons
Optional Upgrades & Accessories
24V Thermostat Conversion Kit
Allows integration with compatible 24V smart thermostats. The thermostat is not included.
Available functions may include:
- Remote Wi-Fi temperature control
- Runtime monitoring
- Alarm notifications
24V Thermostat Notice
A compatible third-party thermostat must be supplied separately. Thermostat functions and integration depend on the specific thermostat selected.
Exterior Protective Housing
Recommended for outdoor condenser installations.
- Galvanized steel base and cabinet
- Hinged access panel
- Rain trough protection
- Dimensions: 20” × 20” × 27”
Condenser Coil Coating
Recommended for coastal or salt-air environments to provide additional condenser protection.
Sizing Reference
WhisperKOOL Platinum Split Model Comparison
| Model |
Maximum Cellar Size |
Cooling Output |
| Mini Split |
500 cu. ft. |
2,101 BTU/h |
| Split 4000 |
1,000 cu. ft. |
Higher capacity |
| Split 8000 |
1,750 cu. ft. |
Larger capacity |
Correct sizing is critical: Cellar volume is only one sizing factor. Glass area, insulation, ambient temperature, ceiling height, exterior exposure, and air leakage also affect the required cooling capacity.
Downloads
WhisperKOOL Platinum Mini Split Manuals & Resources
Review the applicable owner, technician, specification, and warranty documentation before installation and commissioning.
Questions & Answers
Frequently Asked Questions
Does this replace a regular air conditioner?
No. This system is designed specifically for wine cellars. It maintains 55°F storage conditions and humidity balance. It is not intended for general room cooling.
Can I install this system myself?
No. Installation must be completed by a qualified HVAC-R technician. Improper installation voids the warranty.
What happens if my cellar is not properly insulated?
The system may run continuously, fail to reach target temperature, or create condensation issues. A vapor barrier and insulation are mandatory.
How accurate is the bottle probe?
The liquid-temperature bottle probe measures the temperature of a liquid sample rather than ambient air, providing more accurate wine preservation monitoring.
How do I confirm that 500 cubic feet is correct for my space?
Capacity assumes proper insulation, sealed vapor barrier, limited glass exposure, and controlled ambient temperature. Excess glass, high ambient heat, or poor insulation may require upsizing.
What is the difference between ducted and ductless split systems?
Ductless systems have a visible grille inside the cellar. Ducted systems conceal airflow through ductwork and are preferred when minimal interior visibility is required.
Expert Sizing Guidance
Confirm the Cooling Load Before Ordering
The 500-cubic-foot rating assumes a properly constructed cellar with adequate insulation, an effective vapor barrier, controlled ambient conditions, and limited additional heat load.
If the project includes extensive glass, high ceilings, exterior-facing surfaces, warm surrounding spaces, or other heat sources, complete a professional heat-load calculation before choosing the cooling system.
