WhisperKOOL Quantum SS12000 Ducted Split Wine Cellar Cooling System
The WhisperKOOL Quantum SS12000 is a high-capacity ducted split wine cellar cooling system designed for wine cellars up to 4,000 cubic feet. By separating the evaporator and condenser units, the system allows flexible installation, remote equipment placement, and a significantly quieter cellar environment.
This professional-grade cooling unit is built for large residential wine cellars, commercial wine rooms, and complex custom cellar installations. With powerful cooling performance and ducted airflow, the Quantum SS12000 can maintain a stable 55°F wine cellar temperature even when condenser air intake temperatures reach up to 120°F.
The system includes an advanced digital controller, a liquid bottle temperature probe, and corrosion-resistant components designed for long-term reliability in demanding cellar environments.

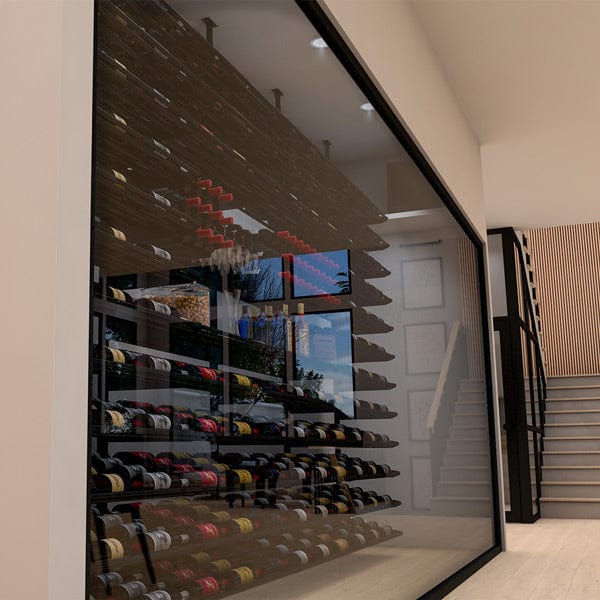

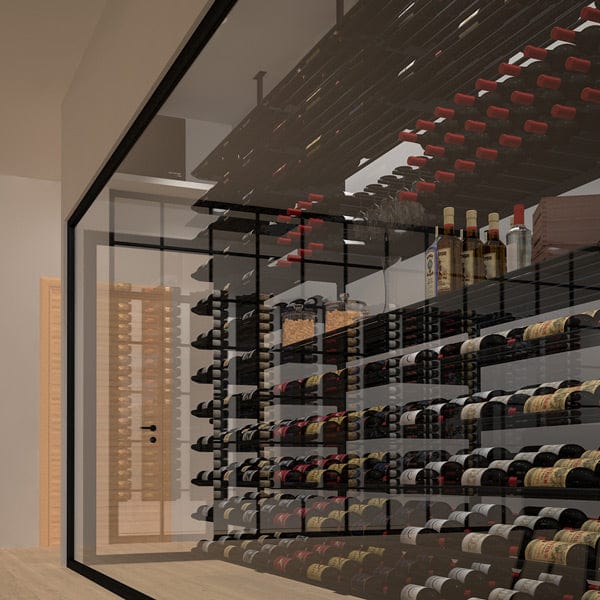

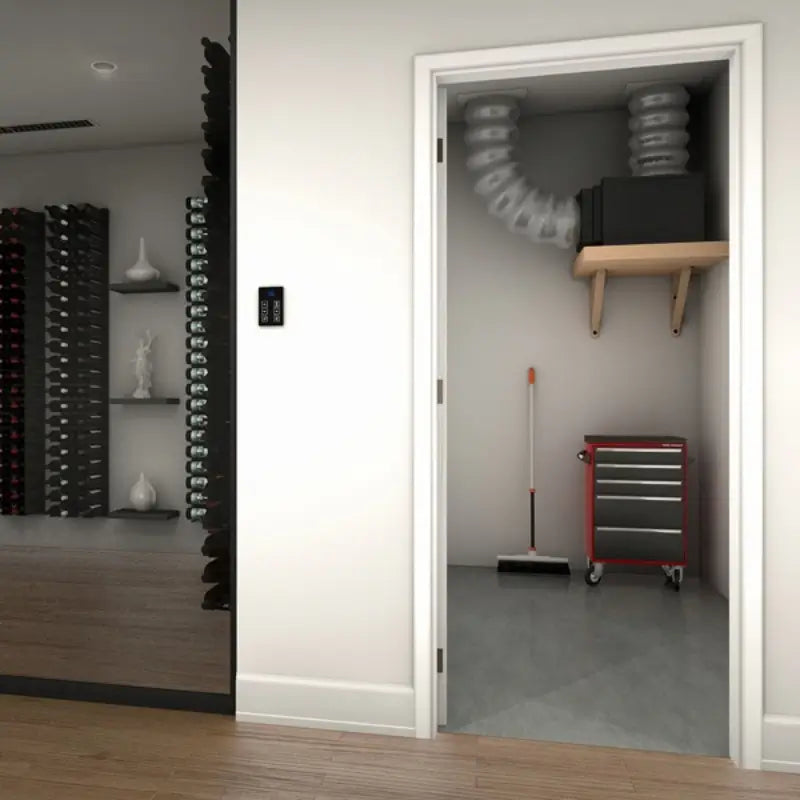

This system is commonly used in high-end custom wine cellars where cooling equipment must be hidden or installed remotely.
Key Features
Fully Ducted Split-System Design

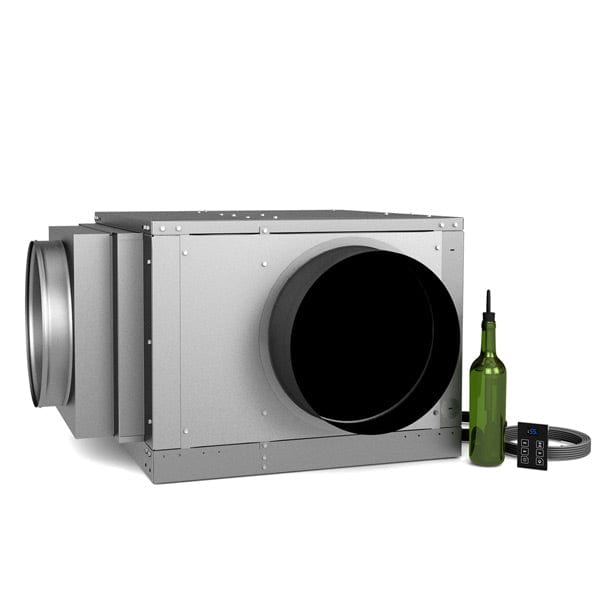

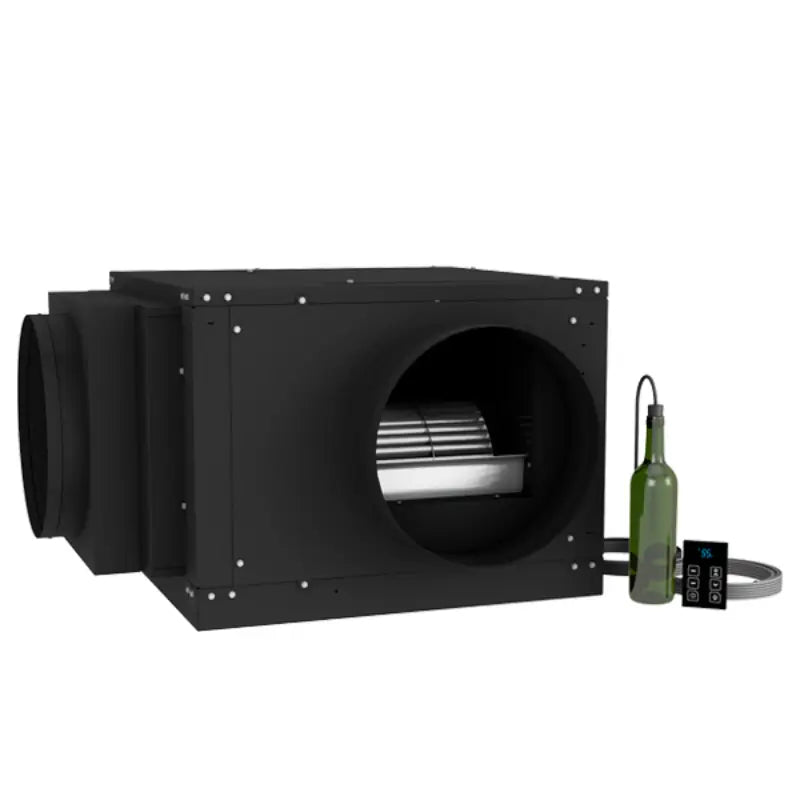

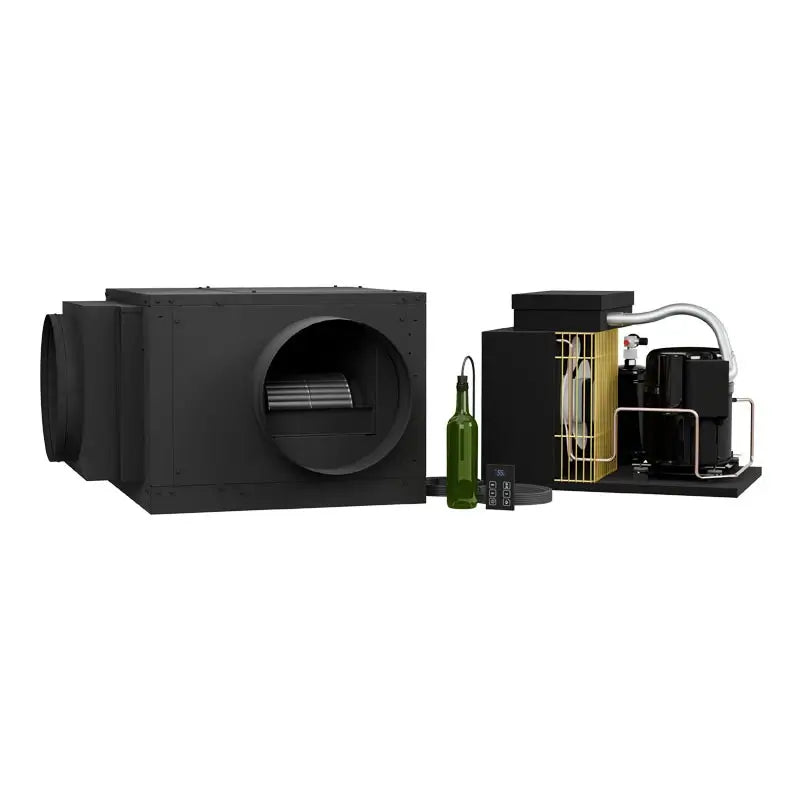

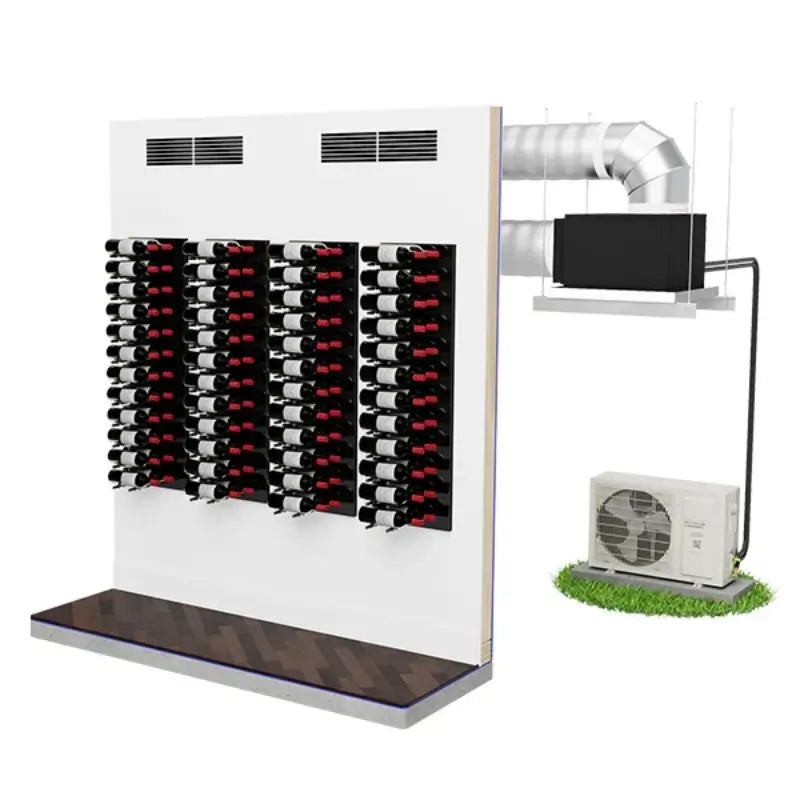

The Quantum SS12000 uses a ducted split-system configuration, separating the evaporator and condenser units. This allows the cooling equipment to be placed outside the cellar while delivering conditioned air through ductwork.
Quiet Wine Cellar Operation
Because the compressor and condenser can be installed remotely, the cooling system produces significantly less noise inside the cellar compared with self-contained cooling units.
Advanced Digital Controller

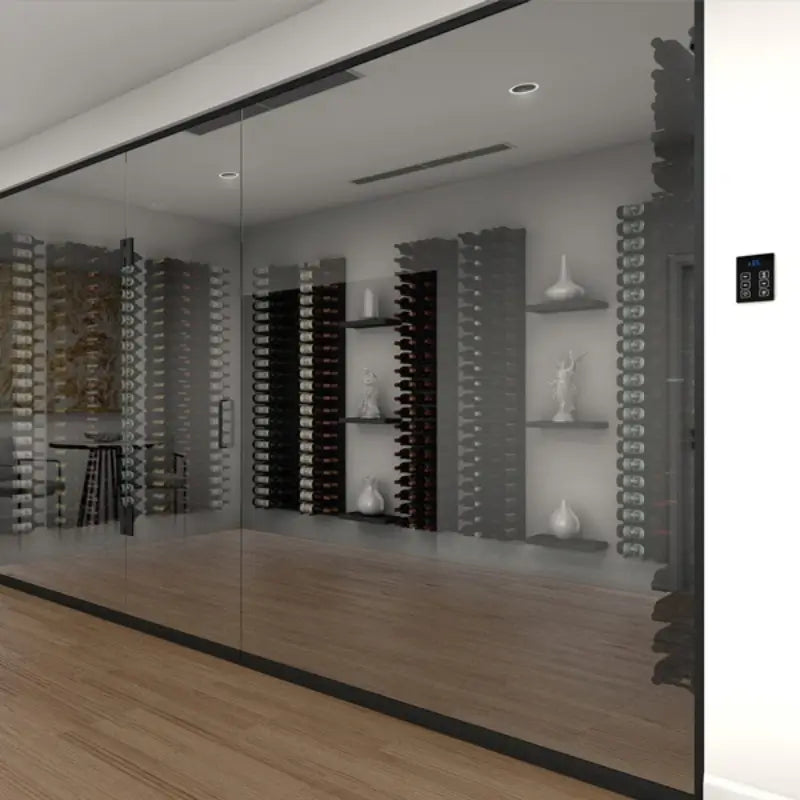

The system includes a digital control display with a 50-foot cable, allowing the controller to be mounted outside the cellar for convenient monitoring and adjustments.
Liquid Bottle Temperature Probe
The bottle probe measures the temperature of the wine itself rather than the air in the cellar, providing more accurate control of wine storage conditions.
Corrosion-Resistant Electro-Fin Coils
Electro-fin coated coils help protect the system from corrosion, extending the life of the cooling unit in humid or coastal environments.
High Ambient Temperature Performance
The Quantum SS12000 is engineered to maintain proper cellar temperatures even when condenser air intake temperatures reach up to 120°F.
Cooling Capacity
The WhisperKOOL Quantum SS12000 is designed for wine cellars up to:
4,000 cubic feet
Cooling performance varies depending on condenser air intake temperature.
Condenser Air Intake Temperature
Sensible BTU/h
Total BTU/h
60°F
12,147
14,576
75°F
12,187
14,256
85°F
11,704
13,844
Cooling capacities are approximated for wine cellars that are fully insulated and sealed with a proper vapor barrier. Heat load calculations should always be performed before selecting a cooling system.
Technical Specifications
Specification
Details
Recommended Cellar Size
Up to 4,000 cu. ft.
Refrigerant
R-134a
Compressor
1.5 HP
Evaporator Voltage
120V (15-amp dedicated circuit required)

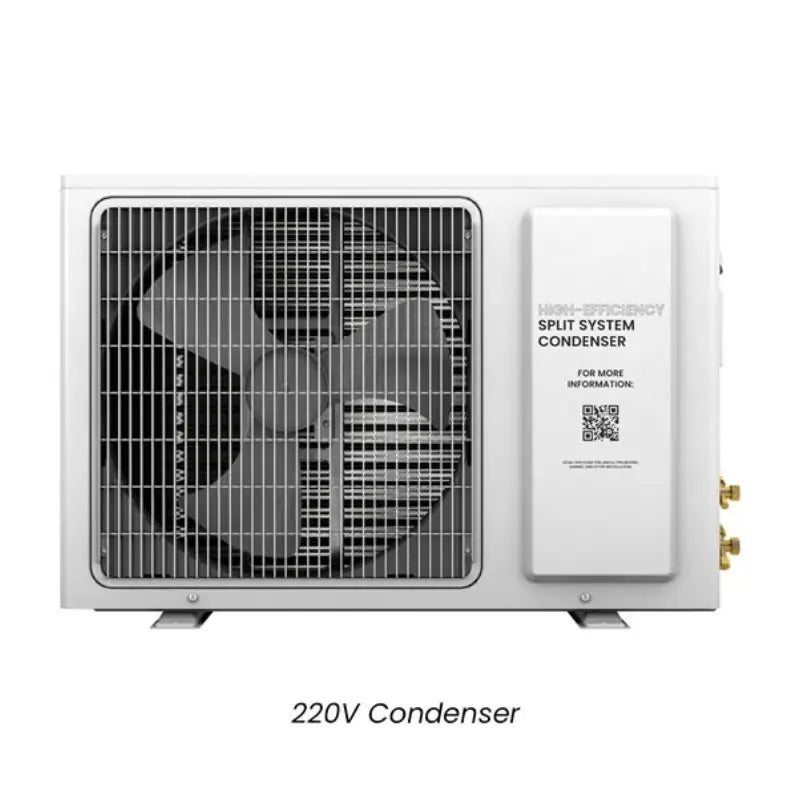

Condenser Voltage
220V (15-amp dedicated circuit required)
Evaporator Dimensions
29.5” L × 30.9” W × 19.8” H
Condenser Dimensions
31.18” L × 10.75” W × 21.18” H
Evaporator Weight
96 lbs
Condenser Weight
84 lbs
Maximum Line Set Distance
100 ft
Liquid Line Size
3/8” OD
Suction Line Size
5/8” OD (<50 ft), 3/4” OD (>50 ft)
Drain Line
3/4” CPVC/PVC
Supply Duct
14”
Return Duct
14”
Maximum Duct Length
Up to 35 ft per duct
Manuals for WhisperKOOL Quantum SS12000 Ducted Split:
The Quantum SS12000 is a split-system wine cellar cooling unit designed for professional installation.
Key installation requirements include:
Proper wine cellar insulation
Vapor barrier installation
Correct heat load calculations
Dedicated electrical circuits
Proper duct sizing and airflow

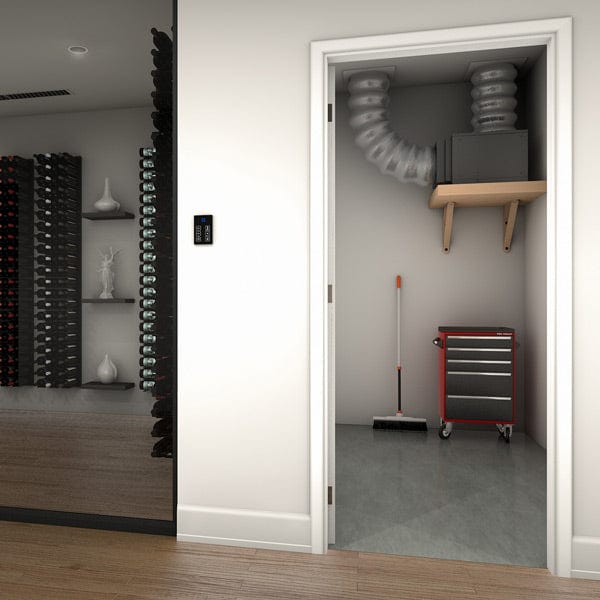

Equipment Placement

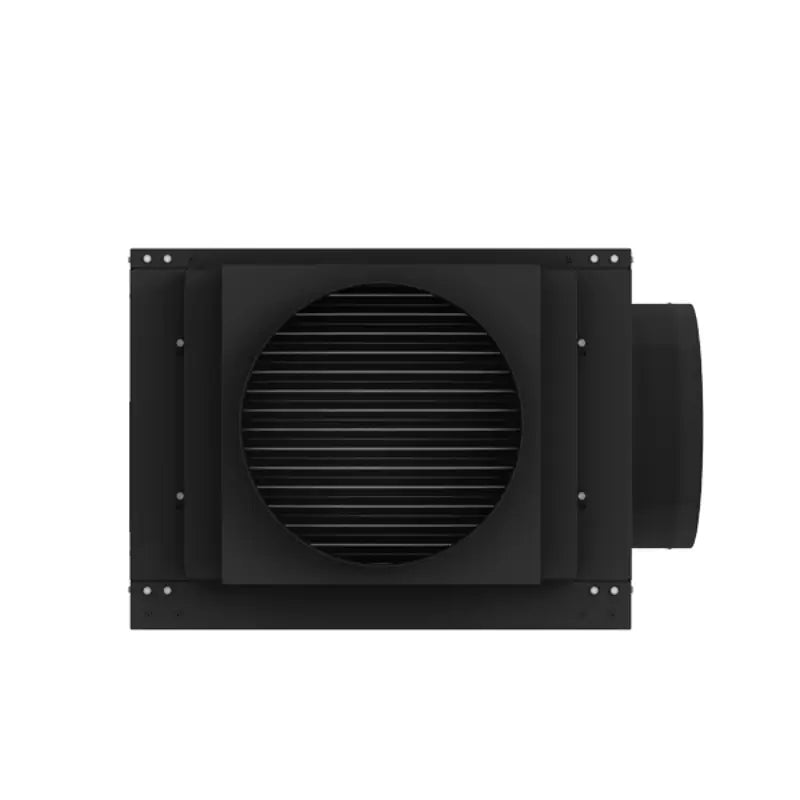

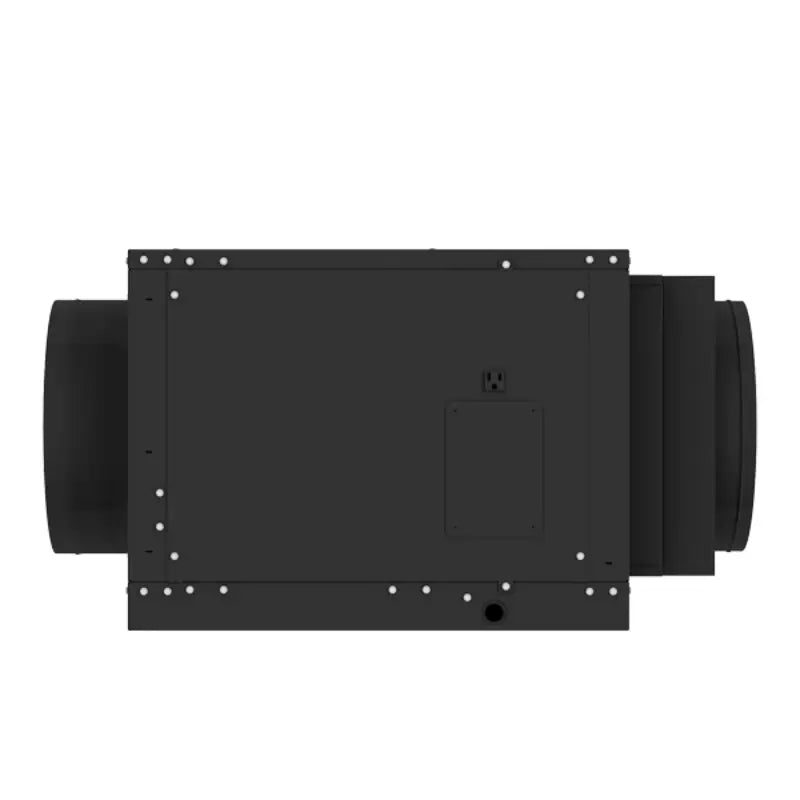

The evaporator unit is installed inside the wine cellar

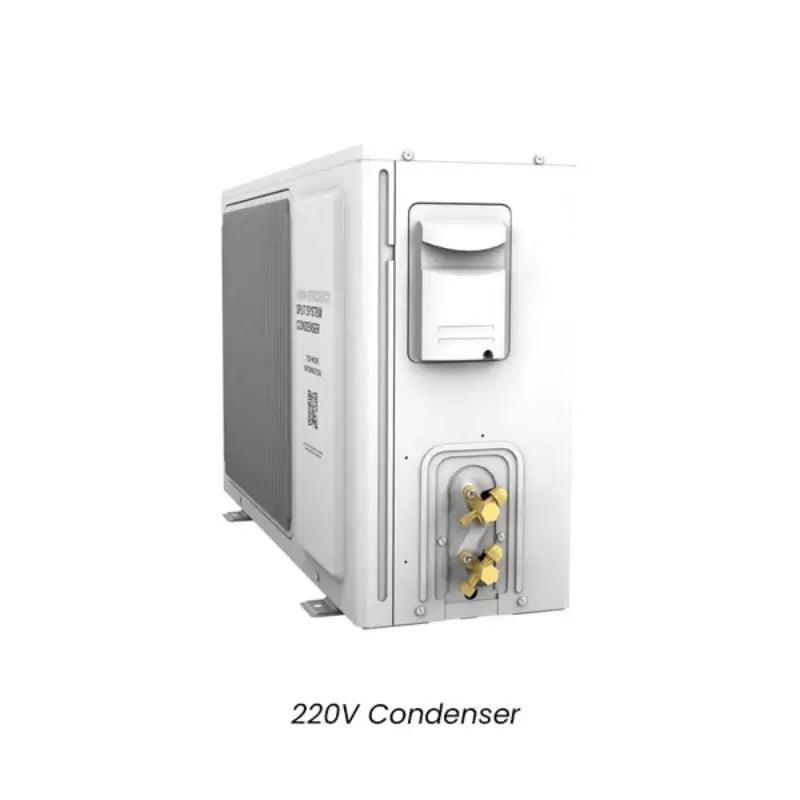

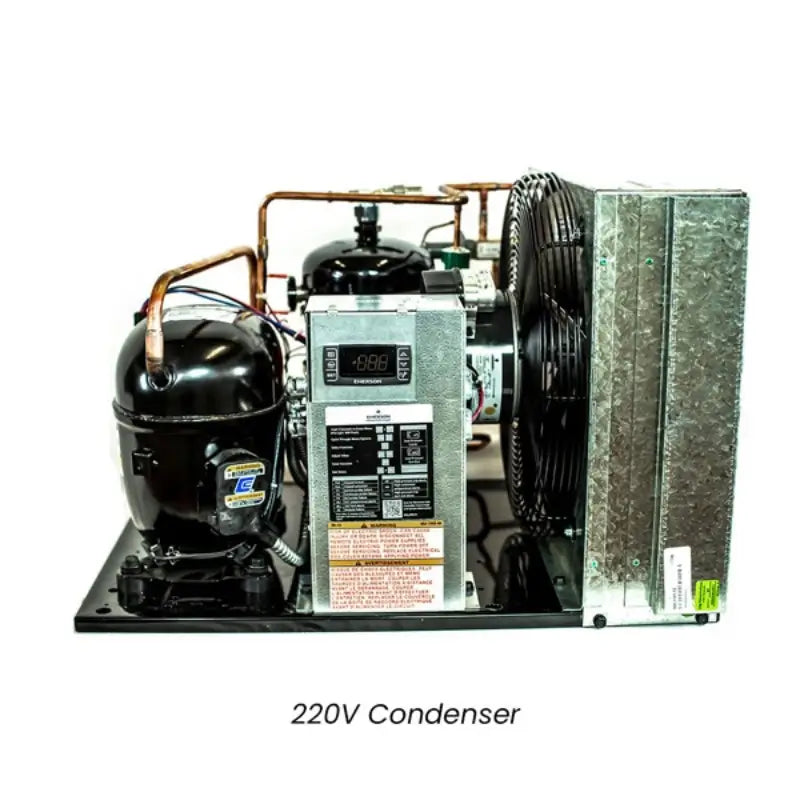

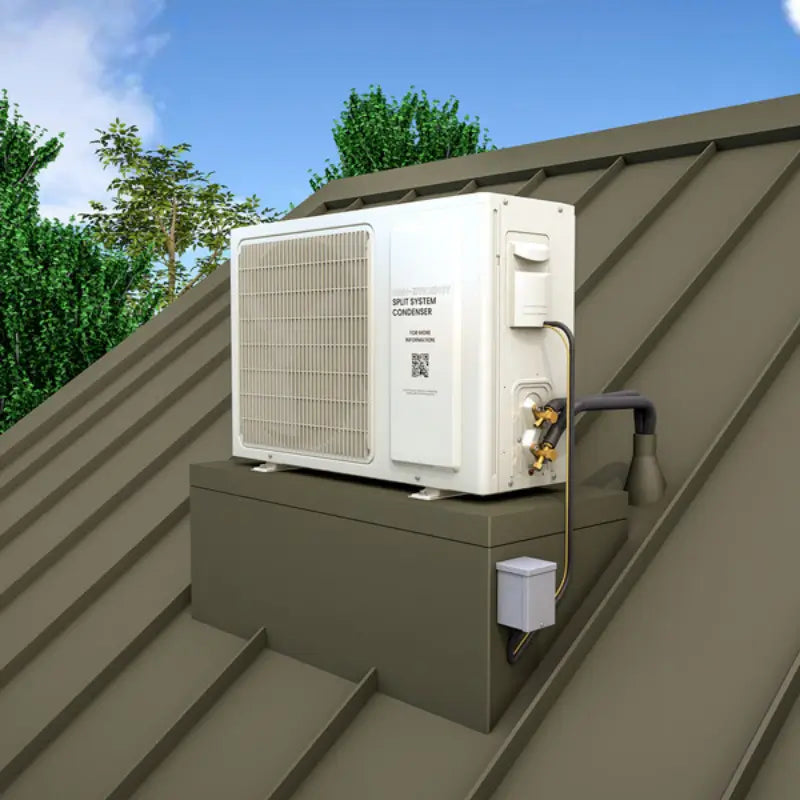

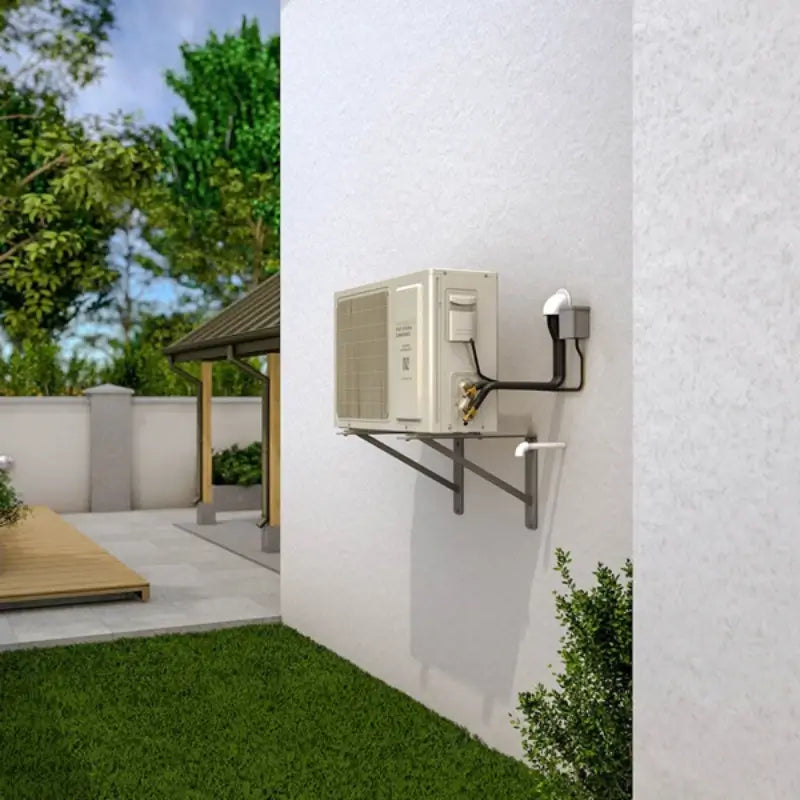

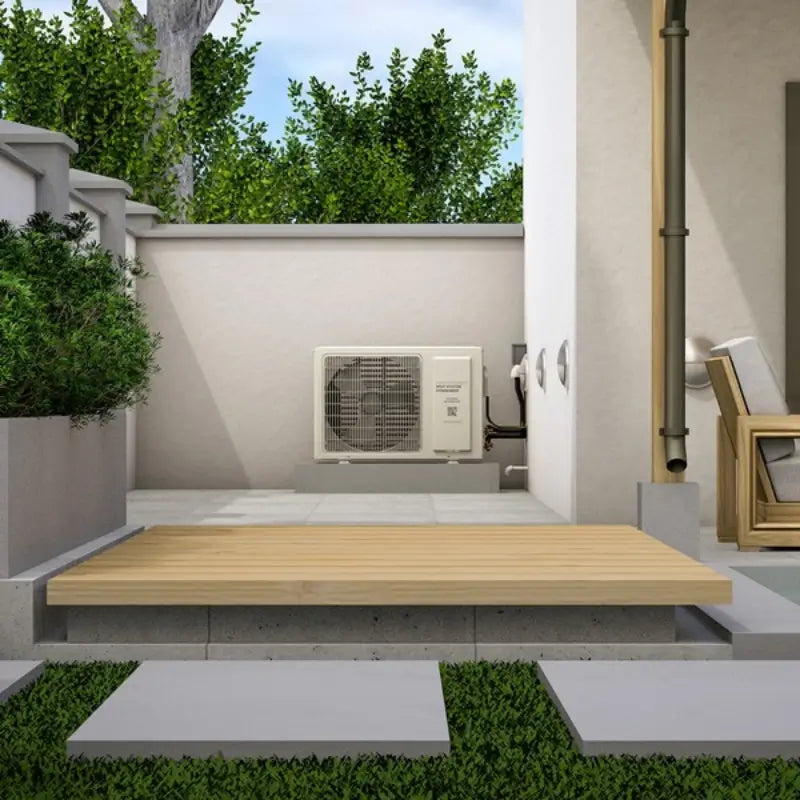

The condenser unit is installed remotely, either outdoors or in a mechanical room
Units are connected using a refrigerant line set
Important: Split-system cooling units must be installed by a licensed HVAC/R technician. Failure to follow proper installation requirements may void the manufacturer warranty.
Temperature Performance
The Quantum SS12000 is designed to maintain a wine cellar temperature of approximately 55°F under demanding conditions.
The system can operate effectively even when condenser air intake temperatures reach up to 120°F, making it suitable for warm climates or exterior condenser installations.
Pros and Cons
Advantages
High cooling capacity for large wine cellars
Quiet cellar operation
Flexible ducted installation
Remote condenser placement
Professional-grade cooling performance
Considerations
Requires professional HVAC installation
Installation costs are higher than self-contained units
Requires space for ducting and line sets
Optional Accessories
Several accessories are available to improve system performance and longevity.
Exterior Condenser Housing
Protects the outdoor condenser unit from weather exposure and environmental elements.
UV-C Lighting System
Helps reduce microbial growth inside the cooling system.
24V Thermostat Conversion Kit
Allows integration with compatible smart thermostats for remote monitoring and control.
Warranty
WhisperKOOL Quantum Series cooling systems include:
2-year limited manufacturer warranty
Up to 1 additional year grace period for installation
Coverage includes parts and labor
WhisperKOOL 24V Thermostat Conversion Kit Features & Benefits
Need Help Choosing the Right Cooling System?
Choosing the correct wine cellar cooling system depends on several factors:
cellar size
insulation quality
construction materials
ambient temperature
ducting layout
If you're unsure whether the WhisperKOOL Quantum SS12000 is the right solution for your cellar, our team can help evaluate your project and recommend the best cooling system for your space.
