WhisperKOOL Mini Ceiling Mount Ductless Split System - 220V H.E
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Call Us At 1 (888) 885-1670 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Is the WhisperKOOL Mini Ceiling Mount Right for Your Cellar?
The WhisperKOOL Mini Ceiling Mount is designed for properly insulated residential wine cellars up to 500 cubic feet. It is best suited for installations where wall space is limited and a split system is preferred to reduce in-cellar noise and vibration.
This unit requires:
R19 minimum wall insulation
R30 ceiling insulation
A continuous 6 mil vapor barrier
A sealed cellar door
A dedicated 15-amp electrical circuit
Professional HVAC installation
If these conditions are not met, cooling performance may decline and system lifespan may be reduced.
Fully insulated residential wine cellars under 500 cu. ft.
Ceiling installations where wall space is limited
Remote condenser placement (up to 100 ft away)
Homeowners seeking quieter split-system operation
Not Ideal For
Glass-heavy wine walls without load adjustments
Stone or concrete rooms without proper insulation
Commercial wine storage
Condenser environments exceeding 110°F intake air
Poorly sealed or improperly vapor-barriered rooms
If your cellar exceeds 500 cu. ft. or includes significant glass exposure, consider upgrading to a larger model such as the Ceiling Mount 4000.
How This System Works
The Mini Ceiling Mount is a split cooling system:

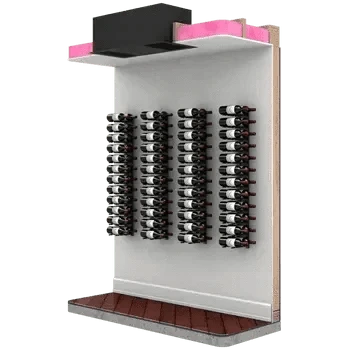

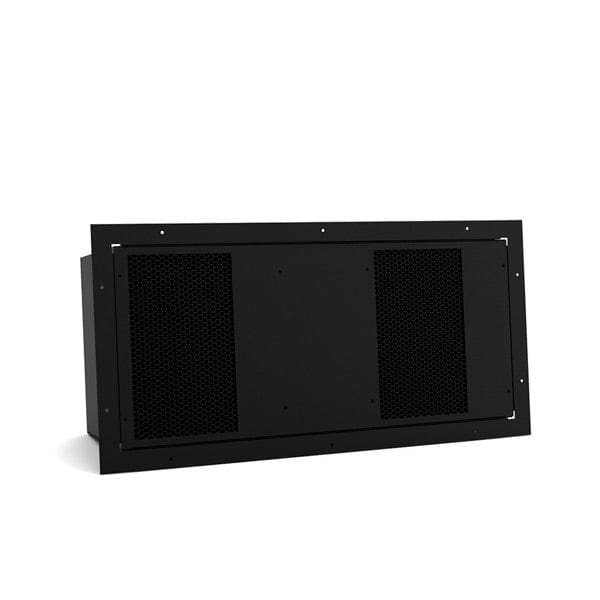

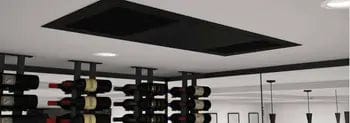

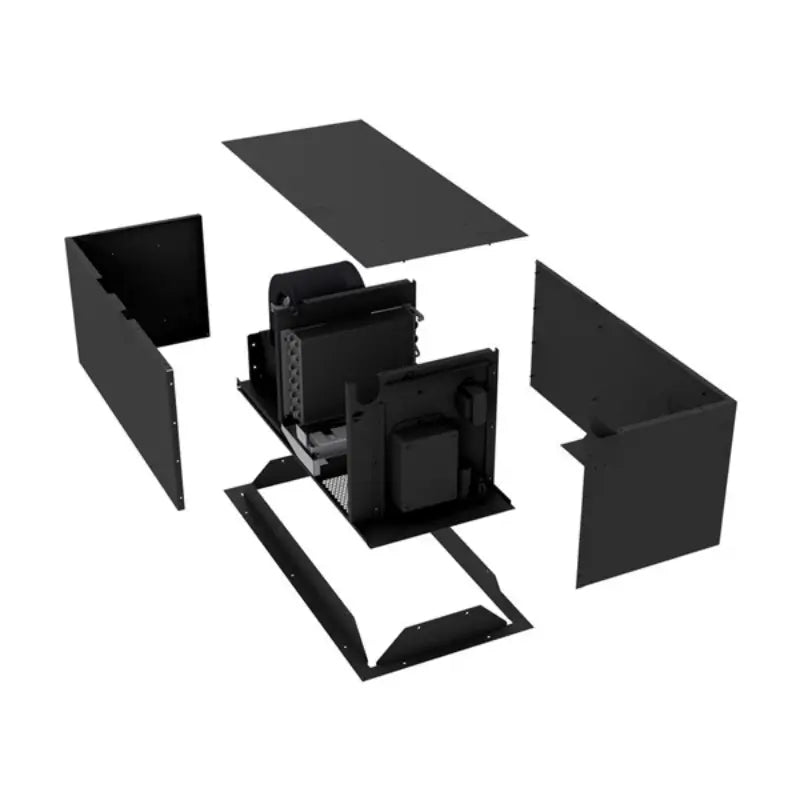

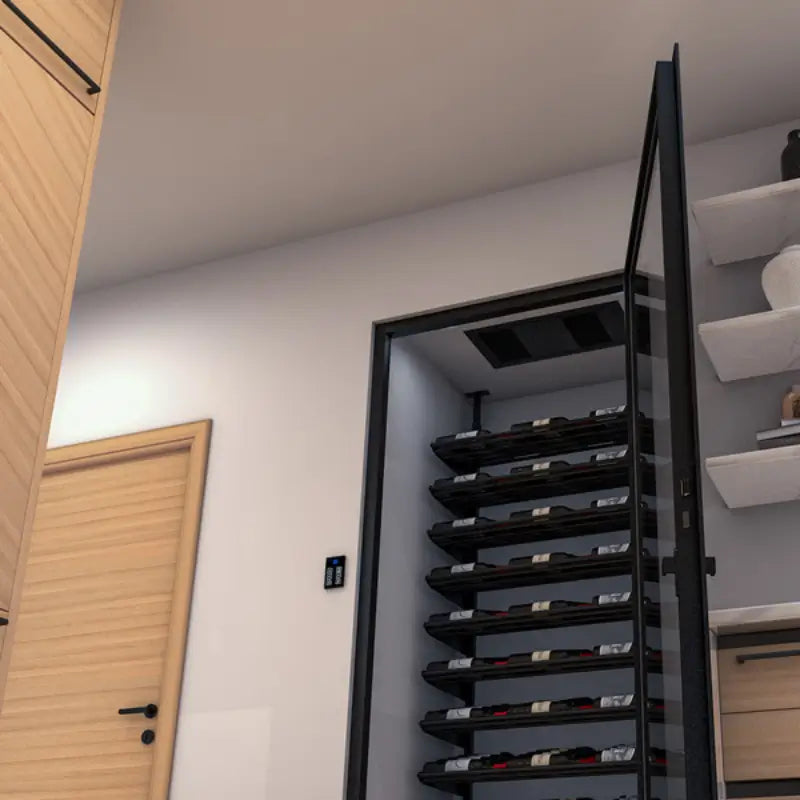

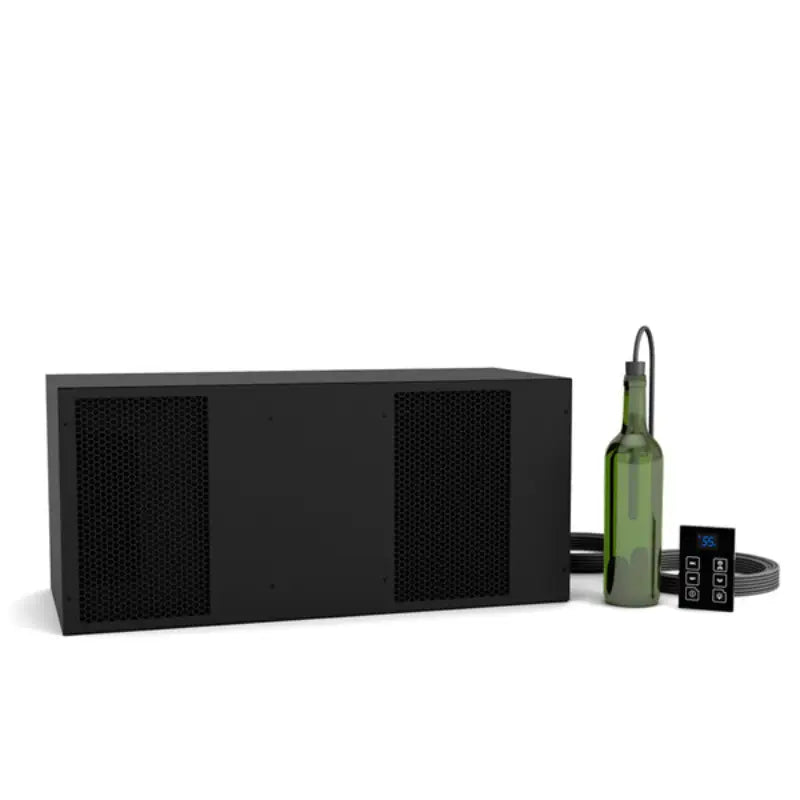

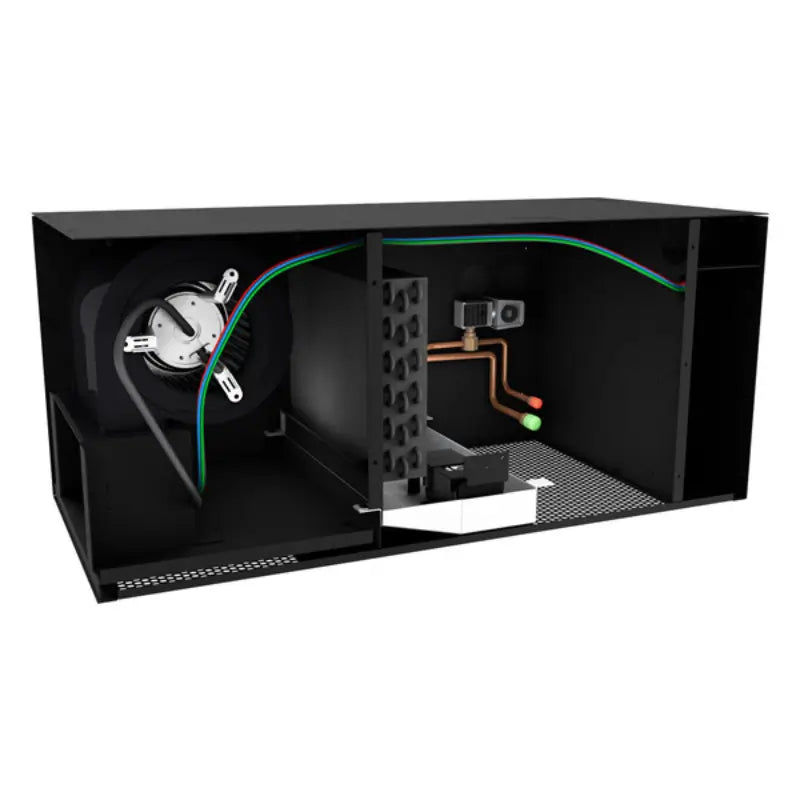

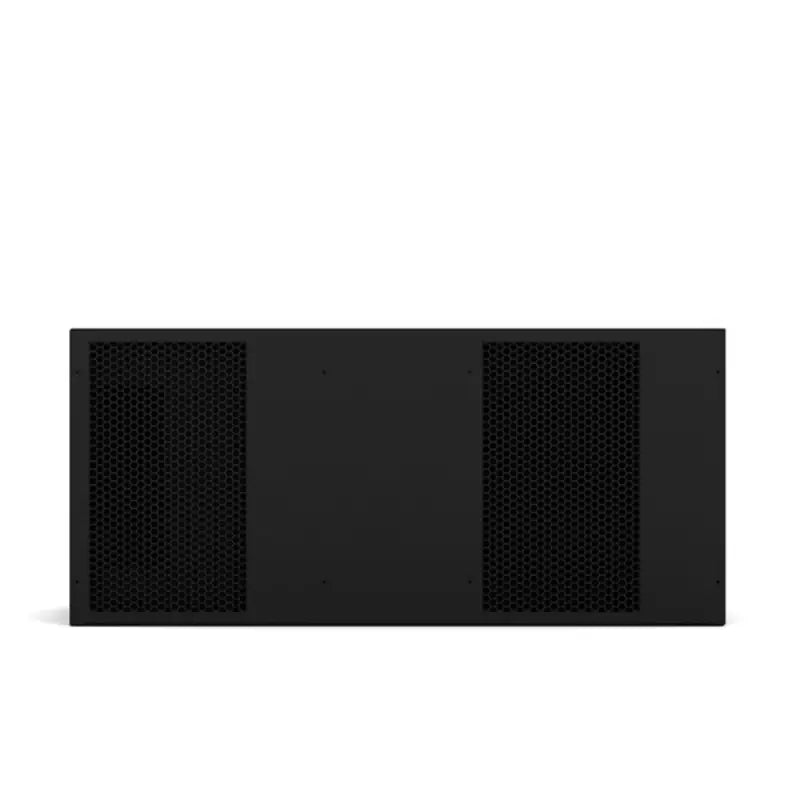

Evaporator (Fan Coil Unit) installs through the cellar ceiling

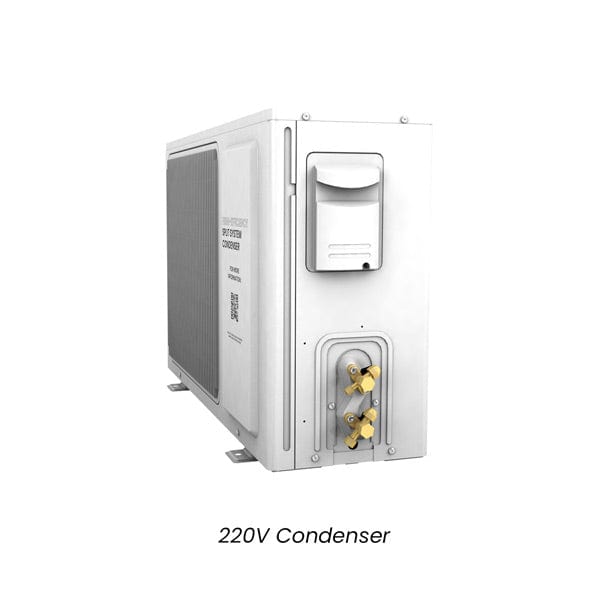

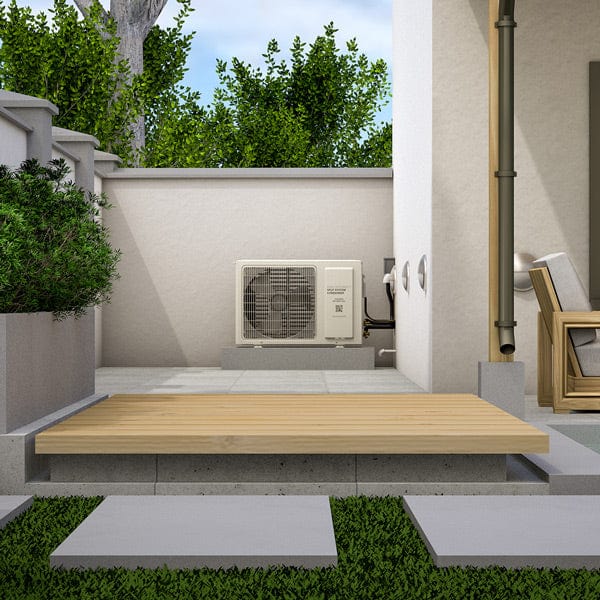

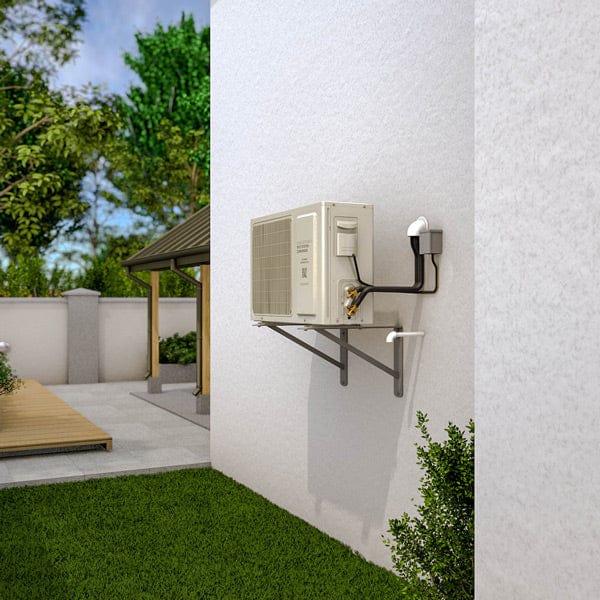

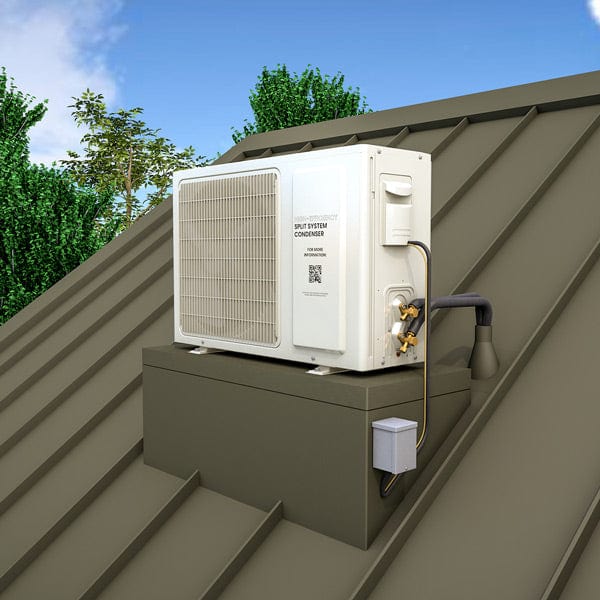

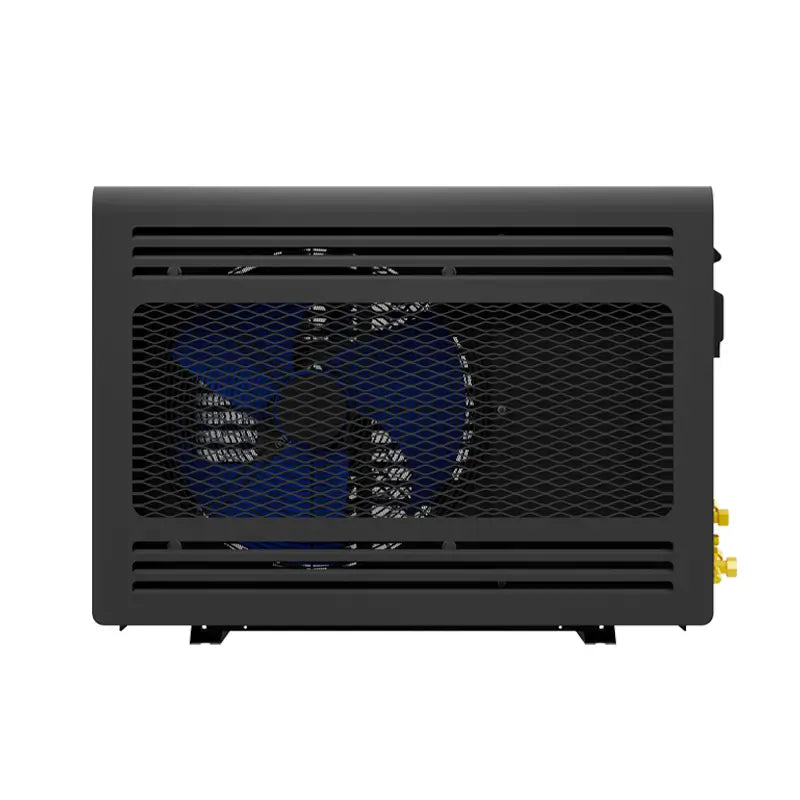

Condenser (Air-Cooled Unit) installs remotely (attic, mechanical room, or exterior with protective housing)
The system draws warm air from the ceiling, cools it, and redistributes conditioned air throughout the cellar. Because the compressor is located outside the cellar, vibration and operational noise inside the room are minimized.
Performance Capabilities & Limits
Designed to maintain 55°F cellar temperature
Performance rated at 2167 BTU/h at 85°F condenser intake temperature
Can operate with condenser intake air up to 110°F
Above 110°F intake temperature, cooling efficiency may decline. Installations in unconditioned garages or extreme desert climates may require a larger system.
Humidity is reduced during cooling cycles. This unit does not independently control humidity.
Technical Specifications
Cooling Capacity
2167 BTU/h (at 85°F condenser intake air temperature)
BTU output assumes a fully insulated, sealed cellar. Glass, exterior walls, or inadequate insulation increase heat load.
Maximum Cellar Size
Up to 500 cubic feet
Sizing assumes:
R19 wall insulation
R30 ceiling insulation
Proper vapor barrier
Minimal glass exposure
Undersized systems may fail prematurely or struggle to reach set temperature.
Temperature Delta
Maintains 55°F cellar temperature with condenser intake air up to 110°F under proper insulation conditions.
Refrigerant
R-134a refrigerant Commonly used in wine cellar systems. Subject to environmental regulation changes over time.
Electrical Requirements
115V (15-amp dedicated circuit required) Sharing the circuit with other appliances may cause performance instability or breaker trips.
If your cellar includes large glass panels or exceeds 500 cubic feet, upgrading reduces strain and improves long-term reliability.
Installation Considerations
Most system failures result from:
Inadequate vapor barriers
Undersized equipment
Excessive condenser heat exposure
Shared electrical circuits
Improper line set sizing
Confirm insulation and vapor barrier integrity before selecting a cooling system.
Optional Accessories

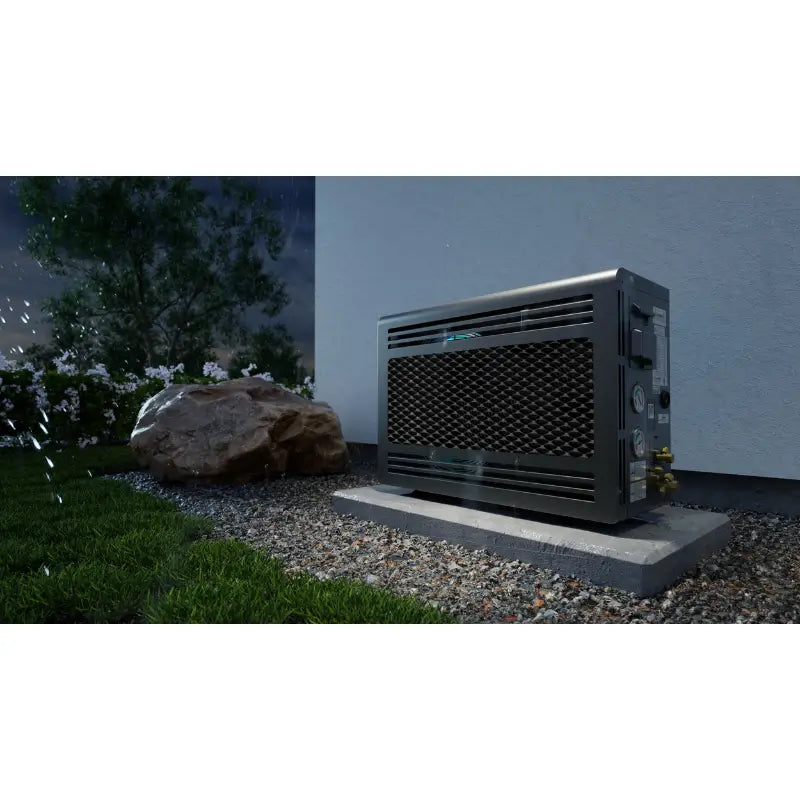

Exterior Protective Housing
Required for outdoor condenser installations. Protects from rain and environmental exposure.
Condenser Coil Coating
Recommended for coastal environments to protect against salt air corrosion.
24V Thermostat Conversion Kit (Optional)
Allows integration with compatible smart thermostats (thermostat not included).
Final Guidance
The WhisperKOOL Mini Ceiling Mount is a strong solution for small, properly insulated residential wine cellars where ceiling installation is preferred and condenser noise separation is desired.
Proper sizing and installation determine long-term reliability. When in doubt, verify insulation values and total heat load before selecting a system.
